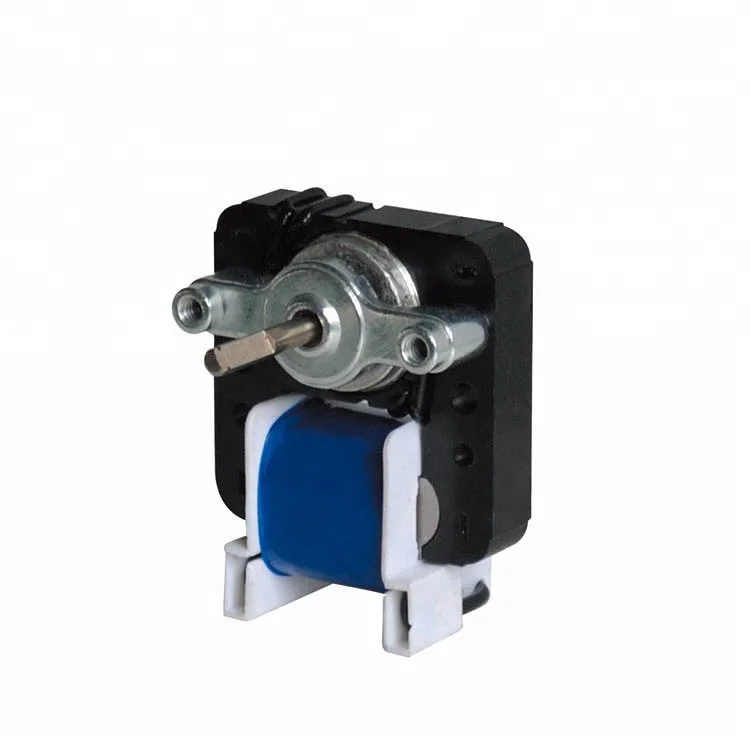

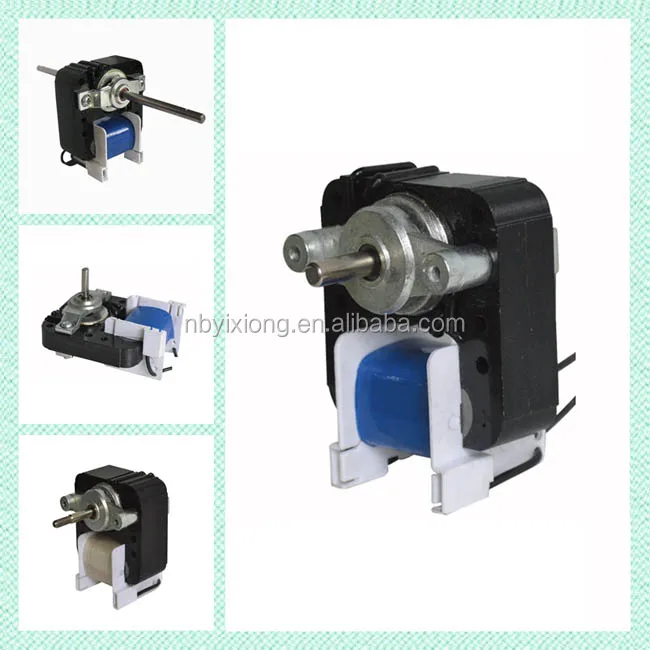

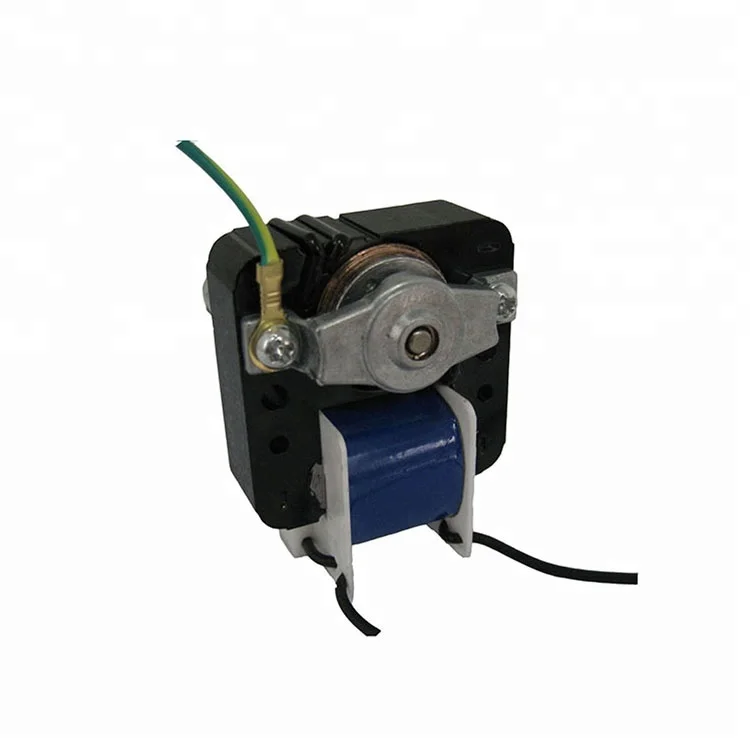

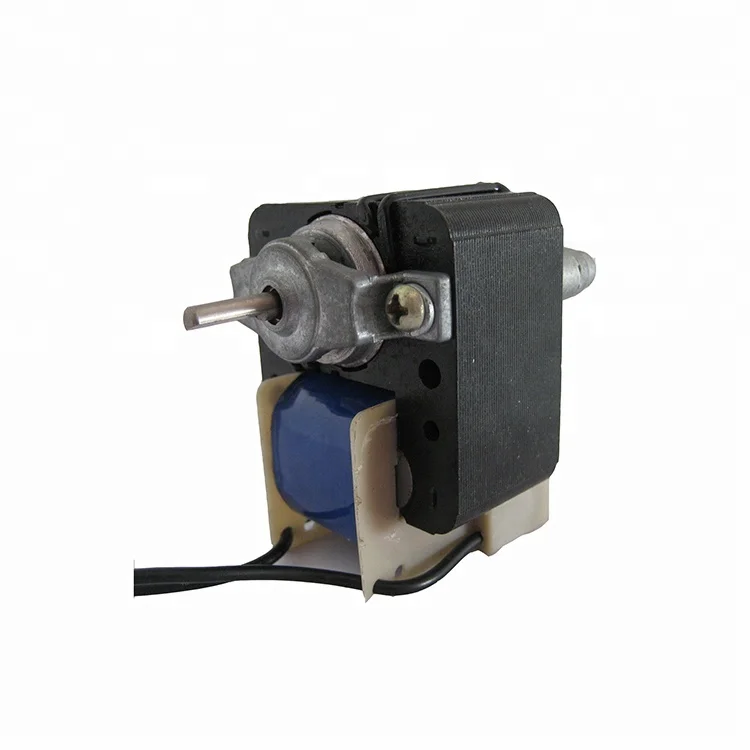

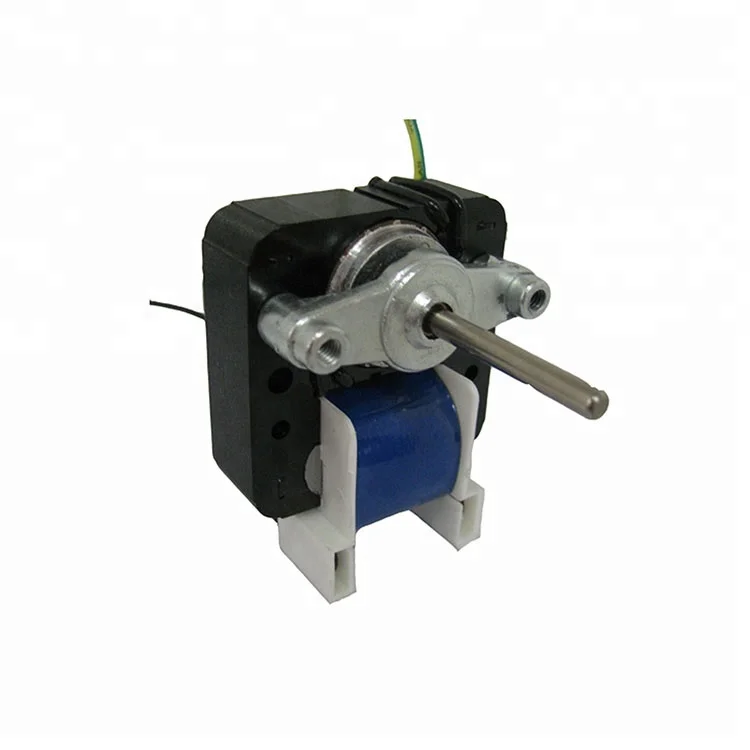

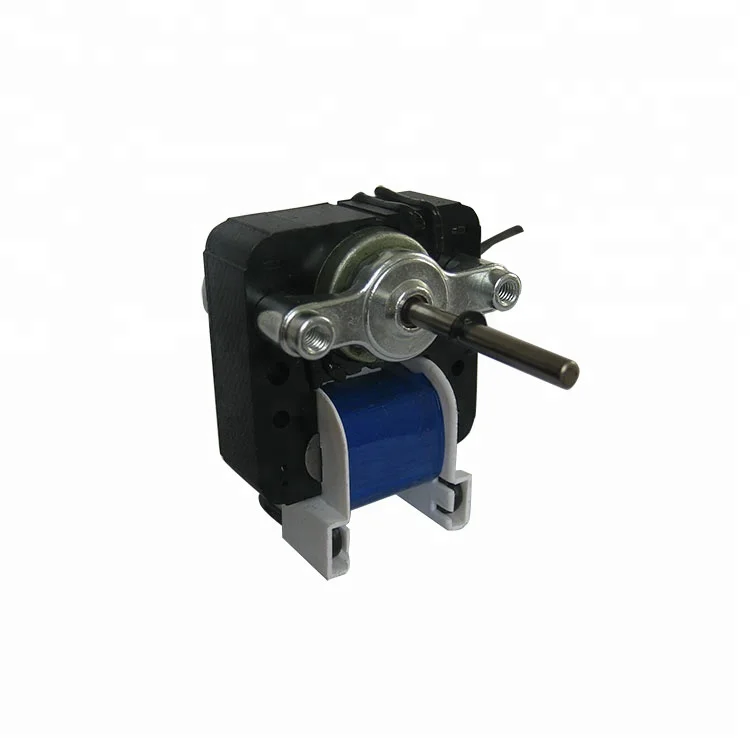

48 series heater fan shade pole fan motor
- Category: >>>
- Supplier: Zhejiang Yixiong M&E Manufacturing Co. Ltd. [Zhejiang China]Zhejiang
Share on (217475514):
Product Overview
Description
Product Description
Shade Fan Motor Technology Data
1. Voltage: 110-240V AC, 50/60Hz, or 110/220V 50Hz
2. Pole Number: 2 Pole
3. Rotation: CW or CCW
4. Class Insulation: A, E, B, F
5. peed No.1, 2 and 3 speed
7.Bearing:Sliding bearing and Ball bearing are both available
6. Motor size: 48x48x8mm,48x48x10mm,48x48x12mm,48 x48x15mm
48x48x20mm,48x48x25mm
7. Shaft Dia: 4mm, shaft length :as you request
8. Performance, it is adjust as your request
9. Exotherm :≤50k
10.Insulation resistance:cold≥50mΩ,hot≥20mΩ
11.Voltage resistance:1500V/0.5mA/min
Model
| Voltage (V AC) | Frequency (Hz) | Insulation Class | Speed level | Performance |
| YJ4810A | 110-120 V | 60 | E/F/H | Max 3 level | Power, current, speed etc can design and make as your request |
| YJ4810B | 220-240 V | 50 | E/F/H | Max 3 level | |
| YJ4812A | 110-120 V | 60 | E/F/H | Max 3 level | |
| YJ4812B | 220-240 V | 50 | E/F/H | Max 3 level | |
| YJ4815A | 110-120 V | 60 | E/F/H | Max 3 level | |
| YJ4815B | 220-240 V | 50 | E/F/H | Max 3 level |
Appliance:
1. Most used in small household, like microwave oven, freezer, small oven, heater fan, ventilation fan, desk fan,
exhaust fan, etc.
2. Some time, it was used in some machinary, like medical equipment, agricultural machinery, etc

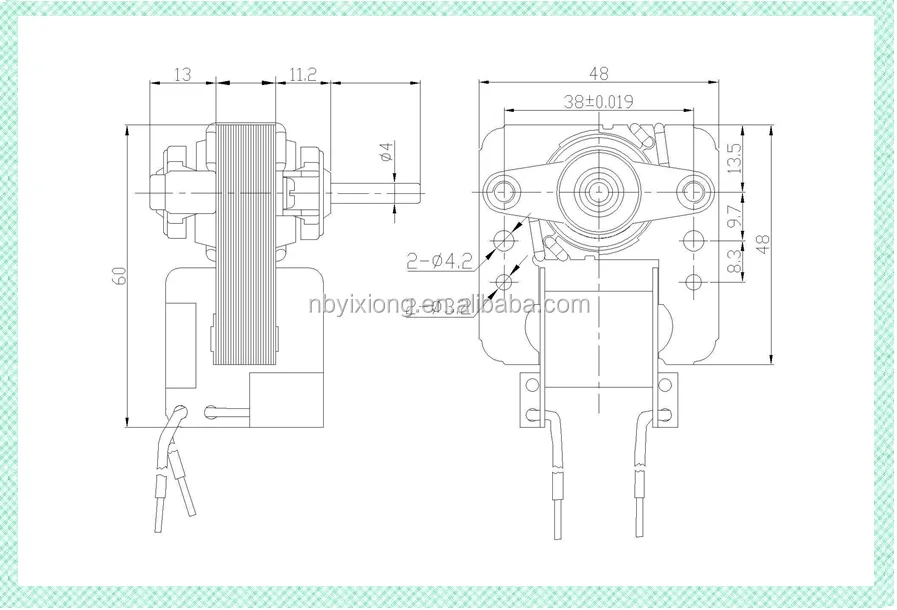

Drawing
Certificate:
Packaging & Shipping

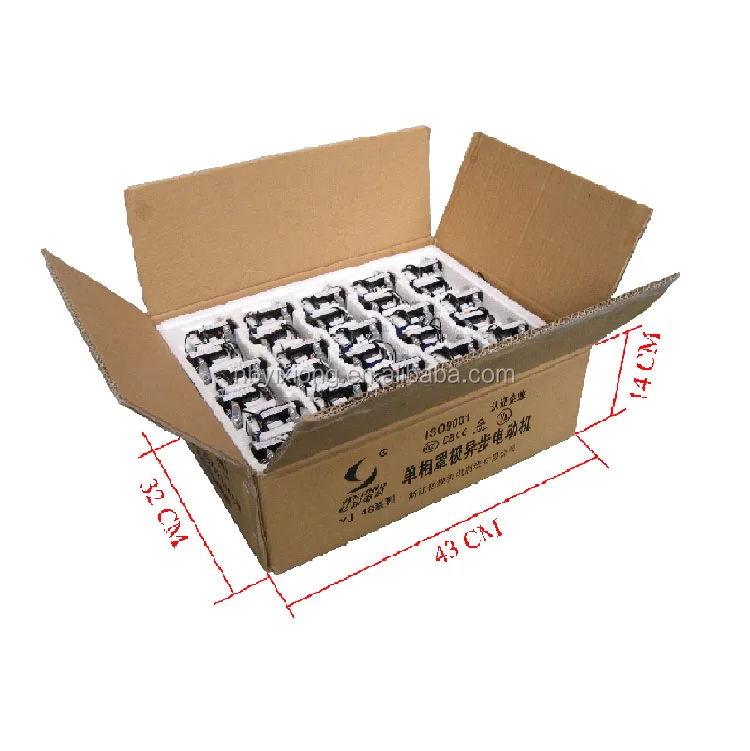

Packing
1.60pcs per carton
2.Carton was made by double wall corrugated board
3.Inner is Plastic foam bow and film
Our Services
Services
1. Microwave oven motor can be designed and produced as your requst,mean ODM can be done in our factory
2. Microwave oven motor can show your Brand, mean, we accept OEM order
