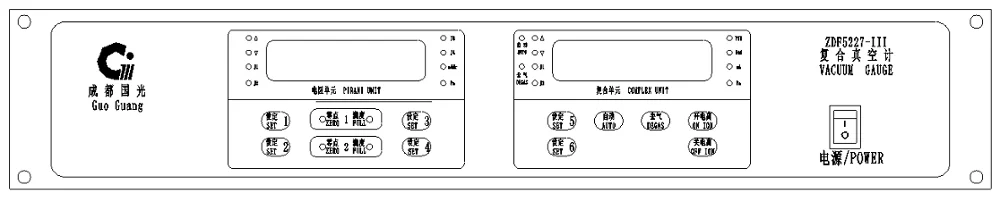

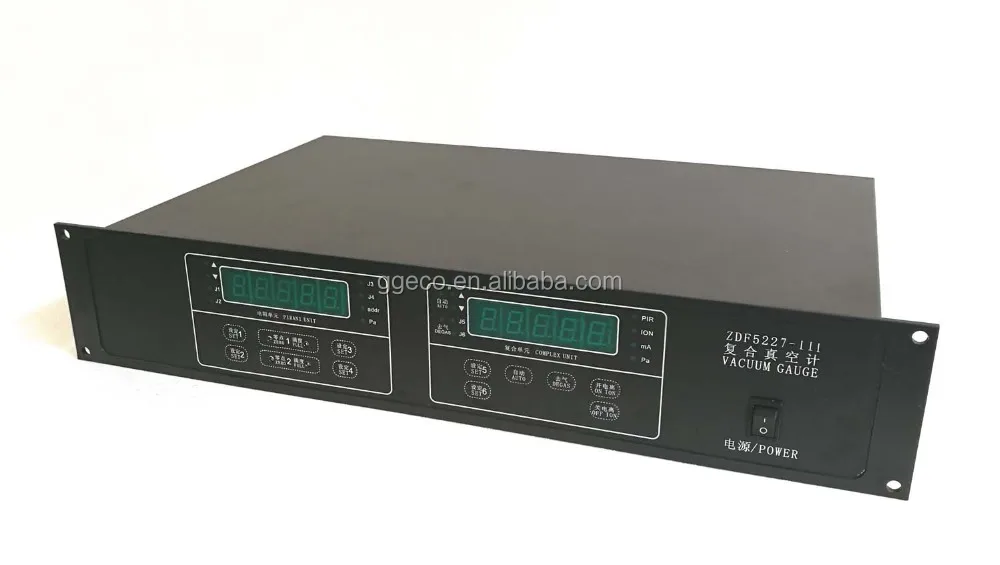

ZDF 5227 III Complex Vacuum Gauge

Product Overview

Description

Measurement Range:1.0x10⁵~1.0x10^-5pa

Gauge:ZJ-52,ZJ-27 (Can be choose interface)

Measurement channels: 3 channel

Display Mode: LED digital display

Power Supply: AC220V±10%50Hz

Rated power: 55W

Weight: ≤6KG

Case size: C

Control channels: 2 channels (can be extended)

Control range :1.0x10⁵~1.0x10^-5pa

Control mode:threshold or range

Rated Load of the control device:AC220V/3A noninductively load

Control Accuracy: ±1%

Reaction Times:< 1s

analogy output: 0~5V; 4~20mA (choose)

communication Interface:RS-232;RS-485(choose ).

Connect Pirani gauge cable ( 5-core plug) with the Pirani gauge socket on the back side of the device and tighten it. The other end of the cable (8-feet plug) connects with the 8-feet socket of the Pirani gauge.

Connect the ionization gauge cable (4-core plug) with the ionization gauge socket on the back side of the device and tighten it. The other end of the cable connects with the corresponding 8-feet socket. At the same time, connect the BNC cable with the BNC socket, and the other end is connected with the collector hat or the first feet outgoing line of the vacuum gauge.
