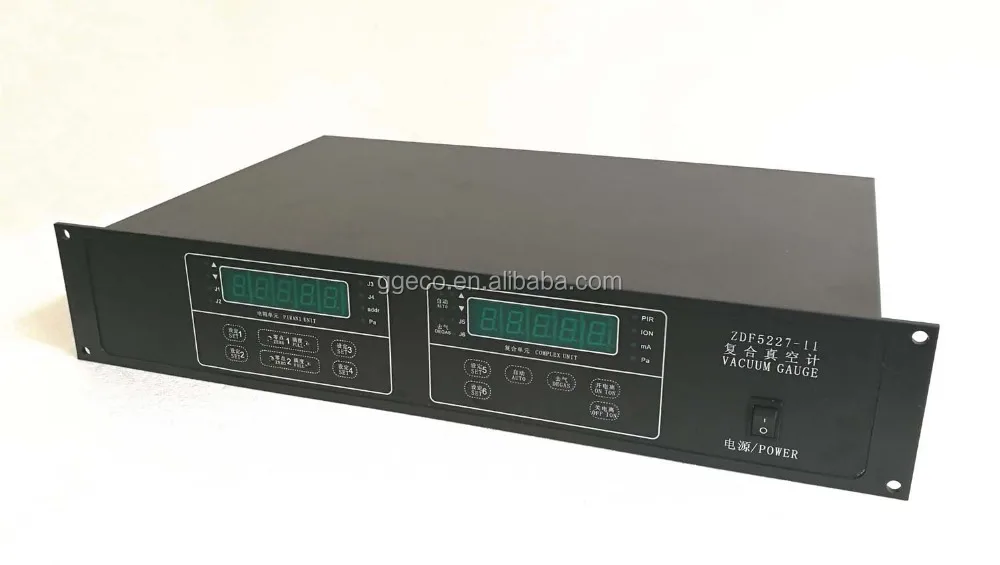

ZDF 5227 II Complex vacuum gauge (1.0x10E 5~1.0x10E 5 pa)

Product Overview

Description

 Brief Introduction

1.1 The apparatus

   ZDF-5227-II compound vacuum meter, which is composed by resistance meter and ionization meter (namely “resistance unit” and “ionization unit”), can test signs of the vacuum gauge with two circuits, and has four circuits control contact output. In the testing range, it can be point control and area control freely, and it is suitable to be used in testing and controlling the vacuum of wide measuring range.

   It adopts the most advanced microprocessor as its main machine, improving its reliability by decreasing external components. Its hardware employs the modular structure, EMI restraint and WATCHDOG circuit; while the software employs anti-interference technique, such as redundancy, trap, digital filtering and so on to improve its anti-interference ability and performance, which ensures the high reliability of the apparatus and its normal use in bad industrial environment.

1.2 Package Contents

   ZDF-5227-II compound vacuum gauge            one set

   ZDF-5227-II using pamphlet                           one book

   Certificate of inspection                                  one piece

   ZJ-52T resistance gauge tube (metal)             one piece

   ZJ-27B ionization gauge tube (glass)              one piece

   Five-core cable (5m)                                 one piece

   Four-core cable (5m)                                one piece

   Coaxial cable (5m)                                  one piece

   Power supply wire (1.5m)                            one piece



2. The Main Technical Parameters

1	Testing circuit quantity	Two circuits
2	Testing Range of resistance unit	1.0×105—1.0×10-1  (Pa)
3	Testing Range of ionization unit	1.0×10-1—1.0×10-5  (Pa)
4	Matching gauge of resistance unit	ZJ-52T (inserting metal gauge tube)
5	Matching gauge of ionization unit	ZJ-27B (glass gauge tube)
6	Ionization parameters of ionization unit	Voltage of Positive pole: 225±1V Emission current:1mA/100uA
7	Testing precision	±10%
8	Zero drift	±2%
9	Controlling range	1.0×105—1.0×10-5  (Pa)
10	Controlling method	Four circuits point control or area control
11	Controlling precision	±1%
12	Controlling time	< 1S
13	Output contend	3A/220VAC non-inductive load
14	Analog output	0-5V/4-20mA (optional)
15	Power supply	AC 220V/50Hz ±10%
16	Environmental temperature	-10°C--45°C
17	Environmental Humidity	< 85%(25°C)
18	Rated consumed power	35W
19	Net weight of the apparatus	3.5Kg around
