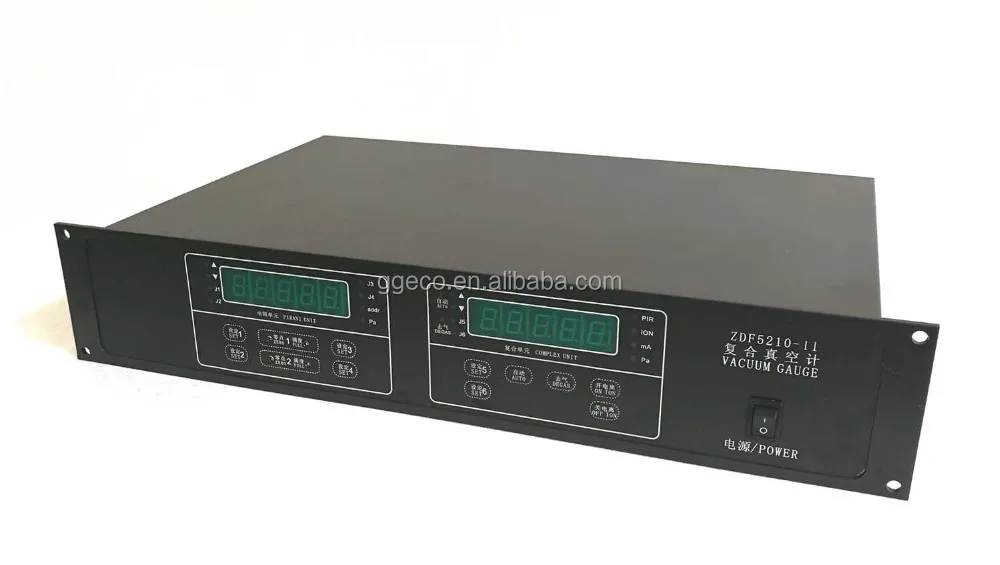

ZDF 5210 II Complex Vacuum Gauge

The composite vacuum gauge adopts a special stabilization process, and uses a metal wire with a very small heat capacity as the resistance gauge of the vacuum sensitive element, thereby reducing the drift of zero and fullness to a greater extent.
Adopt special constant temperature working mode, make its resistance unit have wider measurement range and faster response time.
High-stability, high-performance DC high-voltage regulator circuit is used to ensure the stable high-voltage operation required by the hot cathode ionization gauge.

Measurement Range:1.0x10⁵~1.0x10^-4pa

Gauge:ZJ-52,ZJ-10 (Can be choose interface)

Measurement channels:1 channel

Display Mode: LED digital display

Power Supply: AC220V±10%50Hz

Rated power: 55W

Weight: ≤6KG

Case size: C

Control channels: 2 channels(can be extended)

Control range: 1.0x10⁵~1.0x10^-4pa

Control mode:t hreshold or range

Rated Load of the control device: AC220V/3A noninductively load

Control Accuracy: ±1%

Reaction Times: <1s

analogy output: 0~5V; 4~20mA (choose)

communication Interface: RS-232; RS-485(choose )
