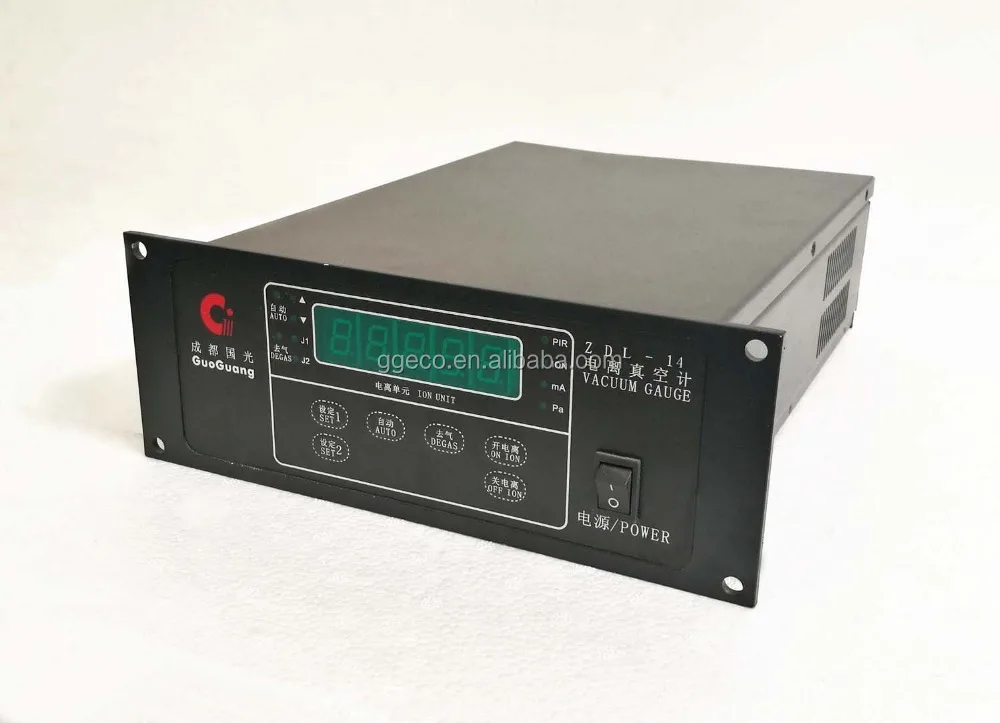

ZDL 14C cold cathode ionization vacuum gauge

Measurement Range:1.0x10^-0~1.0x10^-4pa

Gauge:MO14C (Can be choose for the interface)

Measurement channels:1 channel

Display Mode:LED digital display

Power Supply:AC220V±10%50Hz

Rated power:30W

Weight:≤5KG

Case size:B

Control channels:2 channels(can be extended)

Control range :1.0x10^-0~1.0x10^-4pa

Control mode:threshold or range

Rated Load of the control device:AC220V/3A noninductively load

Control Accuracy:±1%

Reaction Times:<1s

analogy output:0~5V;4~20mA(choose)

communication Interface:RS-232;RS-485(choose )
