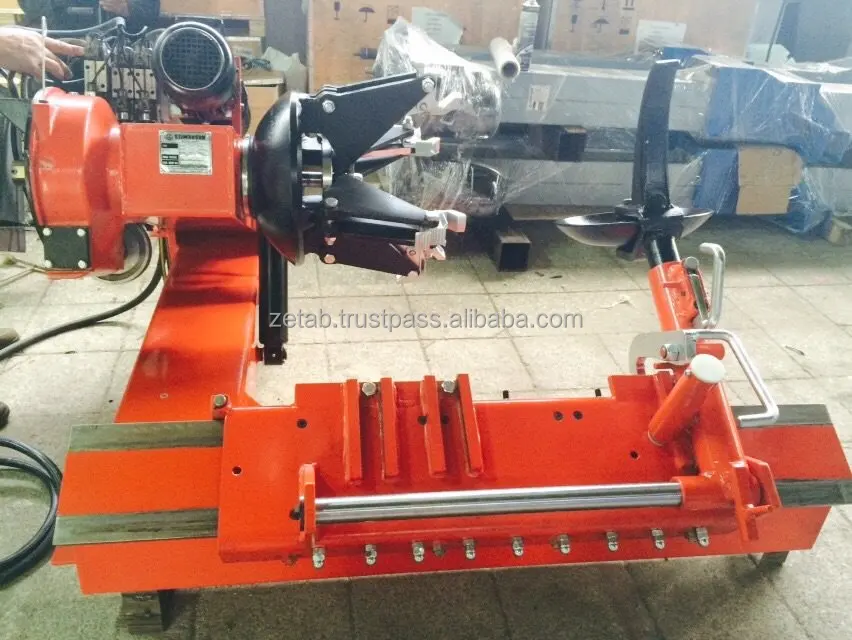

ETIMAKSAN TRUCK TYRE CHANGER

Product Overview

Description





Max. Wheel diameter         1500 mm [ 59" ]
Max. Wheel width               700  mm  [ 27" ]
Max. Wheel weight             1200 Kg
Bead-breaker force            1500 Nm
Minimum Rim diameter       14"
Maximum Rim diameter       28"
Operating Pressure            120 -150 bar
Hydraulic Motor power        1,5Kw /2Hp , 380V  - [ 24 V ]
Gear Box                            1,8Kw /2,5Hp, 380V  - [ 24 V ]
Net Weight                          630 kg.
Width – Length – Height     1470 x 1800 x 750 mm (59" x 72" x 30" )
Case Size                           1550 x 2000 x  800mm (61" x 79" x 31" )
