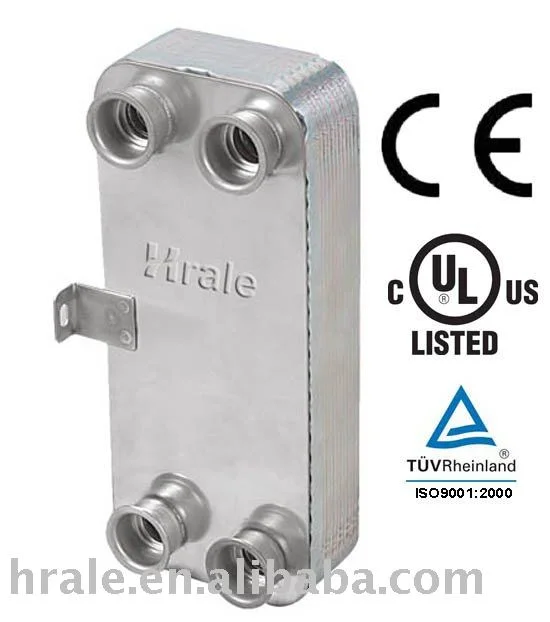

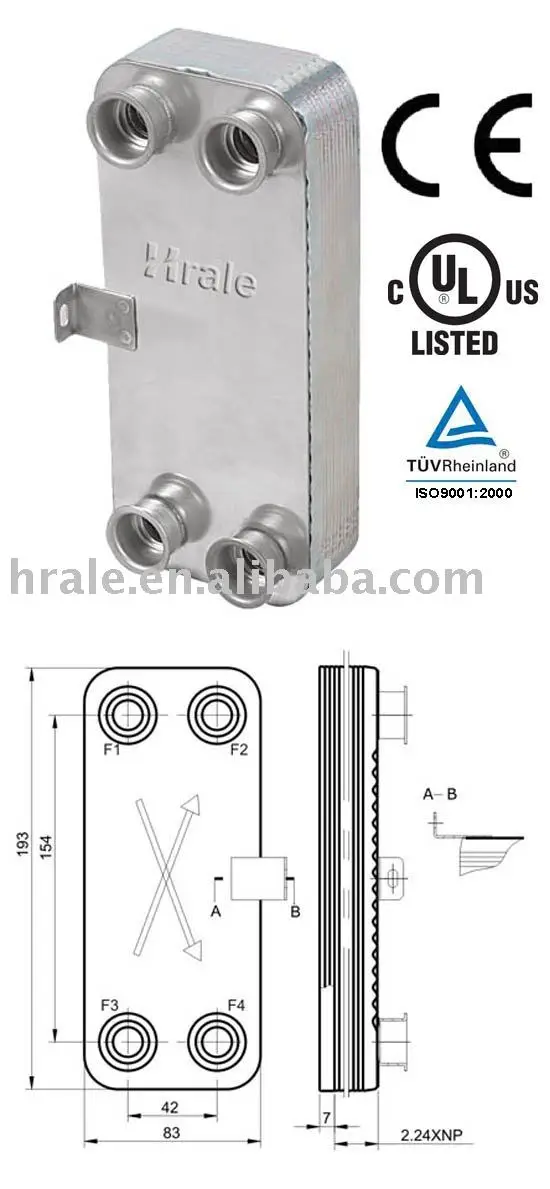

Factory sale Small Brazed Plate Heat Exchanger

Product name

Brazed Plate Heat Exchanger,plate type heat exchanger,Soldering plate heat exchanger,CE, UL, TUV,ISO9001:2000

Product model

B3-14B

Unite heat exchanging area

0.014m2

Maximum flowrate

4m3/h

Plate material

316L or 304 stainless steel

Welding material

99.9% copper

Thickness of plate

0.3mm

Volume per channel

0.03L

Maximum number of plate

60

Design pressure

1.5MPa or 3.0MPa

Test pressure

2.0 MPa or 4.0MPa

Design temperature

-195 ~+220

Connections

the biggest screw thread pipe for water:3/4" the biggest welded pipe for other fluid: 7/8"

Refrigeration Capacity

1-6KW

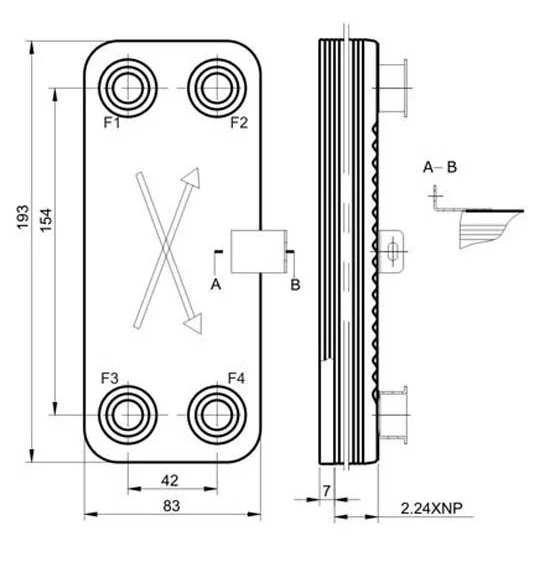

Basic Procedures

F1-> F4, F3-> F2

Application scope

The wall heater, heats the water heater, the cold temperature testequipment, the small refrigeration equipment and so on.

Model B is developed by Hrale for special occasions. The diagonal channels enable a full use of the dead angles of the plate heat
exchanger. Even side laid, the exchanger can still work normally.
