SKYTEAM E4 Monkey Bike dax bike Dirt Bike 50cc (EEC EURO4 APPROVED)
- Category: Other Motorcycles >>>
- Supplier: Jiangsu Sacin Motorcycle Co. Ltd.
Share on (219383904):
Product Overview
Description

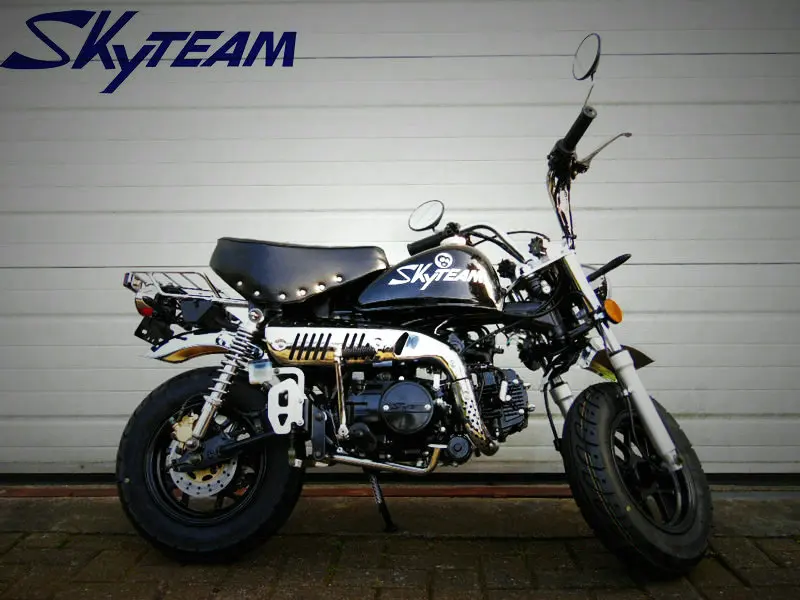

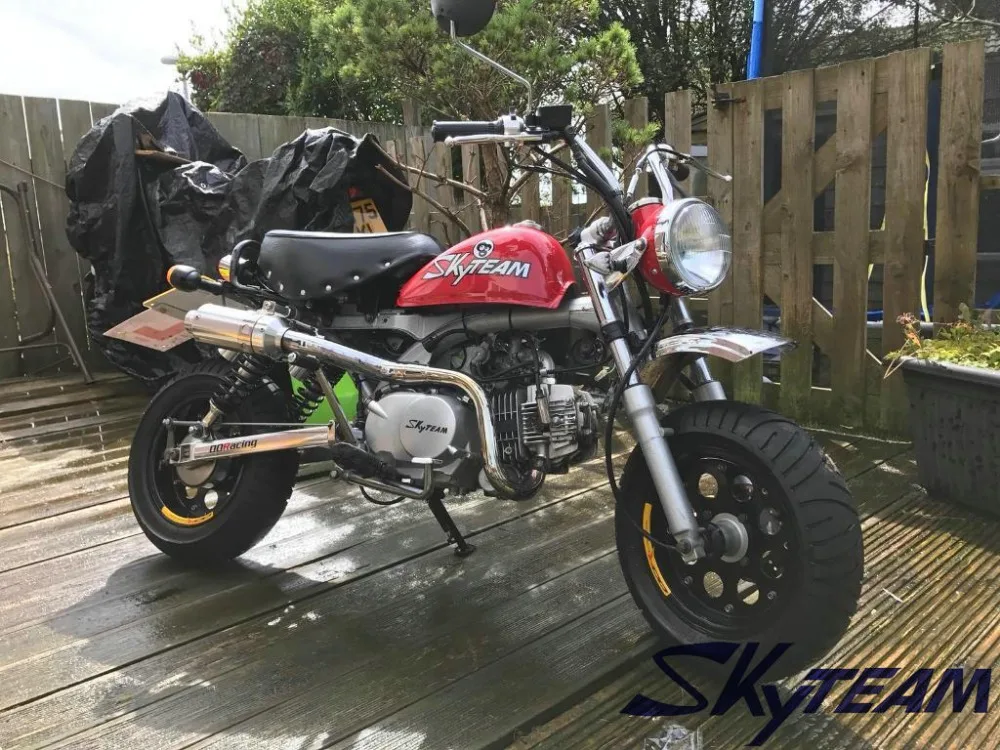

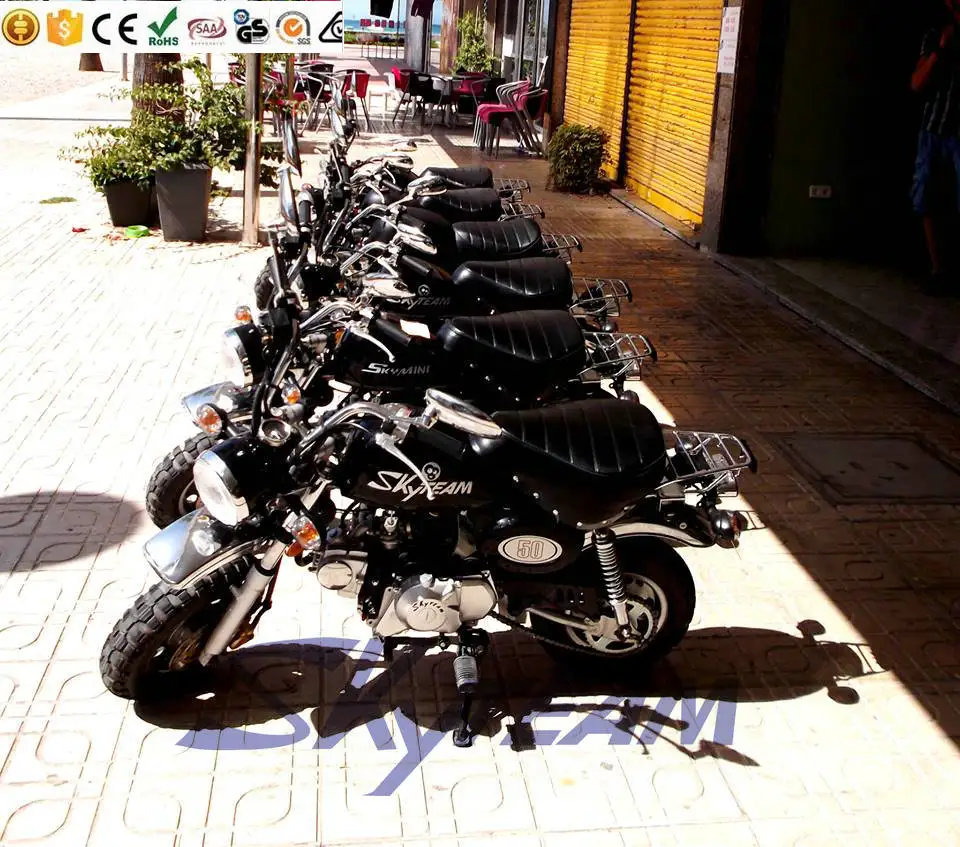

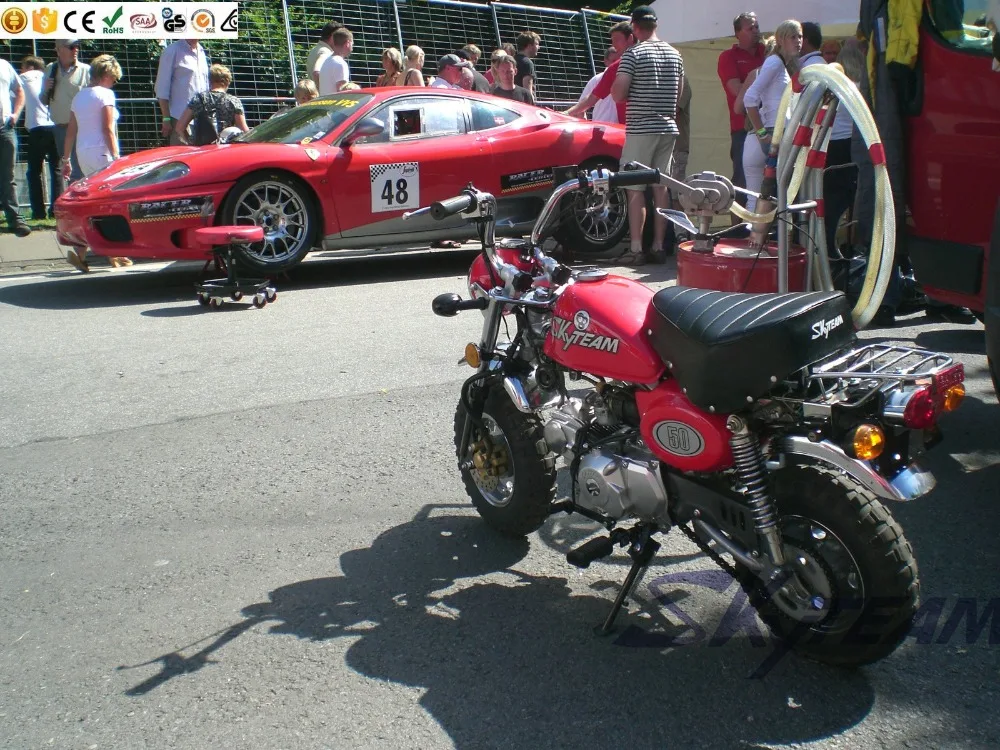

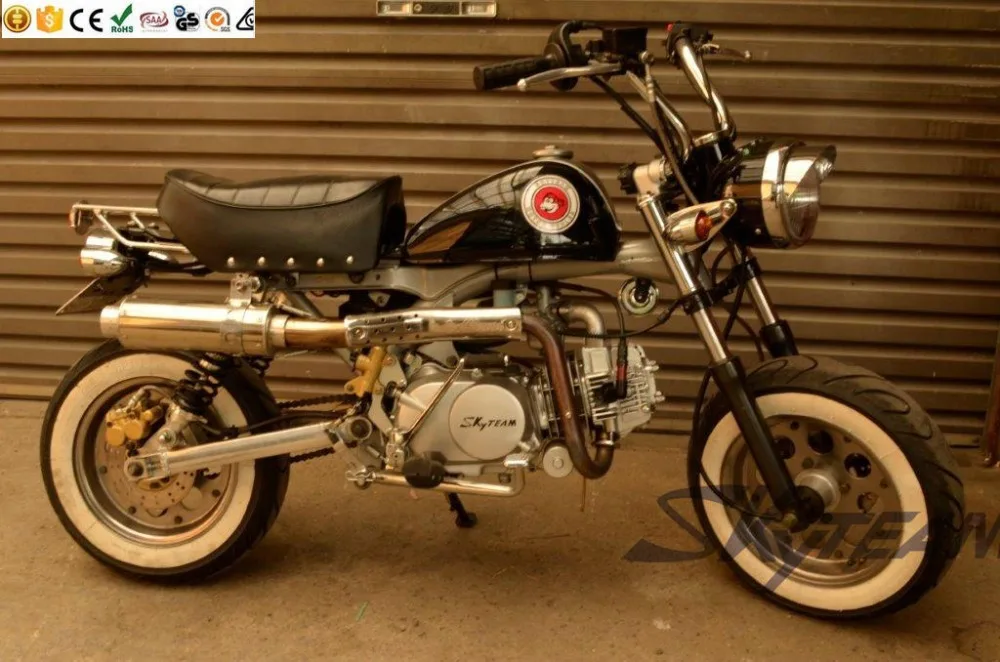

SKYTEAM E4 50cc 4 stroke monkey bike(EEC E4 Approval)
50cc motorcycle st70 monkeybike eec foldable handle bar,skyteam CT70 Z50A replica mini dirt bike for kids,4 stroke mini trail 50 fun motorcycle
Front disc brake, electric start, four gear manual, and strengthened rear shock absorber
| ST125-8 | |
| ENGINE | |
| ENGINE TYPE | Air-Cooled, 4 stroke, single cylinder, 2 valve, SOHC |
| DISPLACEMENT | 124CC |
| BORE*STROKE | 52.4 x 57mm |
| COMPRESSION RATIO | 9.1 TO 1 |
| MAXIMUM POWER | 5.6kW/7500rpm |
| MAXIMUM TORQUE | 8.6Nm/5500rpm |
| MAXIMUM SPEED | 88km/h |
| MAXIMUM SPEED ON COC | 88km/h |
| LUBRICATION SYSTEM | Pressure and splash lubrication |
| CARBURETOR/FUEL SUPPLY | MIKUNI 22 83419 |
| CLUTCH TYPE | Wet, multiple disc |
| IGNITION SYSTEM | CDI |
| STARTER SYSTEM | Electric & Kick |
| TRANSMISSION SYSTEM | 4-gear, Pedal |
| FINAL TRANSMISSION | Chain |
| FUAL TANK CAPACITY | 4.5L |
| OIL TANK CAPACITY | 800ml |
| CHASSIS | |
| CHASSIS | Steel, Single-tube |
| FRONT SUSPENSION SYSTEM | Telescopic Forks |
| FRONT TRAVEL | 60mm |
| REAR SUSPENSION SYSTEM | Spring & Oil / Double Shock |
| REAR TRAVEL | 50mm |
| FRONT BRAKE | Disc155mm |
| REAR BRAKE | Drum |
| FRONT TYRE | 3.50-8-4PR |
| REAR TYRE | 3.50-8-4PR |
| DIMENSIONS | |
| LENGTH | 1375mm |
| WIDTH | 600mm |
| HEIGHT | 860mm |
| SEAT HEIGHT | 700mm |
| WHEEL BASE | 900mm |
| MINIMUM GROUND CLEARANCE | 170mm |
| DRY WEIGHT | 66Kg |
| CONTAINER LOAD | 84/174/174 |
| PACKING DIMENSION | 1150 x 410 x 752mm |
