chemical can making machine

Share on (219598171):


Price:RUB 66,297.36 - RUB 3,766,895.00

Quantity:


Product Overview

Description

 chemical can making machine

1-5L

Product Description
Product Description

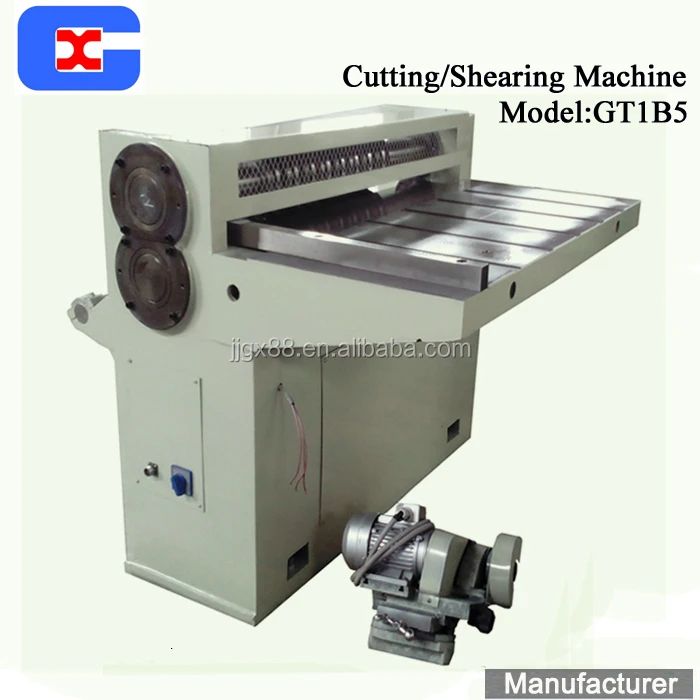

Model:   GT1B5  Disc Cutting Machine/Shearing Machinery

GT1B5



Parameter:



Model:GT1B5 Disc plate cutting machine
Technical Parameter:

The thickness of sheet: <0.5mm

                       Can shear 0.8mm sheets after restructuring

The largest width of sheet: <1050mm

                       Can shear 1300mm width sheet after restructuring

The minimum width of shearing sheet: >52mm

                       Can be up to 28 mm width after restructuring

Motor power: 1.1kw

Size:1500×1200×800mm

Weight: 1400kg

General situation:

This machine is used for batch cutting tinplate or other metal sheet for the following working procedure(such as lid-making or can-manufacturing).

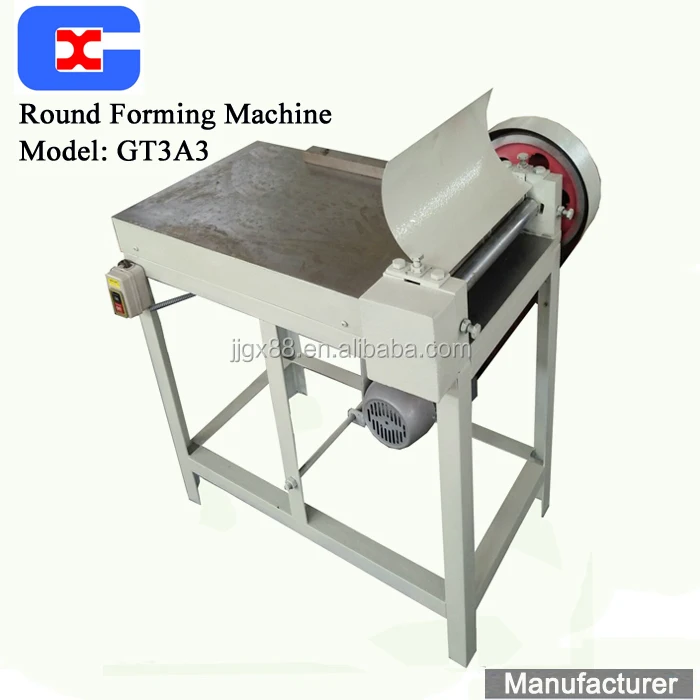

Model:3A3  Rounding Machine/Round Forming Machine

GT3A3



Production capacity30-60cans/min
Applied can's diameter≥38mm
Motor power0.25KW
Size700*400*840mm
Weight40kg



Usage:This machine is applied for rounding from cut sheets.

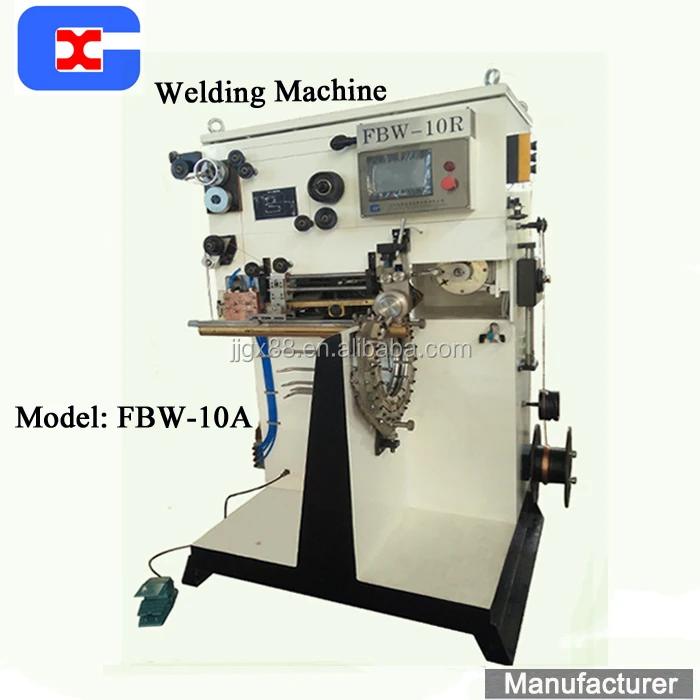

Model:FBW-10A Welding Machine

welder machine



Usage:This machine is applied for welding various can bodies with capacity of 0.5-20L.

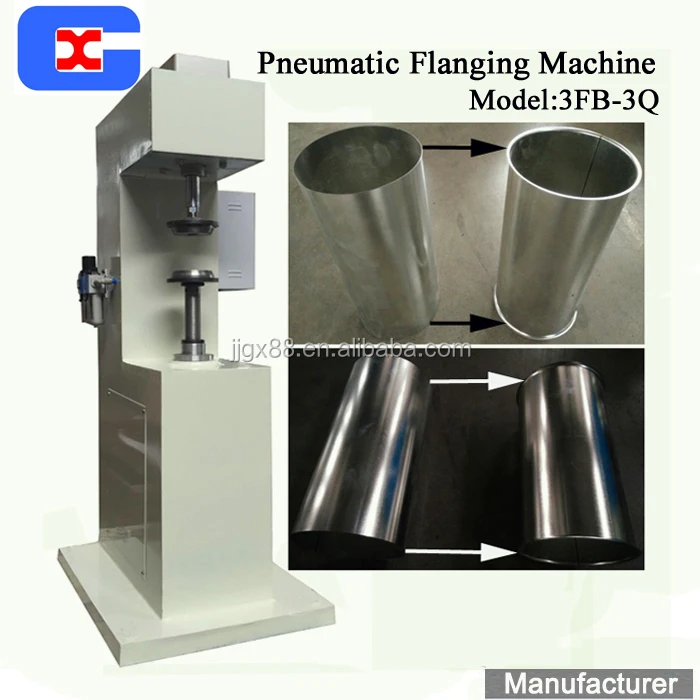

Model: 3FB-3QFlanging Machine
3FB-3Q


This machine is used for flanging of tin can body.

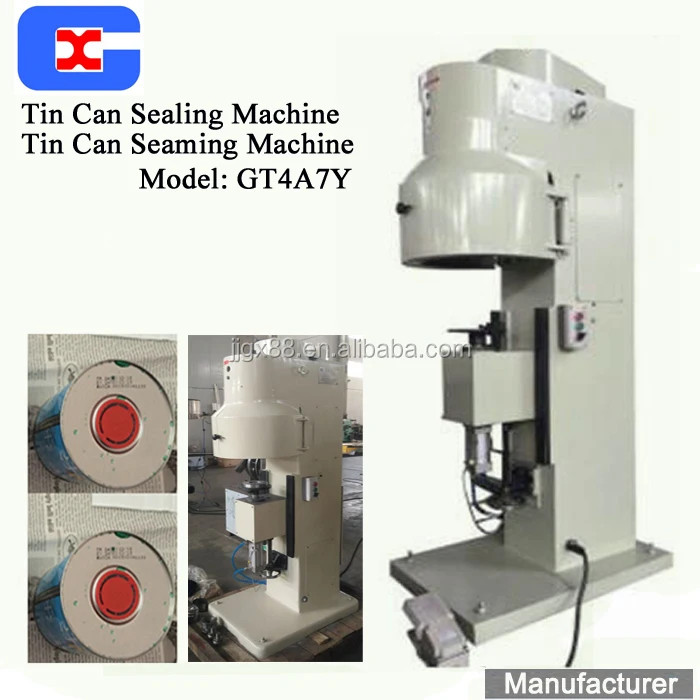

Model: 4A7Y Four-roller Sealing Machine

 4A7Y

The machine is mainly used for sealing round cans in can-manufacturing industry or other industries.





Model: 3T28 Pneumatic Double-head Precise Welding Machine

3T28

Productivity10-30cans/min
Motor power35KW
Size1340*880*1170mm
Weight350kg

This machine is used for double-headed spot welding of flower basket and paint barrel's handles.

Packaging & Shipping

Packaging: Packed into Wooden Case

Shipping: By Sea or Train


Company Information

Jiujiang Gaoxin Metals Packing Mechanism Co., Ltd is one of the leading metal packaging machinery manufacturers in China.The range of machinery made in our company includes  cap making machines /production lines( aluminum caps,twist off /lug caps,EOE and other metal caps); can making machines /production line ( round,square and other shaped metal cans) ;NC punching machines;curling & sealing machines for capacitors,filters and other metal containers.Our company has strong technical force and provides to all the customers equipments' matched molds,spare parts,maintenance and technical support all along.

Our company is located in a place with perfect transportation conditions which is only about 2 kilometers to the Jiujiang High-speed railway station, 200 meters to Silver-Fu (Changjiu) freeway, less than one hundred kilometers to the Changbei International Airport.

Welcome to our company for business! We will provide satisfying products and service with good quality and competitive price for you!




Our Services

1. Warranty: One year after shipment.

2. Delivery Time: 60 working days after receiving the advanced payment.

3.Power:3 phase 4 wire, 380V, 50Hz(or according to your requirements)

4. Installation and commissioning

Before installation,we will provide machine layout drawing with dimensions, total power, single power, power interface, water &air input and output position, total water consumption. After the machines arrived and have taken seat,you must connect the water and electric and air into the machines, then we shall send 2-3 technicians to install the production line.
