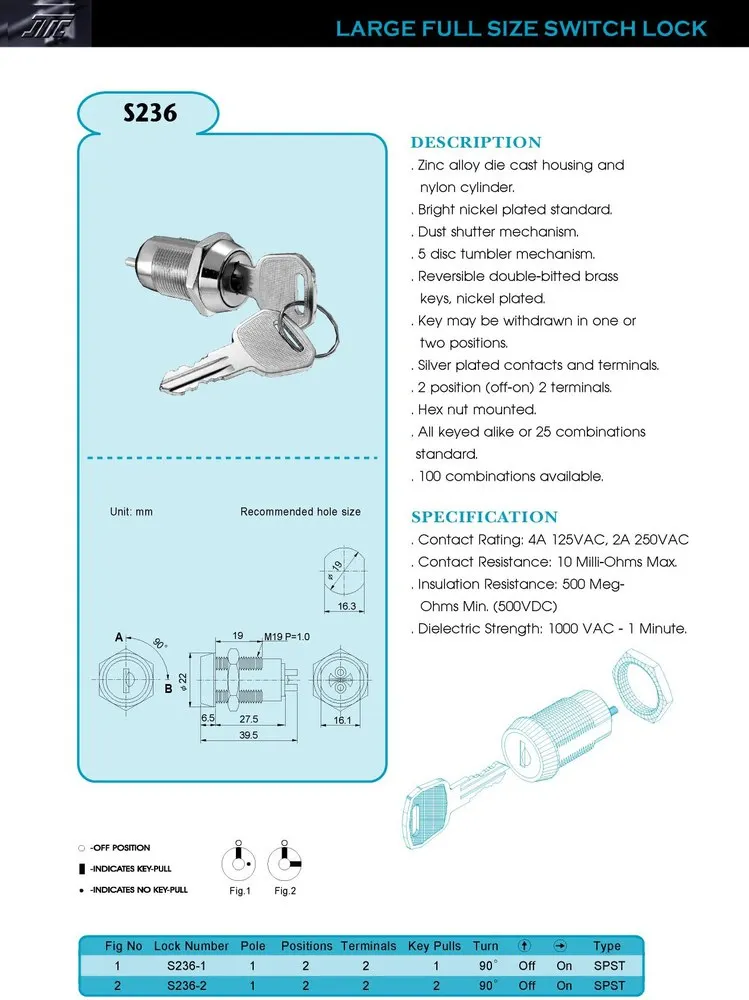

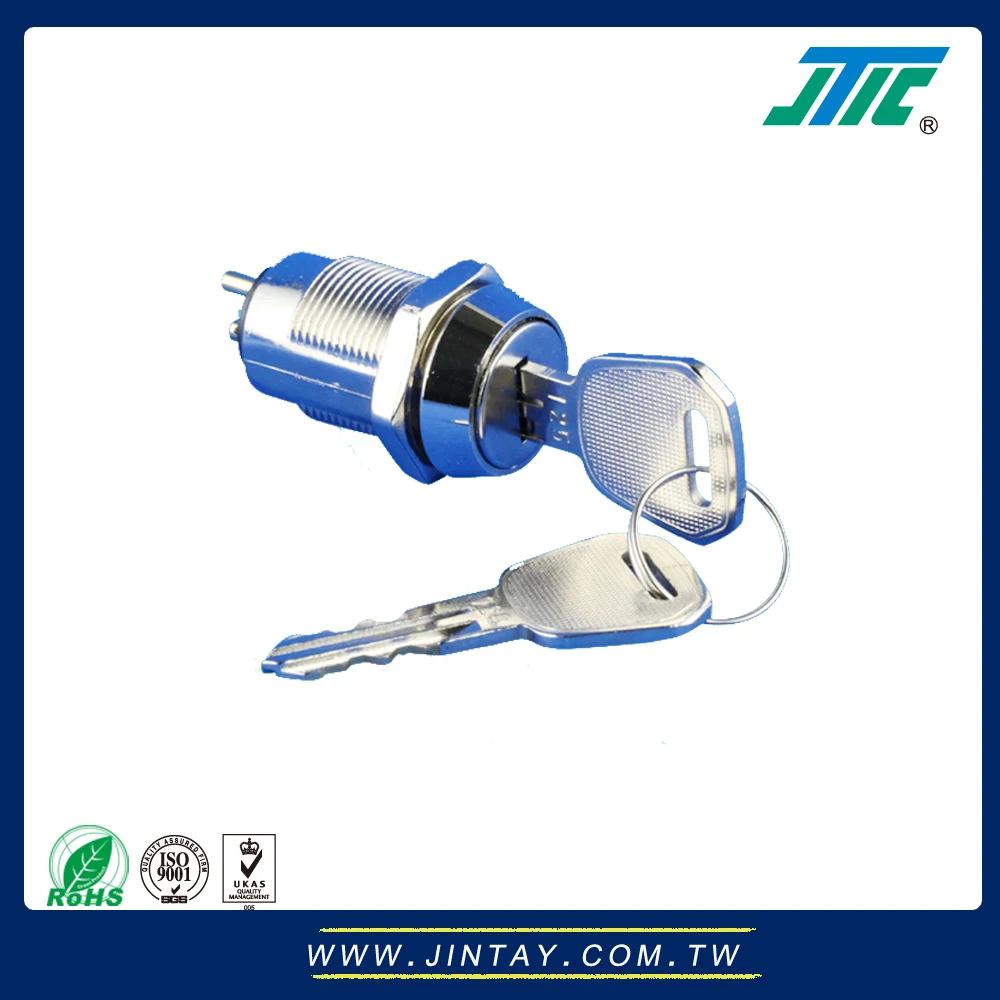

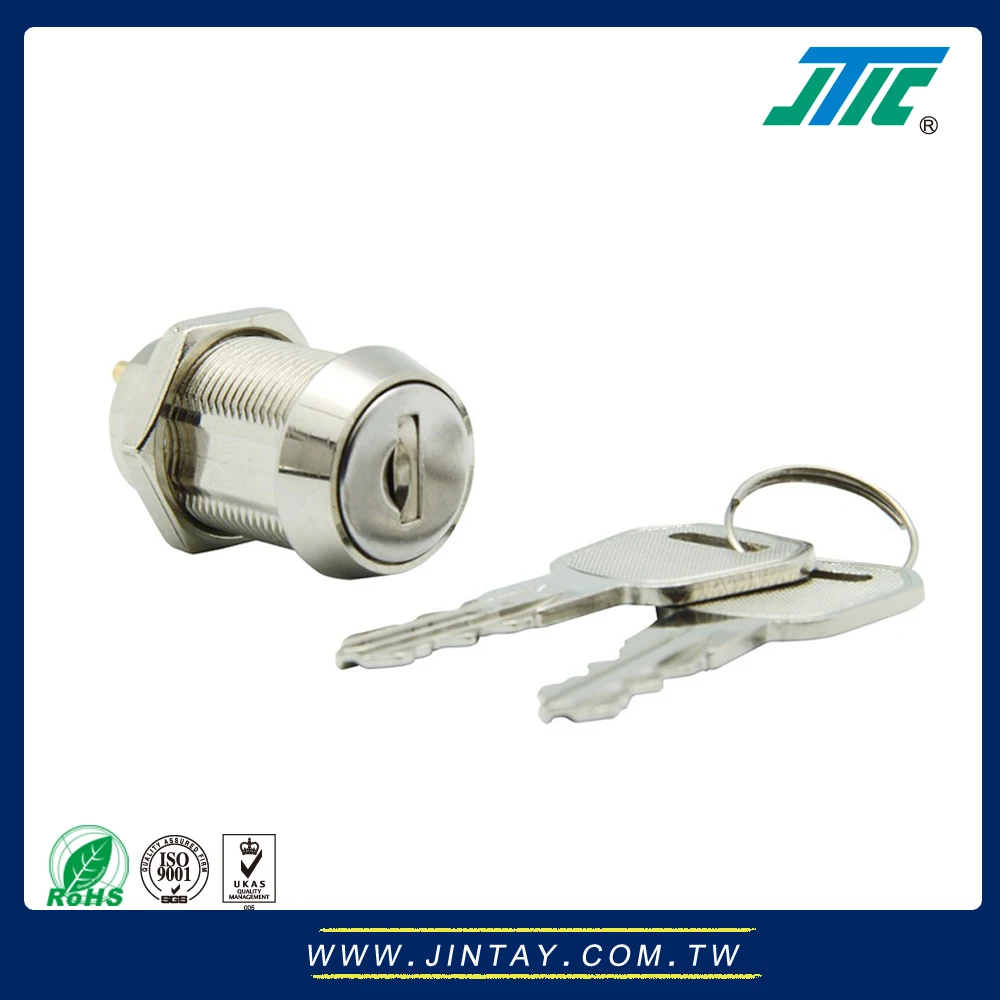

Product Name: Large full size key switch lock



Description:



. Zinc alloy die cast housing and cylinder.



. Bright nickel plated standard.



. Dust shutter mechanism.



. 5 disc tumbler mechanism.



. Reversible double-bitted brass keys,nickel plated.



. Key may be withdrawn in one or twopositions.



. Silver plated contacts and terminals.



. 2 position (off-on) 2 terminals.



. Hex nut mounted.



. All keyed alike or 25combinations standard.



. 100 combinations available.



. Contact Rating: 4A 125VAC, 2A 250VAC



. Contact Resistance: 10 Milli-Ohms Max.



. Insulation Resistance: 500 Meg-Ohms Min.(500VDC)



. Dielectric Strength: 1500 VAC - 1 Minute.
