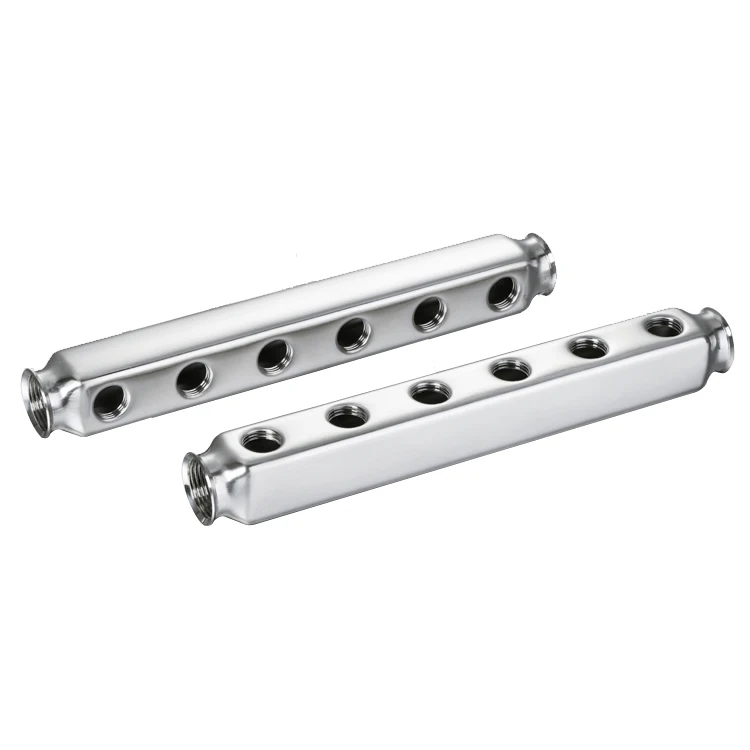

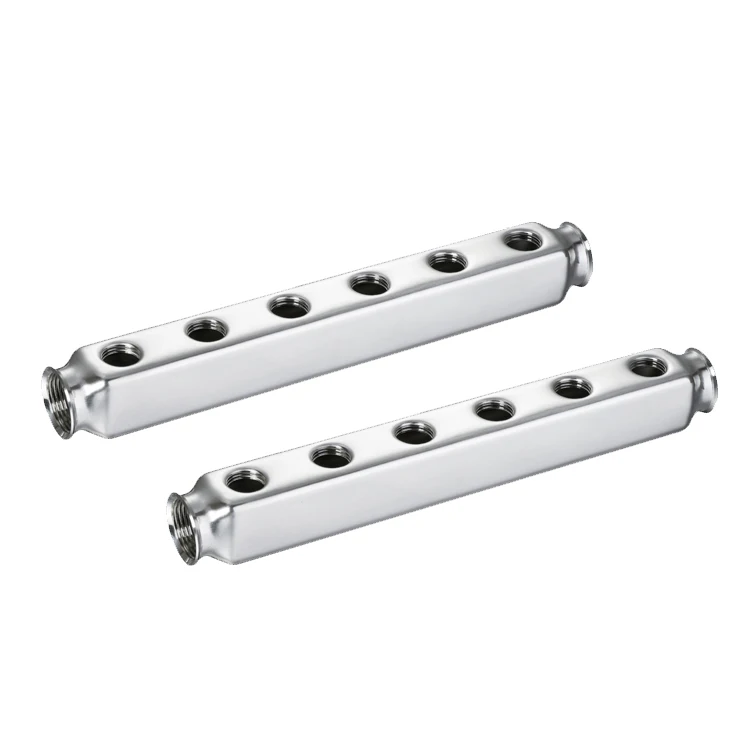

Stainless steel floor heating manifold bar

Product Overview

Description

Stainless steel floor heating manifold bar


• Number of branch lines: 2 to 13
• Maximum working temperature: 95°C
• Maximum working pressure: 1.25MPa
• Branch distance: 50/55mm
• Main pipe height: 40.7/47mm
• Main pipe length: 125 to 735mm
• Plate length: 135 to 575mm
• Valve size: Ø12 to 16 and 16 to 20mm
• Both ends of the caliber: G-1/G1-1/4 inches
• Branch caliber: G-3/8/G-1/2 inches



Stainless steel underfloor manifold, floor heating manifold, stainless steel water separator
