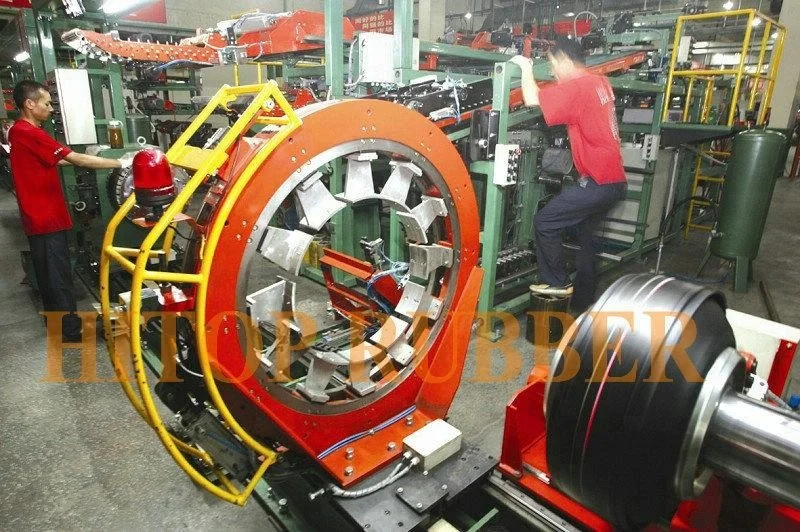

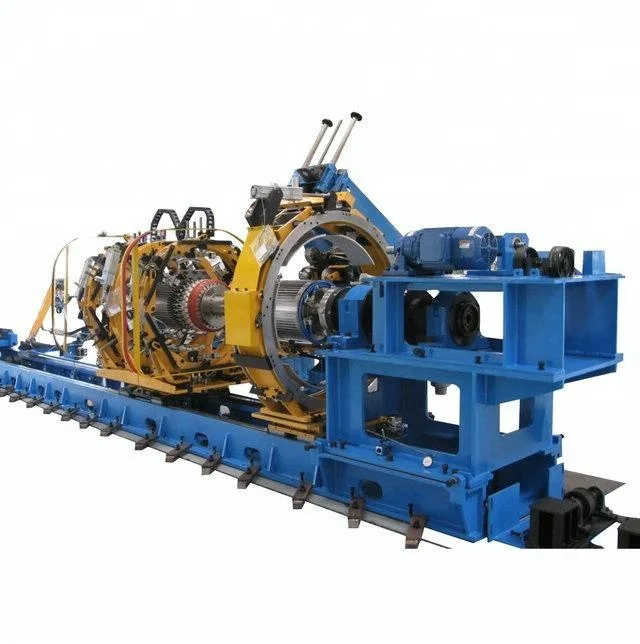

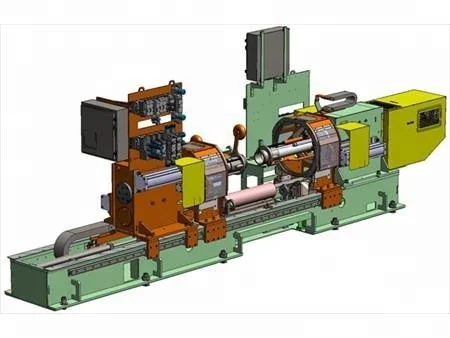

new tire making machine

  specification

item

LC-0

LC-1B

LCB-2B

LCX-3B

LCX-4B

Specification of building type

Inch

4.00-12~ 6.50-15

6.00-13

7. 5-16

7.50-20 10.00-20

11.00-20 14.00-24

25~28

Shaft dia.matched with building

mm

40

50

70

75

100

Max. width of band

mm

670

730

980

1260

2100

Permitted max.rolling width of the lower press roller

mm

420

580

570

780

1200

Axial separation width ranges of the rear press roller

mm

0~700

230~580

290~670

330~910

860~1980

Main motor power

KW

3/5

3/5

3/5

6.5/11

9/15

Overall dimensions

L

mm

2750

4166

4470

4900

6560

W

mm

      1595

1480

1780

1820

3604

H

mm

1440

1542

1658

1950

2665

about weight

T

~2.7

~3

~4.5

~5.5

~11
