solar copper heat pipe
solar copper heat pipe

solar copper heat pipe

Share on (221181739):


Price:RUB 38.34 - RUB 1,533.51

Quantity:


Product Overview

Description

Specifications:
1) Water tank (interior): SUS304-2B food grade stainless steel
2) manifold : aluminum alloy
3) Glass tube: new trivalent element heat tube

4) solar working station
5) Steel tube dimensions: 58mm x 1.8m, 47mm x 1.5m
6) Water capacity: 150L, 200L, 300L,500L
7) Pressure: 6 bar



andrea(_at_)suntasksolar.com










Vacuum solar collector specification
1. Manifold (interior): 0.8mm thickness Red copper
2. Manifold (exterior): 2.0 mm thickness Aluminum alloy
3. Glass tube dimensions: 58mm x 1.800mm

4. Insulation layer: 45mm thickness glass firber /polyurethane layer
5. Heat preservation: 72-96hrs
6. Hail resistance: 25mm
7. Max pressure: 6 bar
8. Coating of vacuum tube: Ss-c/cu
9. Frame: 2.0mm thickness Aluminum Alloy

Solar power system applications:
1. Hotels, resorts, hospitals and hostels
2. Process industry, boiler feed, laundry and canteens
3. Agricultural sector, hatcheries and dairies
4. Process industry, Boiler feed, Laundry and canteens
5. Agricultural sector, hatcheries, and dairies
6. Swimming pool heating

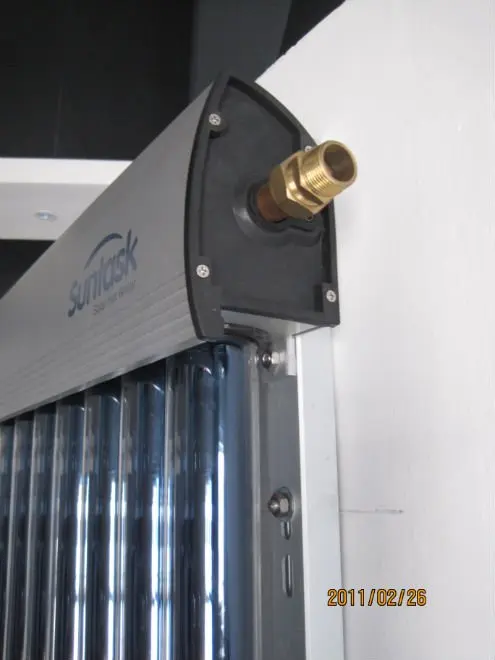

 IMG_5552



Model name

SCM12-58/1800

SCM15-58/1800

SCM20-58/1800

number of tubes

12

15

20

Gross size(mm)

1010*1980 (W*L)

1235*1980 (W*L)

1610*1980 (W*L)

aperture area M2

1.108

1.397

1.876

Absorber area M2

0.964

1.199

1.603

flat roof installation size

1420*1010*1420mm (L*W*H)

1420*1235*1420mm (L*W*H)

1420*1610*1420mm (L*W*H)

weight empty (KG)

40.7

56

64.4

fluid volume( L)

0.8

1

1.37

Heat transfer medium

pure water/glycol

pure water/glycol

pure water/glycol

working pressure

6  bar

6  bar

6  bar

Max testing pressure

12 bar

12 bar

12 bar

Max working temperature

280°C

280°C

280°C

efficiency n°

0.788

0.79

0.795

inlet/outlet connection

 22mm

22mm

22mm

manifold packing mm

1*2000*200*160

1*2000*200*160

1*2000*200*160

tubes packing mm

1*1940*280*270

1*1940*350*270

2*1940*350*180

certificate

EN12975-1,2 SOLAR KEYMARK

EN12975-1,2 SOLAR KEYMARK

EN12975-1,2 SOLAR KEYMARK

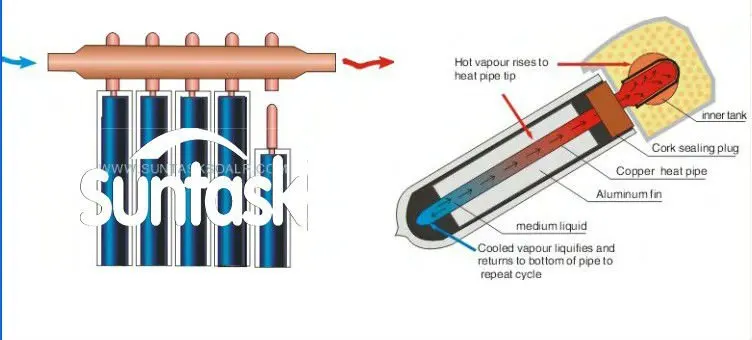

Vacuum solar collector specification

Flow type

Heat pipe

Heat pipe material

TU1 copper

Heat pipe size

Top: Ø24* 1mm;       Body: Ø8* 0.8mm thickness

Tube diameter

 φ58/1800mm

Solar vaccum glass tube

High boron-silicon

Coating of absorber on glass tube

Al-N-Al,Copper,Stainless steel

fins around heat pipe

single long Aluminum(1.68m)

Manifold pipe material

TU1 copper (Ø42x1.0mm)

Manifold casing material

Aluminum alloy (2.0mm)

Insulation material in manifold casing

Glass fiber

Thickness of insulation(mm)

45

Density of insulation (kg/m3)

90

Frame material

Aluminum alloy frame (2.0mm)

Sealing Materials

EPDM
