Four Column Hydraulic Machine Model Y32 With Stamping, Bending, Turning Up And Extending
- Category: >>>
- Supplier: Jinan Fast Cnc Machinery Co. Ltd.
Share on (221305817):
Product Overview
Description

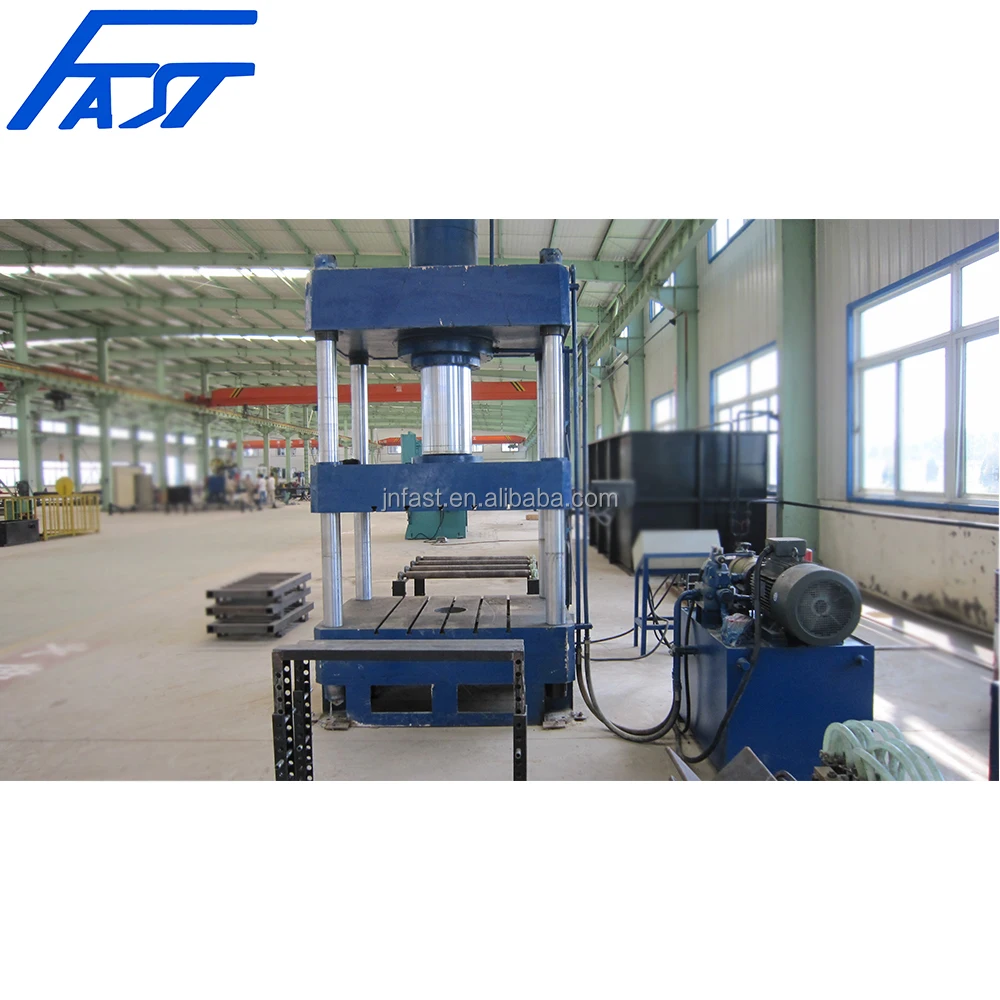

Four Column Hydraulic Machine Model Y32
APPLICATION
The machine is suitable for processing shapeable materials, such as stamping, bending, turning-up and extending functions. This machine can be also used for straightening, pressing, plastics mold compacting, ect.
ADVANTAGES
- Independent dynamic mechanism and electric system.
- PLC controlling system.
- Adjustable/ manual/ semi-auto/ automatic operations.
- Multi-machine movement synchronous running.
TECHNICAL DATA
| Model | Y32-40 | Y32-63 | Y32-100 | Y32-160 | Y32-200 | Y32-315 | Y32-500 | |
| Nominal Force (kN) | 400 | 630 | 1000 | 1600 | 2000 | 3150 | 5000 | |
| Ejection Force (kN) | 63 | 100 | 250 | 250 | 400 | 630 | 1000 | |
| Max. Working Pressure (Mpa) | 25 | |||||||
| Stroke of Slider (mm) | 400 | 450 | 500 | 560 | 700 | 800 | 900 | |
| Max. Opening Height (mm) | 600 | 700 | 800 | 900 | 1120 | 1250 | 1500 | |
| Working Table Size (mm) | 400*400 | 500*500 | 630*630 | 800*800 | 900*900 | 1200*1200 | 1400*1400 | |
| Slider Speed (mm/s) | Moving down | 40 | 60 | 80 | 100 | |||
| Working | 10 | 15 | 8 | |||||
| Returning | 60 | 80 | 100 | |||||
| Outline Dimension (mm) | 1320*1480*2400 | 1380*1900*2530 | 1450*2500*3200 | 1600*2670*3350 | 1900*2780*3900 | 2120*3100*4800 | 2400*4100*5300 | |
| Motor Power | 5.5 | 7.5 | 11 | 11 | 15 | 22 | 37 | |
| Total Weight | 2 | 2.7 | 4.5 | 6.5 | 12 | 16 | 32 | |
- All of these models can be customized according to customer requirements.

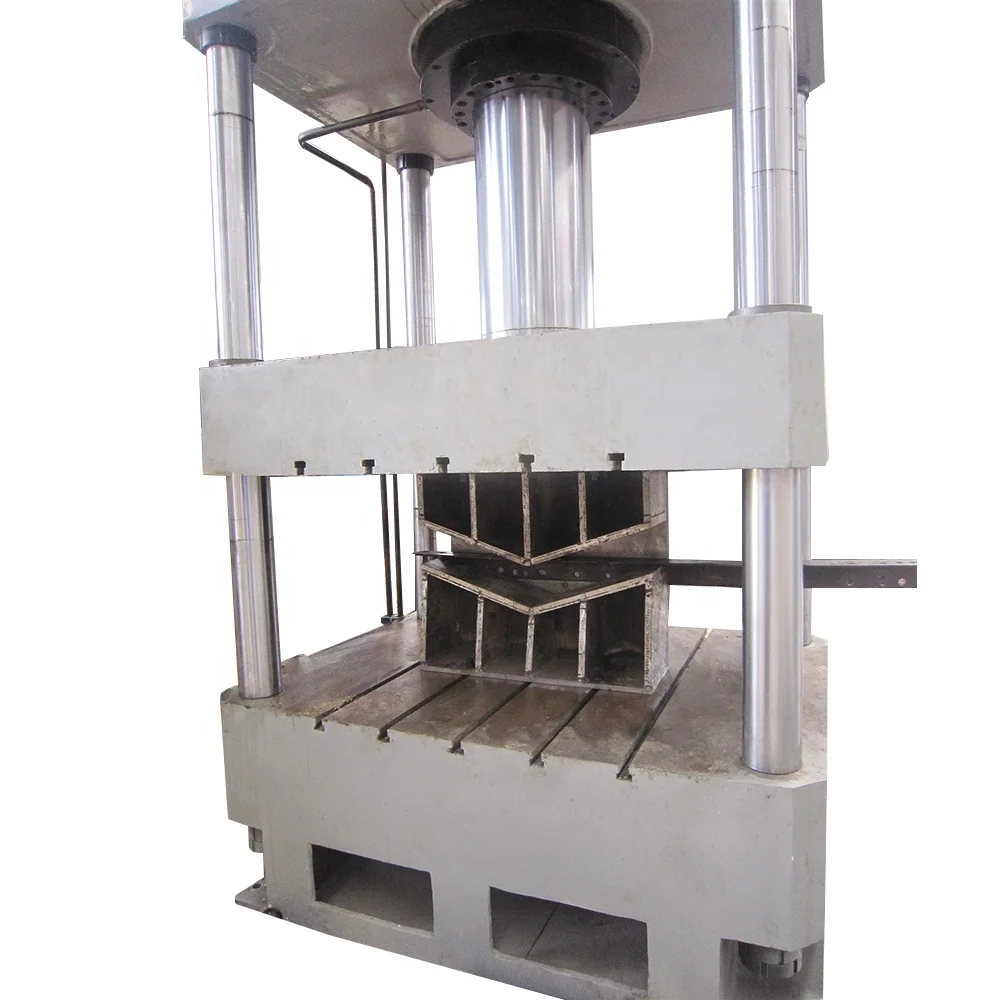

DETAIL IMAGES

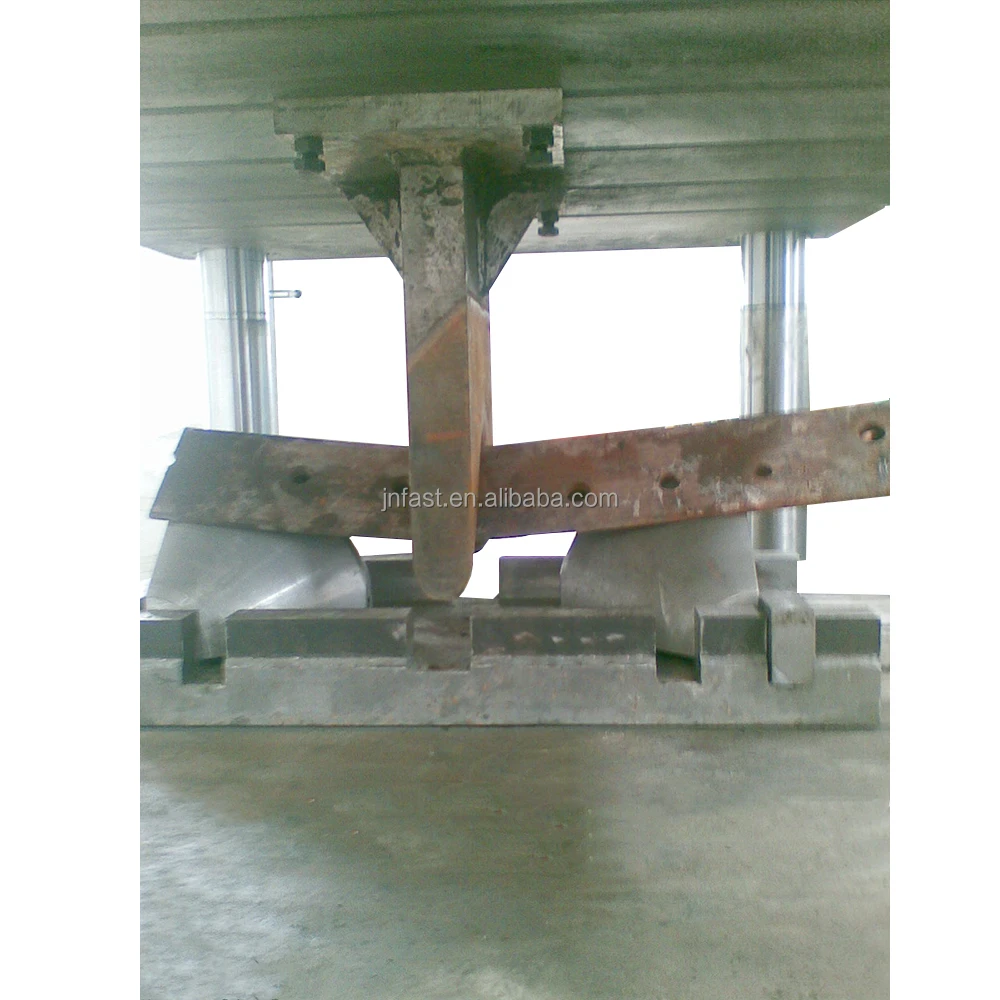

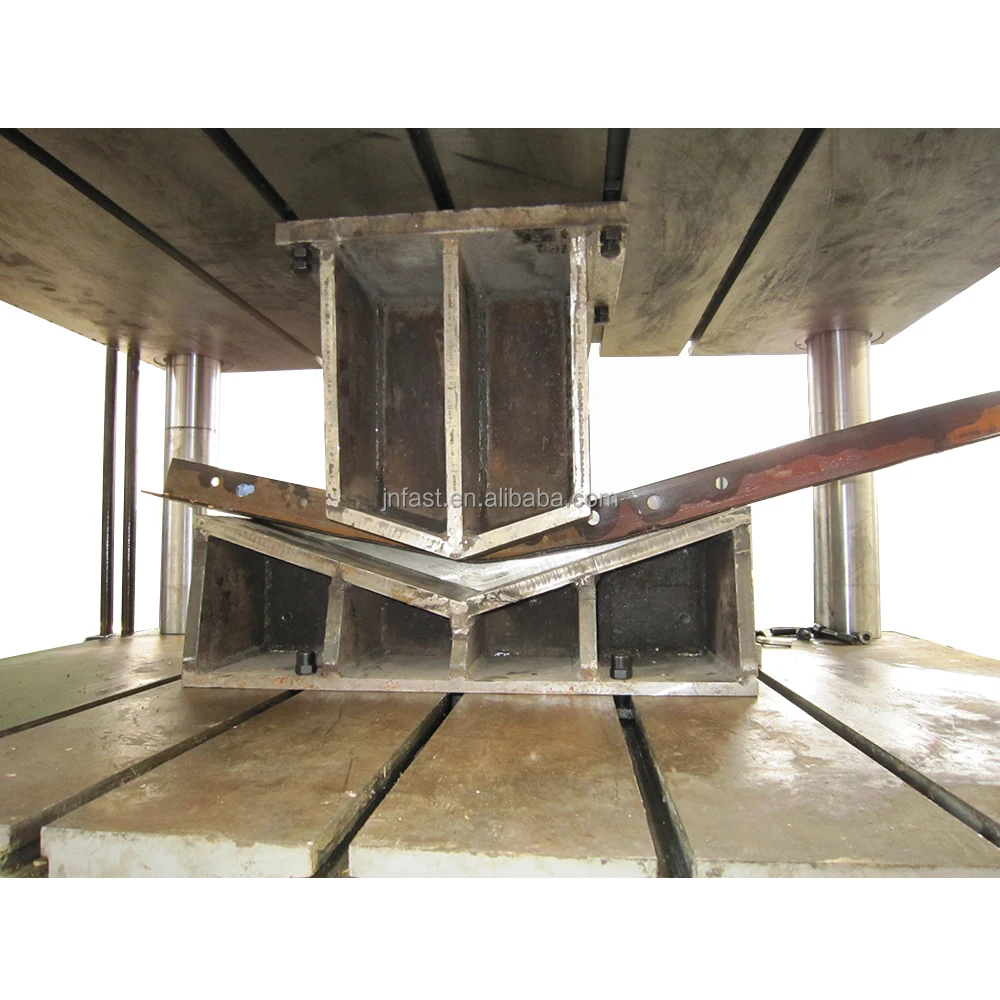

SAMPLES
WHY CHOOSE US
COMPANY PROFILE
COMPANY PROFILE

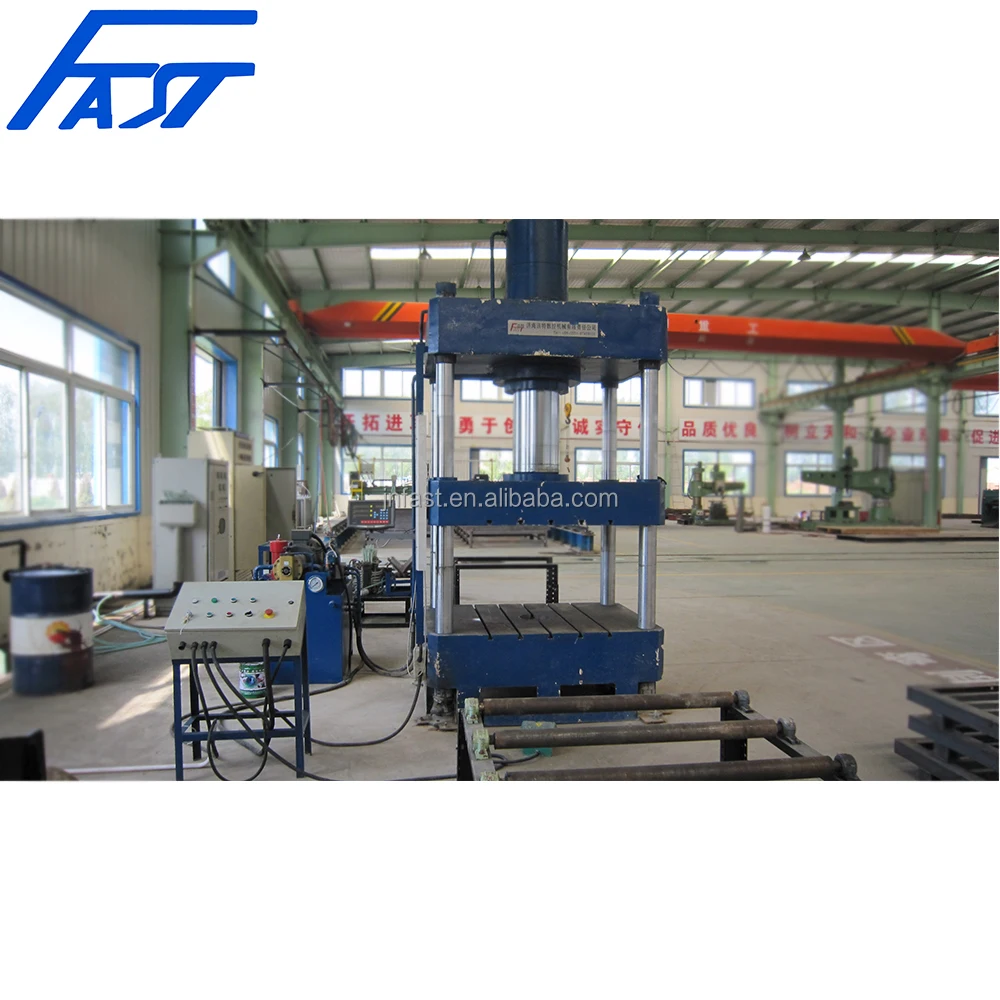

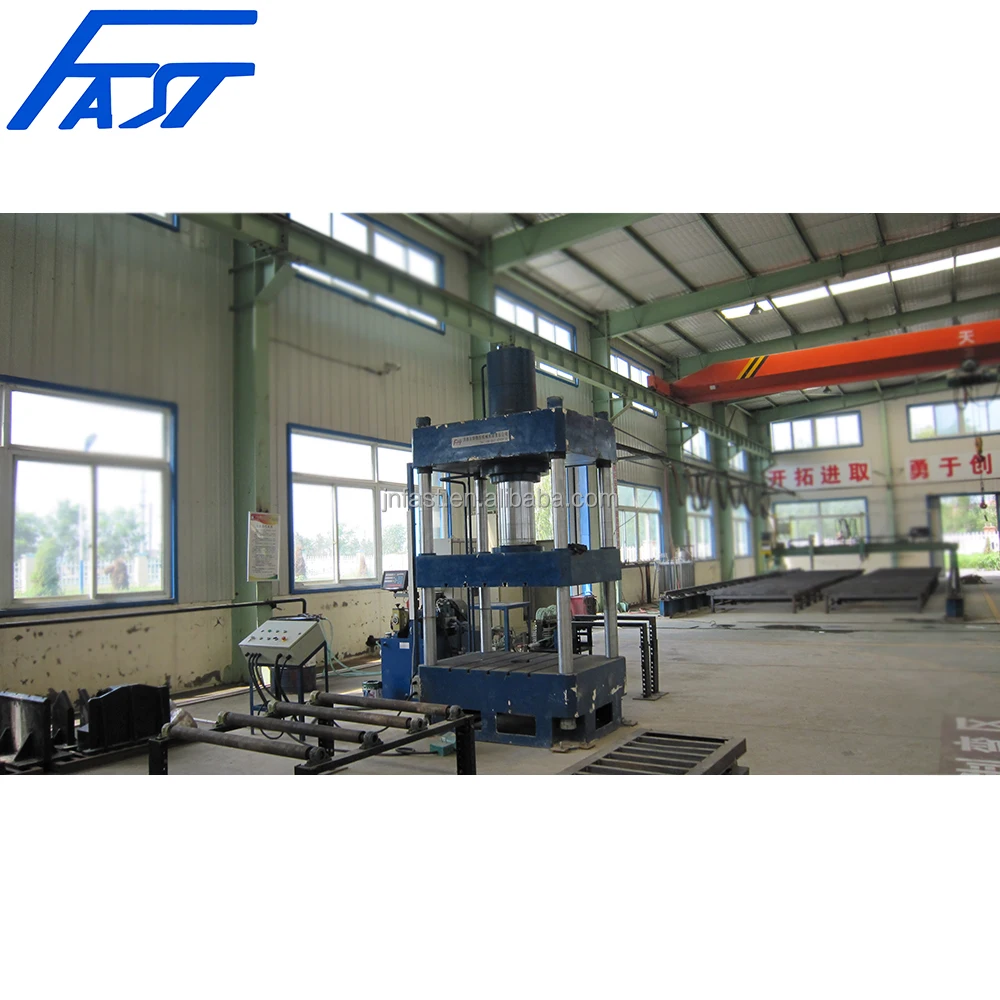

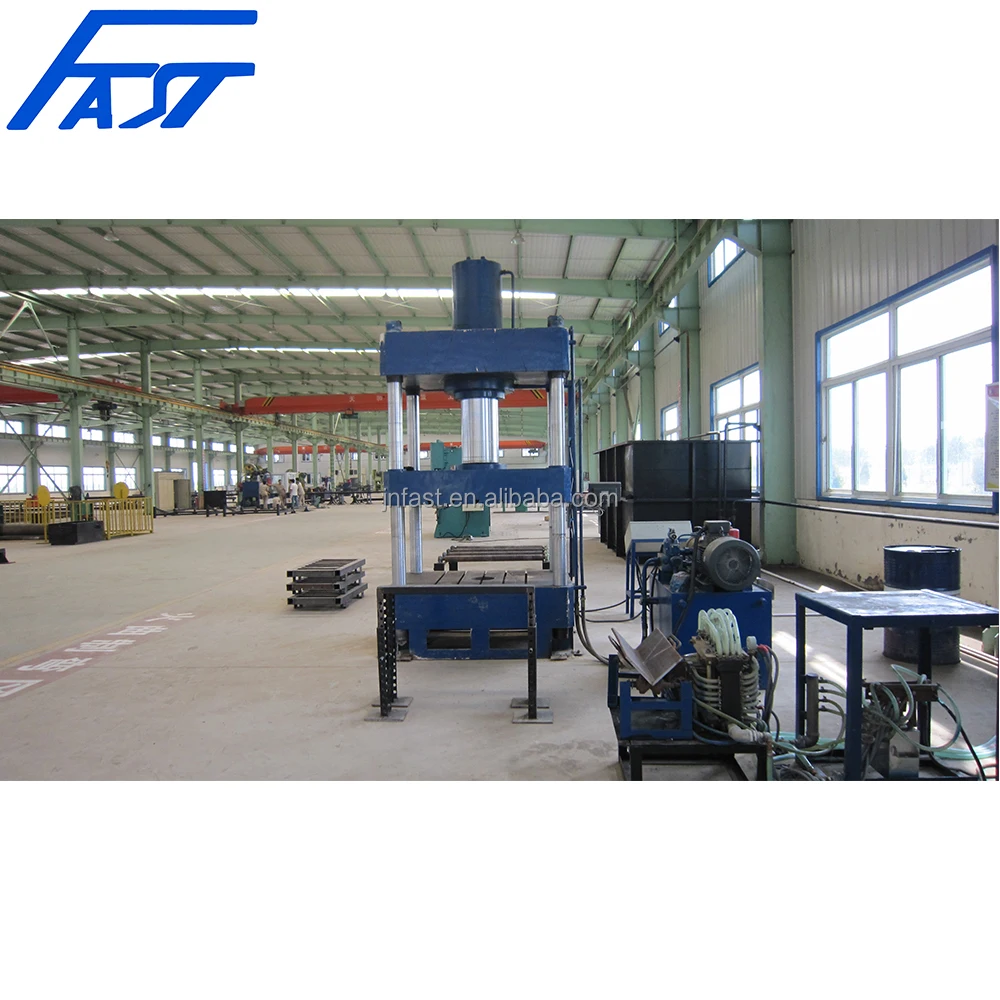

WORKSHOP
