SHENPENG FGB6800 industrial heavy duty sewing machine (lock stitch)

Product Overview

Description

SHENPENG FGB6800 industrial heavy duty sewing machine (lock stitch)



Applications



SHENPENG FGB6800 industrial heavy duty sewing machine (lock stitch) is suitable for sewing PP woven bag,FIBC ,container bag,bulk bag and so on .



 Features



1.1-needle 2-threads lockstitch

2.Speed 1,000 S/Min

3.Max. Sewing thickness 20mm

4.Big feed force basing on bottom and top feed



 The special presser lifting mechanism of FGB6800 has applied for the National Patent of Invention.





Specifications





Model		FGB6800
Sewing Speed		1,000r.p.m
Max. Sewing Speed		1,200r.p.m
Stitch length		0-14mm
Needle bar stroke		58mm
Presser foot lift	By hand	14mm
	Max.	20mm
Working Space		220X420mm
Lubrication		Manual

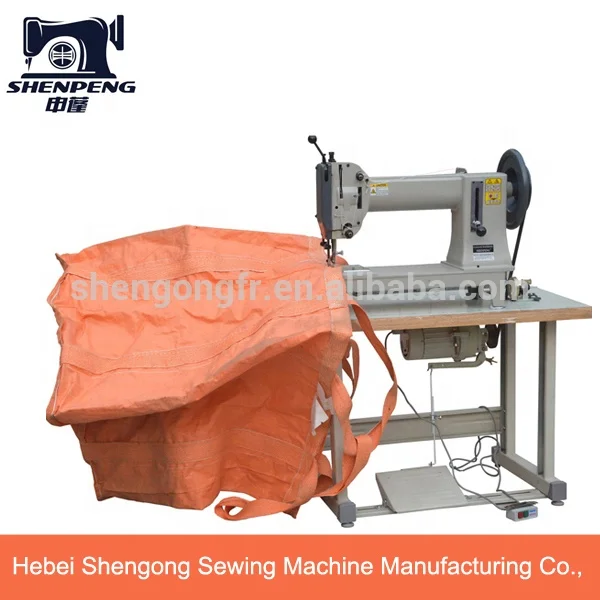

FGB6800 Machine Head ,Table And Motor

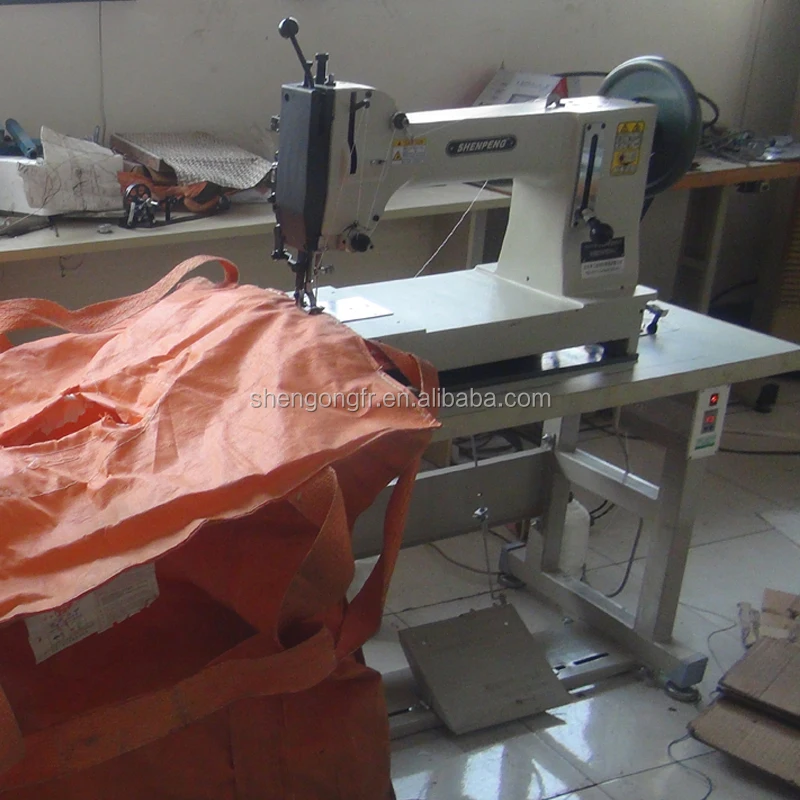

PP Bag Producers Installation FGB6800 A Lot

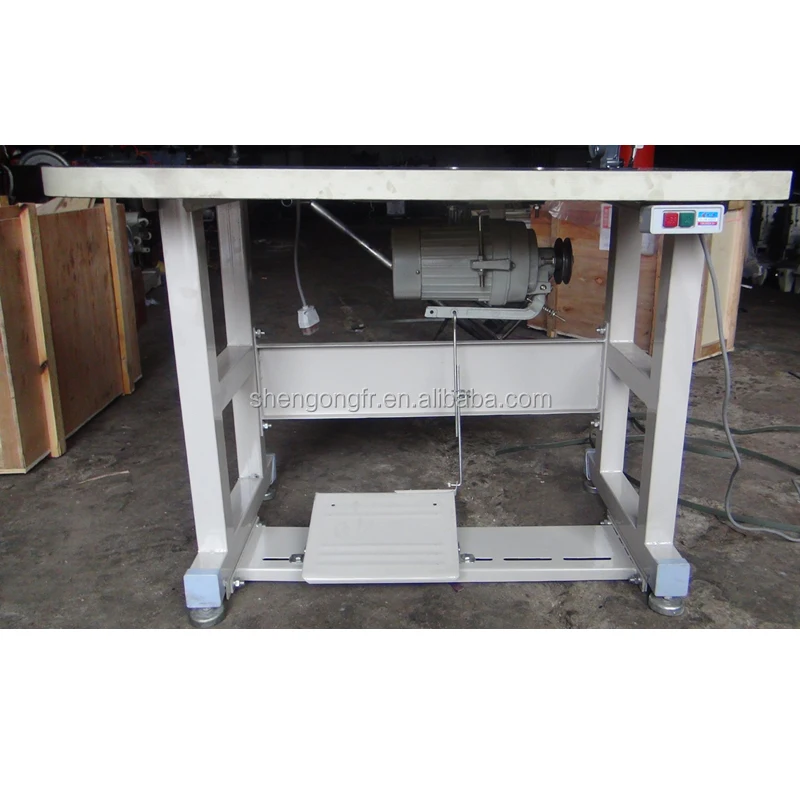

 Table And Motor

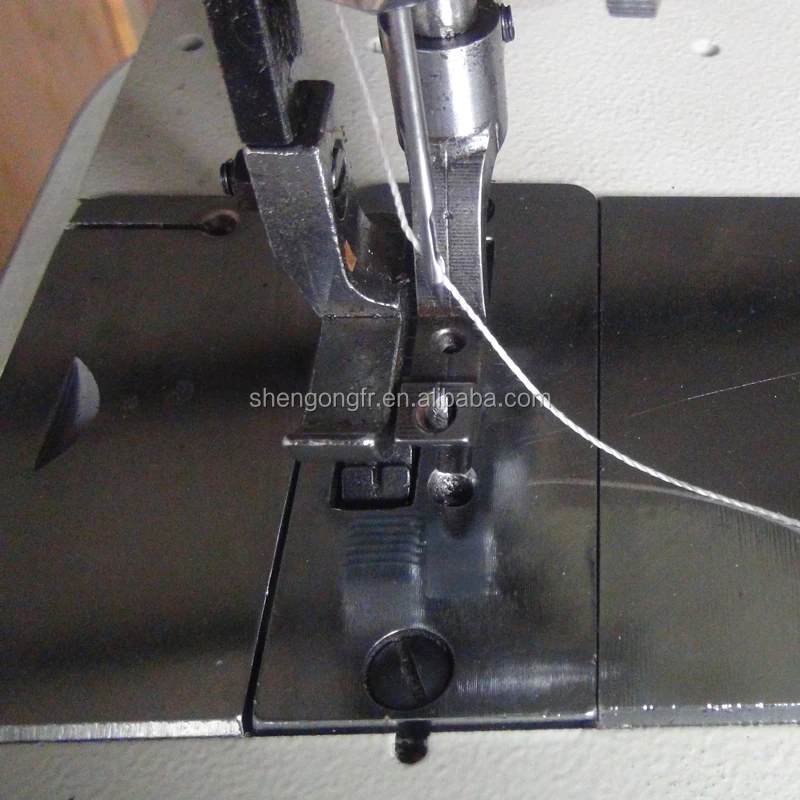

FGB6800 Sewing Ability

1.Professional technical consulting;

2.Machine operating analysis;

3.Stitch sample making;

4. Provide sewing machine working video ;

5.Maintenance and spare parts services.





1. Q: Do you have your own export right ?

   A: Yes, we are able to export the sewing machine to any country or region



2. Q: What service you can supply?

   A: Model recommendation, sample making, technical consulting, after-service support



3. Q: Could i visit your factory ?

A: Yes, at the same time you can enjoy more favorable price if buy sewing machine



4. Q: Is your machine could replace Union Special or Newlong sewing machine function?

   A: Yes. Our machine could 100% replace Union Special or Newlong sewing machine function.



5. Q: Do you supply spare parts?

   A: Yes, Our company produce sewing machine and spare parts by our selves and with fast lead time,best price.



6. Q: What gurantee you supply?

   A: Limited spare parts one-year guarantee, not including quick-wear parts like needle, looper, throat plate, feed dog, etc.
