Factory price transformer winding 6630 6641 class F sintoflex 515 flexible laminate material Class F DMD insulation paper
- Category: >>>
- Supplier: Henan Yaan Electrical Insulation Material Plant Co. Ltd.
Share on (221662037):
Product Overview
Description
Product Description
Factory price transformer winding 6630 6641 class F sintoflex 515 flexible laminate material Class F DMD insulation paper

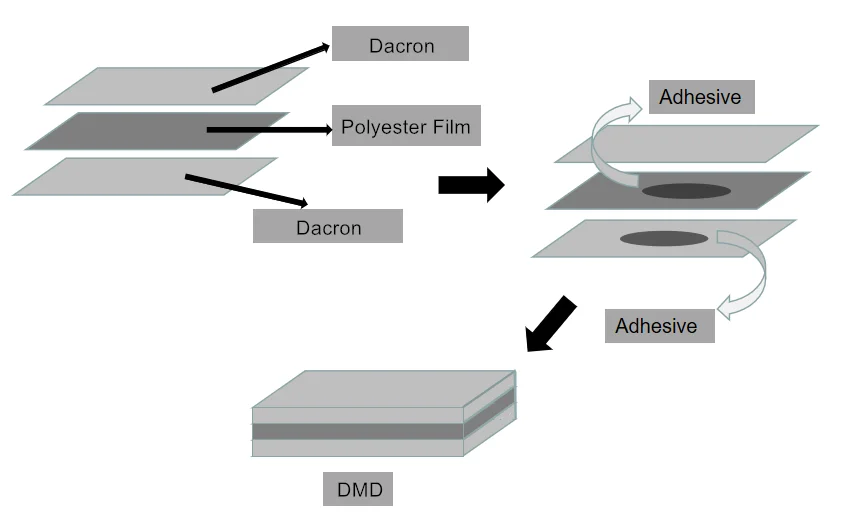

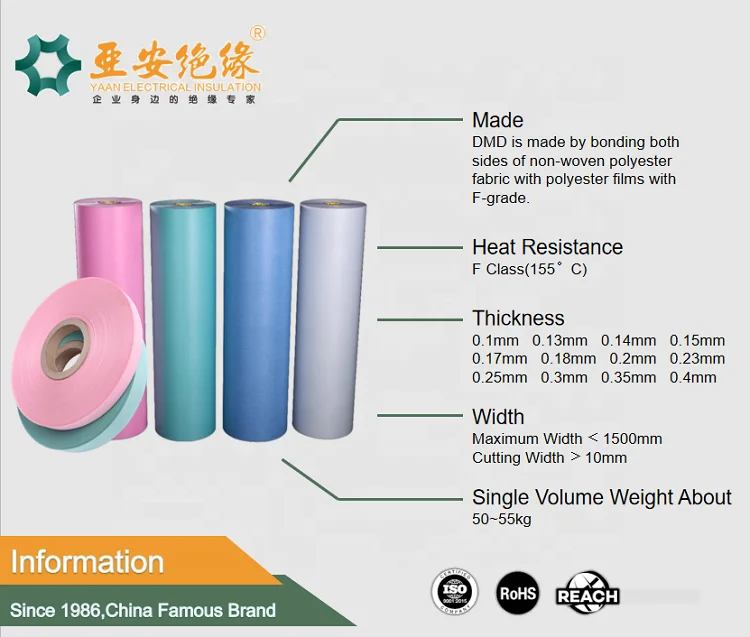

1.6641 Polyester film/Polyester fiber non-woven fabric flexible Laminate is a three-layer flexible composite material.
2.The heat resistance Class is F Class (155 °C).
3.Polyester film/Polyester fiber non-woven fabric flexible Laminate has high dielectric properties, tear strength and tensile strength, good impregnation performance.
4.As slot, interturn and liner insulation for F-grade motors, generators and electric appliances.
Properties | Unit | Values | ||||||||||||||
Nominal Thickness | mm | 0.10 | 0.15 | 0.18 | 0.20 | 0.25 | 0.30 | 0.35 | 0.40 | |||||||
Thickness Tolerance | mm | ±0.010 | ±0.020 | ±0.025 | ±0.030 | ±0.035 | ±0.040 | |||||||||
Breakdown Voltage ( No Bending) ≥ | kv | 4 | 6 | 7 | 9 | 12 | 15 | 18 | 20 | |||||||
Bond Strength At Room Temp. | - | No delamination | ||||||||||||||
Bond Strength At (180±2)℃, 10 Min (Except 0.10mm is at 155±2℃ 10min) | - | No delamination, No blister, No adhesive flow | ||||||||||||||

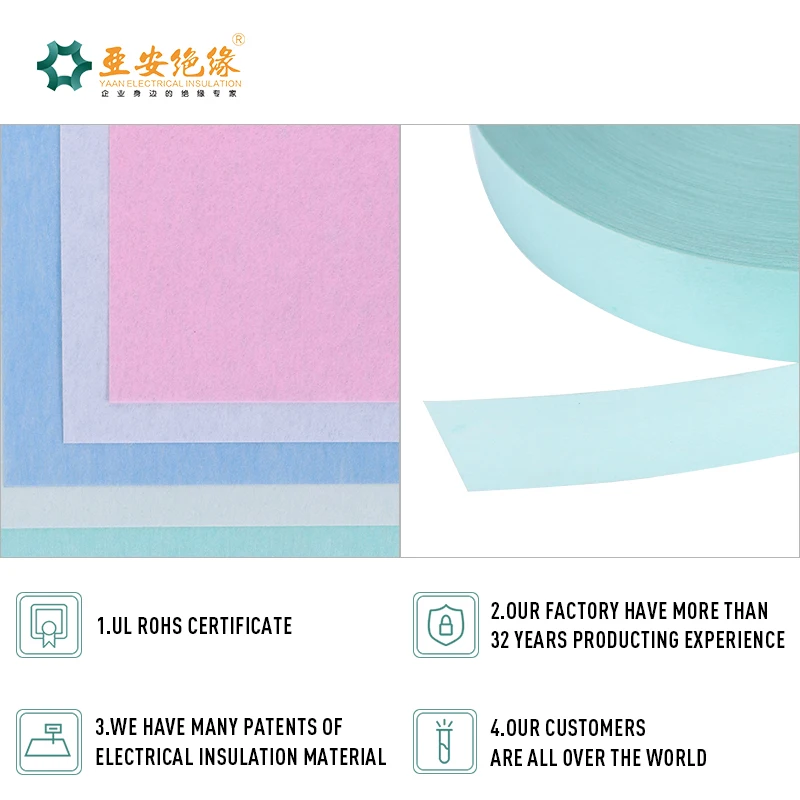

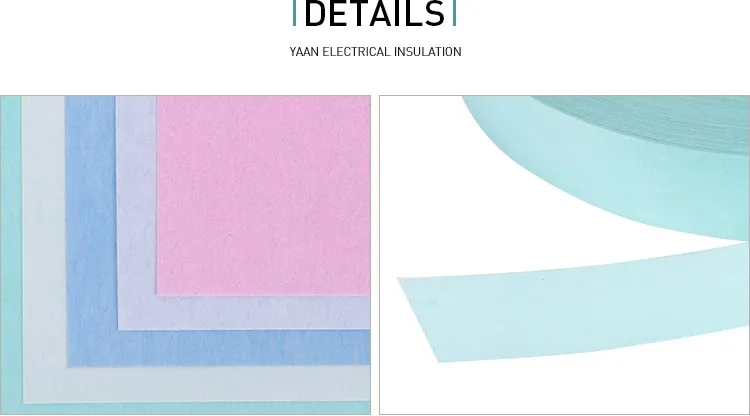

Product details

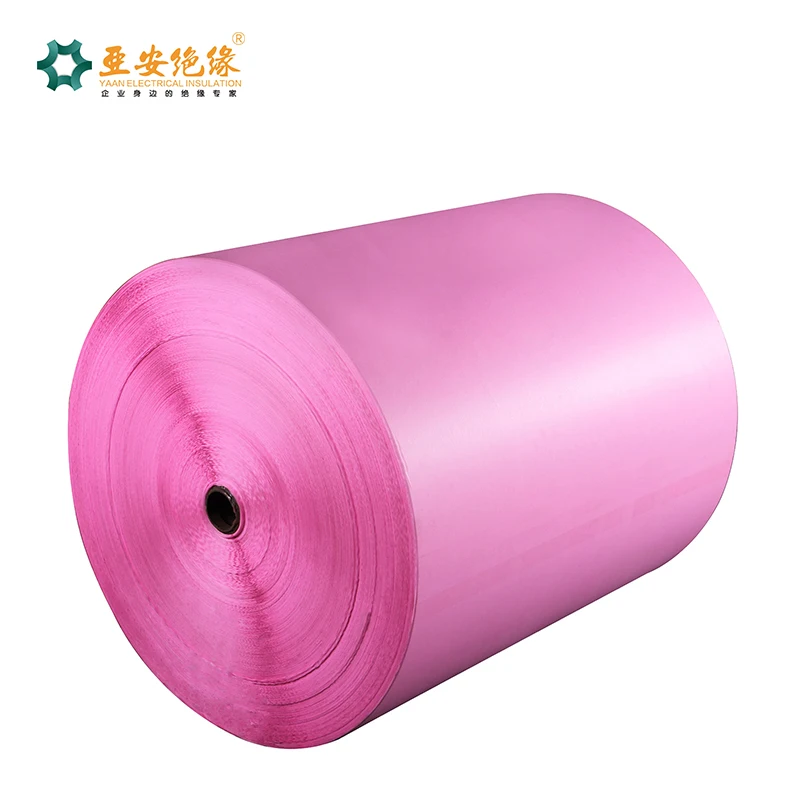

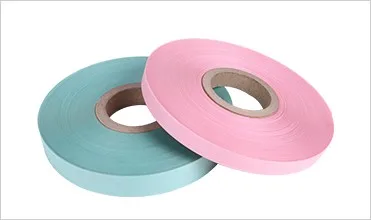

Factory price transformer winding 6630 6641 class F sintoflex 515 flexible laminate material Class F DMD insulation paper is wrapped by proctective film;
Factory price transformer winding 6630 6641 class F sintoflex 515 flexible laminate material Class F DMD insulation paper is packed by standard import & export cartons or.iron pallets.
Factory price transformer winding 6630 6641 class F sintoflex 515 flexible laminate material Class F DMD insulation paper is used in slot, interturn and liner insulation for E-grade motors, generators and electric appliances
Related Products
Certification and Service
Certification:
The plant has passed the certificate of ISO 9001 quality system certification
The products have passed ROHS test
The products have passed ROHS test
Our Service:
1. 356 days dissatisfied with returning at any time
2. There is a problem 4 hours response 24 hours to resolve
3. If there is a customer complaint, the reply will be given within 3 hours after the sale, and the email received after 10:00 will reply before 8:00 the next day.
4. The customer complaint of less than US$1,000, our company directly pays the compensation, and the customer complaint of more
than US$1000 gives the solution at the latest 24 hours.
5. Quality problems during the warranty period, our company is responsible for unconditional return.
2. There is a problem 4 hours response 24 hours to resolve
3. If there is a customer complaint, the reply will be given within 3 hours after the sale, and the email received after 10:00 will reply before 8:00 the next day.
4. The customer complaint of less than US$1,000, our company directly pays the compensation, and the customer complaint of more
than US$1000 gives the solution at the latest 24 hours.
5. Quality problems during the warranty period, our company is responsible for unconditional return.
Our Company
YAAN INSULATION
YAAN INSULATION, was established in 1986, which is electrical insulation materials company in Middle China.
There are more than 30 million square meters production area, more than 300 existing staffs. YAAN INSULATION is committed to make the buildings more green, more environmentally friendly and energy saving.

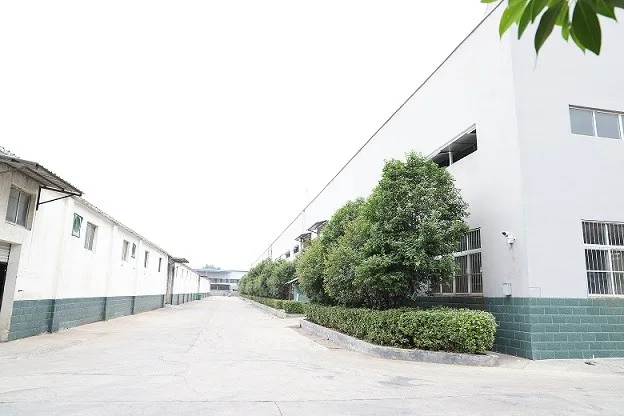

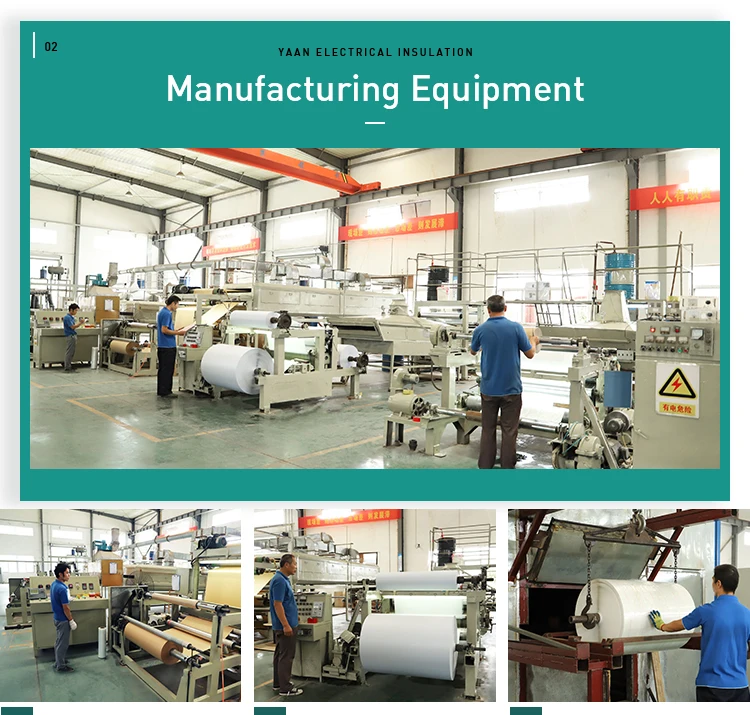

Large Scale Workshop
YAAN INSULATION is located in Xuchang city, Henan province.Also have workshop located in Zhengzhou. There are 8 automatic production line to produce on time, 200 kinds of products in five categories, with 38 technical patents.
WAREHOUSE
YAAN INSULATION has sufficient inventory and productivity and is committed to shipping within the specified delivery period.
FAQ
1. Q: How will you pack the product?
A: We pack with paper cartons.
2. Q: Do you accept OEM?
A: Yes, we do.
3. Q: Do you provide free sample? And how many days it will take?
A: Yes, we provide free sample, only need you to pay the courier charge. We will make the sample within 3 working days and it will take 3-7days on the transportation.
4. Q: What's your delivery time?
A: We are factory, so we can efficiently control the production time, and then for the delivery time, it is 5-20 working days.
5. Q: Which certification do you have?
A: The plant has passed the certificate of ISO 9001 quality system certification;
The products have passed ROHS test.
6. Q: What's your payment term?
A: We accept T/T, L/C, O/A, Western Union, Paypal, Escrow, or customized if it is acceptable.
