1.Welding appearance: Very less hot warp and oxidation save the processing in follow-up steps.
2.Stability: Less soldering tolerance conforms to JIS vehicle specifications.
3.Economy: The consuming parts such as copper-alloy electrode is very less, and power consumption is very less. The operation cost is low.
4.The machine is adjustable to fit either thin or thick work piece. Both continuous type and pulse type of electricity discharge are available.

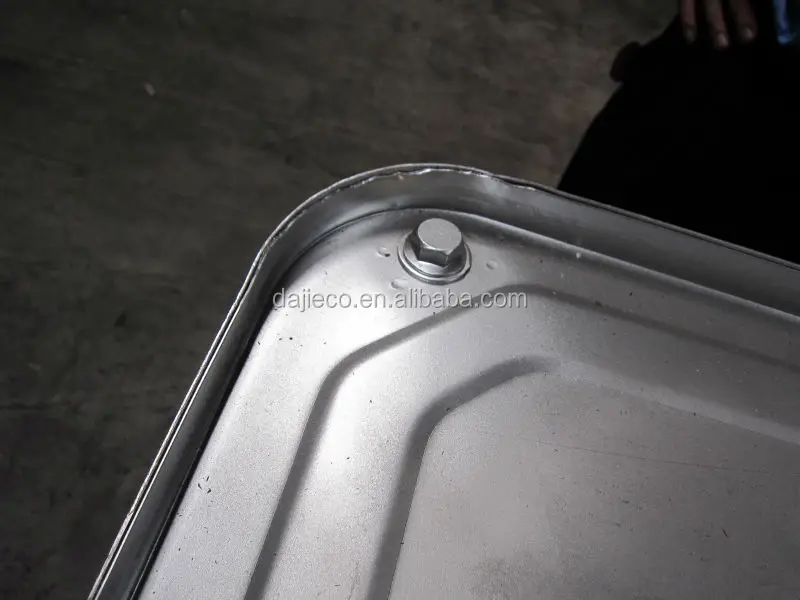

5.Free of soldering scars: Save a lot of time on polishing, soil-patching and coating on next processing steps.
6.High maneuverability: The machine can be operated soon after it is started. Any ordinary technician can operate the machine.

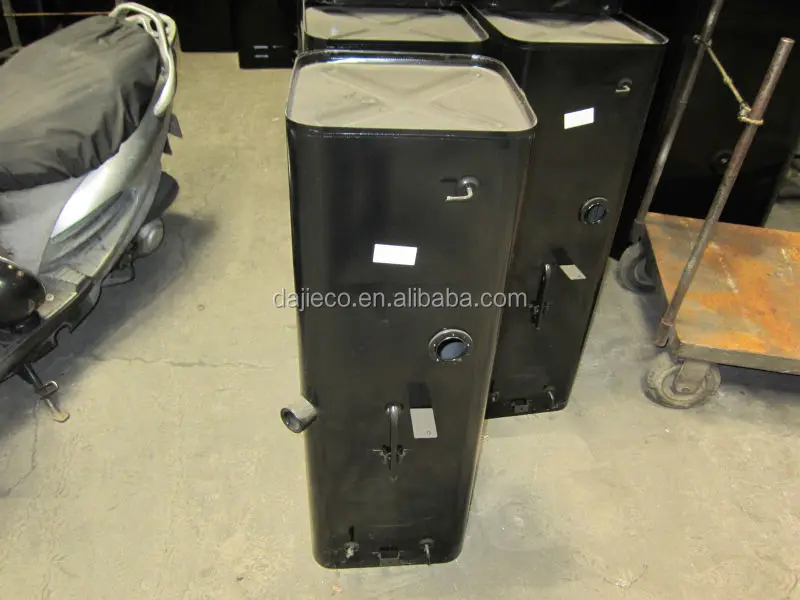

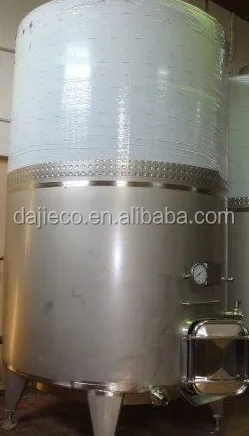

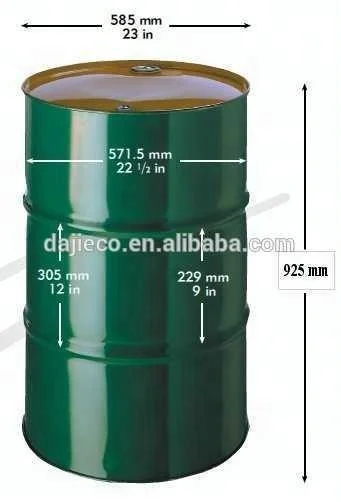

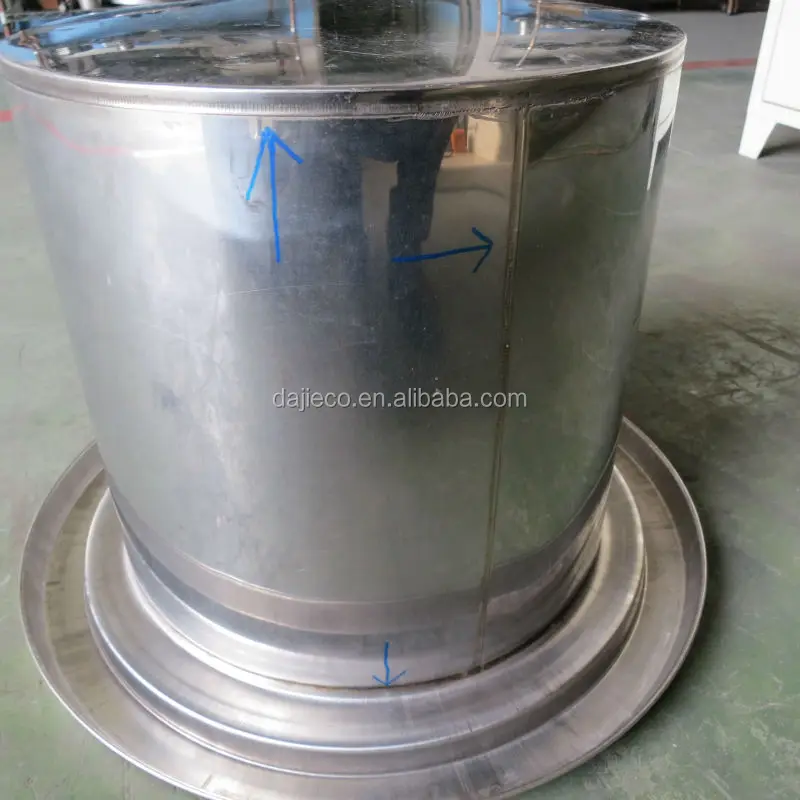

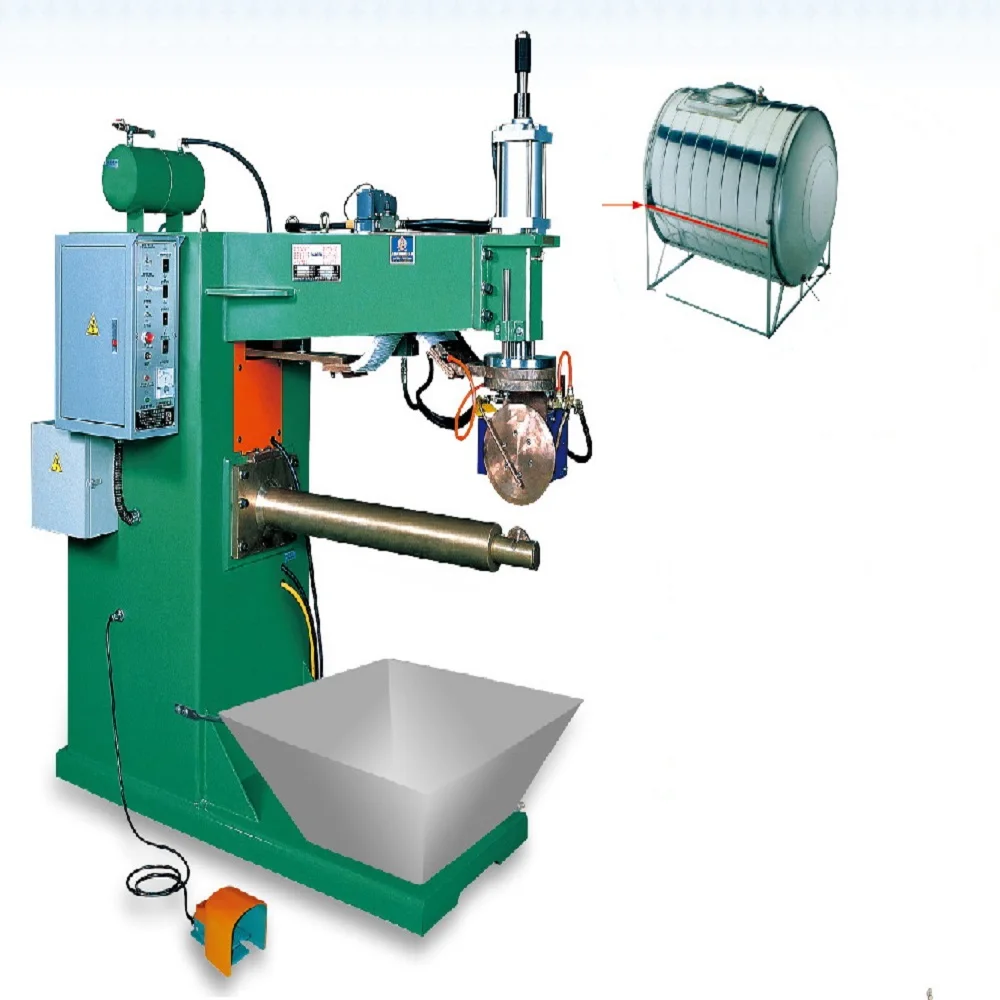

Applied articles Tank seam welding equipment All sizes of fuel tank of automobile and motorcycle, oil drum, oil tank, automobile's mufflier, exhaust pipe, bike's steel rim, stainless water tank, solar heat collecting plate, magazine, sprayer, water pail, electric heating canteen, thermos bottle, filter, all sizes of wine jar, motor's outer shell, mesh plate welding, stainless plate welding, and kitchen utensils.
Specification :
Model
Rated Capacity
Rated PrimaryVoltage
Rated Frequency
Max. Weld Current
Max. Welding Force
Cooling Water
Specification
KVA
V
HZ
A
KG
L/MIN
DJ-C800
80
220/440
50/60
18000
600
25
DJ-C1000
100
220/440
50/60
21000
800
25
DJ-C1200
120
220/440
50/60
24000
800
30
DJ-C1500
150
220/440
50/60
27000
800
30
DJ-C2000
200
220/440
50/60
31000
1200
40
DJ-C2500
250
220/440
50/60
35000
1200
40
DJ-C3000
300
220/440
50/60
38000
1200
50
*Can design & make according to local voltage requirement(200V-600V). *Its possible design make for rectifier model demand.
Company Information

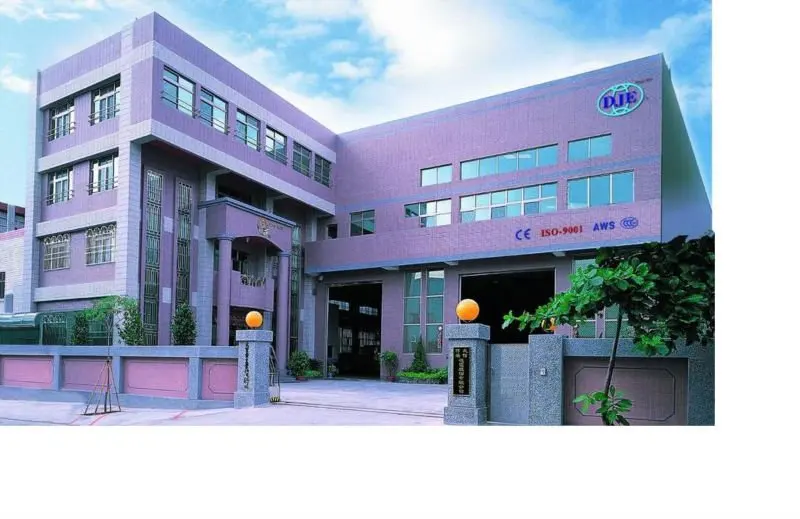

Da Jie Electricity Machinery Corporation has been established since 1973 year, have more than 47 years professional experience in R&D and manufacturing, and has been continuously to develop and grow in its international market. We focuse on the spot welding area at the starting period of time of our establishment.
As time goes by, Da Jie has developed machines and technology in different metal machining areas such as industrial welding, heating, upsetting. Over the years, we have OEM spot welding machine for Japan, American and European welding equipment manufacturers.
In addition, Da Jie has acquired its certification and approval by the government regarding its technology and product innovation by winning Taiwan Excellence Award consecutively in 6 years from 2016~2021. Six symbolic product items which has won the recognition publicly is our Electrical Heating Upsetter with automatic robot feeding, Inverter system Seam Welder for fuel tank, Inverter Seam Welder for the Full Line Equipment for Stainless Steel Water Tanks, New Generation High-efficient Condenser Welding Machine, Generation High-efficient Knife Shank Upsetter Machine and also New Generation High-Efficient Power-Saving Inverter Heating Machine for Equalizing Bar of Automobiles.
OEM & ODM suppiled
DJE Company establish history and OEM supply for famous welding company in the world
DA JIE electricity machinery was founded in 1973 in Taichung, central Taiwan, with 40 employees and strong R&D and sales teams, which will cover for domestic sells and the international market. We have sold our products to over 100 countries, like: Japan (HITACHI, TOSHIBA, HONDA, TOYOTA ), France, UK, China, Thailand, Philippines, Indonesia, India, Turkey, Brazil,….. Our main focus is on good machine quality and fast delivery time for our customers.
OEM for U.S.A customer OEM for Japan customer
Due to our brand and quality is very famous around 45 years in the world, so we have OEM or ODM supplied for customers who also manufacture welding machine. For example : U.S.A, Japan, France and Thailand ..etc. Any kind of particular design is easier for our company, because we have strong R&D department for according to any request from customer.
OEM for Thailand customer OEM for Europe customer
We are grateful for all the customers who always support our brand in the world. Below is our welding machine excellent feature different with the other supplier :
1. Reasonable price and high quality 2. Operation-friendly and long lifespan in use 3. Delivery fast and high accuracy
1. Payment term : 40% T/T down payment after confirming the order and 60% balance payment before machine shipment
2. Delivery time : Depending on the ordering time and machine type
3. Warranty : One year warranty, the Seller shall supply the free replacement spare parts (Without the mold, wearing parts and the items of misuse), and the delivery cost will bear on the buyer’s account.
