1.Welding appearance: Very less hot warp and oxidation save the processing in follow-up steps.
2.Stability: Less soldering tolerance conforms to JIS vehicle specifications.
3.Economy: The consuming parts such as copper-alloy electrode is very less, and power consumption is very less. The operation cost is low.
4.The machine is adjustable to fit either thin or thick work piece. Both continuous type and pulse type of electricity discharge are available.
5.Free of soldering scars: Save a lot of time on polishing, soil-patching and coating on next processing steps.
6.High maneuverability: The machine can be operated soon after it is started. Any ordinary technician can operate the machine.

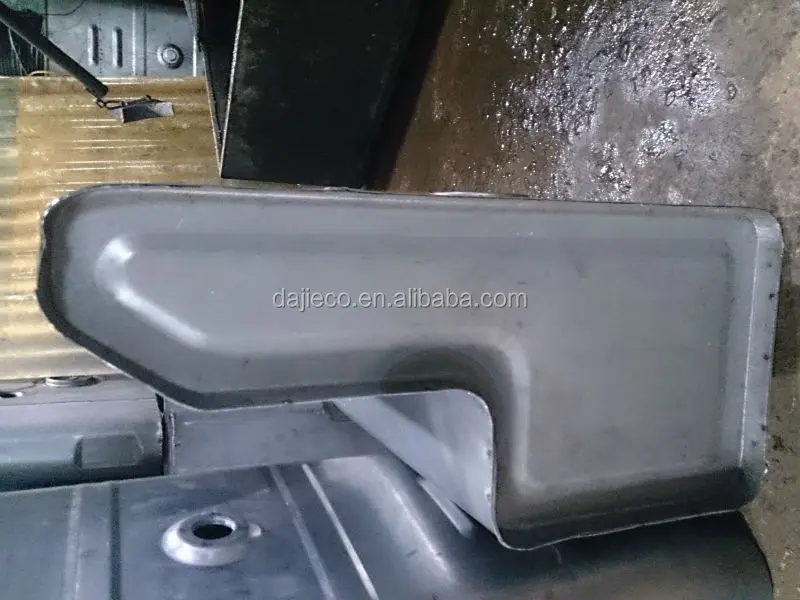

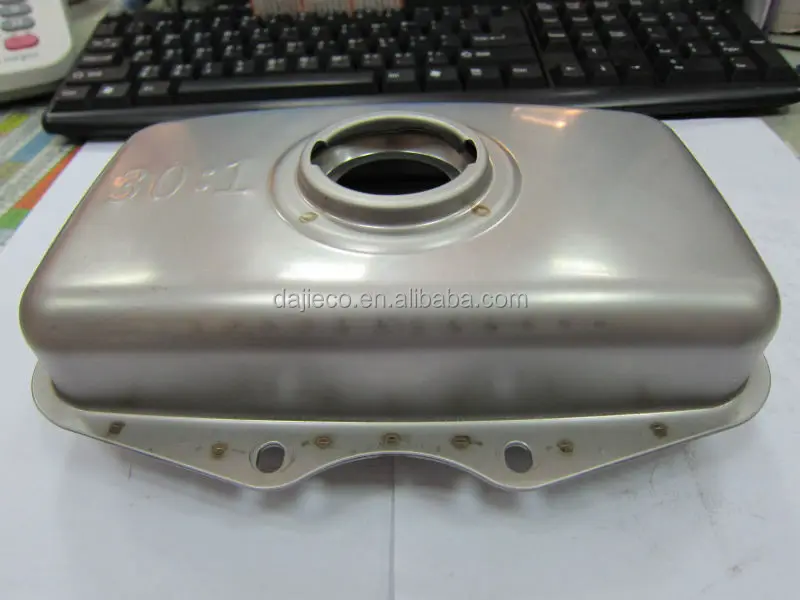

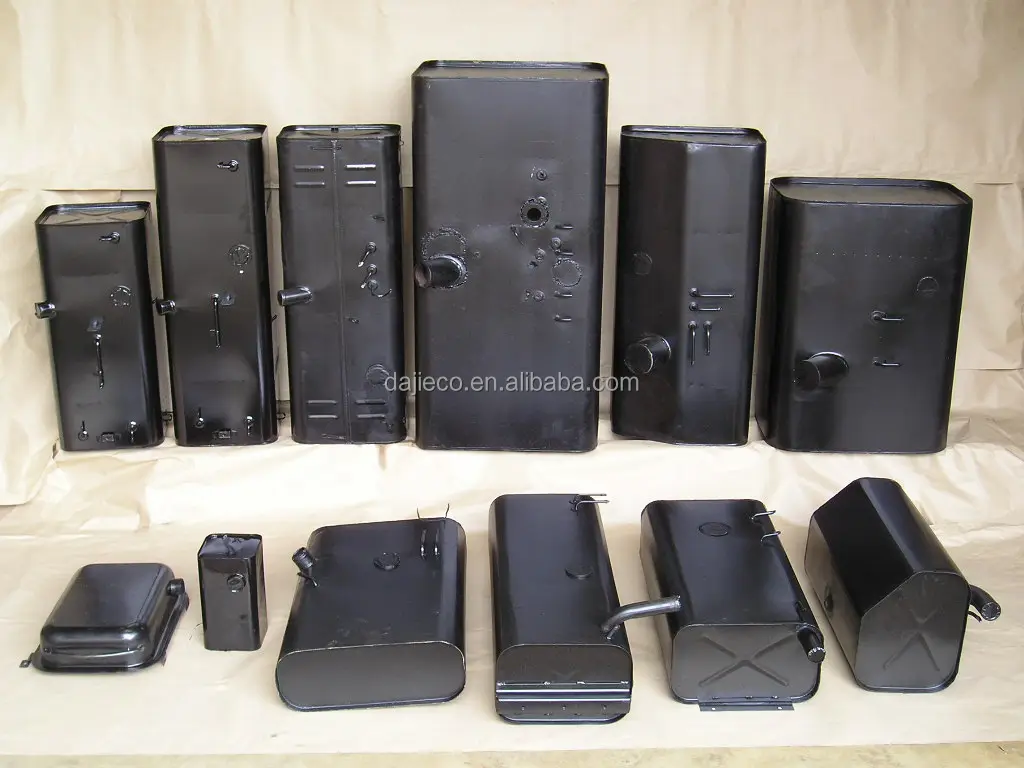

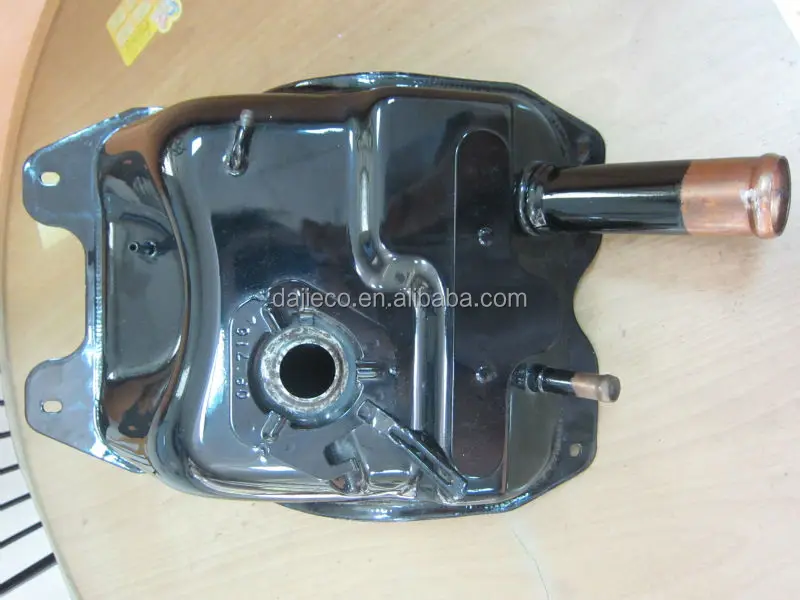

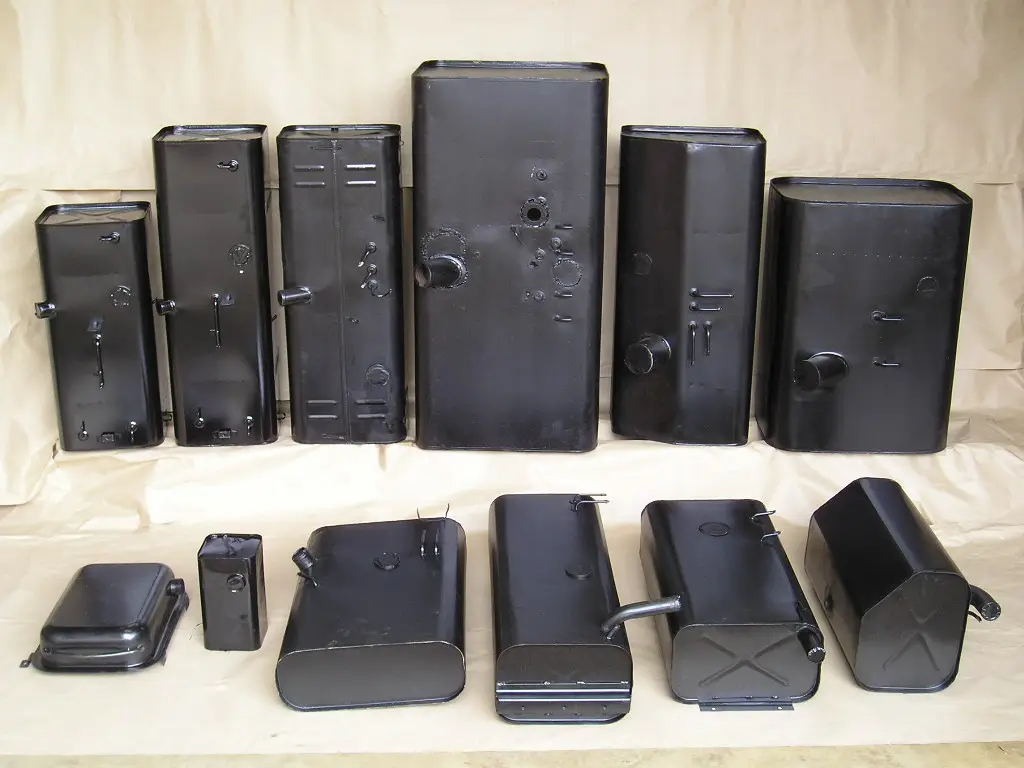

Applied articles All sizes of fuel tank of automobile and motorcycle, oil drum, oil tank, automobile's mufflier, exhaust pipe, bike's steel rim, stainless water tank, solar heat collecting plate, magazine, sprayer, water pail, electric heating canteen, thermos bottle, filter, all sizes of wine jar, motor's outer shell, mesh plate welding, stainless plate welding, and kitchen utensils.
Company Information
Da Jie Electricity Machinery Corporation has been established since 1973 year, have more than 47 years professional experience in R&D and manufacturing, and has been continuously to develop and grow in its international market. We focuse on the spot welding area at the starting period of time of our establishment.
As time goes by, Da Jie has developed machines and technology in different metal machining areas such as industrial welding, heating, upsetting. Over the years, we have OEM spot welding machine for Japan, American and European welding equipment manufacturers.
In addition, Da Jie has acquired its certification and approval by the government regarding its technology and product innovation by winning Taiwan Excellence Award consecutively in 6 years from 2016~2021. Six symbolic product items which has won the recognition publicly is our Electrical Heating Upsetter with automatic robot feeding, Inverter system Seam Welder for fuel tank, Inverter Seam Welder for the Full Line Equipment for Stainless Steel Water Tanks, New Generation High-efficient Condenser Welding Machine, Generation High-efficient Knife Shank Upsetter Machine and also New Generation High-Efficient Power-Saving Inverter Heating Machine for Equalizing Bar of Automobiles.
OEM & ODM suppiled
DJE Company establish history and OEM supply for famous welding company in the world
DA JIE electricity machinery was founded in 1973 in Taichung, central Taiwan, with 40 employees and strong R&D and sales teams, which will cover for domestic sells and the international market. We have sold our products to over 100 countries, like: Japan (HITACHI, TOSHIBA, HONDA, TOYOTA ), France, UK, China, Thailand, Philippines, Indonesia, India, Turkey, Brazil,….. Our main focus is on good machine quality and fast delivery time for our customers.
OEM for U.S.A customer OEM for Japan customer
Due to our brand and quality is very famous around 45 years in the world, so we have OEM or ODM supplied for customers who also manufacture welding machine. For example : U.S.A, Japan, France and Thailand ..etc. Any kind of particular design is easier for our company, because we have strong R&D department for according to any request from customer.
OEM for Thailand customer OEM for Europe customer
We are grateful for all the customers who always support our brand in the world. Below is our welding machine excellent feature different with the other supplier :
1. Reasonable price and high quality 2. Operation-friendly and long lifespan in use 3. Delivery fast and high accuracy
1. Payment term : 40% T/T down payment after confirming the order and 60% balance payment before machine shipment
2. Delivery time : Depending on the ordering time and machine type
3. Warranty : One year warranty, the Seller shall supply the free replacement spare parts (Without the mold, wearing parts and the items of misuse), and the delivery cost will bear on the buyer’s account.
Specification :
Model
Rated Capacity
Rated PrimaryVoltage
Rated Frequency
Max. Weld Current
Max. Welding Force
Cooling Water
Specification
KVA
V
HZ
A
KG
L/MIN
DJ-C800
80
220/440
50/60
18000
600
25
DJ-C1000
100
220/440
50/60
21000
800
25
DJ-C1200
120
220/440
50/60
24000
800
30
DJ-C1500
150
220/440
50/60
27000
800
30
DJ-C2000
200
220/440
50/60
31000
1200
40
DJ-C2500
250
220/440
50/60
35000
1200
40
DJ-C3000
300
220/440
50/60
38000
1200
50
*Can design & make according to local voltage requirement(200V-600V). *Its possible design make for rectifier model demand.
Dajie features
Machine Features :
1. Air control cylinder construction and solenoid valve. Air control cylinder together with solenoid valve, with no-feed oil dry bearings with minimum friction resistance, to increase the unit punching speed and reduce air flow loss.
2.High-Performance air compression components Explosion-resistant casing is fitted on the outside of the filter and oil feeder to prevent broken. The filter and oil feeder cup can be dismounted to facilitate cleaning and maintenance.
3.The cooling tubing employs 3/8" bronze tube compulsory cooling cycle circuits. All cooling water pipes of the transformer,SCR and electrodes will have excellent cooling efficiency,with additional temperature rise automatic cut-off switch to completely avoid burning the transformer.
4. High conductivity secondary re-circuits. Secondary side-welding re-circuits made by bronze, low resistance and well-conductivity.
5.Solid frame structure Sturdy body construction, excellent adaptability, reducing the electrode deviation during process, increase the welding quality, and reduce the shock and impact noise of the machine body.
6.Both interior and exterior of machine are treated with coating Coated with powder baked paint after acid pickling to extend the life time.
7. Safe and reliable pedal switch Sturdy and safe pedal switch with quick starting and easy installation starting voltage DC 12V which can be used safely.
8. An optional press adjuster is provided for upward and downward adjustment .To respectively adjust the rising or lowering speed and impact during the pressurizing progress, to obtain excellent welding quality and speed.
9. Central air exhaust method to improve working environment. Concentrated exhausting system will not only reduce the exhaust noise, but also reduce oil mist spraying, to maintain clean working environment.
10. Insulation on upper part, simple and practical. Secondary conductor insulation, employing upper insulation, iron powder adhesion, or lower part installed with welding appliances, to avoid frequent occurrence of installed welding appliances near the lower electrode.
11.All series with microcomputer precision control circuit Microcomputer Control Device: Precision Control.(Constant system)
12. Main conductive components import from Japan transformer of excellent current conductivity and of minimum electric loss secondary circuit with high conductivity, a low input will produce output with powerful current with minimum power loss and low facility cost.
13. Welding current circuits with adoption of SCR no-contact-point switch main circuit switch employs no-contact-point SCR to increase high welding reliability and save maintenance and repair expense. Even under rigorous conditions, it will still assure stable welding current to obtain consistent and steady welding strength.
