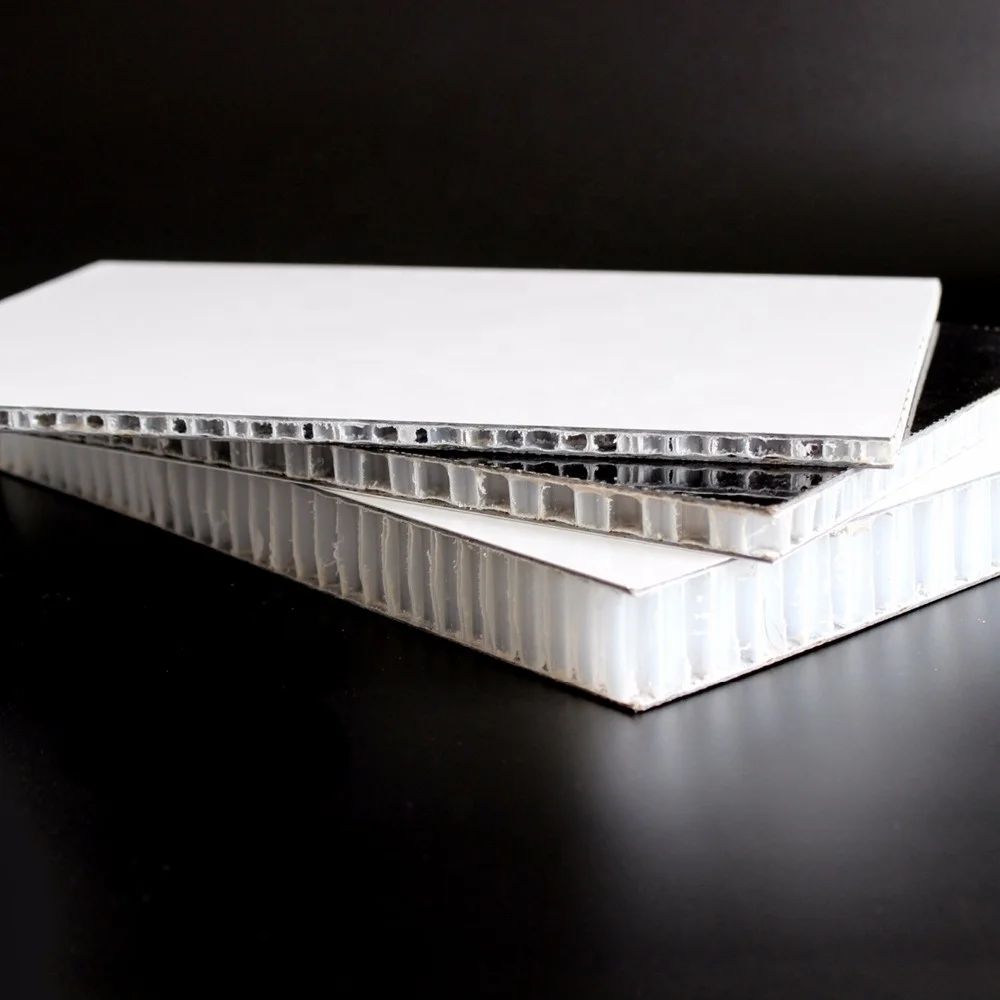

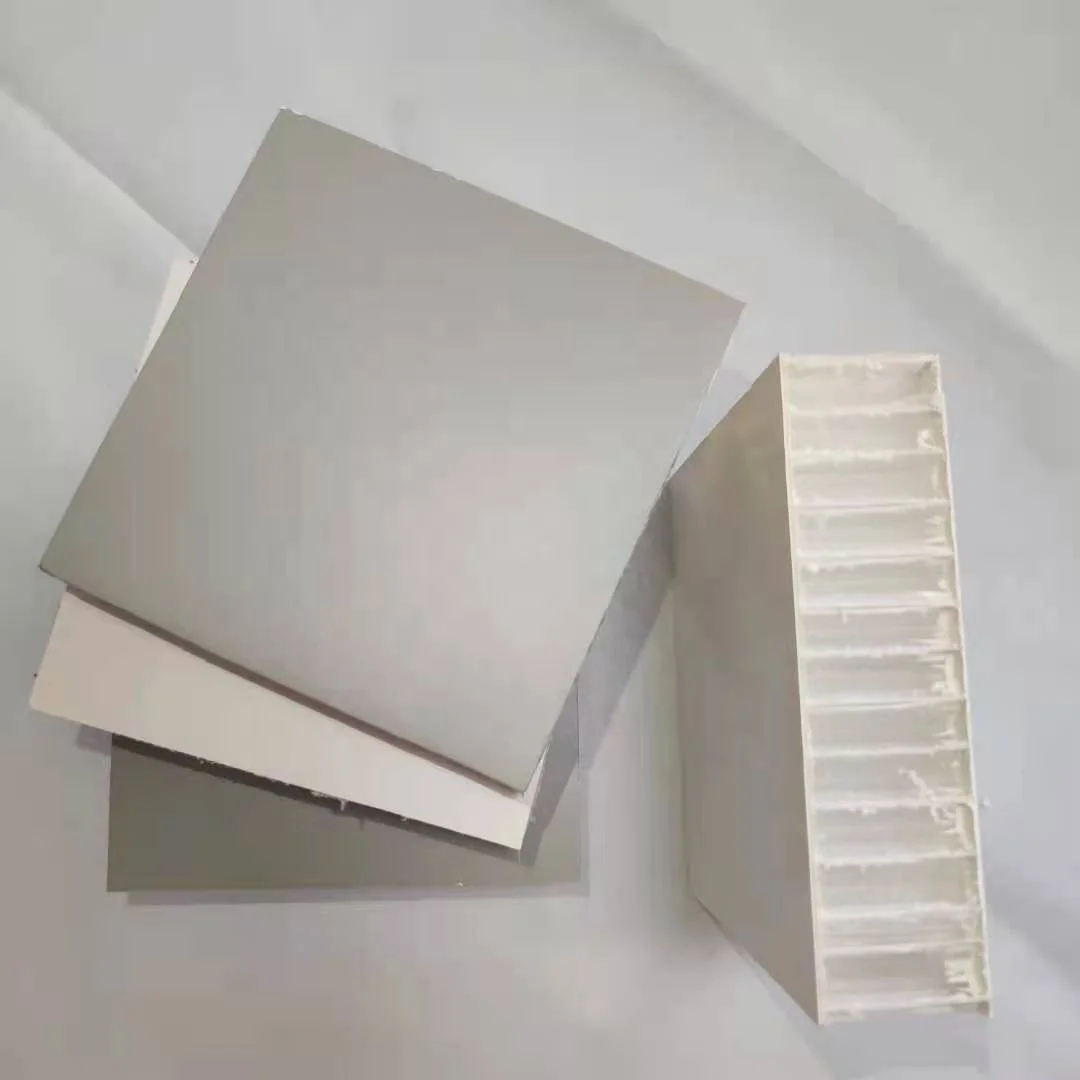

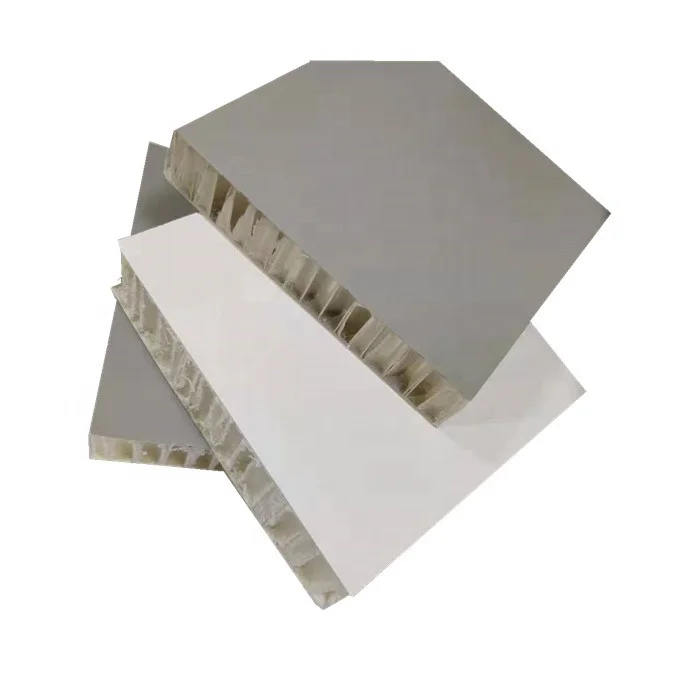

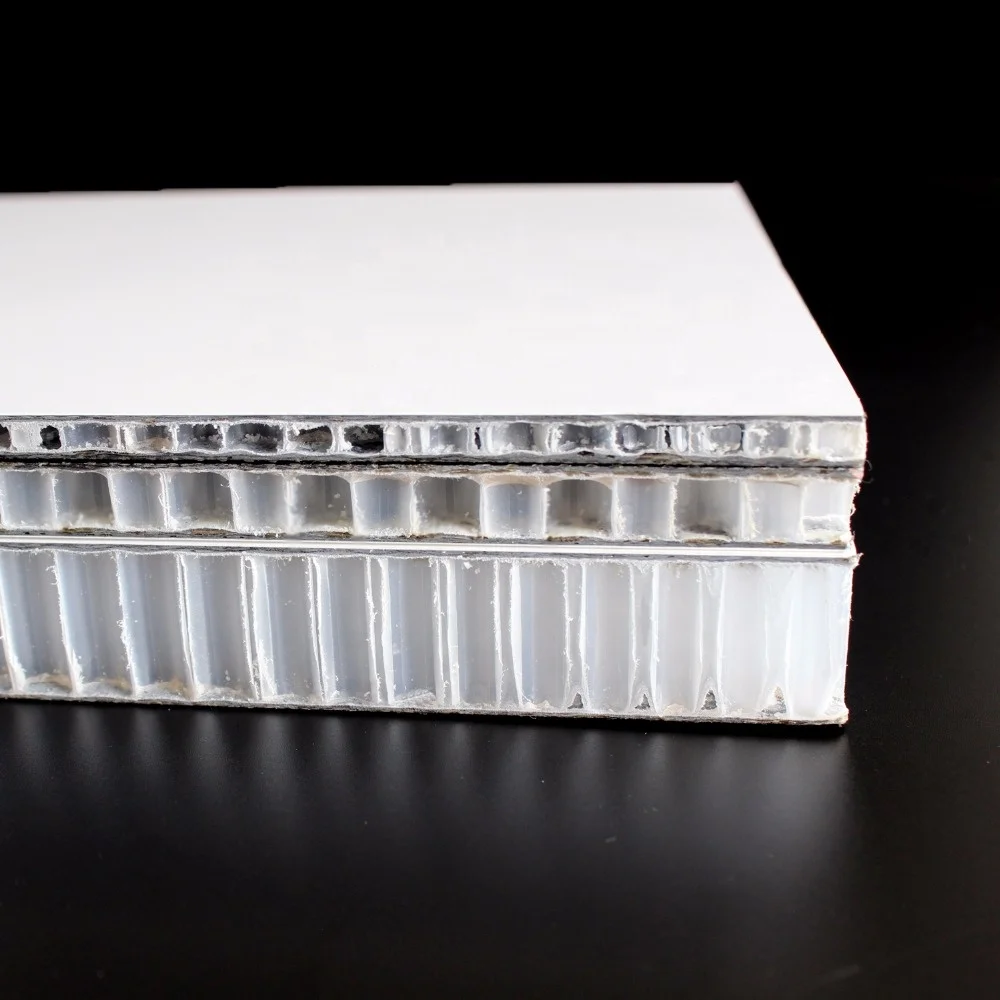

FRP Honeycomb Sandwich panel
- Category: >>>
- Supplier: Qingdao Achieving Honeycomb Panel Co. Ltd.
Share on (221983689):
Product Overview
Description
pp honeycomb core
- polypropylene honeycomb core with non woven surface
 |  |
Properties
* 1) strong: compress strength 2Mpa
* 2) light: common density is 80 Kg per cubic meter (could make to client order)
*3) different cell size: common diameter is 8mm and 10mm, special demand could discuss
size: 1220*2440mm or 1150*2300mm, Max 1200*4000mm, Max width 1500mm
thickness: 5mm-60mm, special size discuss
*4) surface non woven: 30/40/60 g per sqm could choose
* 5) Waterproof
* 6) Corrosion Resisting
* 7) Anti-vibrant
*8) Anti-aging / Durable
* 9) Convenient / Flexible Installation
*10) non toxic, Environmental Protection, recyclable
*11) Easy to process: Insert parts, pre-cut hole & window etc
Applications
♠ structural core material for sandwich panels
♠ core material in van wall, dry container boxes,truckbody, under floor for noisy reducting
♠ in pools building and its around ground surface and cover
♠ as inserts material for door for furniture for twin wall etc.
♠ it is a good material in boat building for yacht for big ship in its cabin, uper instruction etc.
♠ boxes of water for holding water
♠ packing material,light weight and better protection for cargoes
PP honeycombcore without surface the cell is open
laminated board
Light weight, high compressive strength,anti-water,anti-humidity honeycomb can be used as structure in floor,ceiling,wall. .Besides PP honeycomb can cut down body weight ,increase speed, save energy when honeycomb structure make guarantee for body strength. Hereinforce our PP honeycomb widely used in boat,yatch,port,bridge,truck body,building,FRP and so on.
PP honeycomb core Specification:
Dimension,
Cell size and density
PP8 (Cell diameter is 8mm, the density is 85kg-95kg/m ³ )
PP10 (Cell diameter is 10mm, the density is 75kg-85kg/m ³ )
PP12 (Cell diameter is 12mm, the density is 65kg-75kg/m ³ )
Length Max: 2500m
Width Max: 1300mm
Thickness 6mm----150mm
Normal size: 2440*1220mm
Surface skin
0.8mm/1.2mm/1.5mm with gel or not
Size
| Length Max | 2500mm |
| Width Max | 1300mm |
| Normal size | 2440*1220mm |
Truck wall or floor
Company Information
About Company
Qingdao Achieving Honeycomb Panel Co., Ltd. is a privately owned company which was found in 2008. This is the second company built up by the owner and is mainly focusing on the plastic honeycomb composite panels, which is different from the owner’s first company – a mechanical factory founded in 1999. The products includes but not limited to hardware, machinery and equipments, rubber and plastic products and etc. Our products have always been following the demand trends on the market. And our products’ reliable quality and our good service have brought us a good reputation home and abroad. We are willing to improve and develop new products with friends and clients together. We are inspirited by innovations. We’d love to have more experiences on developing?new markets and new applications for our clients, and creating better products.
Factory Information
Factory Size | 3,000-5,000 square meters |
Factory Country/Region | Hongbu Community Liuting Town Chenyang District,Qingdao |
No. of Production Lines | 5 |
Contract Manufacturing | OEM Service Offered |
Factory Display
Certifications
Our Service
FAQ
How does achieving honeycomb acoustic board work?
Achieving acoustics is based honeycomb,its cell structure could aborb,reflecting,consume
the energy of sound vibration, to keep noise minimum.
Honeycomb sheet mat advantage
It is strong and flexible,not grow together like rubber for example and have air in side its cells,
ventilatable and not crush,dissipating sound as it pass through the mat rather than deadening.
How to use Achieving acoustic board
Wildly adopted by commercial buildings, apartments, noise reduce for adjacent floors
It is a 5mm thickness mat,common size 1220*2440mm or 1150*2300mm,
Made of polycarbonate or polypropylene.density is around 70-90kg/m3,
It is laid and glued onto the floorslab’s surface, easier be bond and quickly ready for
Installation of tiles or timber flooring.
How do I know your quality?
We are a company/factory with more than 10 years’ experience in the honeycomb industry. During these years, we have done many businesses with the client from all over the world. If you still concern about the quality product, feel free to contact us ask for the sample.
My order has special requirements for dimensions and shape, do you have Customize services?
The answer is affirmative. We provide all kinds of customizing services, from shape and dimensions to the surface material. We will do our best to meet your requirements.
Can you deliver to the my city ?
We are qualified export factory and trading company, have lience anthoritied by Goverment
