Y83 3150 Hydraulic Scrap Metal Briquetting Press machine(High Quality)
- Category: >>>
- Supplier: Jiangyin Tianfu Technology Co. Ltd.
Share on (223030083):
Product Overview
Description

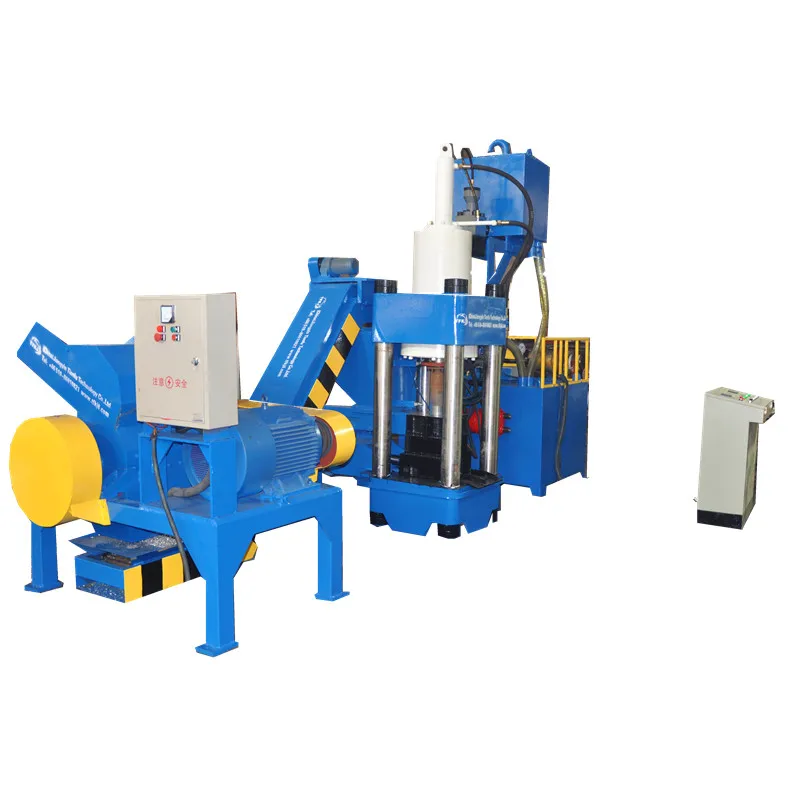

Y83-3150 Hydraulic Scrap Metal Briquetting Press machine(High Quality)
Applications:
Y83 series of briquetting presses are applied to compress metal sawdust(steel,cast iron,aluminum & copper) into cylindrical briquets of high density to reduce burning loss in smelting,to make recycling & smelting easy & convenient.Cast iron sawdust,after pressed into briquets,can subsititue pig iron as raw materials.
Features:
1) Hydraulic drive,operation stable,no vibration,safe & reliable.
2) Simple foundation needed.
3) PLC control adopted;user can choose manual or automatic operation.
Type | Y83-1800 | Y83-2500 | Y83-3150 | Y83-4000 | Y83-5000 |
Nominal pressure(KN) | 1800 | 2500 | 3110 | 3960 | 4550 |
Size of briquette(mm) | 85*85 | 90*90 [100*(60-80)]* [100*(60-80) | 90*90 [110*(60-100)]* [110*(60-100)] | 100*100 [130*(80-100)]* [130*(80-100)] | 110*110 [140*(80-120)]* [140*(80-120)] |
Density(T/m3) | >5.2 | >5.5 | >5.5 | >5.5~6 | >5.5~6 |
Weiht of briquette(kg) | 2.5~3 | 3.5~5 | 4~6 | 5~8 | 6~10 |
Productivity(Block/min) | 3.5 | 4.5 | 4.5 | 5 | 4~5 |
Output in one shift(T) | 3.5~4.5 | 4.5~7 | 8~10 | 10~15 | 13~18 |
Total power(kw) | 15 | 22 | 30 | 30 | 45 |
Weight of machine(kg) | 4200 | 5800 | 6500 | 7200 | 8950 |
Overall dimension(mm) | 2900*2600*2800 | 2900*2600*2800 | 3400*2600*3300 | 3000*3500*3600 | 3500*3200*3800 |
Remark | Manual operation | Manual operationor Automatic operation | PLC Automatic operation | PLC Automatic operation | PLC Automatic operation |
Lifelong maintainance and considerate technical support!
