woven fabric raising machine

Product Overview

Description

Appliation:

Model MA473D double acting napping machine is used for surface raising of cotton, woolen, synthetic and their relevant blends, also used for surface raising of various kind of warp knitting fabric,e.g. chino velvet, velvet. and elastic

Feature:

1.Model MA473D double acting napping machine is an improved type raising machine.

2.The machine has the function of zero napping.

3.The speed of raising roller are controlled by chain speed variator(PIV) controlled by pilot motor, with indicator display, the characteristic of process reappearing is very good.

4.The machine is equipped with a set of card stripping device.

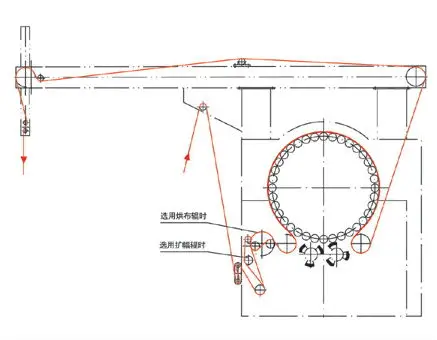

5.The parts of drying cylinder, expander roller and fabric reverse device are optional on various kinds of fabrics.

Main technical data:

Nominal width  (mm)                                     2000                         2500

Speed of fabric (m/min)                                     8,12,16,20    (4 steps)

Rotation rate of drum(r/min)                                      80

Number of raising roller                                            36

Motor power(Not include dust exhaustor) (kw)           12.1

Overall dimensions (mm)                       4250x4470x3000          4250x4970x3000

Machine weight(kg)                                        8000                        8300
