Product Overview

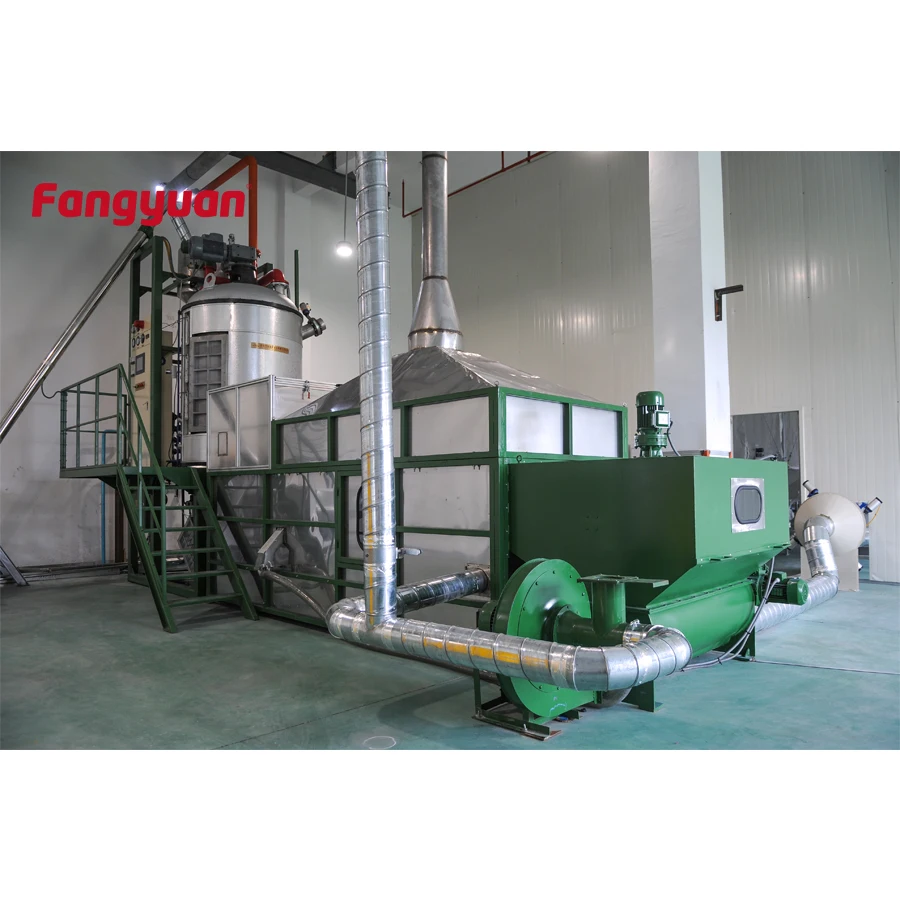

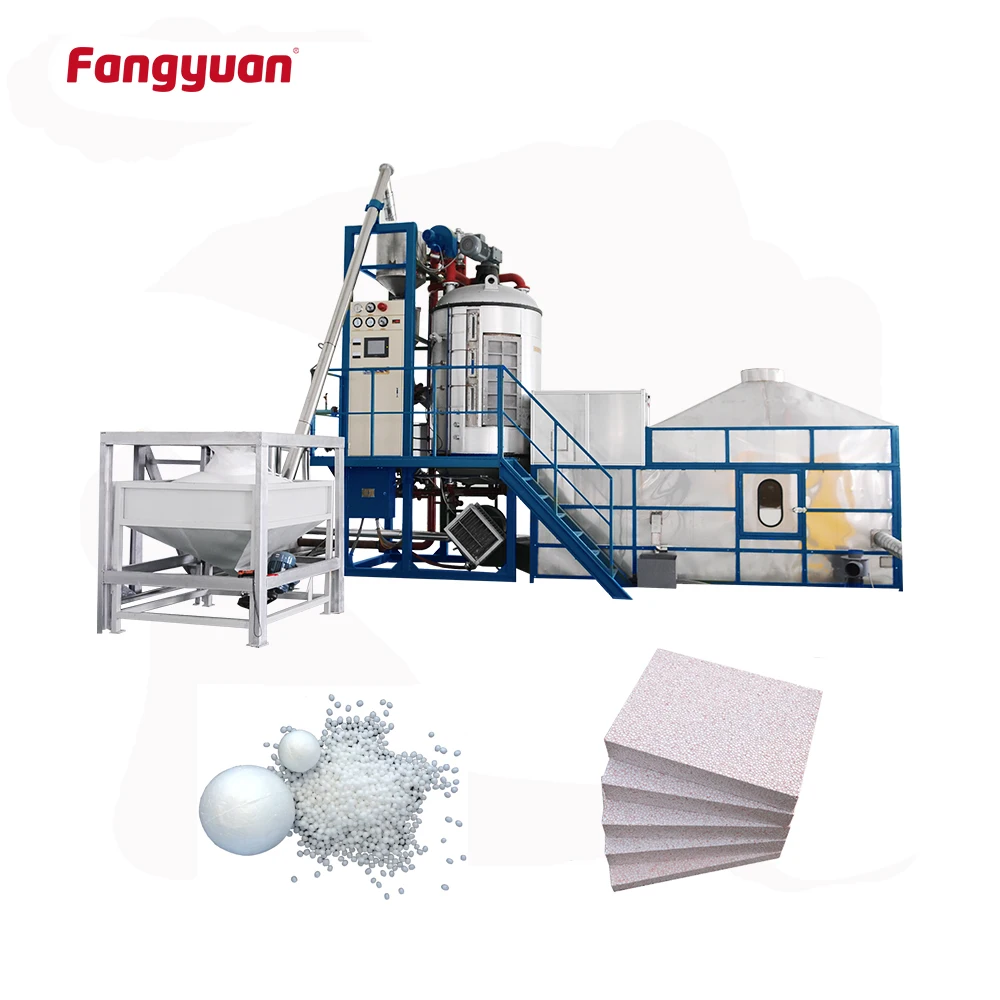

SPJ130A eps foaming machine
Including stainless steel dryer bed, screw conveyer, filling, sieving device, etc.
Steam system:
Accurate pressure reducer and PID control system(proportional steam valve system)to keep very stable and accurate steam, ensure material variation.
Pressure control:
Pressure sensor with multi-steam exhausting system to keep expansion chamber pressure stable, as well as reduces the steam consumption.
Temperature control:
The temperature sensor and compressed air proportional valve maintains accurate expansion temperature, which is suitable for high density expansion, resulting in less broken beads.
Material level control:
Keeps accurate weighing scales and vibrated level sensor control, ensuring less density tolerance.
Material filling system:
Set filling weight in touch screen and electronic weighing filling to realize filling accurately and automatically.
Electric control:
The PLC touch screen, electronic parts and valves are from reputed brands, which make the whole working procedure automatic and stable.
Notes:
Auto density-weighing system is optional.
Secondary expansion device for SPJ130, SPJ160 is optional.
Technical Data of eps foaming machine
Item | SPJ130A | ||
Expansion Chamber | Diameter | φ1300mm | |
Volume | 2.4m³ | ||
Useable Volume | 1.6m³ | ||
Throughput | 12g/L | 530kg/h | |
15g/L | 670kg/h | ||
20g/L | 920kg/h | ||
30g/L | 1220kg/h | ||
Connected Load | 20.3kW | ||
Outside Dimensions | 7380×3000×4500mm | ||
Weight | 4.20t | ||

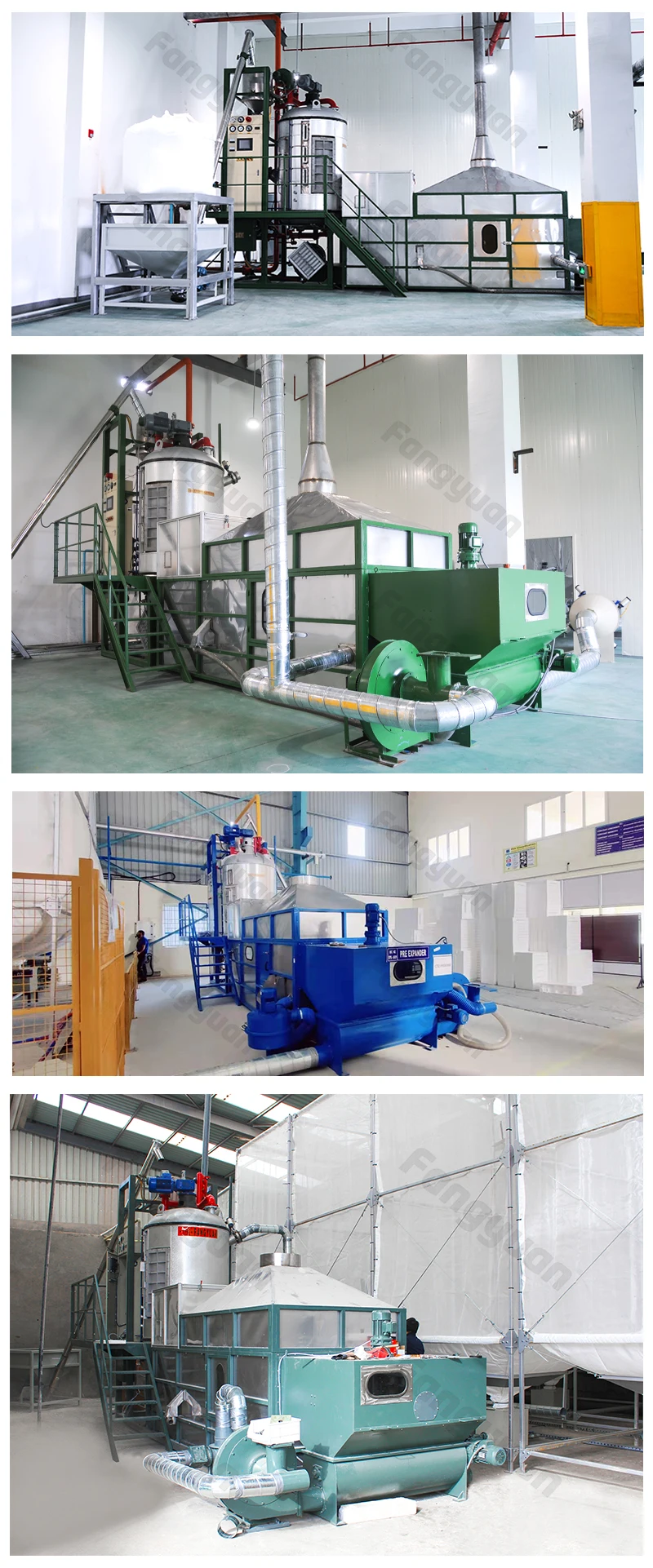

Successful Project
Successful Projects of eps foaming machine

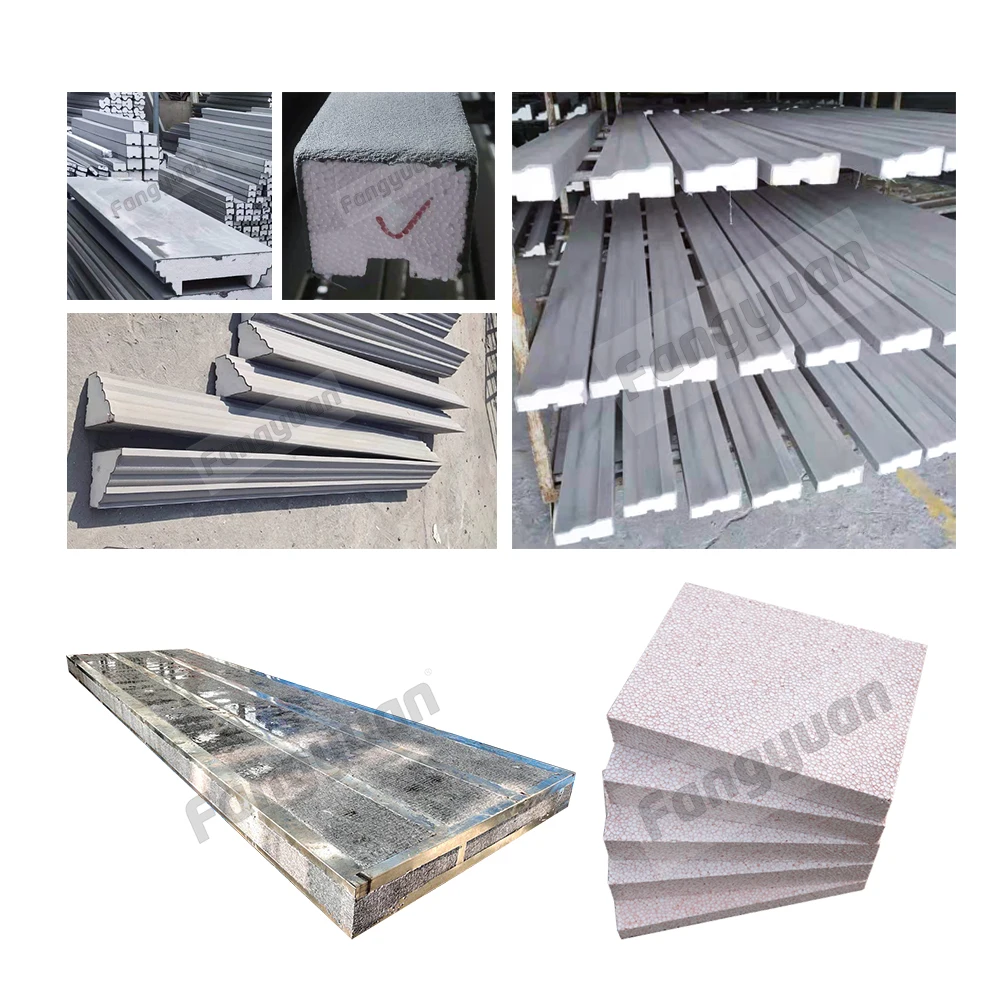

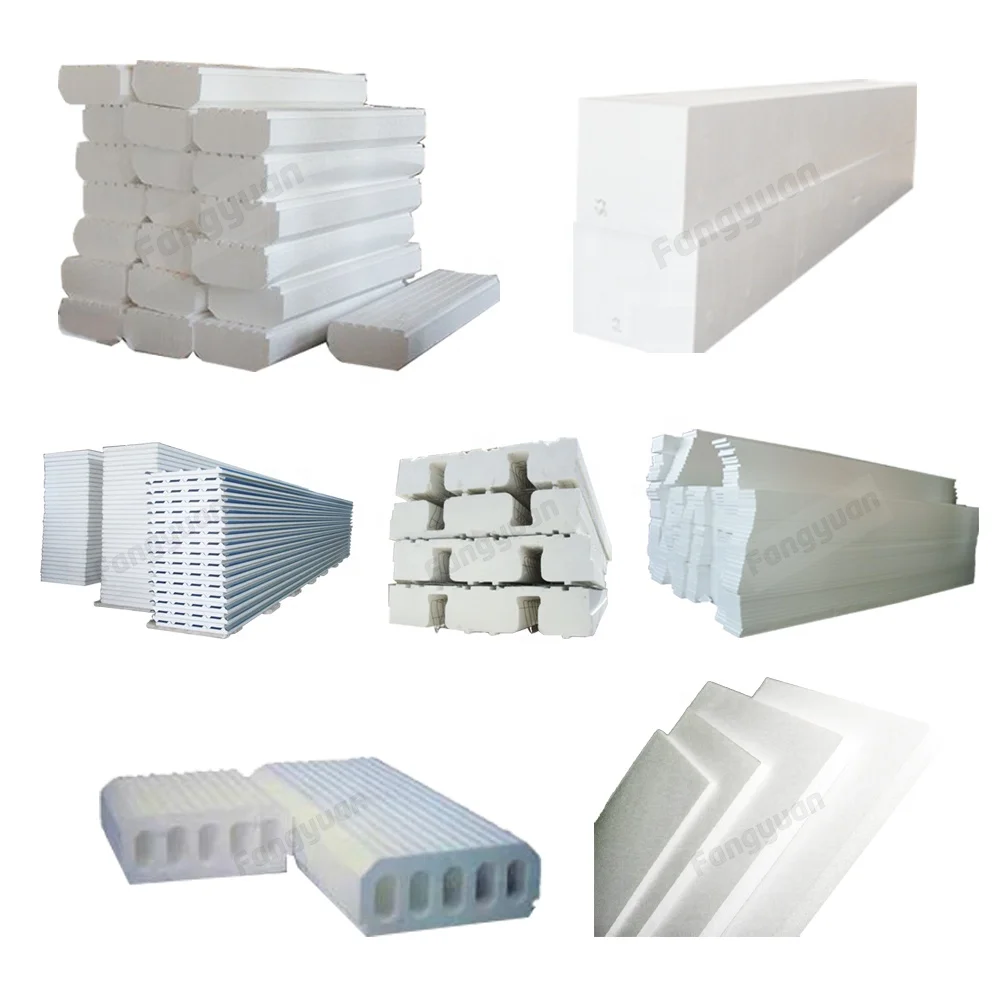

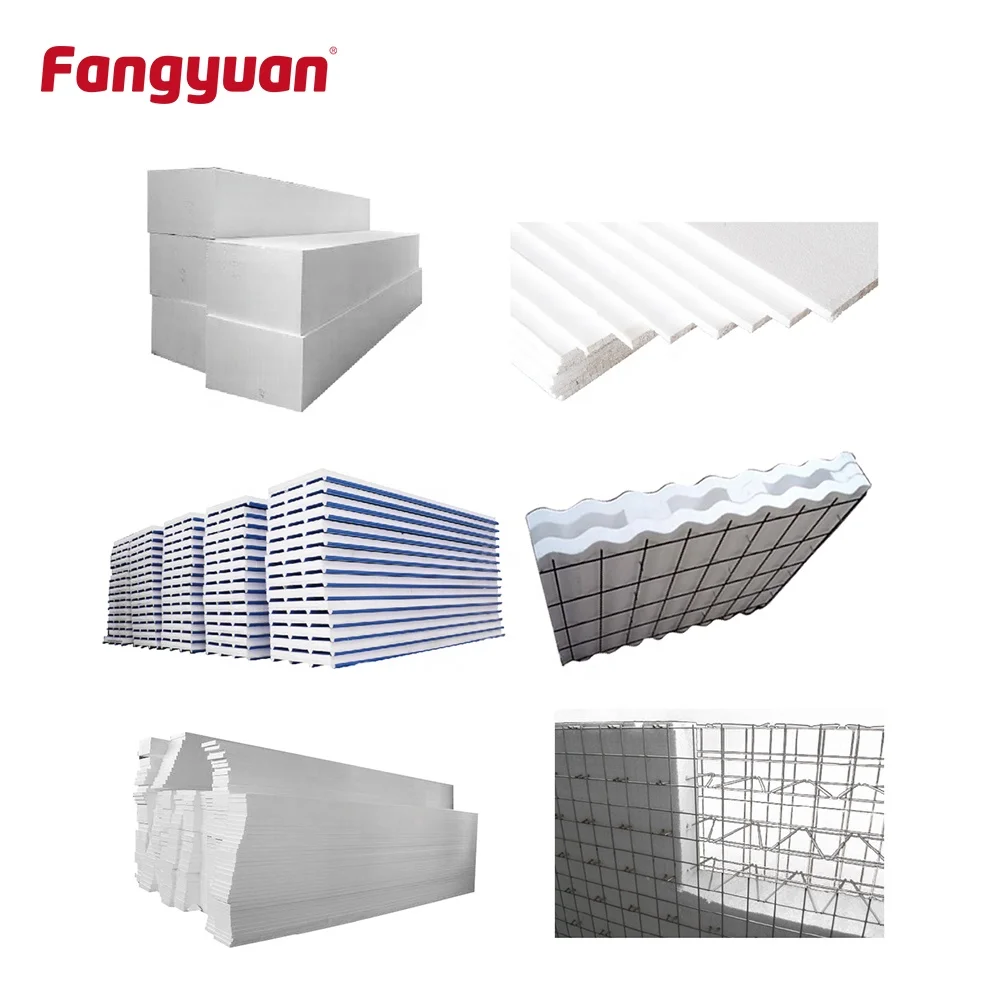

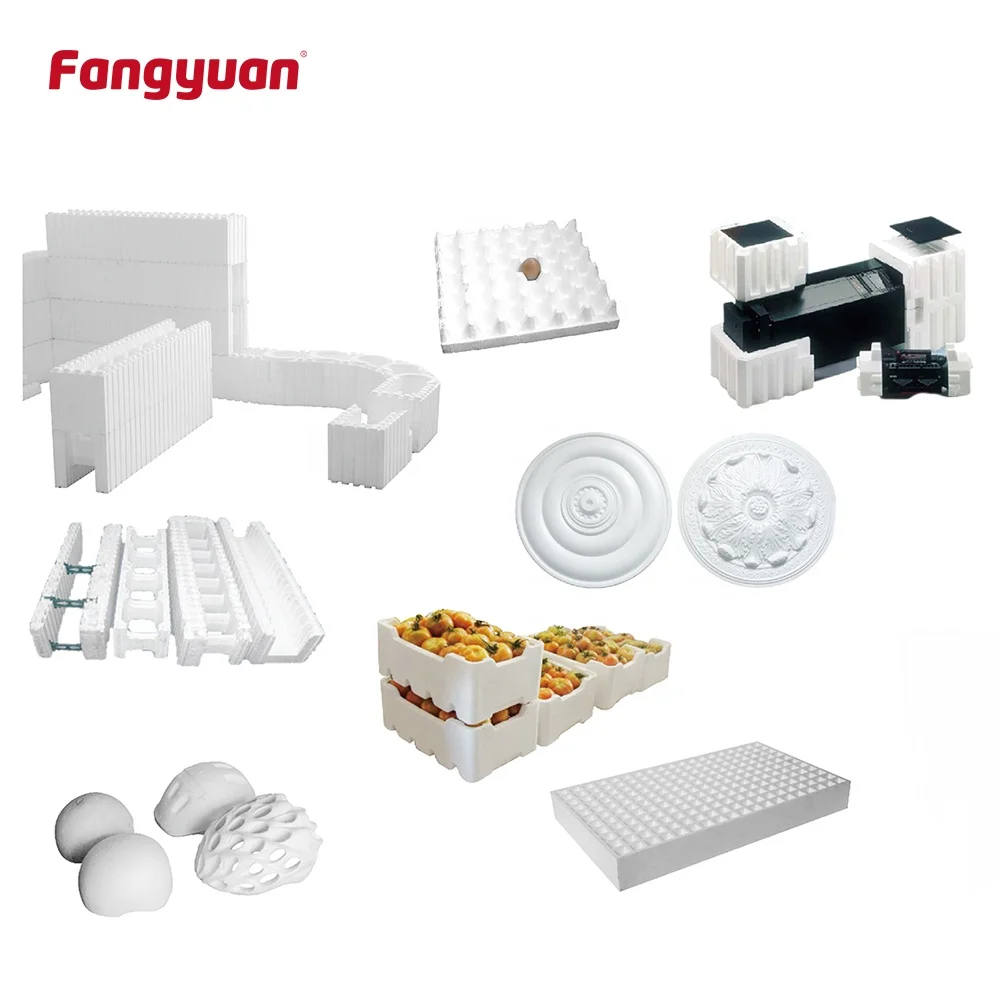

Products

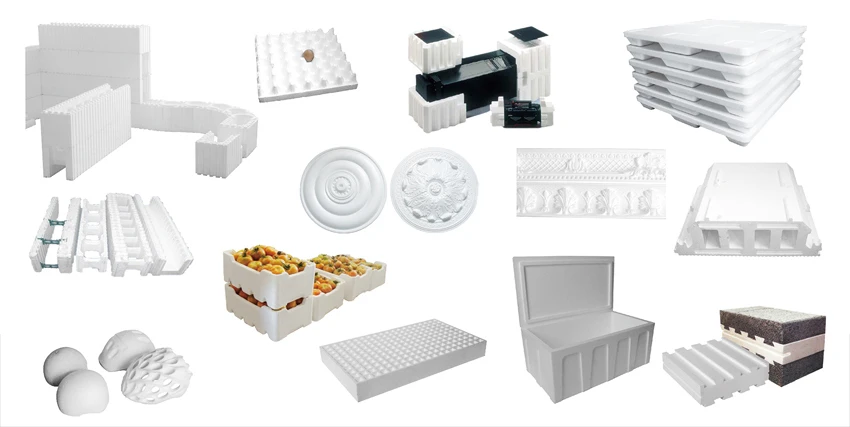

Products of eps foaming machine
Company Profile
Packing & Delivery
FAQ
Q: Are you a factory or trading company?
A: We are a factory with more than 30 years' experience.
Q: what is your payment term?
A: 30% down payment against order confirmation, 70% balance payment prior shipment.
Q:what is your delivery time?
A: usually in 30-60days, depends on your projects.
Q: Can you send engineer to our local place to instruct installation?
A:Yes,if you need,we will arrange engineer for you,and we can provide turn-key job.
Q: Warranty?
A: One year warranty after installation is completed.During warranty period, for broken parts not by man-made and wear parts, factory seller will replace free of charge. the shipping cost will be borne by buyer, seller will equip standard spare wear parts to buyer.
