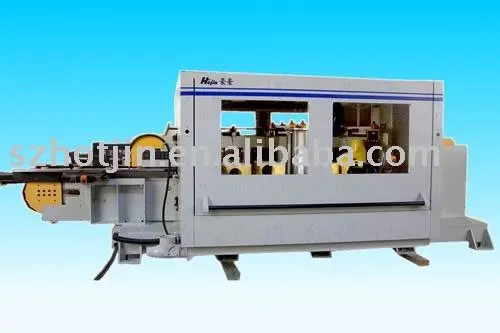

MDF Floor Equipment Double End Tensioner Series

Product Overview

Description



    MDF Floor Equipment Double End Tenoner Series is mainly used in the forming and processing of the long side of laminate flooring and multi-layer wood composite floor. Each cutter axis can rotate according to different processing needs, so as to meet various complex clips. Monorail features in good stability and small working width, etc. , thus it has different working stations as required, i.e., precutting, forming, finishing, chamfering and clipping ,etc.

LTO2-8D		8-axis longitudinal
		monorail double end tenoner machine
Working width(mm)	120-200	Rotate speed of cutter shaft(rpm)	6000-7000
Working thickness(mm)	6-15	Power of feeding motor(kw)	5.5
Feeding speed(m/min)	30-60	Gross weight of equipment(kg)	6000
Power of station 1(kw)	5.5	Sweep-up dia.of cutter cover(mm)	120
Power of station 2(kw)	8	Sweep-up dia.of driver chain(mm)	100
Power of station 3(kw)	3	Cutter dia.(mm)	200-220
Power of station 4(kw)	3	Height of working surface of table(mm)	1100
Max.insert depth(mm)	5/7/12(17)Feeding speed adjustable to milling volume
Axis dia.of station 1-5(mm)	Hydraulic shaft and nut axis by the user matching
Remark:1.Monorail adopted for conveyance.
2.Our company reserves the right to make further technical improvement.
