e glass fiberglass Chopped strand mat

Product Overview

Description



fiberglass mat

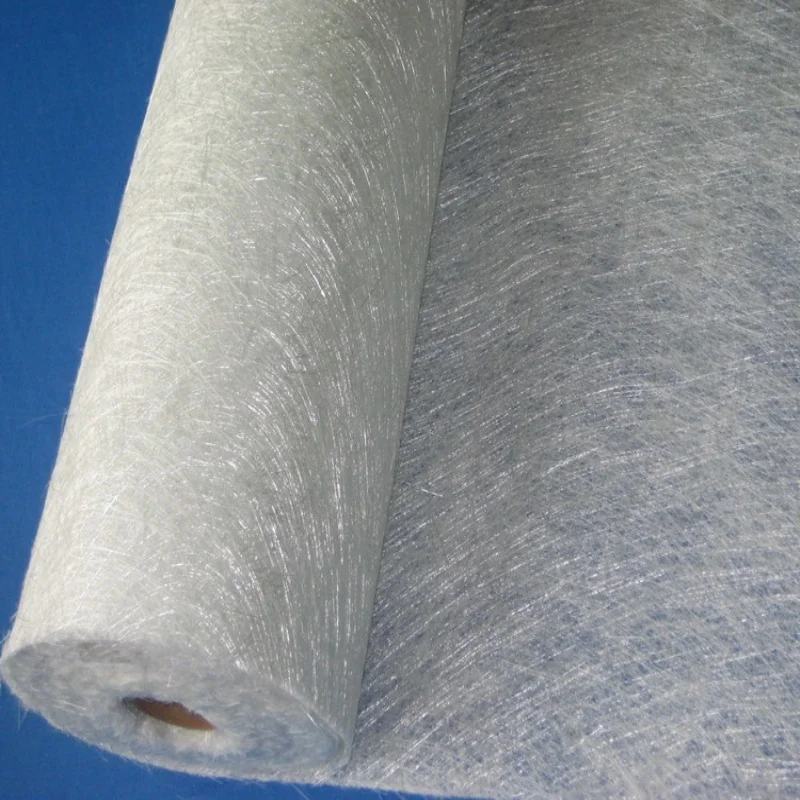

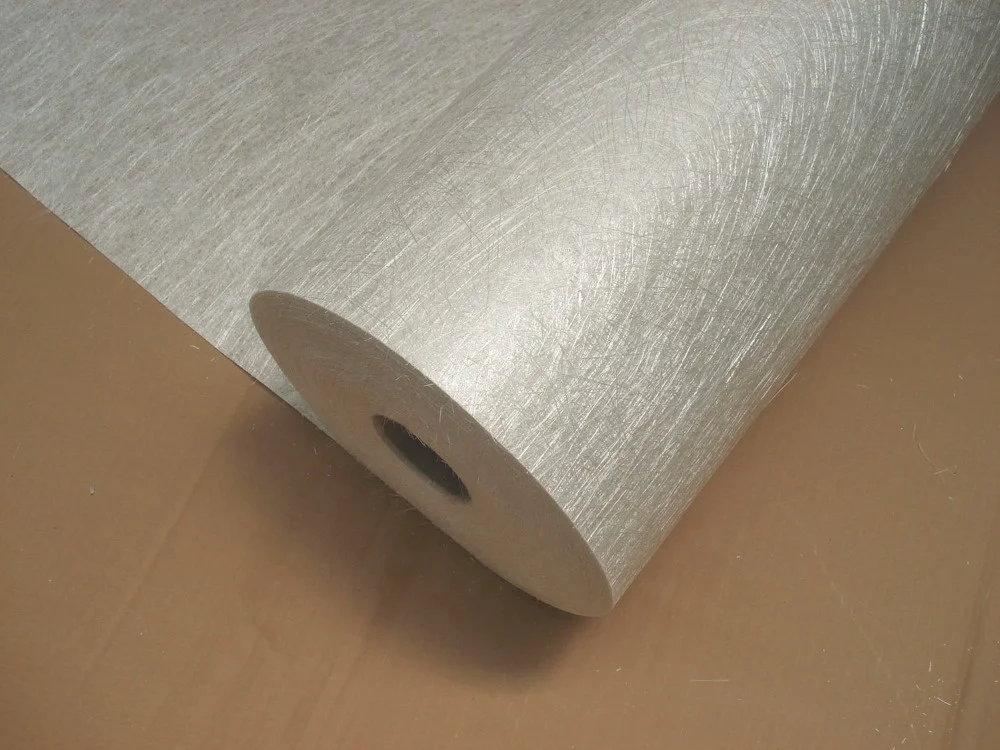

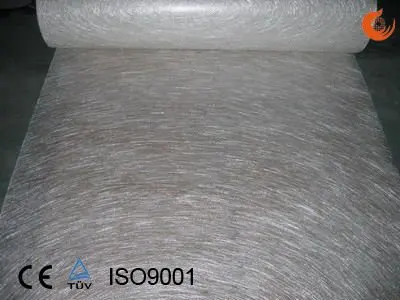

Chopped strand mat is a non-woven reinforced material. It is made through cutting the continuous roving. The end products are boats, laminates, bathing equipment, cooling tower, etc. Area weight ranging from 100g/900g/. Width can be from 20cm320cm. Binder is Powder or Emulsion.

E,C Specification	Weight g/m	Breaking strength N/150mm	Speed of impregnations	Package Weight (kg)
E-MC100	100	30	60	20
E-MC200	200	30	180	30
E-MC350	300	43	180	30
E-MC450	450	60	180	30
E-MC600	600	80	180	30



FIBERGLASS CONTINUOUS STRAND MAT

It is made of continuous fiberglass strand, non woven mat containing an insoluble binder for unsaturated polyester, epoxy, phenolic and polyurethane resin compatibility in unfilled or filled resin systems. It is suit for FRP process like pultruded profile, RTM process, filament winding process, etc.



STITCH MAT, STITCH BONDED MAT, COMBO MAT

Stitch-bonder combo mat is a kind of multi-layer fabric made from roving. Each layer is arranged unidirectionally. It is used in extrusion process, hand lay-up and resin transfer molding (RTM) process. The main end products are boat shells, pipes, etc.

Specifications of stitched combo mat (Multiaxial)

Warp UD (0°)	300-2400gsm, can be with chopping layer, tape avaliable
Weft UD (90°)	300-1200gsm, can be with chopping layer, tapes avaliable
Biaxial (0°/90°)	300-2400gsm, can be with chopping layer, tapes avaliable
Double Biaxial(+/-45°)	300-1200gsm, can be with chopping layer, tapes avaliable
Triaxial(0°/+/-45°or +45°/90°/-45°)	450-1800gsm, can be with chopping layer, tapes avaliable
Quadraxial(0°/+45°/90°//45°)	600-2000gsm, can be with chopping layer, tapes avaliable

Supply fiberglass chopped strand mat and continuous strand mat and stitch mat, stitch bonded mat, combo mat.
