CE Safety standard, RISEN PZ Series dry & damp mix shotcrete machine with good price and high quality
Product Description

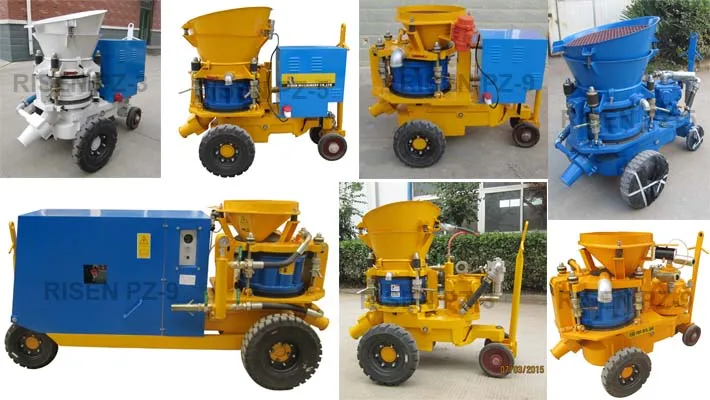

RISEN has engaged in the manufacturing and export of RISEN PZ series dry mix shotcrete machine since 2004. Based on the excellent quality, technology support and competitive price, RISEN RH series shotcrete machines have been exported to many countries, such as, Malaysia, Singapore, Philippines, Sri Lanka, Lebanon, South Africa, Finland, Australia, Peru, Canada, etc. Among the RISEN PZ series dry mix shotcrete machines, the popular models are PZ-3, PZ-5 and PZ-9.
Application:
· Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, deep foundation, etc.
· Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
· Refractory spraying and repair for industrial kilns or kilns’ inner liner.
Technical Data
Item

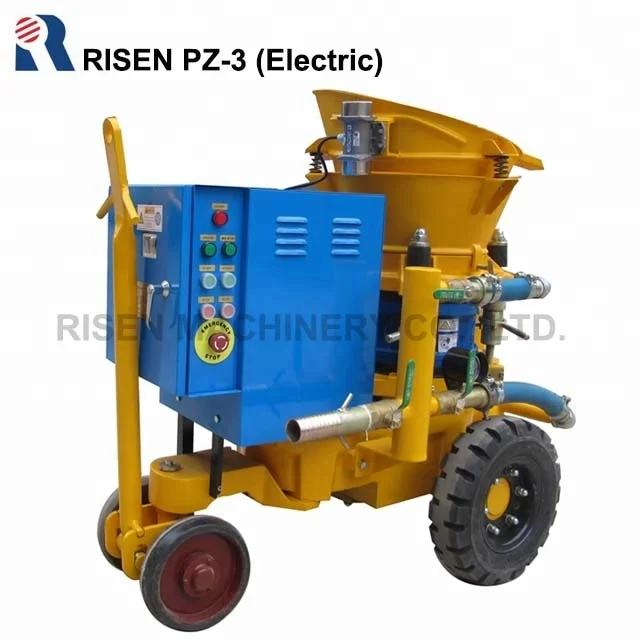

PZ-3
PZ-5
PZ-9
Output
3m3/h
5m3/h
9m3/h
Max. conv.dist
200m
200m
150m
Water cement ratio
0.4
0.4
0.35
Max.Aggregate.size
10mm
10mm
10mm
Hose inner diameter
42mm
50mm
64mm
Operating air pressure
0.2-0.6MPa
0.2-0.6MPa
0.2-0.6MPa
Air consumption
5-6m3/min
7-8m3/min
9-10m3/min
*Electric Power
4kW
5.5kW
7.5kW
Weight
430kg
720kg
900kg
Dimenssion(LxWxH)
135x68x113cm
150x78x125cm
165x90x125cm

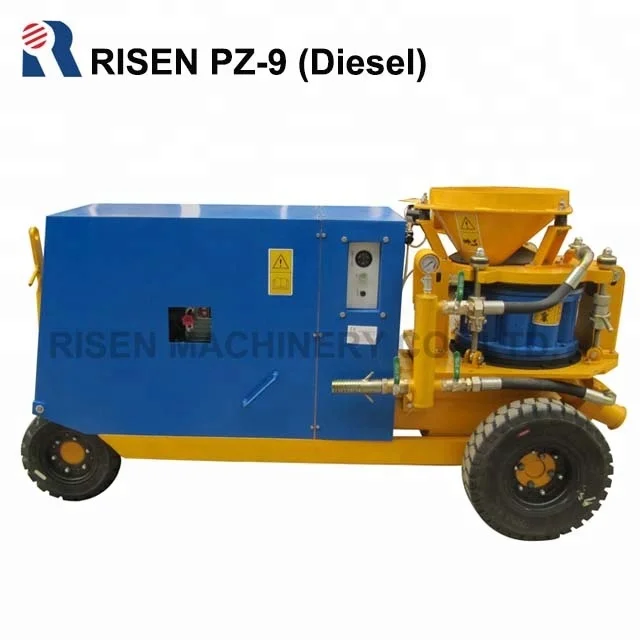

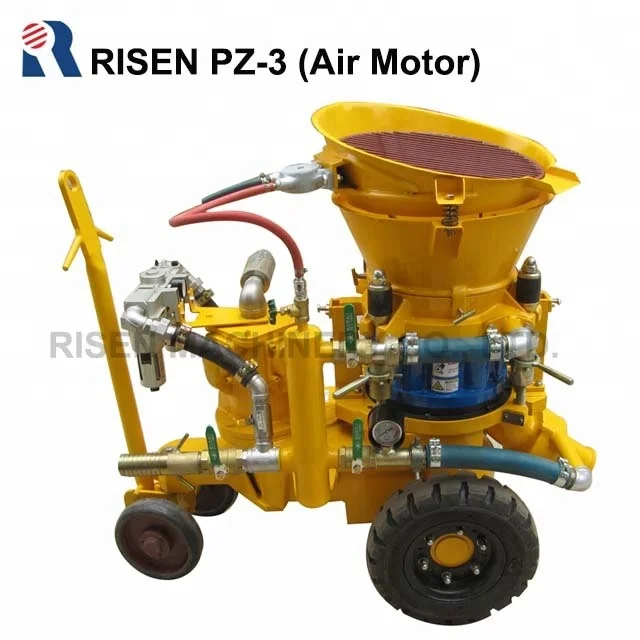

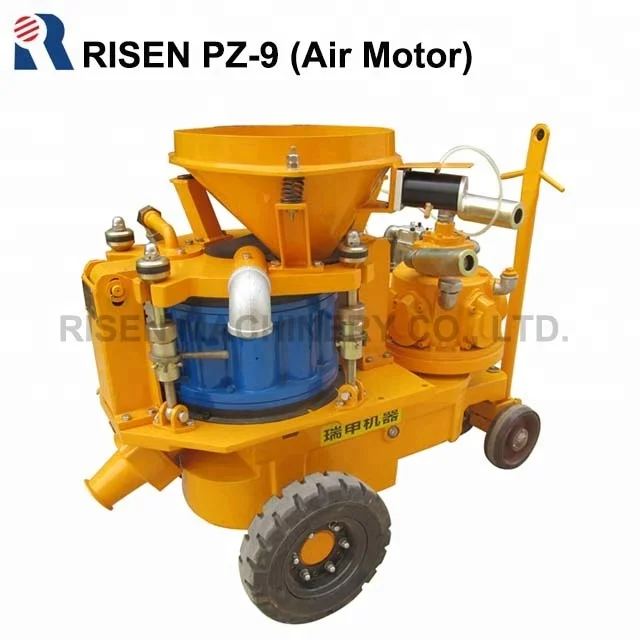

Note: *Air motor or Diesel Engine is optional.
Features
· Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
· Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality
· Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life
Advantages
High wear resistance and longer use life consumable parts;
Military standard solid wheels for different construction site;

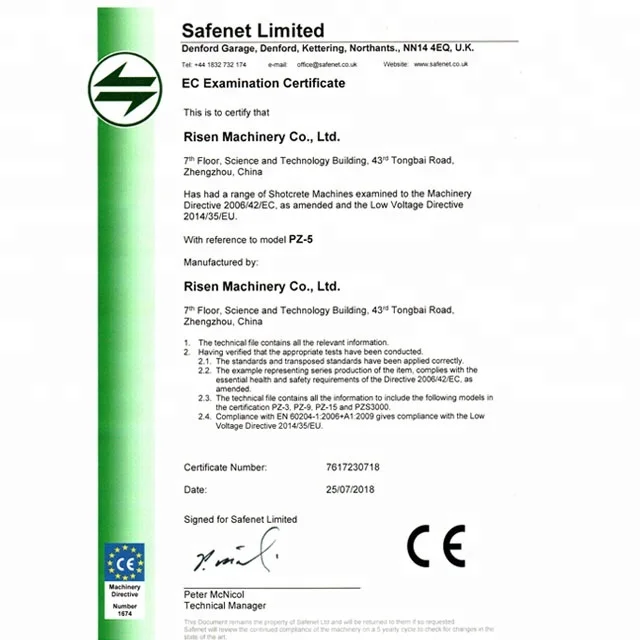

IP55 100% new electrical motor, standard Schneider electrical elements and electrical control box strictly as the CE safety standard;
National standard bearing, valve and screw etc.;
All the casting units manufactured as our special design to ensure the enough strength and some key parts are the welded parts not the casting;
The sheet metal parts made of the thicker steel plate to have a stronger quality, such as the hopper and electrical control box;
Serious handle for details, such as, protector for pressure gauge, special part for dust escaping down to the ground;
Painted after sandblasting for a pretty appearance;
