SKF 15 Plate Bevel Milling Machine Plate Beveler

Product Overview

Description

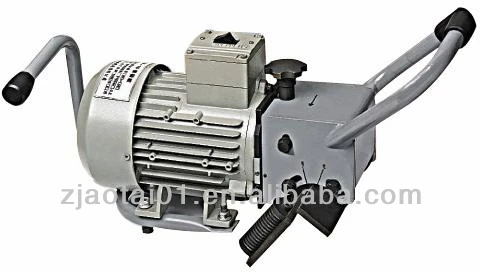

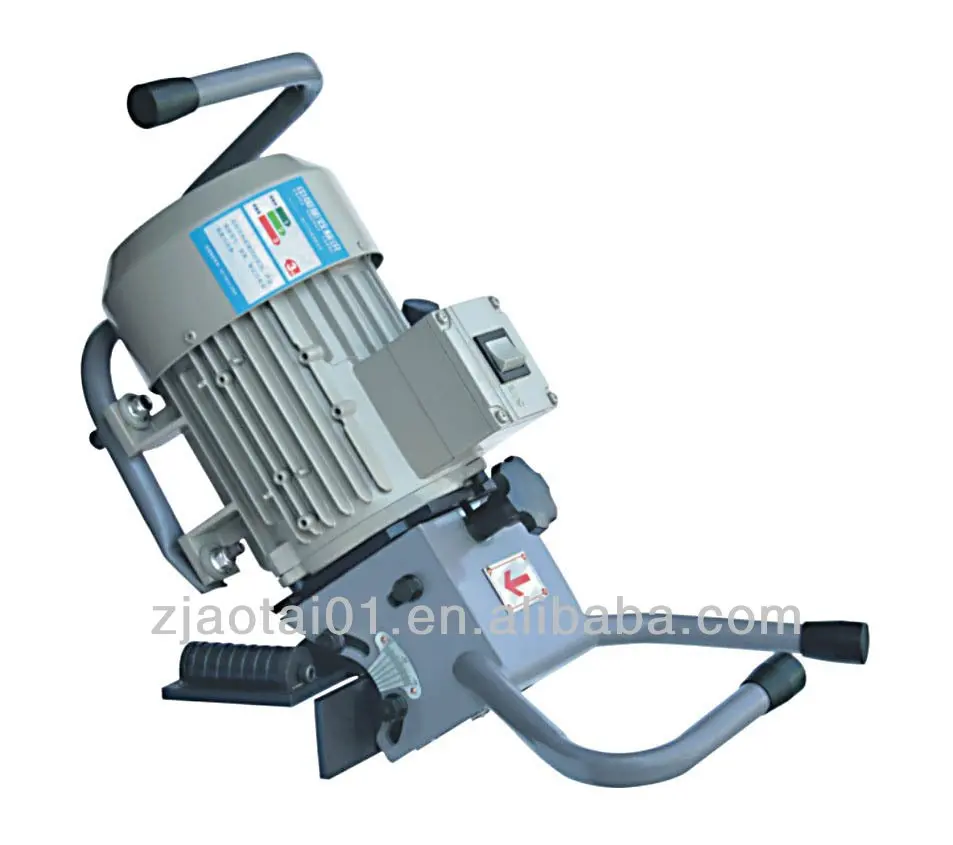

  SKF 15 Plate Bevel Milling Machine Plate Beveler

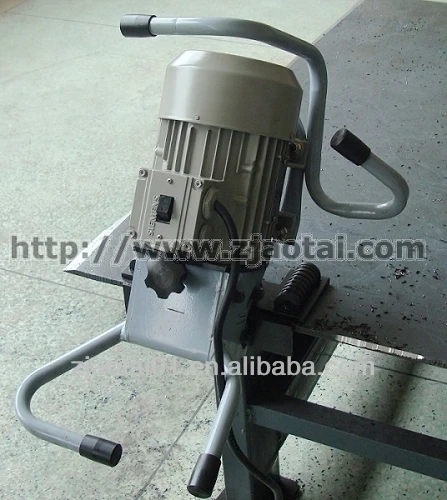

This machine is a handy, portable and flexible unit for the preparation of welds, bevelling of meaterials. And chamfer / bevel large pipe, the low weight (please compare with our competition) enables use on almost every work place and a rattling-free, steady milling operation. The operation is easy and safe. The machineis suitable for milling steel plate or pipe, VA, cast iron and nonferrous heavy metal by one-hand operation.



Patents No.: ZL200530106371.X



SKF 15 Plate Bevel Milling Machine Plate Beveler

 *Designed for metal plate prep- welding, to beveling, chamfering and milling

*Milling process, handy feeding, Light, operate easily and safe, steady milling

*Cold cutting, don’t change the material of welding surface, be suitable for milling steel, carbon steel, alloy, etc

*Smooth and flat beveling surface, meet the need of K, V, X,Y shapes for welding.

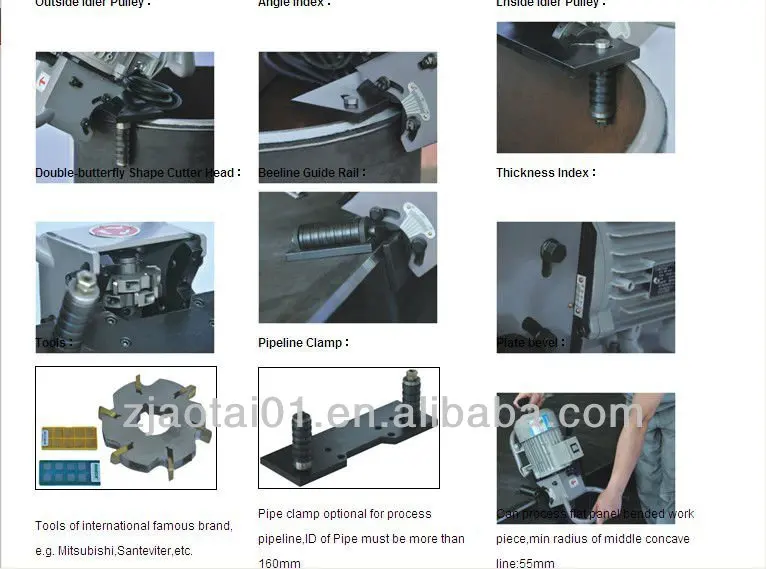

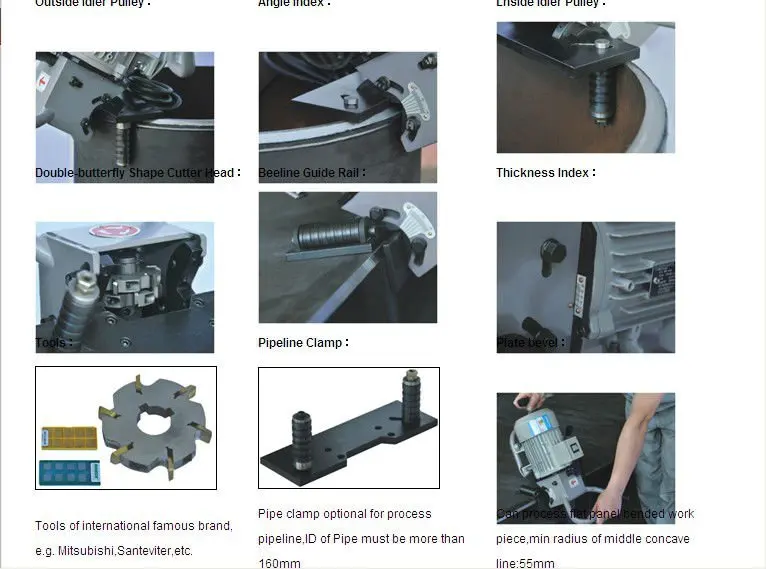

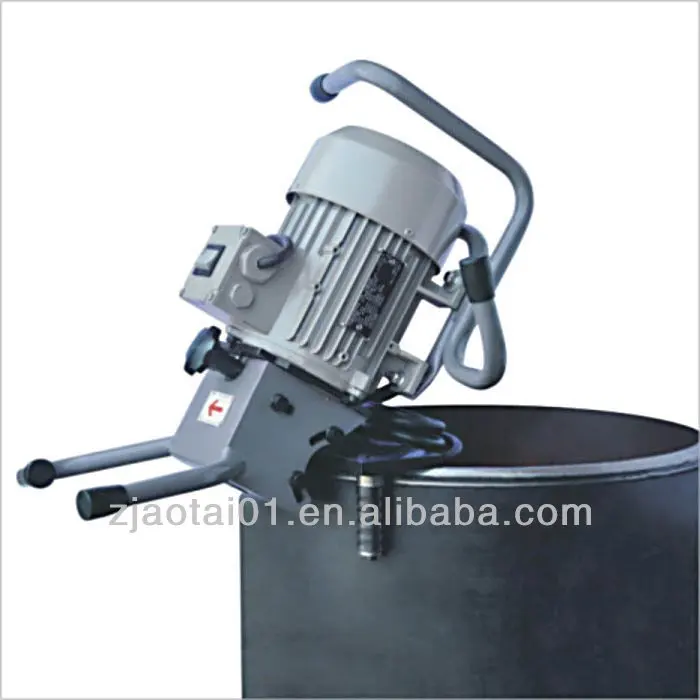

*Also can use pipeline clamp tool, to bevel the end of pipeline





Motor: ABB, power 1.1kw,380v 3phase 50Hz, rotating speed 2870rpm

MODEL	SINGLE MILLING DEPTH	LAND WIDTH	MILLING ANGLE	DEPTH
SKF-15	3~5mm	15mm	30~60°	≤200mm



*Process plate or bended implement, middle concave radius can’t be less than 55mm; Pipe clamp optional for process pipeline, ID of pipe must be more than 160mm.
