Mobile Concrete Batching Plants (YHZS35 75)

Mobile Concrete Batching Plants (YHZS35 75)

Category: >>>
Supplier: Shandong Hongda Construction Machinery Group Co. Ltd.

Price:

Quantity:

Product Overview

Description

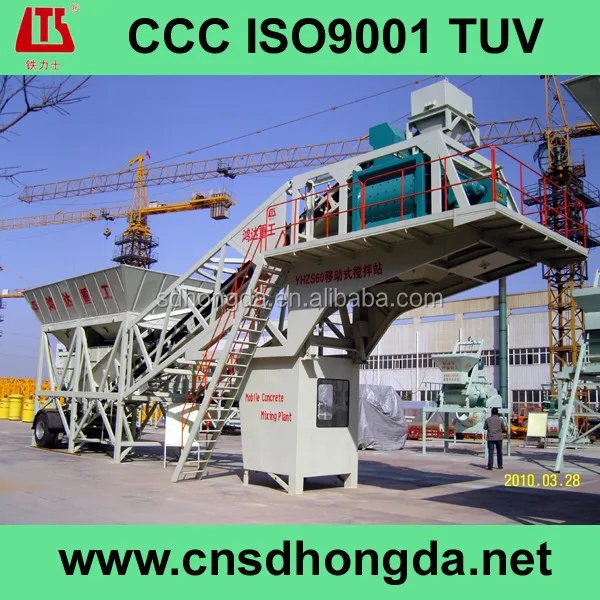

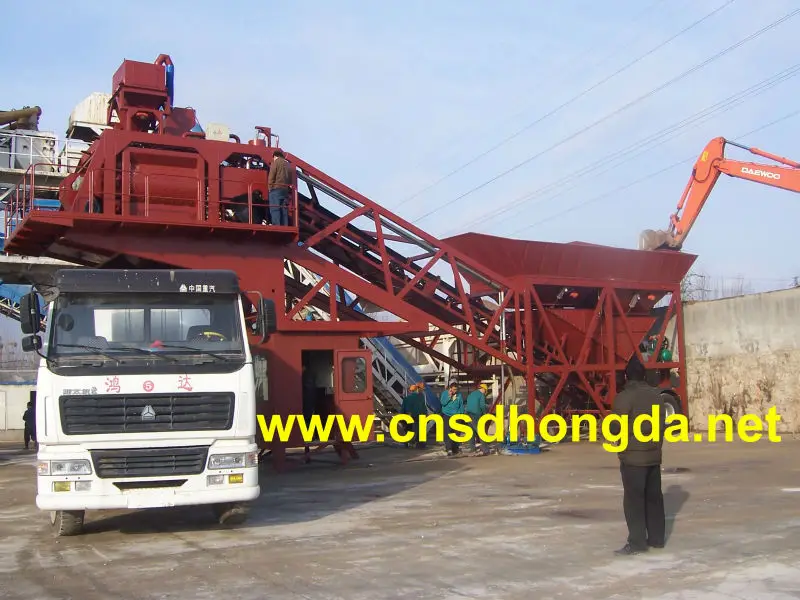

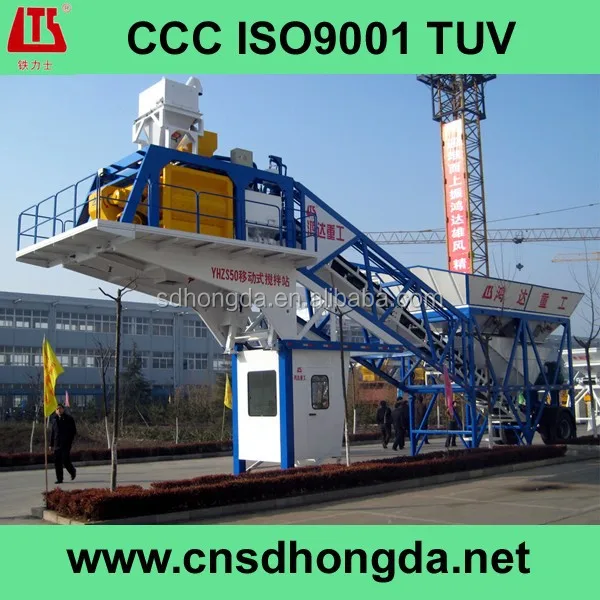

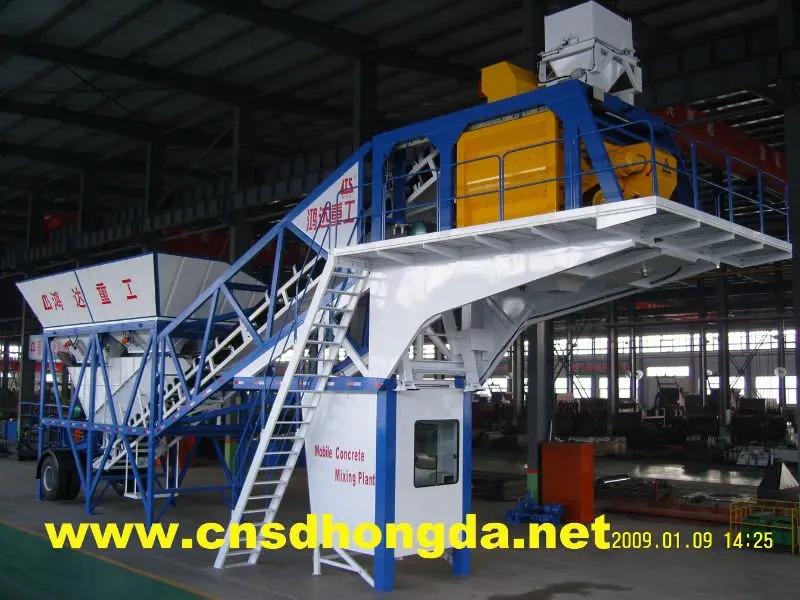

Mobile Concrete Mixing Plants

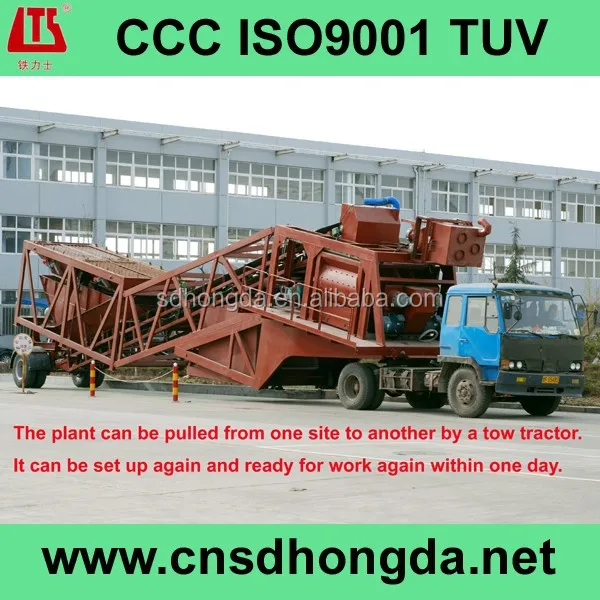

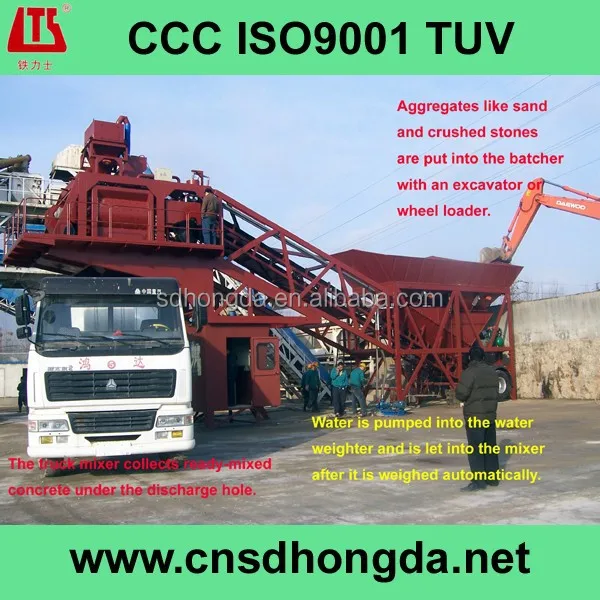

YHZS35 Mobile Concrete Mixing Plant

CCC/ISO9001/TUV Certified

Tie Li Shi (Iron Giant) Brand, Famous Trademark of China

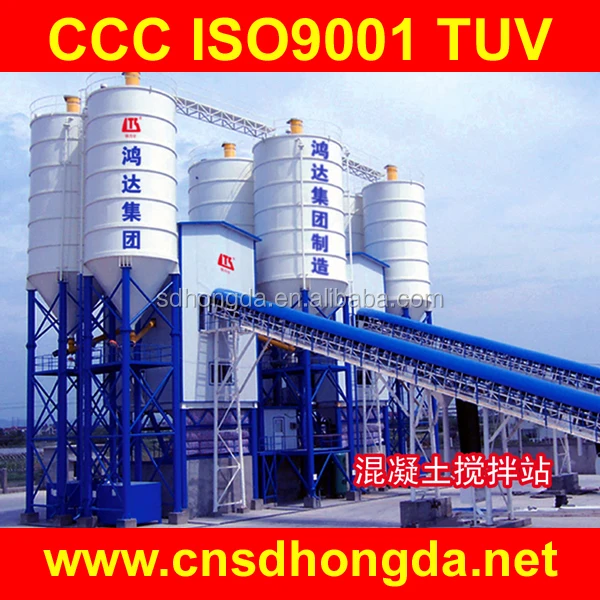

The HZS/HLS series of concrete mixing plants/towers (HZS/HLS40-180) are developed by HONGDA GROUP on the basis of bringing in the world’s frontier technologies, combining the advantages and technologies of the sophisticated domestic and foreign machines that have emerged in recent years, and taking advantage of the company’s experience in manufacturing concrete mixing equipment for many years. Having reached the national standards, this series of products have passed the test by the NationalBuilding and City Construction Machinery Quality Supervision and Testing Center of China. Besides, products of this series have alsopassed the sci-tech achievement appraisal carried out by the National Science and Technology Commission of China and organized by Shandong Provincial Department of Science and Technology. According to their appraisal, this series of products are “the only products in the same field that have reached the advanced domestic level in general index and attained the advanced world level in such aspects as productivity, noise control, operation and environmental production”. The HZS180 concrete mixing plant in this series was appraised as a new key product of China in 2005.

Shandong HONGDA China YHZS35 Mobile Concrete Baching/ Mixing plant

Model	YHZS35
Rated Productivity	35m3/h
Main Mixer	JS750
Max. Aggregate Diameter	80mm
Capacity of Aggregate Bin	4*5.5m3
Aggregate Measuring and Conveying Mode	Belt Conveyer
Measuring Scope & Accuracy of Aggregate	2200Kg ±2%
Measuring Scope & Accuracy of Cement	450Kg ±1%
Measuring Scope & Accuracy of Water	200Kg ±1%
Measuring Scope & Accuracy of Additives	30Kg ±1%
General Power	84Kw
Power Supply	380V/50HZ
Total Weight	23T
Transport Mode	Pulled by a truck chassis
Outline dimension (In Service: L×W×H)	17.25m×3.6m×7.41m
Outline dimension (In Traveling: L×W×H)	16.95m×2.52m×4.34m
Discharge Height	3.8 m
Powder Material Silos (for customers’ choice)	Chosen according to customer’s demands.
Screw Conveyers (for customers’ choice)	Chosen according to customer’s demands.

We are Shandong Hongda Construction Machinery Group Co., Ltd., a professional construction machinery manufacturer with a history of 29 years. Our registered trademark “Tie Li Shi” (“Iron Giant” in English) has been approved as “Famous Trademark of China”.Our products have passed CE, CCC and ISO9001 quality certifications. Our company has been appraised as a Contract-honoring & Promise-keeping Enterprise by the government for many consecutive years.Our main products are:

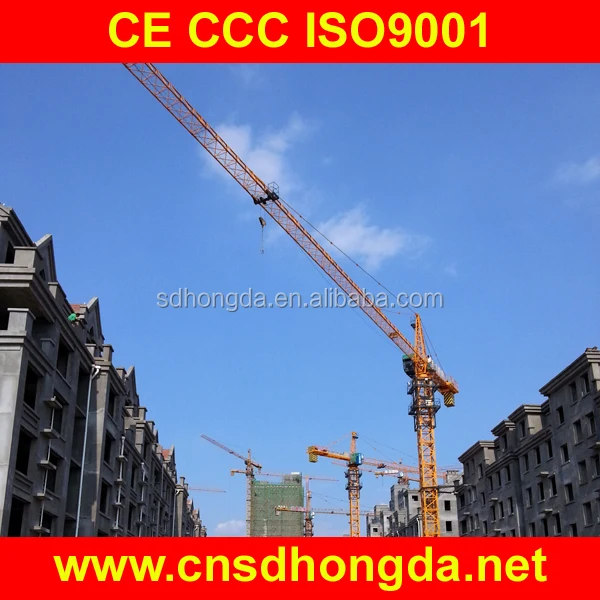

1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);
