Foot Shear

Product Overview

Description

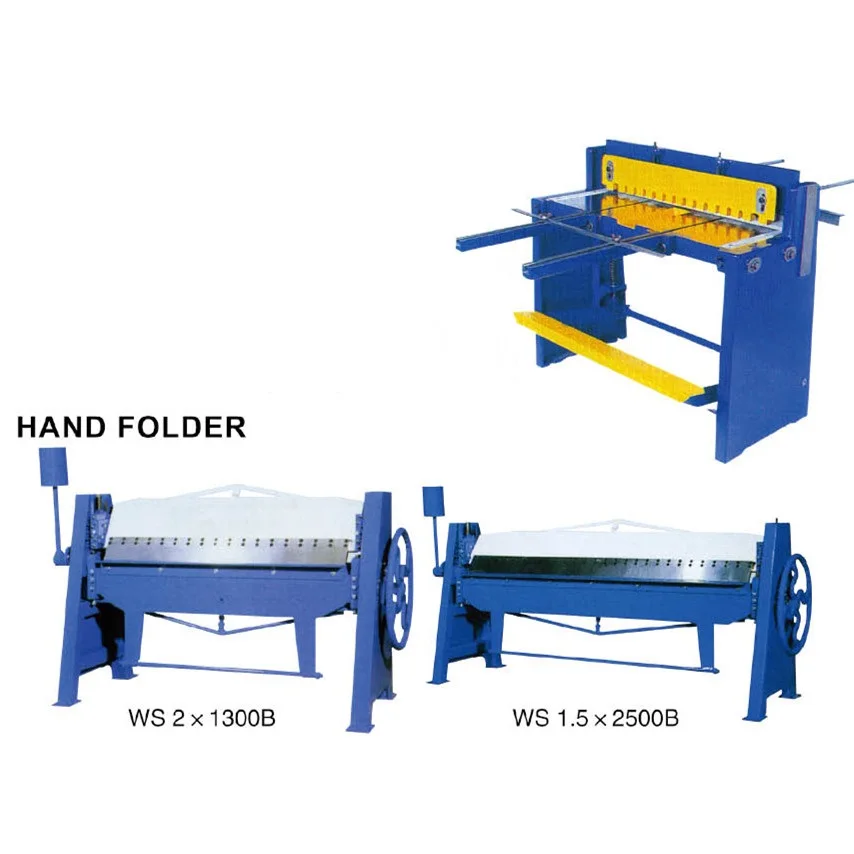

For the specification of the Foot Shear and Hand Folder, pls see the photo:

Foot shear(shearing machine):
Main features:
*Heavy cast iron frame, surface ground bed, positive pedal stop;

*Ideal for precision shearing of mild steel up to 16 gauge;
*Can also be used on aluminum, copper, brass,zinc, plastic and lead;
*High carbon high chrome steel blade;
*2-way blade configuration provides twice the cutting life;
*Upper blade is 2-way, bottom blade is 1-way;

*2° angle cutting edge,1° face relief.

Hand Folder:

WS2×2500B	2500	2	60	1500	3260×900×1600
WS2×3100B	3100	2	60	2800	3800×800×1200
WS2.5×1300B	1300	2.5	60	700	1950×800×1360
WS2×2050BR	2050	2.5	60	1160	2720×800×1160
WS2×2500BR	2500	2.5	60	1520	3150×800×1530
Model	bending length(mm)	folding thickness for mild steel(mm)	folding angle(degree)	weight(kg)	dimension(L*W*H)
WS1.2×1280A	1300	1.2	40	290	1960×750×1350
WS1.2×1500A	1500	1.2	40	350	2250×750×1350
WS1.2×2000A	2000	1.2	40	400	2730×750×1360
WS1.5×1300A	1300	1.5	40	350	1800×750×1370
WS1.5×1500A	1500	1.5	40	450	2130×820×1370
WS1.5×2000A	2000	1.5	40	600	2720×820×1360
WS1.5×2500A	2500	1.5	40	800	3100×820×1360
