PVC SOLE MACHINE 1

Product Overview

Description

PVC SOLE MACHINE 1

This machine is applied to produce one-color PVC/TPR soles.

Features:

1. Specially producing all kings of single/double/three colors soles of sports shoes, slipper, sandal, sole of casual shoes, Ladies and gentlemen's shoes, etc.

2. Specially for producing the foaming, unfoaming soles of thermoplastic materials, PVC, TPR or TPU.

3. PLC program control of industrial man-machine interface, Full automatic operation.

4. The working statement is monitored all the while.

Sincerly welcome your inqurying and visiting our factory.

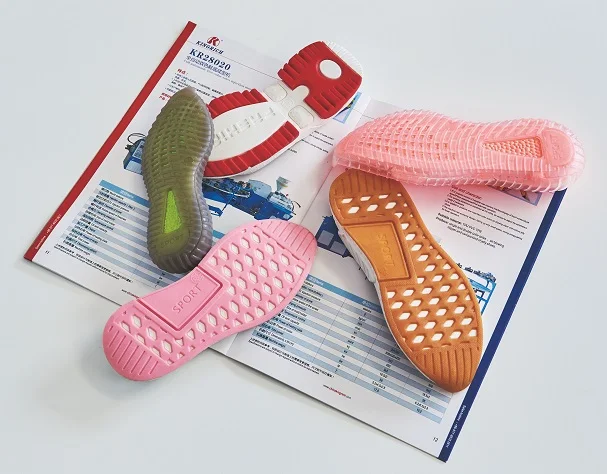

Sample for this machine making:

Items	Units	KR8020
Material	kind	TPR\\PVC
Mould stations	stations	20
Injection capacity(Max.)	g	800
Injection measuring accuracy	g	±0.5
Injection pressure	kg/c	760
Diameter of screw	mm	75
Rotate speed of the screw	r/min	1-160
Clamping pressure	kn	700
Mold size	mm	500*500*230
Temperature Control	point	4*1
Hydraulic pressure	mpa	21*1
Opening stroke of mould	mm	300
Oil tank capacity	kg	450
Output	x/h	1-230
Power of heating plate	kw	9*1
Power of motor	kw	18.5*1
Total power	kw	27.5
Dimension(L×W×H)	M	3.8*2.6*2.5
Machine weight	T	4.3
