150L Auto Separator Vibratory Finishing Tumbling Machine
- Category: >>>
- Supplier: Huzhou Xingxing Abrasive Co. Ltd.
Share on (225314488):
Product Overview
Description
Related Media
It is mainly used for deburring, removing rust, rounding and polishing all sorts of metals, non-ferrous metals and non-metals parts. The workparts after surface finishing, not only remain the shape accuracy of the original state, but also improve the precision of surface roughness of parts.
Product Description
SPECIFICATIONS FOR VIBRATORY FINISHING MACHINE XXZP-AB150 | ||||||
Vibratory Finishing Machine | Machine Type | XXZP-AB150 | SET | |||
Motor | 1.1 | KW | ||||
Motor Speed | 1440 | RPM | ||||
Main parameters | Machine Size | 1100*1100*930 | MM | |||
Process Vessel Volume (L) | 150 | L | ||||
Process Vessel Width and depth | 220*315 | MM | ||||
Other information | Lining | PU lining | PU | |||
Lining thickness | 20 | MM | ||||
Voltage | 220V-440V | 3 Phase | ||||
Detailed Images
Product Application
1. Adoption of vibratory motor to produce vibratory force, it makes workparts and medias move in one direction and mass finished interactively in the processing vessel to accomplish the surface improvement.
2. Applicable to process small and medium size workparts in large amount load, with good finish effect and short time needs for processing.
3. No damage to the original shape and size of the workparts.
4, The processing vessel interior surface is lined with PU (polyurethane), avoiding direct damage to the workparts and machine metal, and working life for the machine is extended.
5. Random checking the workparts in the finishing process, easy operation. Option to choose the independent electrical box with converter.
6. A type and AB type machine has the function of separating the workparts and medias automatically after finishing process.

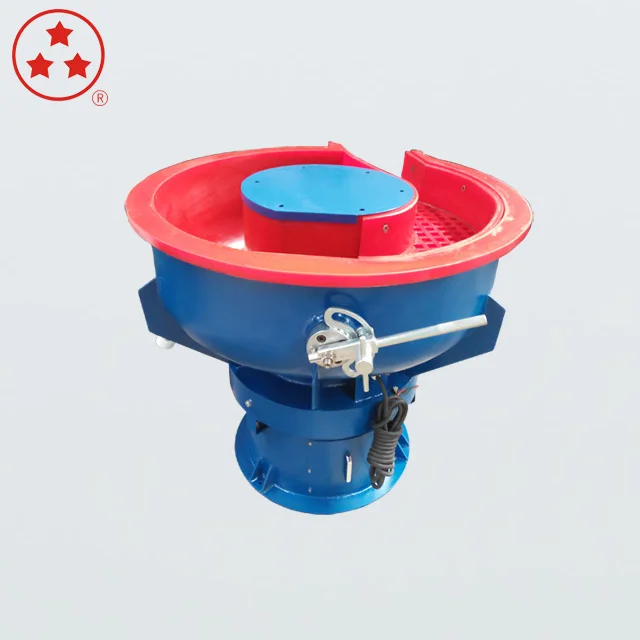

Vibratory Finishing Machine
Code: XXZP-AB150
Brand: Xingxing
Original: Zhejiang, China
1. CE certified vibratory finishing machine.
2. Stress relief welding required, heavy duty structure design.
3. Medias and workparts auto separation type.
4. With floor drain available for water discharge.
5.Soundproof can be chosen to reduce the noise.
Brand: Xingxing
Original: Zhejiang, China
Original: Zhejiang, China

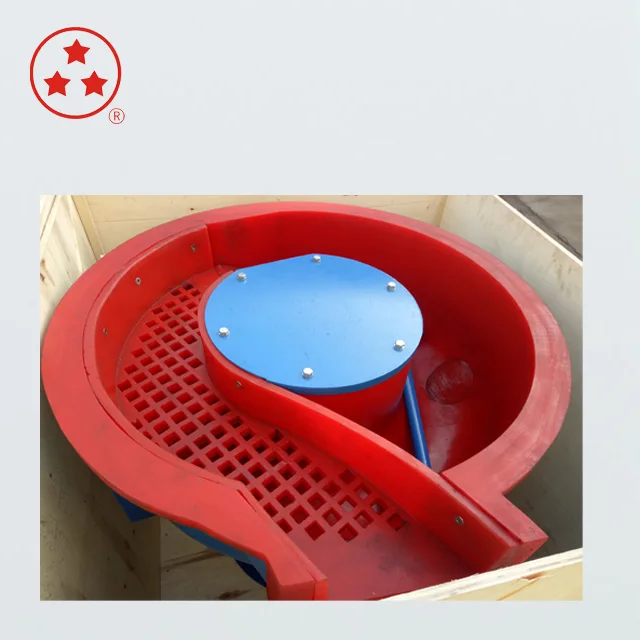

1. The main machine is consist of upper bowl and basement.
2. The upper bowl is with work channel which is with PU(polyurethane) lining.
3. Separator PU screen with square holes of 25X25mm.
4. The work channel with depth as 315 mm and width as 220mm.
5. The PU lining thickness is average with 20mm, to ensure the PU lining wear life time, and the main wear process part of the work channel with thickness over 20mm.
4. The work channel with depth as 315 mm and width as 220mm.
5. The PU lining thickness is average with 20mm, to ensure the PU lining wear life time, and the main wear process part of the work channel with thickness over 20mm.
Name: The thickness & hardness of PU lining
Brand: Xingxing
Original: Zhejiang, China
Original: Zhejiang, China
Instrument: sclerometer
1.Every machine we will test the hardness, we only export the machine which hardness is qualified.
2.The PU lining thickness is average with 20mm, to ensure the PU lining wear life time, the main wear part of the work channel with
thickness over 20mm.
thickness over 20mm.
Brand: Xingxing
Original: Zhejiang, China

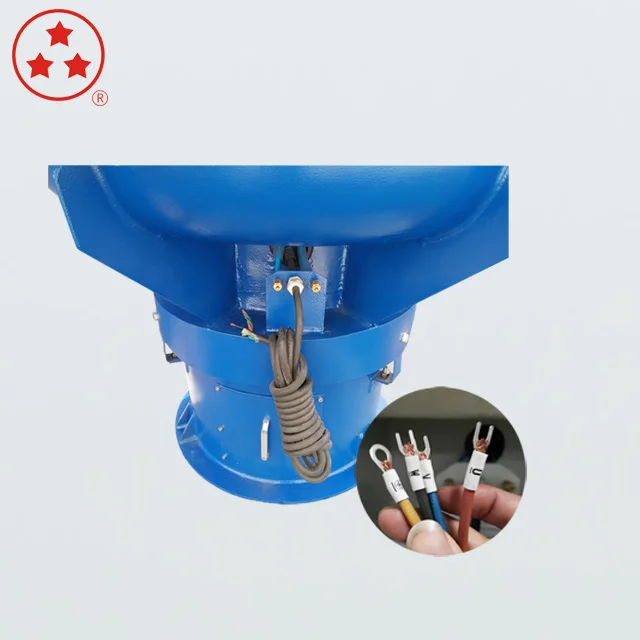

1. Designed with easy cable connection, easy for maintenance.
2. With motor bearing greasing holes outlet, easy for maintenance.
3. With cable wires marked clearly, safe for connection.
1. Designed with easy cable connection, easy for maintenance.
2. With motor bearing greasing holes outlet, easy for maintenance.
3. With cable wires marked clearly, safe for connection.
Original: Zhejiang, China

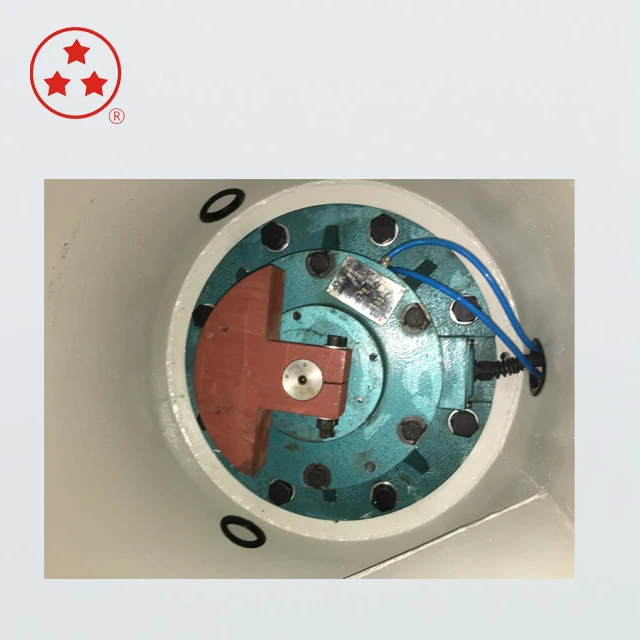

1. With a China - German joint venture quaility product, better quality life than other China manufacturers.
1. With a China - German joint venture quaility product, better quality life than other China manufacturers.
2. The good quality motor is energy - saving type, 1.1KW only, generating same or larger power than the common China local 2.2KW motors.
3. Easy adjustment of the motor included angle of top and bottom eccentric weights. With motor axis on top end clearly marked, easy for angle adjustment, if the motor vibrating force is strong or weak.
3. Easy adjustment of the motor included angle of top and bottom eccentric weights. With motor axis on top end clearly marked, easy for angle adjustment, if the motor vibrating force is strong or weak.
Original: Zhejiang, China
1. The steel metal bowls will be shot blasted before PU casting to ensure the machine bowl structure stress relieving.
1. The steel metal bowls will be shot blasted before PU casting to ensure the machine bowl structure stress relieving.
2. It is our standard procedures for machinery manufacturing technique. It helps the machine intergral quality for customer to use.
Brand: Xingxing
Original: Zhejiang, China

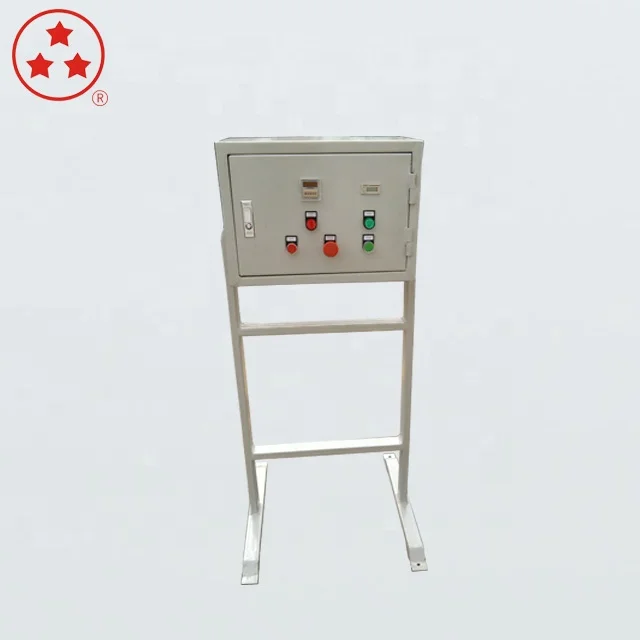

1. With Safe DC24V control voltage
2. With Emergency button installed for emergency usuage.
3. With Timer to set the running time.
2. With Emergency button installed for emergency usuage.
3. With Timer to set the running time.
4. WITHOUT Inverter installed inside.
5. The price above of this machine, we use the electric control cabinet like this, without inverter.
5. Besides the panel with inverter, we also can supply the panel with inverter, panel with inverter and auto dosing for different
options.
5. Besides the panel with inverter, we also can supply the panel with inverter, panel with inverter and auto dosing for different
options.
Name: Independent control panel -OPTIONAL CHOICE!
Brand: Xingxing
Brand: Xingxing
Original: Zhejiang, China
1. With Safe DC24V control voltage
2. With Emergency button installed for emergency usuage.
3. With Timer to set the running time.
2. With Emergency button installed for emergency usuage.
3. With Timer to set the running time.
4. WITH Inverter (Taiwan brand) installed inside..
5. Besides the panel with inverter, we also can supply the panel with inverter and auto dosing for different options. If customer have interest on that design of control cabinet, pls contact us further for details!
5. Besides the panel with inverter, we also can supply the panel with inverter and auto dosing for different options. If customer have interest on that design of control cabinet, pls contact us further for details!
Related Products
Packing&Shipping
Packing:wooden case
Suitable for sea shipping
Certifications
After Sales Service
Our company pays great attention to quality problems. In case of quality problems, you can discuss with us.
we offer perfect surface finishing technology!
