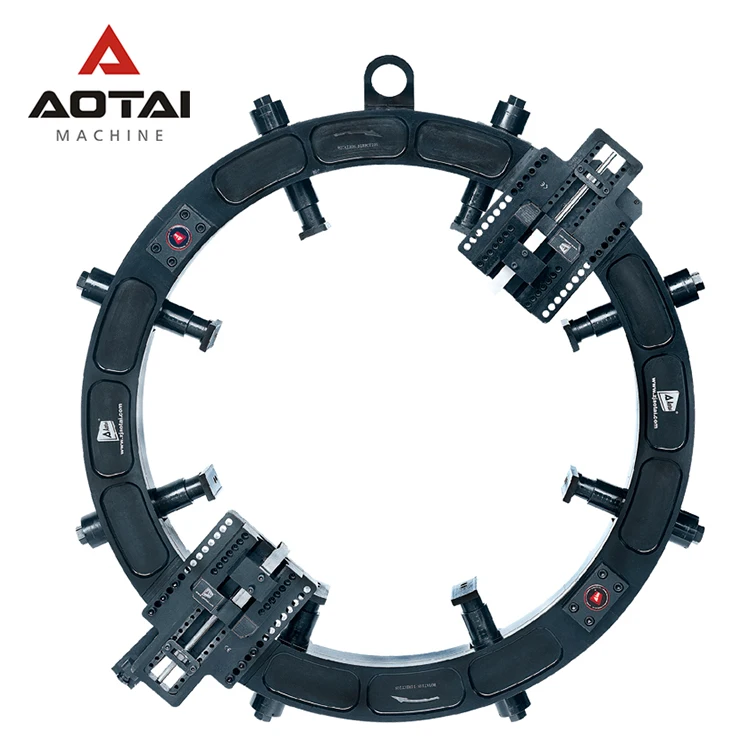

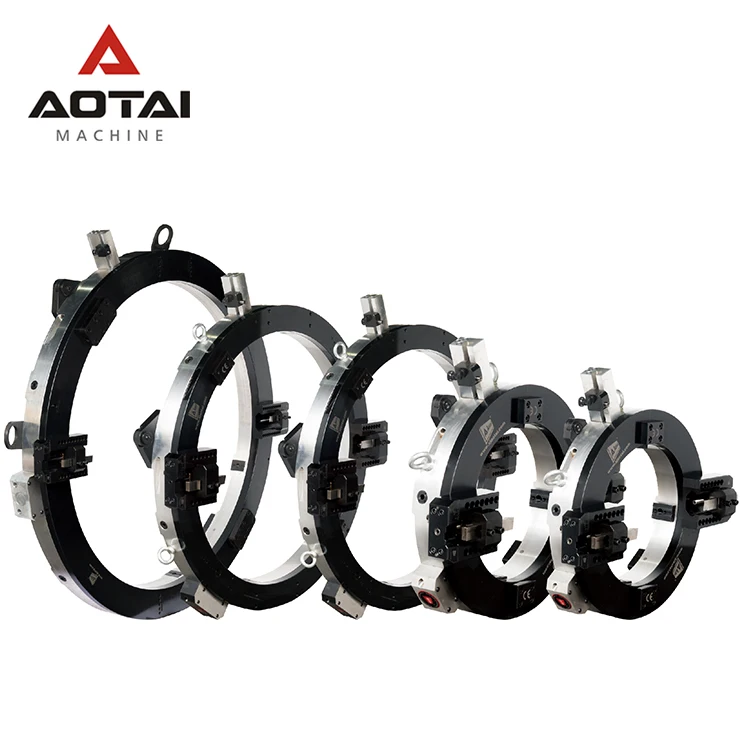

Electric orbital pipe split frame cold cutting and beveling or grooving milling machine

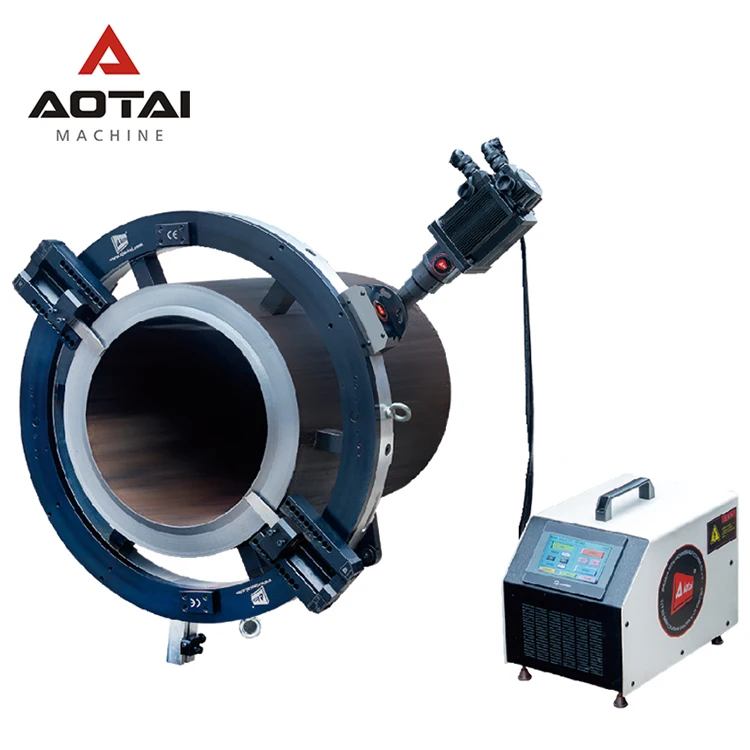

Electric:

Electric:
Convenient power supply
Stable Performance
Popular choice
Electric requirement:220-240V 1PH 50/60HZ
Carbon brush Motor:1.43KW,1.7KW,2.4KW
Brushless Motor: 1.5KW,2.0KW,3.0KW
Double motor for big model or heavy duty

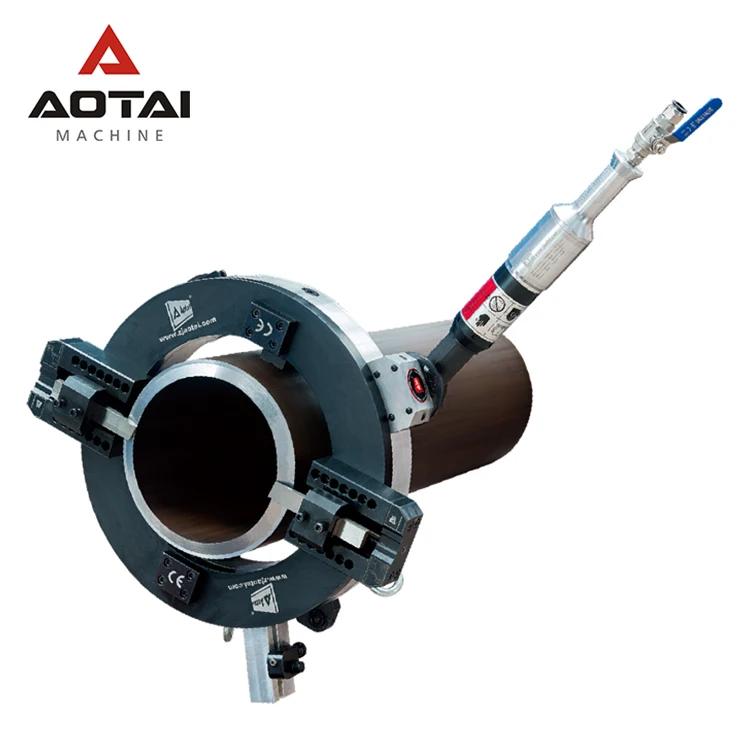

Pneumatic:

Explosion Proof
Stable Performance
Easy to maintenance
Air requirement:1500-2000L/min @0.63-0.8Mpa
Power:2HP,3HP,4HP
Double motor for big model or heavy duty

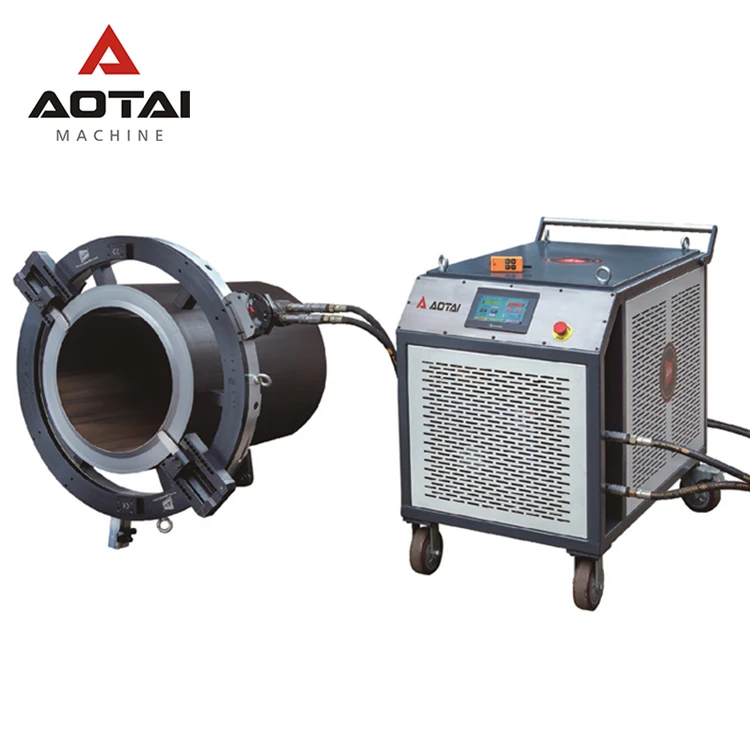

Hydraulic:

Powerful drive, High efficiency
Stable Performance, Low noise, Anti-explosion
Ideal for heavy wall thickness & large size pipe
Hydraulic requirement:28-50L/min @13Mpa
Electric requirement: 380V 3PH 50/60Hz
Rated Pressure:13MPa
Rated flow:28L/min
Max.Torque:380NM

NC:

Powerful drive, High efficiency
Low noise ,Stable Performance
Ideal for heavy wall thickness & large size pipe
Electric requirement: 230V 1PH 50/60Hz;
380V 3PH 50/60Hz
Power:2.0KW or 3.0KW
Double motor for big model or heavy duty

TOOLINGS

Form Style

Material:M42 and M35
Type:Sever,bevel,double bevel,
compound bevel,counterbore
Angle:0°,30°,37.5°,
Double 30°,37.5°+10°
Size:90mm,150mm,200mm

Insert style

Material:Holder HSS ;
Insert: HSS-Co or Carbide
Type:Sever,bevel,double bevel,compound bevel,
Angle:0°,30°,37.5°,
Double 30°,37.5°+10°
Size: 90mm,150mm,200mm

TOOL SLIDE

Counterbore slide

Used for pipe inside diameters.
Radial travel:110mm
Axle travel:100mm

Surface turning slide

Surface turning, removal anti-corrosion layer
Radial travel:110mm
Axle travel:200mm

Standard Tool Slide

Used for conventionalpipe
Wall thickness of single point:30mm
Wall thickness of multi point:110mm
Radial travel:154mm

OD Tacking Slide

Solution for out-of-round pipe
The max. wall thickness:110mm
Radial travel:110mm

Related products

A: We are factory.

A: Generally it is 5-10 days if the goods are in stock. Or 30 days , it's depand to quantity.

A:

1) T/T 50% deposit, the Balance shall be paid after the goods inspected but before the shipment;

2) If all the cost is less than USD $ 10000, T/T 100% required in advance.

*Choose the right Model

*Confirm your electric power supply ( Voltage, frequency and phase)

*Confirm the beveling angel required

*Confirm the welding joint required (U, V, Double V or Compound preparation)

*Advise your pipe material ( Carbon steel, stainless steel or others)

*Other special demands about machine

*The spare parts needed

*If the pipe wall thickness more than 30mm, inform us in advance (Important)
