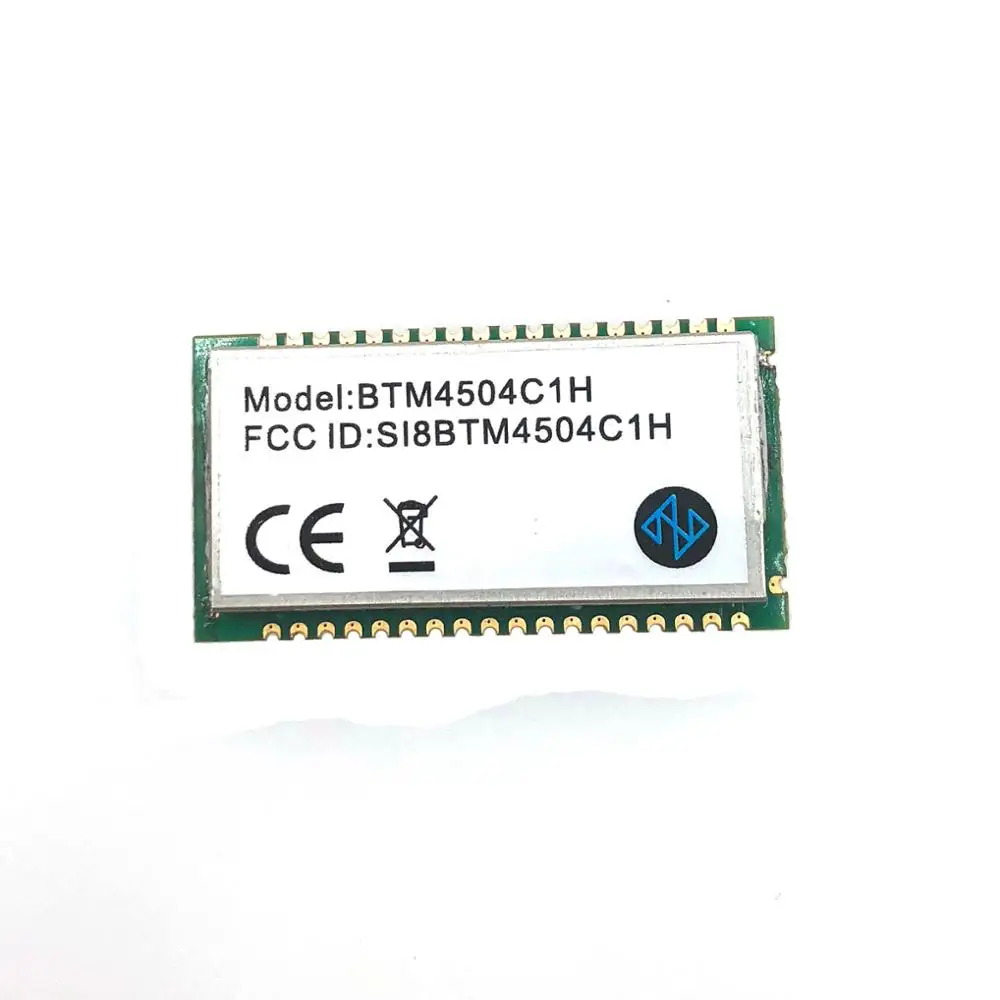

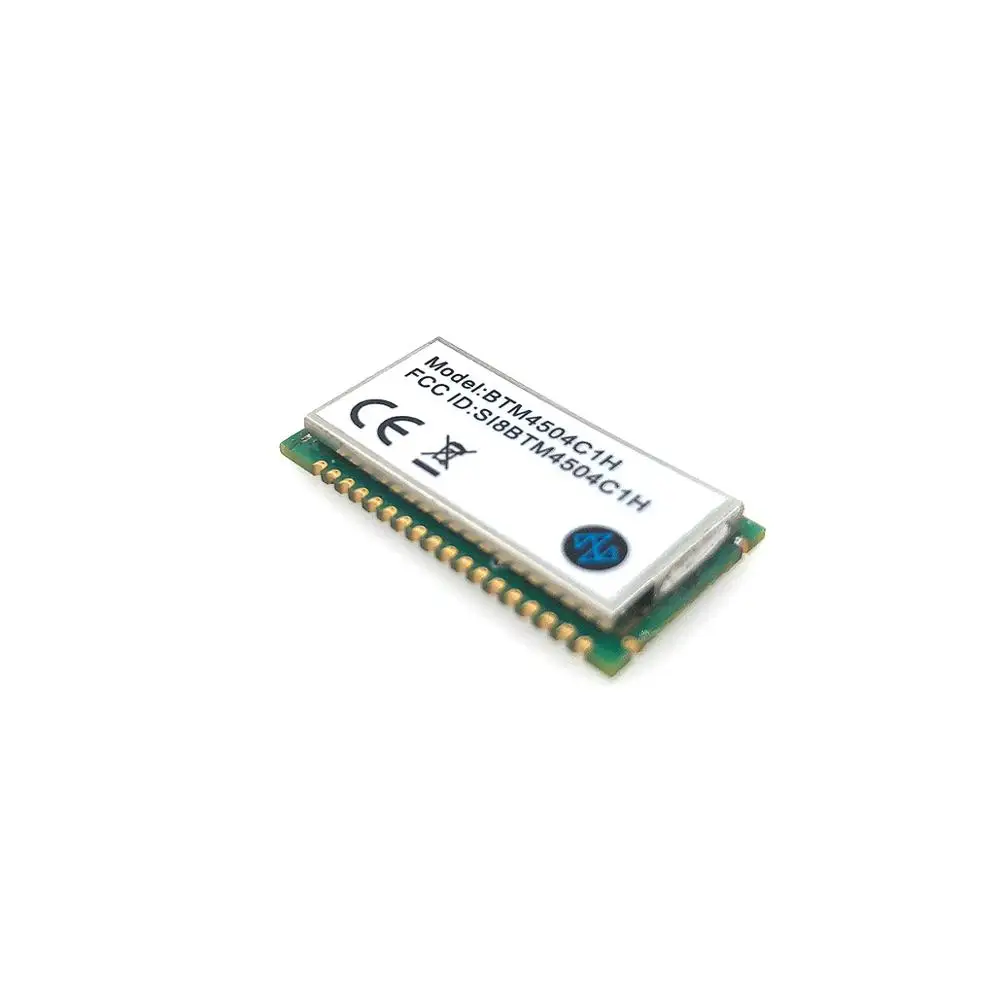

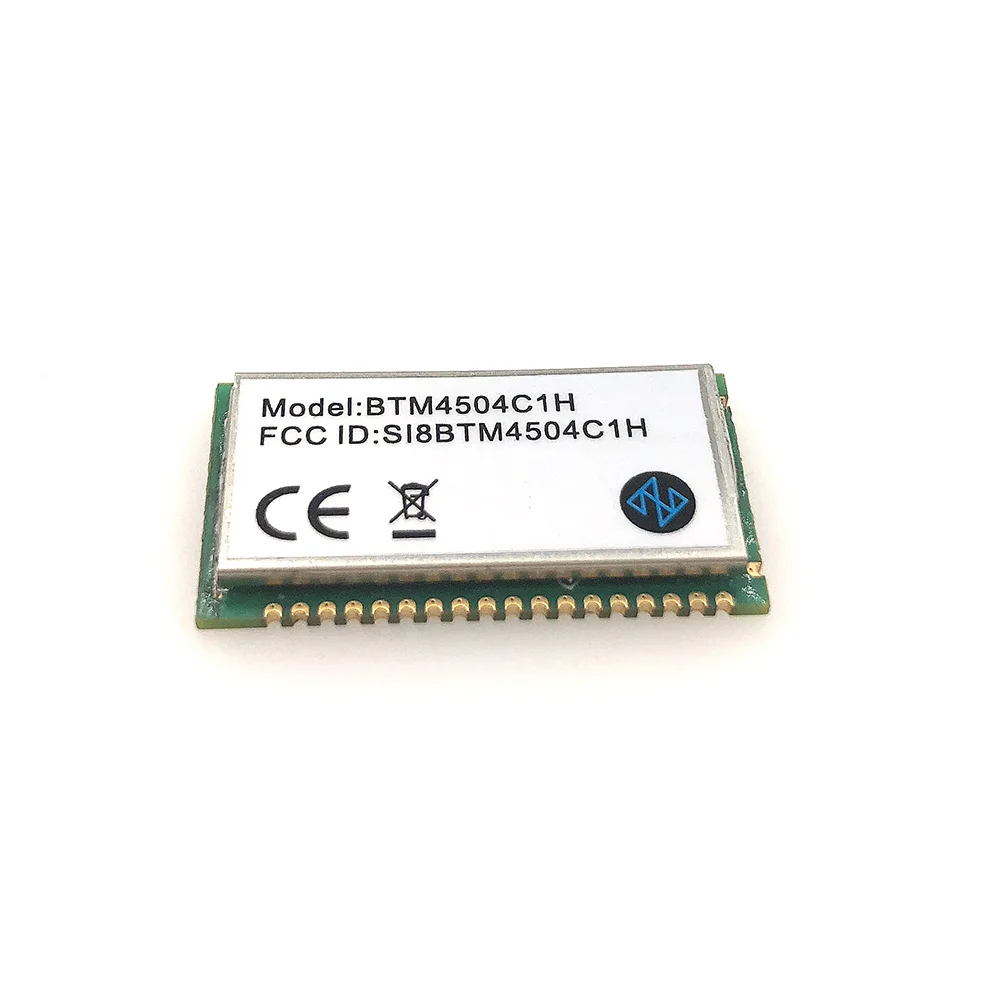

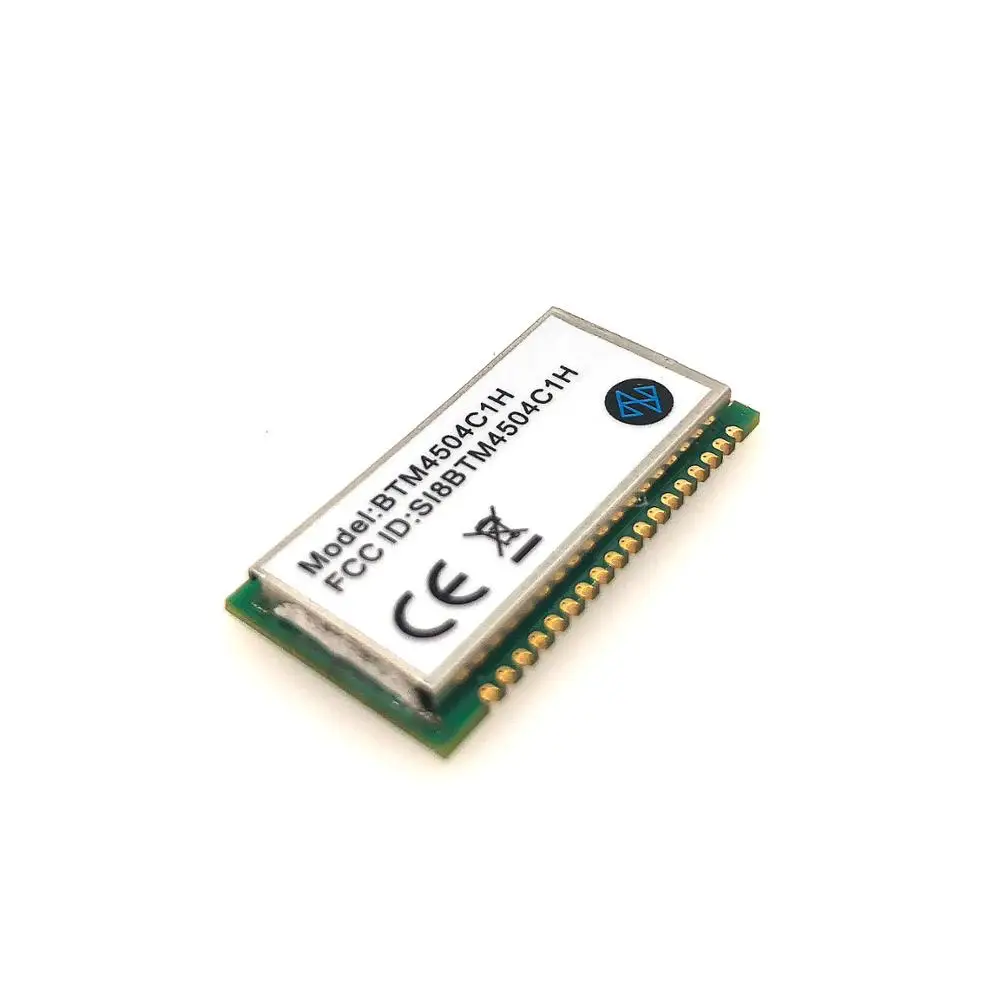

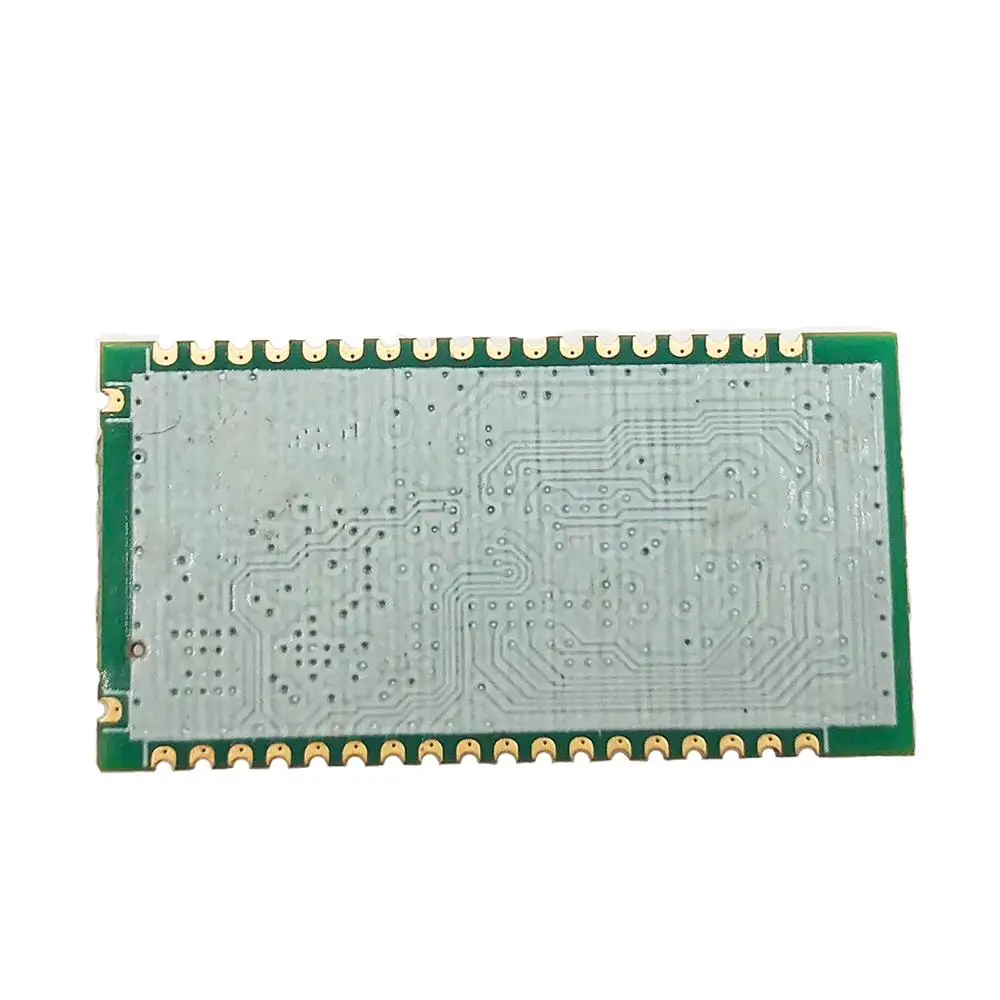

Data/ Audio/Transmission Class 1 328ft CE FCC 100 Meter Long Range Bluetooth 3.0 Module

The BC04 Bluetooth Module is BlueCore4-External chipset from leading Bluetooth chipset supplier, Cambridge Silicon Radio. It provides a fully compliant Bluetooth system for data and voice communications. Interfaces with a host via USB or UART and support full data rate up to 3Mbps modulation modes. Voice interface supported PCM protocol. The module and device firmware is fully compliant with the Bluetooth specification v2.1.

Features
Operating Frequency Band 2.40 GHz~2.48GHz unlicensed ISM Band
Class 1 type Output Power
UART Host Interface
Low Voltage Power Supply, 2.7V to 3.6V
Nominal Supply Voltage at 3.3±0.1V
Low Power Modes Available: Park, Sniff, Hold and Deep Sleep

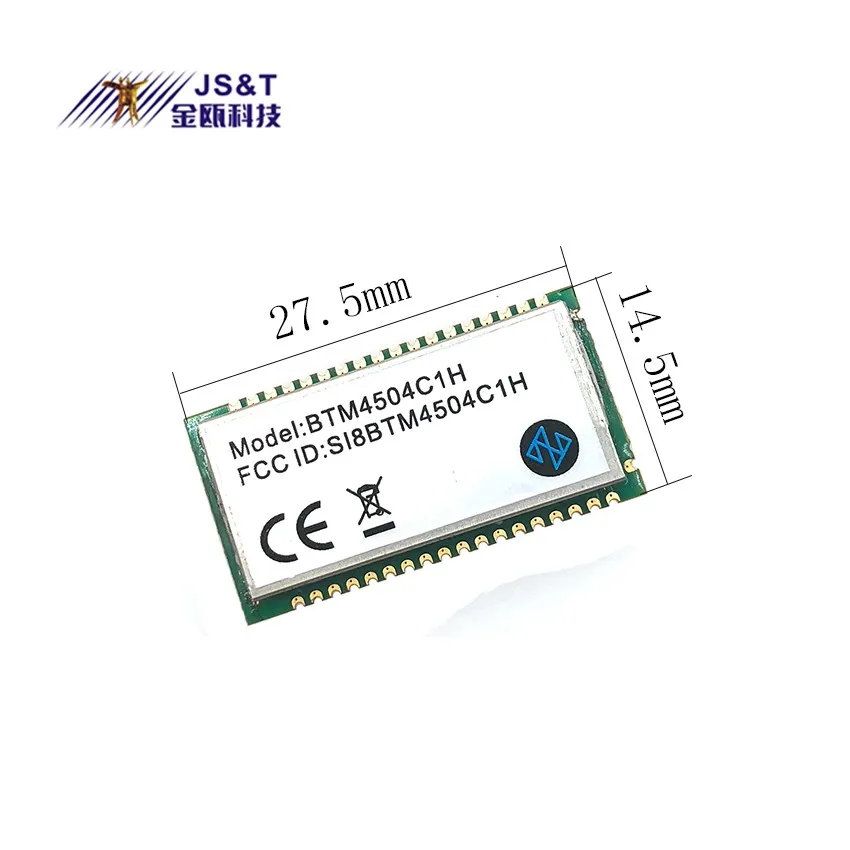

Size: 27.5*14.5mm (unit:mm\tError = ±0.2mm)
