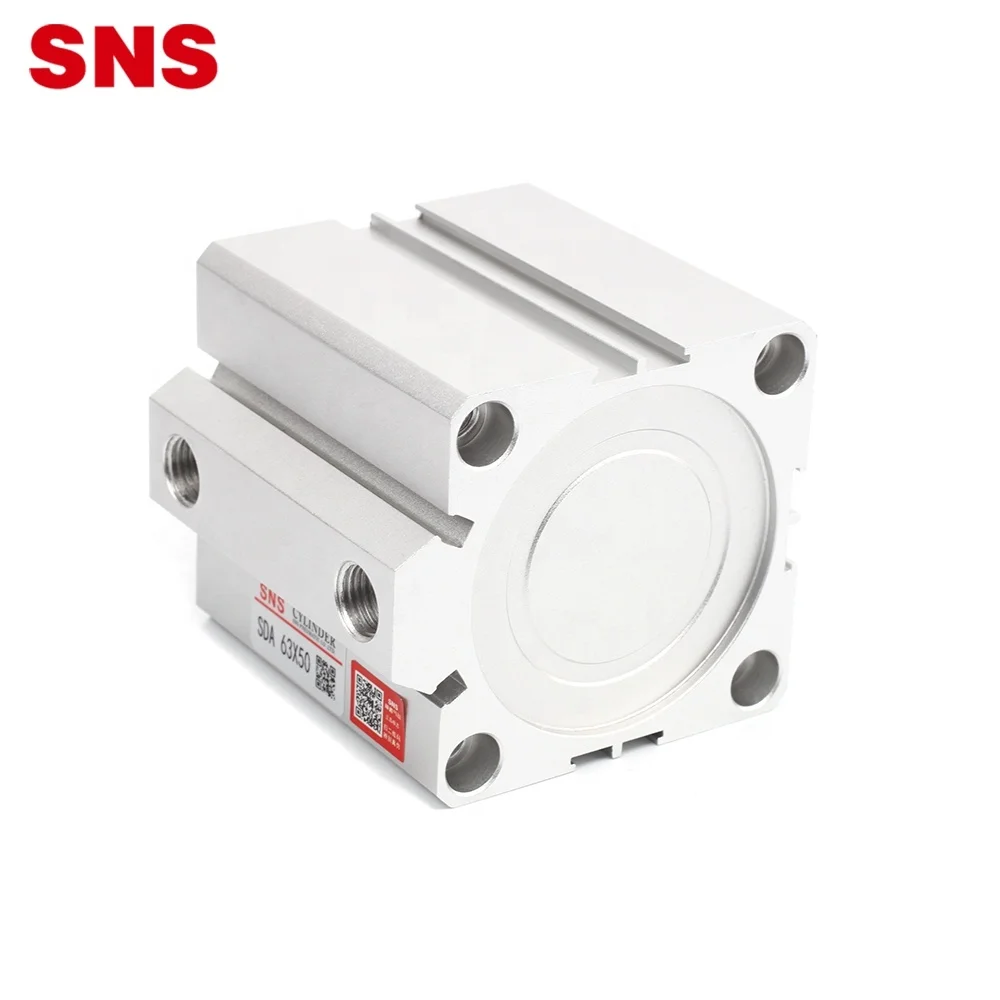

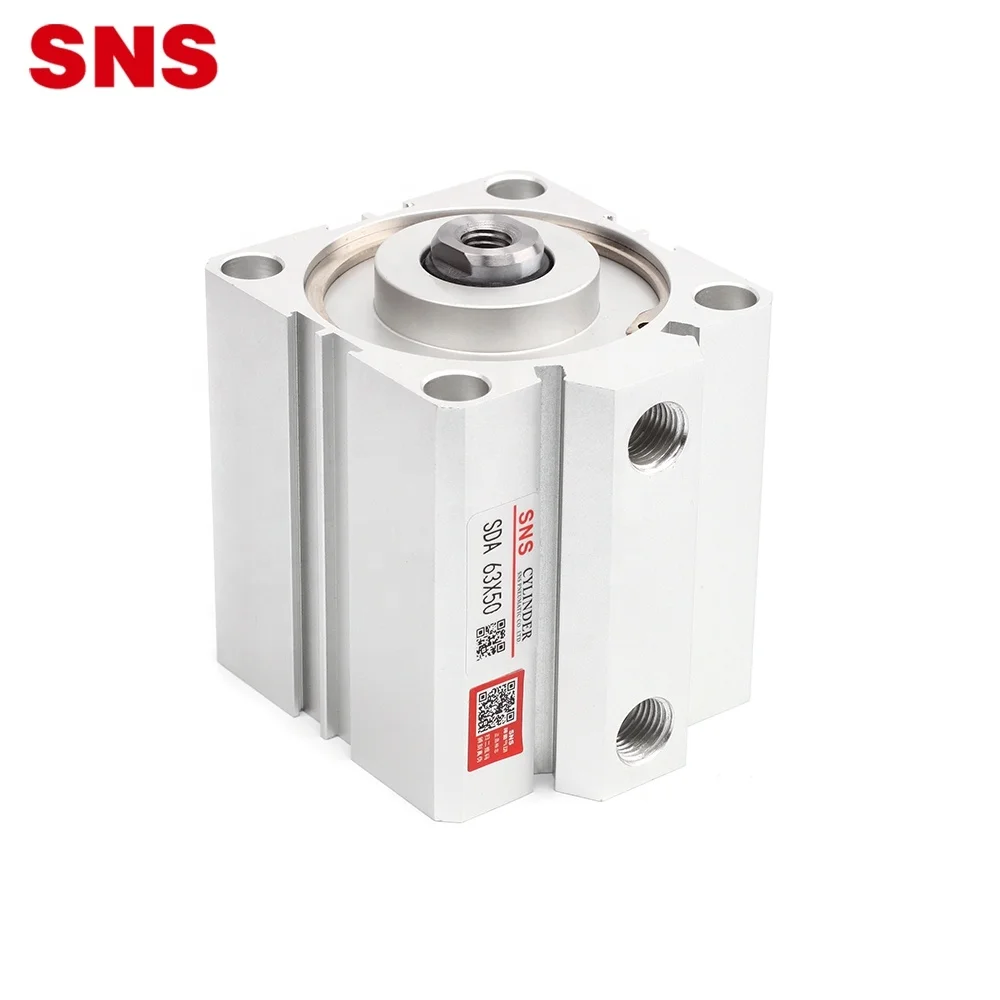

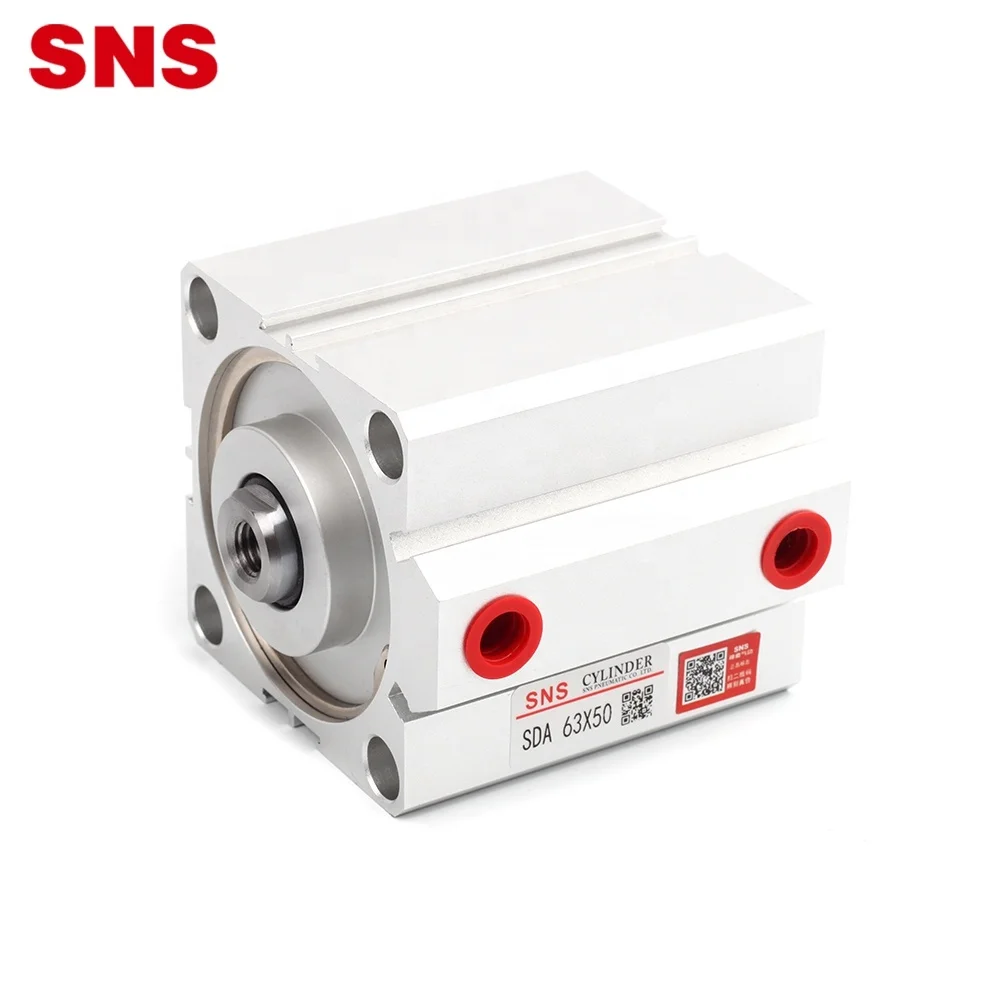

SNS SDA63x50 High quality female thread pneumatic double acting compact air cylinder
- Category: Pneumatic Cylinders >>>
- Supplier: China SNS Pneumatic Co. Ltd.
Share on (226747336):
Product Overview
Description

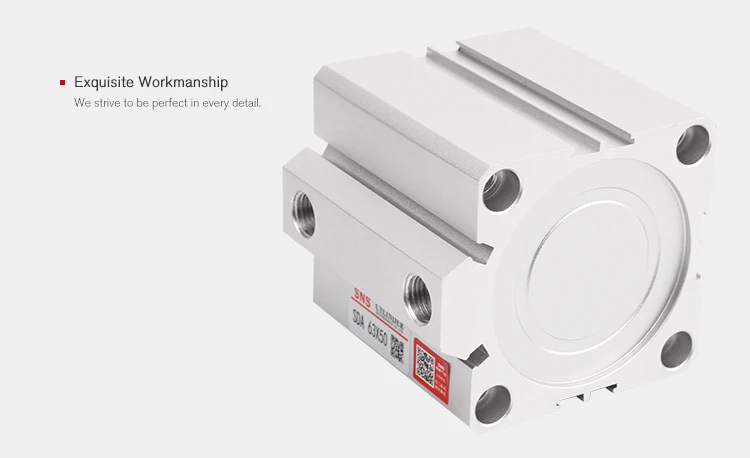

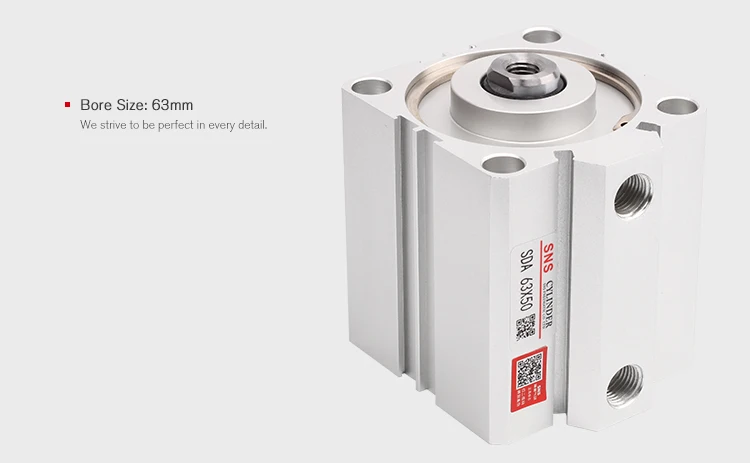

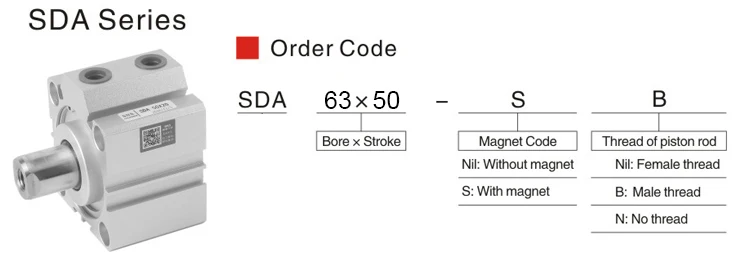

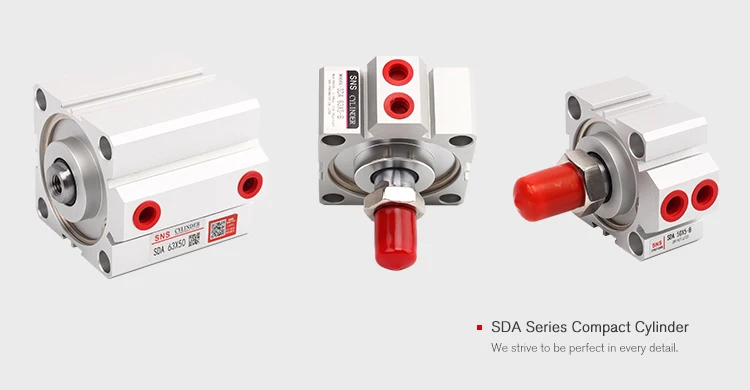

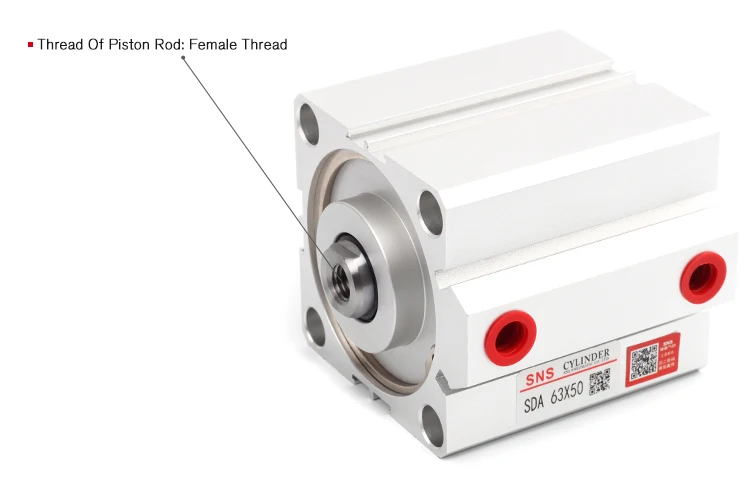

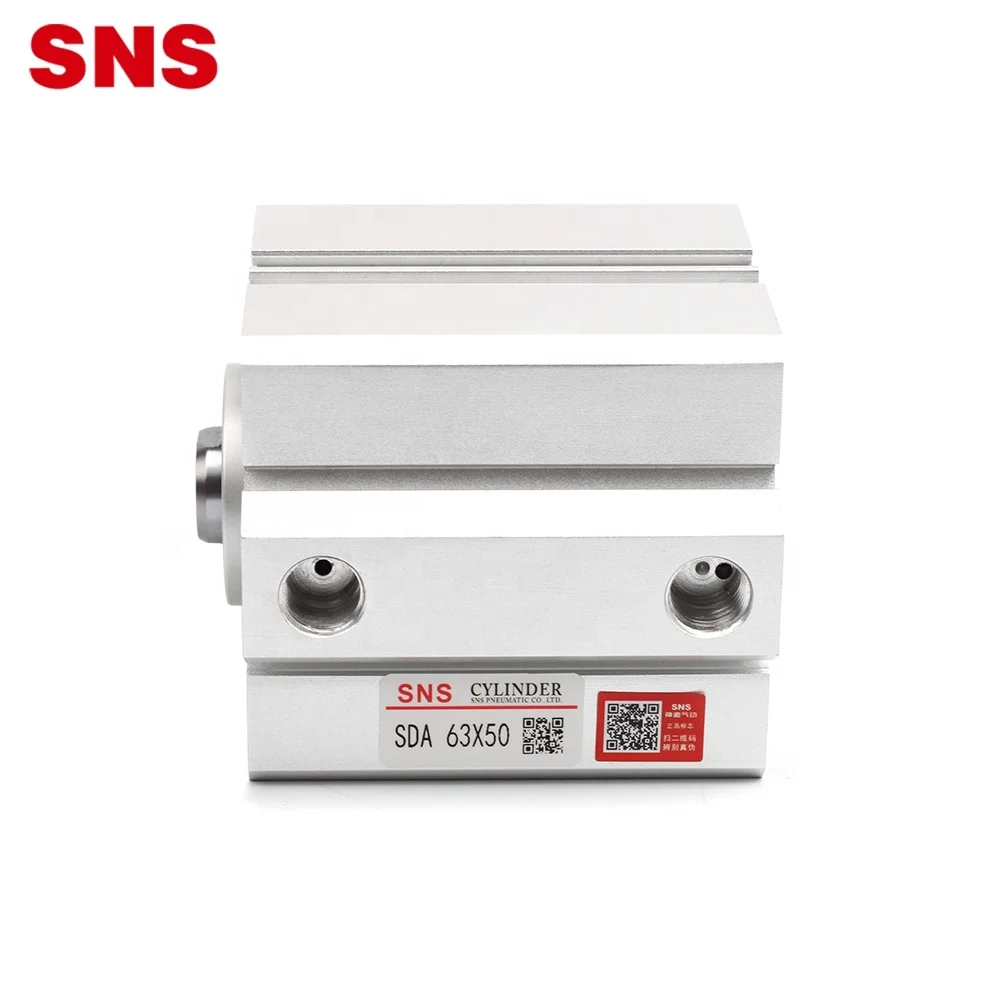

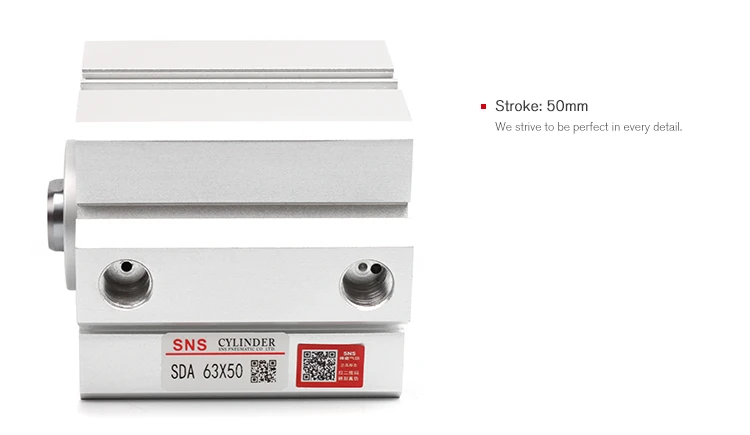

SNS SDA63x50 High quality female thread pneumatic double acting compact air cylinder
Banner
Product Parameters
| Bore Size(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 |
| Acting Mode | Double Acting | |||||||||
| Working Media | Cleaned Air | |||||||||
| Working Pressure | 0.1~0.9Mpa(kg/cm) | |||||||||
| Proof Pressure | 1.35Mpa(13.5kgf/cm) | |||||||||
| Working Temperature | -5~70℃ | |||||||||
| Buffering Mode | With | |||||||||
| Port Size | M5 | 1/8 | 1/4 | 3/8 | ||||||
| Body Material | Aluminum Alloy | |||||||||

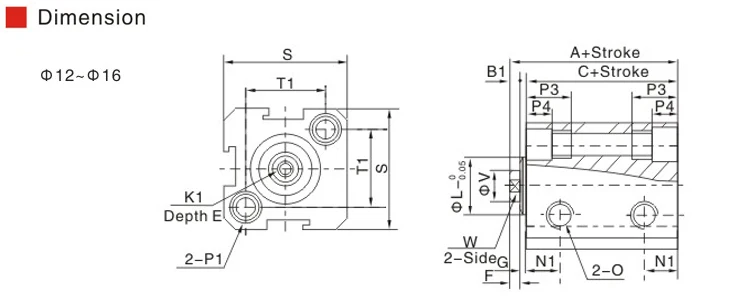

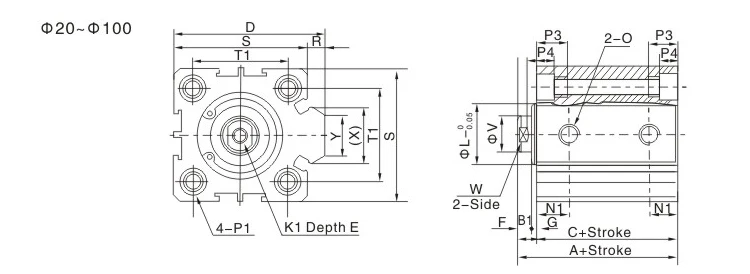

| Bore Size(mm) | Standard Type | Magnet Type | D | B1 | E | F | G | K1 | L | N1 | O | ||
| A | C | A | C | ||||||||||
| 12 | 22 | 17 | 32 | 27 | / | 5 | 6 | 4 | 1 | M3*0.5 | 10.2 | 6.3 | M5*0.8 |
| 16 | 24 | 18.5 | 34 | 28.5 | / | 5.5 | 6 | 4 | 1.5 | M3*0.5 | 11 | 7.3 | M5*0.8 |
| 20 | 25 | 19.5 | 35 | 29.5 | 36 | 5.5 | 8 | 4 | 1.5 | M4*0.7 | 16 | 7.5 | M5*0.8 |
| 25 | 27 | 21 | 37 | 31 | 42 | 6 | 10 | 4 | 2 | M5*0.8 | 17 | 8 | M5*0.8 |
| 32 | 31.5 | 24.5 | 41.5 | 34.5 | 50 | 7 | 12 | 4 | 3 | M6*1 | 22 | 9 | G1/8 |
| 40 | 33 | 26 | 43 | 36 | 58.5 | 7 | 12 | 4 | 3 | M8*1.25 | 28 | 10 | G1/8 |
| 50 | 37 | 28 | 47 | 38 | 71.5 | 9 | 15 | 5 | 4 | M10*1.5 | 38 | 10.5 | G1/4 |
| 63 | 41 | 32 | 51 | 42 | 84.5 | 9 | 15 | 5 | 4 | M10*1.5 | 40 | 11.8 | G1/4 |
| 80 | 52 | 41 | 62 | 51 | 104 | 11 | 20 | 7 | 4 | M14*1.5 | 45 | 13.5 | G3/8 |
| 100 | 53 | 51 | 73 | 61 | 124 | 12 | 20 | 7 | 5 | M14*1.5 | 55 | 17 | G3/8 |
| Bore Size(mm) | P1 |
| 12 | Double side: 6.5 ThreadM5*0.8 Through hole 4.2 |
| 16 | Double side: 6.5 ThreadM5*0.8 Through hole 4.2 |
| 20 | Double side: 6.5 ThreadM5*0.8 Through hole 4.2 |
| 25 | Double side: 8.2 ThreadM6*1.0 Through hole 4.6 |
| 32 | Double side: 8.2 ThreadM6*1.0 Through hole 4.6 |
| 40 | Double side: 10 ThreadM6*1.25 Through hole 6.5 |
| 50 | Double side: 11 ThreadM6*1.25 Through hole 6.5 |
| 63 | Double side: 11 ThreadM8*1.25 Through hole 6.5 |
| 80 | Double side: 14 ThreadM12*1.75 Through hole e:9.2 |
| 100 | Double side: 17.5 ThreadM14*12 Through hole 11.3 |
| Bore Size(mm) | P3 | R | S | T1 | V | W | X | Y |
| 12 | 12 | 4.5 | / | 16.2 | 6 | 5 | / | / |
| 16 | 12 | 4.5 | / | 19.8 | 6 | 5 | / | / |
| 20 | 14 | 4.5 | 2 | 24 | 8 | 6 | 11.3 | 10 |
| 25 | 15 | 5.5 | 2 | 28 | 10 | 8 | 12 | 10 |
| 32 | 16 | 5.5 | 6 | 34 | 12 | 10 | 18.3 | 15 |
| 40 | 20 | 7.5 | 6.5 | 40 | 16 | 15 | 21.3 | 16 |
| 50 | 25 | 8.5 | 9.5 | 48 | 20 | 17 | 30 | 20 |
| 63 | 25 | 8.5 | 9.5 | 60 | 20 | 17 | 28.7 | 20 |
| 80 | 25 | 10.5 | 10 | 74 | 25 | 22 | 36 | 26 |
| 100 | 30 | 13 | 10 | 90 | 25 | 22 | 35 | 26 |
Product Description
Certificate

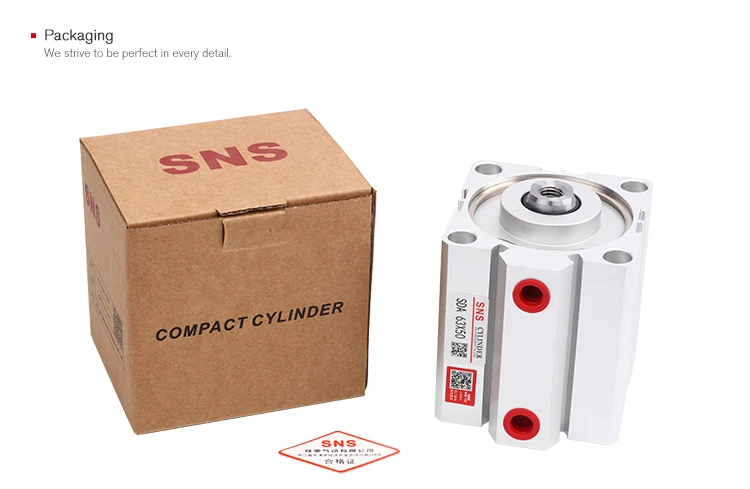

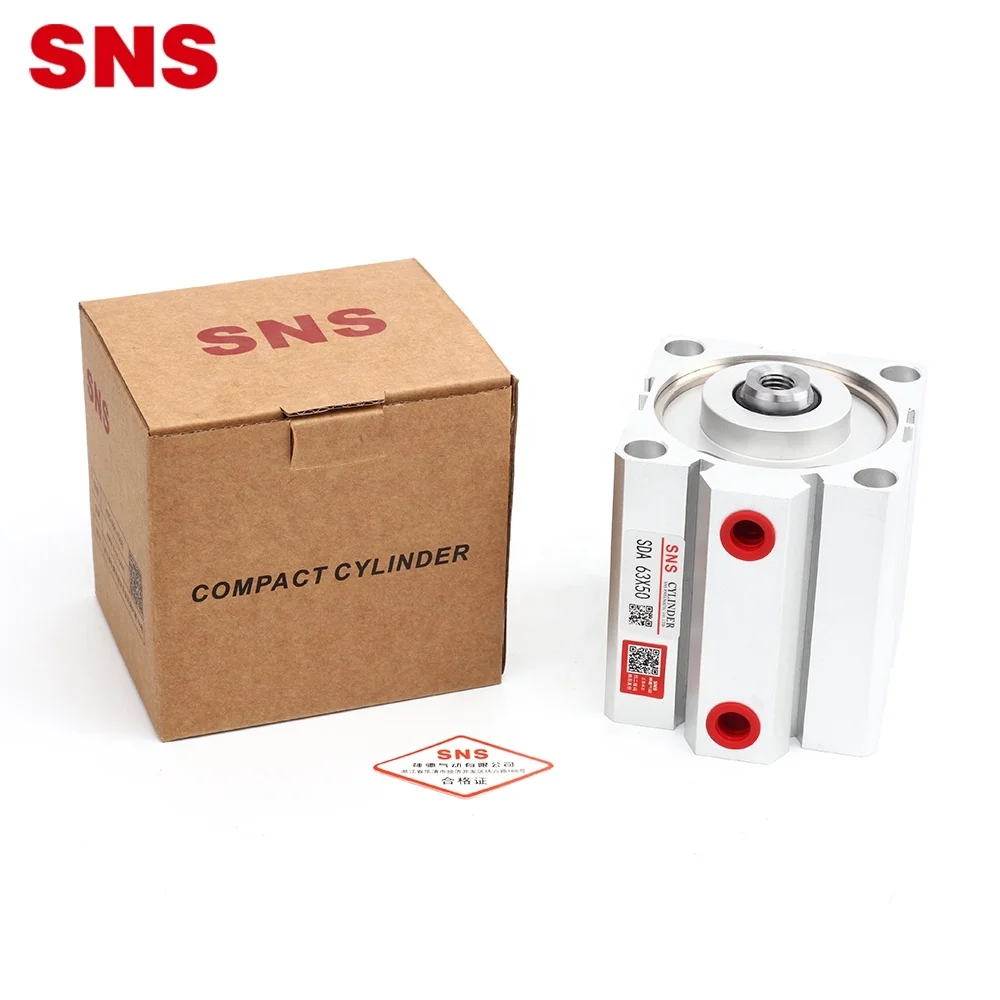

Packaging & Shipping
