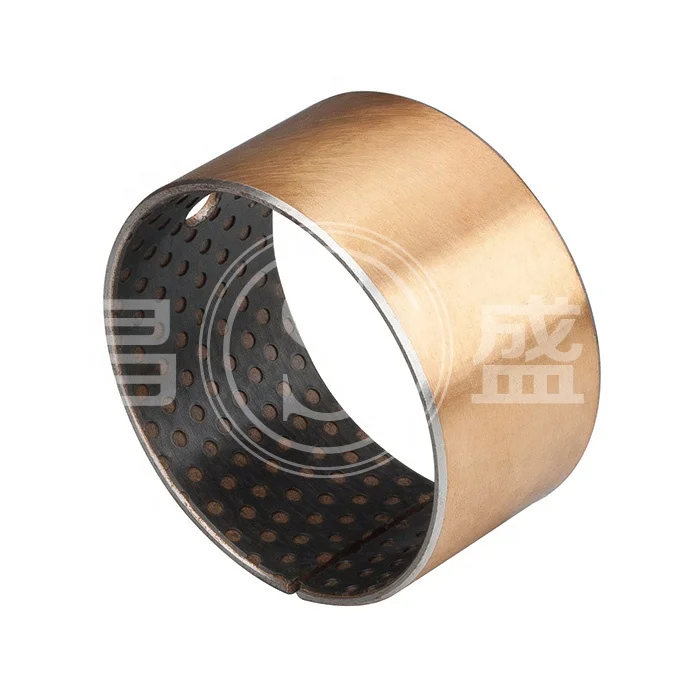

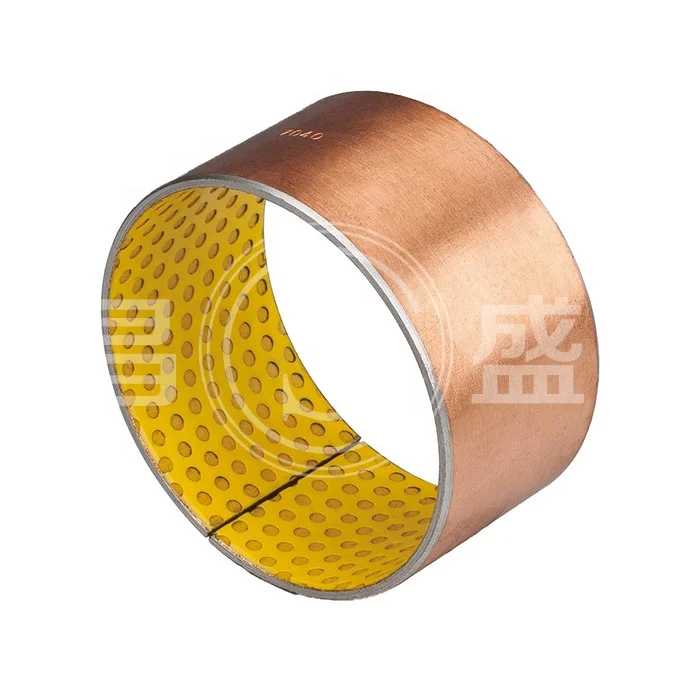

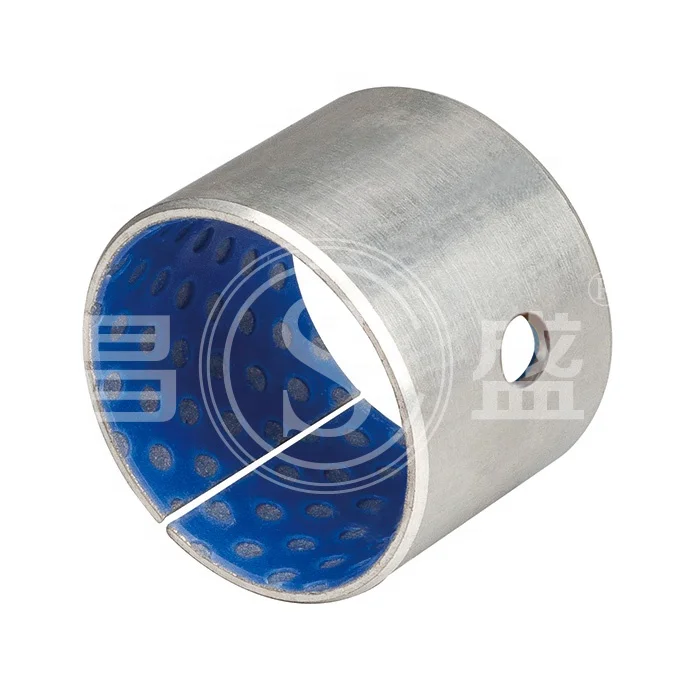

DX bearing bushing POM SF 2Y lead free PAP P20 self lubricating bearing
- Category: Sliding Bearings >>>
- Supplier: Jiashan Changsheng Composite Bearing Factory (General Partner)
Share on (226759798):
Product Overview
Description
Product Description
DX bearing bushing POM SF-2Y lead free PAP P20 self-lubricating bearing is made of high quality low-carbon steel, sintered porous bronze as its inter layer, with the compound of POM& PB as its surface.
And has good load capacity & wear-resistant. It's used in vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry, etc.
And has good load capacity & wear-resistant. It's used in vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry, etc.
Material: | Low-Carbon Steel + Porous Bronze + POM |
Types: | Wrapped Bushes, Thrust Washer |
Working Temperature: | -40~+120℃ |
Hardness: | >270 HB |
Max. Load: | Static 250N/mm², Dynamic 140N/mm² |
Application: | Agricultural Machinery, Vehicle Chassis, Forming Machine Tools, Steel Metallurgical Machinery, Mineral Mountain Machinery, Hydraulic Industry And Rolling Steel Industry, Etc. |

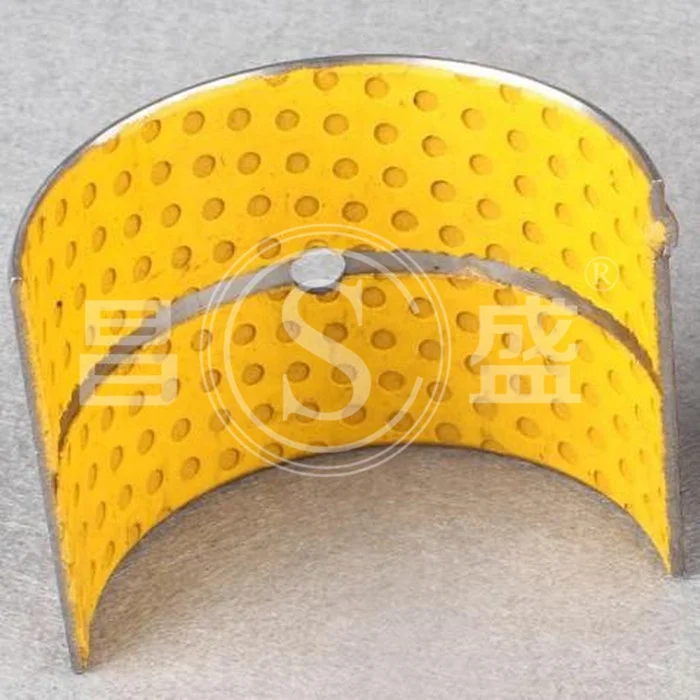

Structure
使用说明
1) Low-Carbon Steel
2) Porous Bronze
3) POM plastic layer
- DX bush Application Feature
1. Good carrying capacity, good wear resistance.
2. Applied for high load low speed rotation and rocking motion, often used in frequent opening and closing under load and hard to
form hydrodynamic lubrication occasions.
3. Don’t have to refuel and maintenance under the long-term boundary lubrication conditions, and refueling in the bearing layer
made a longer service life.
4. A certain margin kept on the surface of the plastic layer during molding, self-processes after assembly was pushed into holes
to achieve a better assembly size.
5. Mainly used in auto chassis, metallurgical machinery, mining machinery, irrigation machinery, construction machinery,
agricultural machinery and steel rolling equipment.
6. Widely used in lead-free fields for no lead containing.
2. Applied for high load low speed rotation and rocking motion, often used in frequent opening and closing under load and hard to
form hydrodynamic lubrication occasions.
3. Don’t have to refuel and maintenance under the long-term boundary lubrication conditions, and refueling in the bearing layer
made a longer service life.
4. A certain margin kept on the surface of the plastic layer during molding, self-processes after assembly was pushed into holes
to achieve a better assembly size.
5. Mainly used in auto chassis, metallurgical machinery, mining machinery, irrigation machinery, construction machinery,
agricultural machinery and steel rolling equipment.
6. Widely used in lead-free fields for no lead containing.

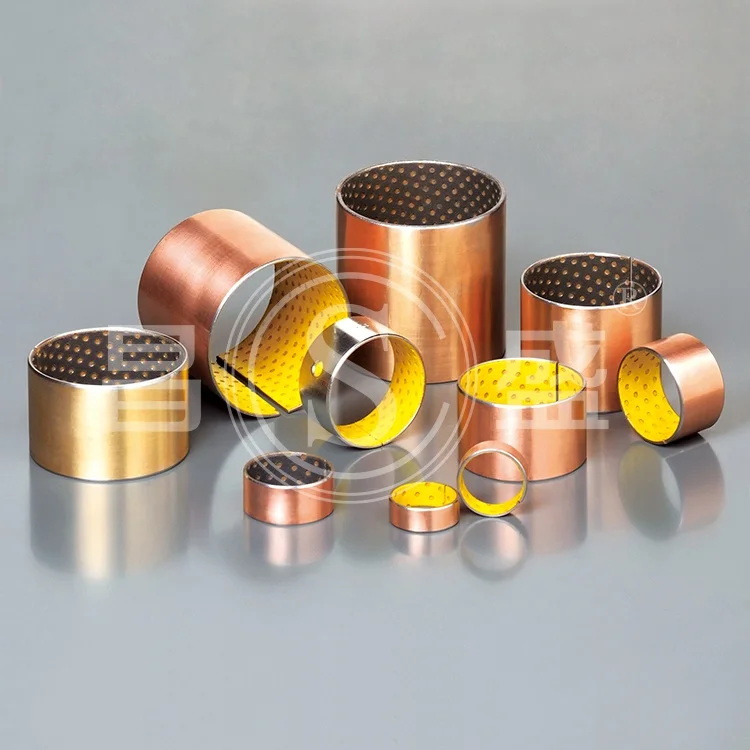

Detailed Images
Package
Related Products
Company Introduction

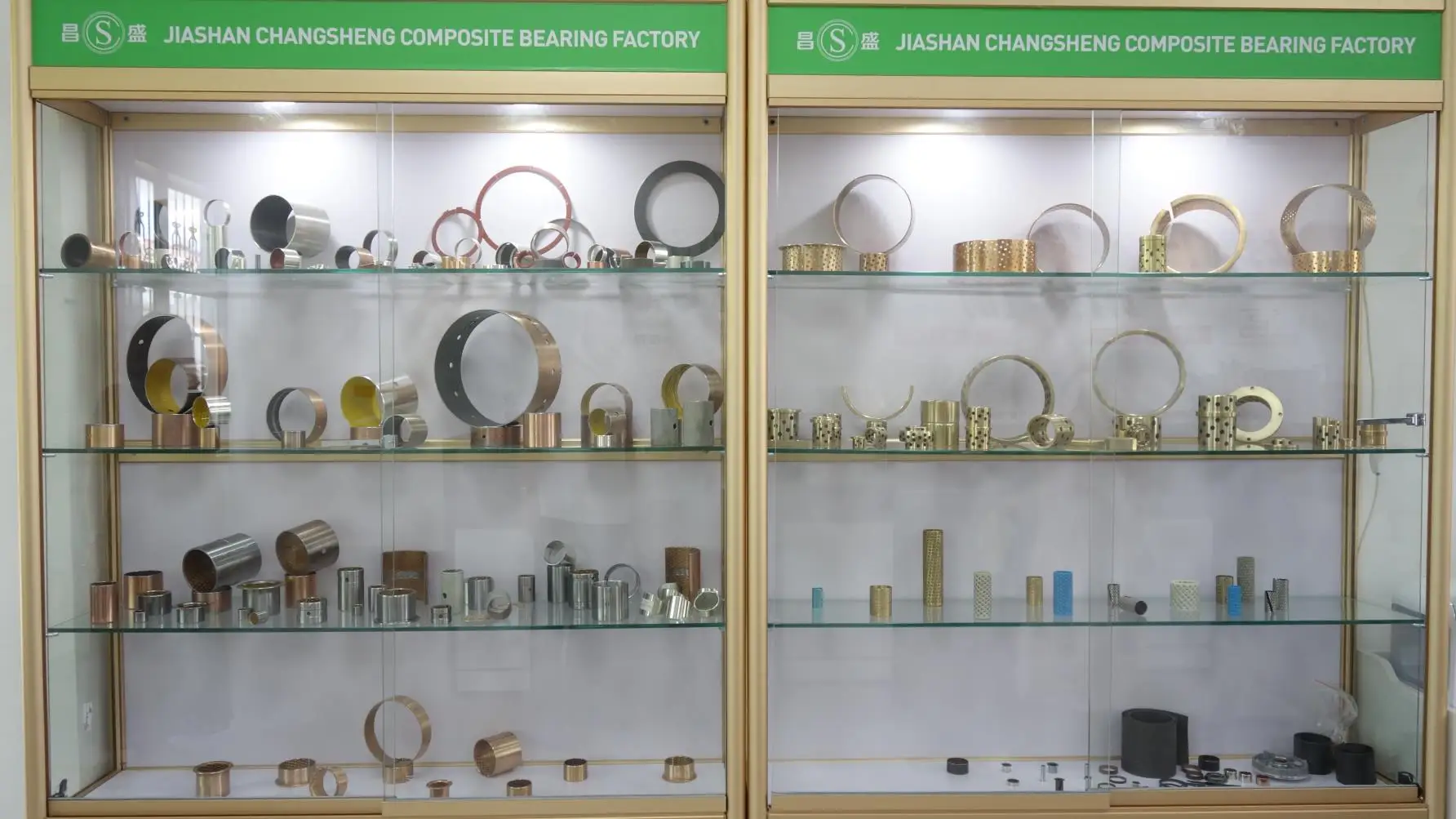

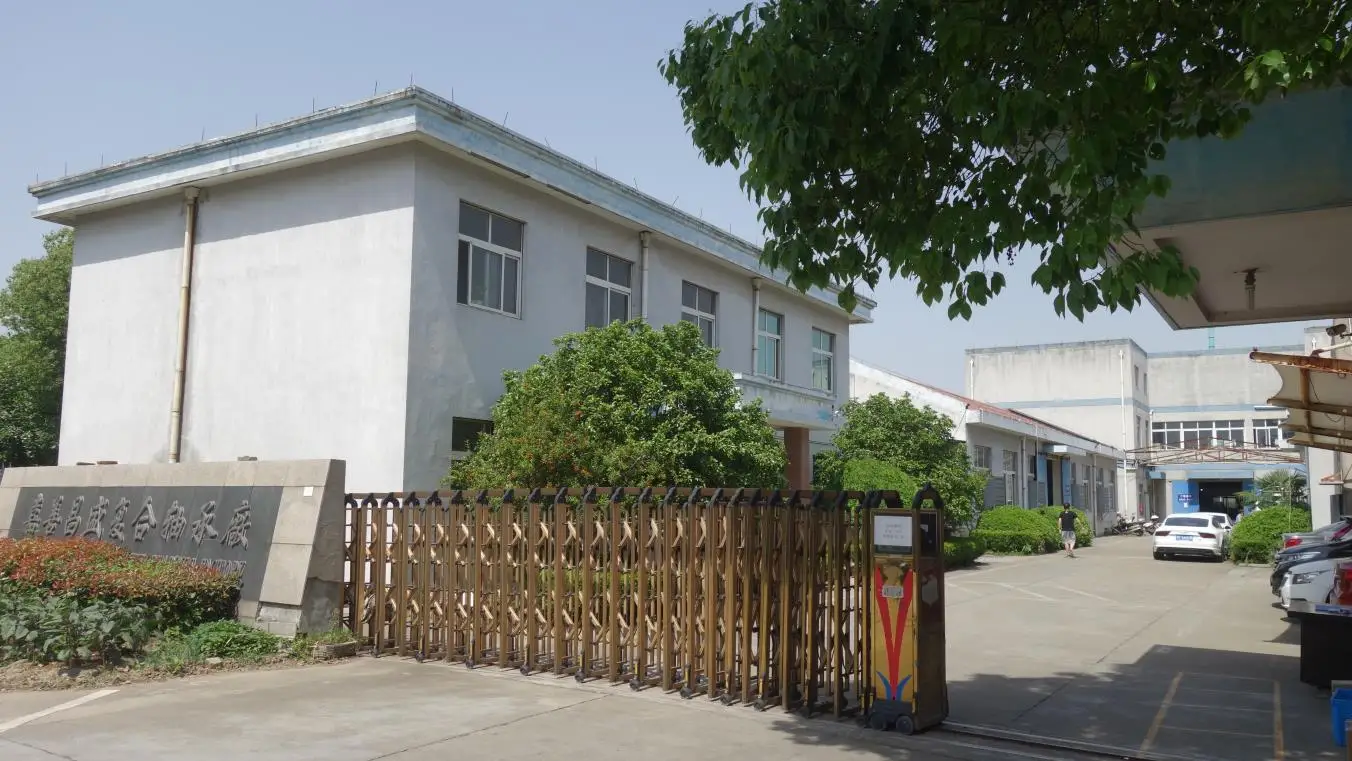

Jiashan Changsheng Composite Bearing Factory, established in 2001, is a professional manufacturer engaged in the research,
development, production, sale and service of all kinds of Oilless Sliding Bearing, Self Lubricated Bearing, Bimetal Bushing,
Wrapped Bronze Bushing, Graphite Bronze Bushing. We are located in Jiaxing with convenient transportation access. Dedicated to
strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your
requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment
including Automatic roll forming machine, and our cooperated company has C N C lathe machine, Punching hole machine, Machining
Center. In addition, we have obtained certificates of I A T F 1 6 9 4 9:2 0 1 6 Quality System / RoHS testing report. We also have
microscope metallographic test equipment and Alloy Thickness Gauge. Our technical staff can also use C A D software to draw
professional drawings according to customer requirements to customize products for customers. Our Selling well in all cities and
provinces around China, our products are also exported to clients in such countries and regions as Italy, Ukraine, Russia, Spain,
Sweden, Canada, Malaysia. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking
engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
development, production, sale and service of all kinds of Oilless Sliding Bearing, Self Lubricated Bearing, Bimetal Bushing,
Wrapped Bronze Bushing, Graphite Bronze Bushing. We are located in Jiaxing with convenient transportation access. Dedicated to
strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your
requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment
including Automatic roll forming machine, and our cooperated company has C N C lathe machine, Punching hole machine, Machining
Center. In addition, we have obtained certificates of I A T F 1 6 9 4 9:2 0 1 6 Quality System / RoHS testing report. We also have
microscope metallographic test equipment and Alloy Thickness Gauge. Our technical staff can also use C A D software to draw
professional drawings according to customer requirements to customize products for customers. Our Selling well in all cities and
provinces around China, our products are also exported to clients in such countries and regions as Italy, Ukraine, Russia, Spain,
Sweden, Canada, Malaysia. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking
engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
