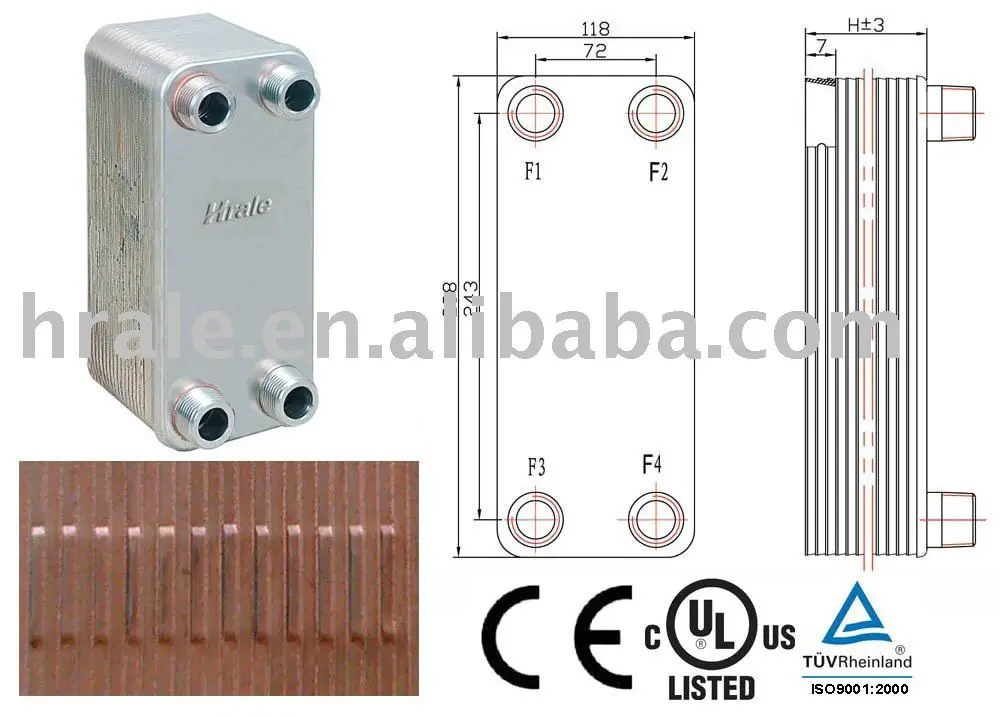

С двойными стенками, паяный пластинчатый теплообменник

Product Overview

Description

Technical parameter
Product name	Double Wall Brazed Plate Heat Exchanger, Dual Wall Plate Heat Exchanger, Dual Wall Heat Exchanger,CE, UL, TUV,ISO9001:2000
Product model	B3-32DW
Unit heat exchanging area	0.032m2
Maximum flowrate	12m3/h
Plate material	316L or 304 stainless steel
Welding material	99.9% copper
Plate thickness	0.4mm+0.4mm
Volume per channel	0.05L
Maximum number of plate	80
Design pressure	3.0MPa or 4.5MPa
Test pressure	4.5MPa or 6.0MPa
Design temperature	-195 ~+220
Connections	the biggest screw thread pipe for water: 1", the biggest welded pipe for liquid:11/8"
Refrigeration Capacity	5-20KW
Basic Procedures	F1-> F3 F4-> F2
Application scope	Advantages of Double Wall Brazed Plate Heat Exchangers: In applications with particularly stringent safety requirements, when unlikely event of internal leakage occurs, traces of one of the two medium can always been seen from the portholes between the pair plates on the outside of the plate heat exchanger, which thus can be replaced immediately. Double wall brazed plate heat exchanger is the perfect choice to prevent the risk from the intermixing of two fluids. Double wall brazed plate heat exchanger makes the application of plate heat exchanger safer and more environment-friendly.
