Hot Knife PP Rope Cutter/Webbing Cutter

Product Overview

Description



Hot Knife PP Rope Cutter/Webbing Cutter



KD-8-3 Youtube Video:   https://youtu.be/UJtRMBQ-Fp0





1.Hot Knife Electric Rope Cutter Quantity



Special making heating cutter since 2006,

Exported to world wide market.

All of cutters are CE certified.







2.Hot Knife Electric Rope Cutter Applications

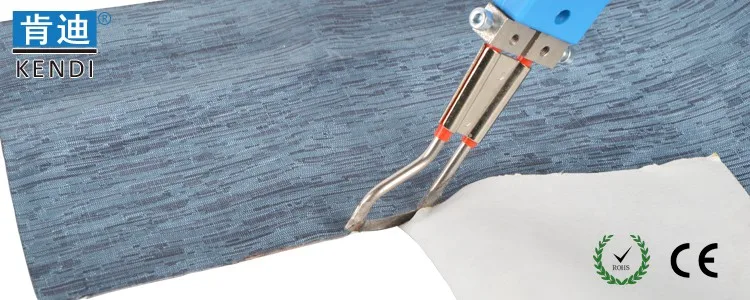

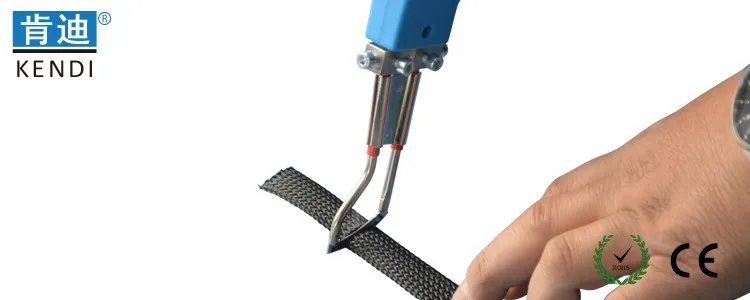

Electric rope cutter cut the rope with diameter 1 inch, and the webbing, with fine cutting edge, no disperse. Attached with the cutting foot, the hot knife cut the synthetic fiber cloth without backup under the cloth, seal the cutting edge as well; cut the seal line on the bag. Especially good for cutting sail cloth, awnings and filter cloth.



3.Hot Knife Electric Rope Cutter Preparations



• Select a hot knife blade corresponding to the cutting use.


• Loosen the knurled nut when device is cold.


• Insert each leg of the blade and tighten the knurled nuts. Make sure that the blade and the cutting head have optimal contact. If both legs of the blade are not properly installed, the unit will not heat up.





4.Hot Knife Electric Rope Cutter Cutting



• Actuate switch, the indicator light and the blade will heat up.


• Avoid direct short circuit between cutting heads.


• Do not use metallic rulers for guiding the blade.


• Clean cutting heads with enclosed wire brush.


• Please make sure the blade is connected to the cutting material before blade heats up.



5.Hot Knife Electric Rope Cutter Cautions



• Always operate the Hot Knife in well ventilated space.


• Never burn off the excess residue on the Hot Knife blade. The blades will over heated and be warped.


• Only operate Hot Knife when it is in contact with the insulation board


• Keep hot blades away from skin, clothing and other flammable materials.


• Allow blades to cool before handling. Hot Knife may cause injury or burns to exposed surfaces.


• If the temperature inside the tool is too high, the unit will get hot and the internal thermal protectors will turn it off, after it cool, the Hot Knife will operate again.



6.Hot Knife Electric Rope Cutter Details



 Specification:



Voltage	AC230V/50Hz (110V/60Hz)
Weight	950 g
Size	21/5/4.6 cm
Power	MAX.60W
Intermittent operation	1/4 min
Power cord length	2.5m





Practicable blades:



Blade and model number	Application
R blade No.10.2	Standard blade

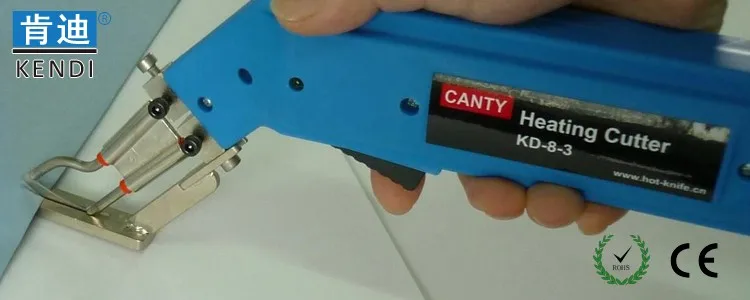

Cutting foot No.21	Fitted with the R blade, cutting synthetic frabic without using a cutting surface.

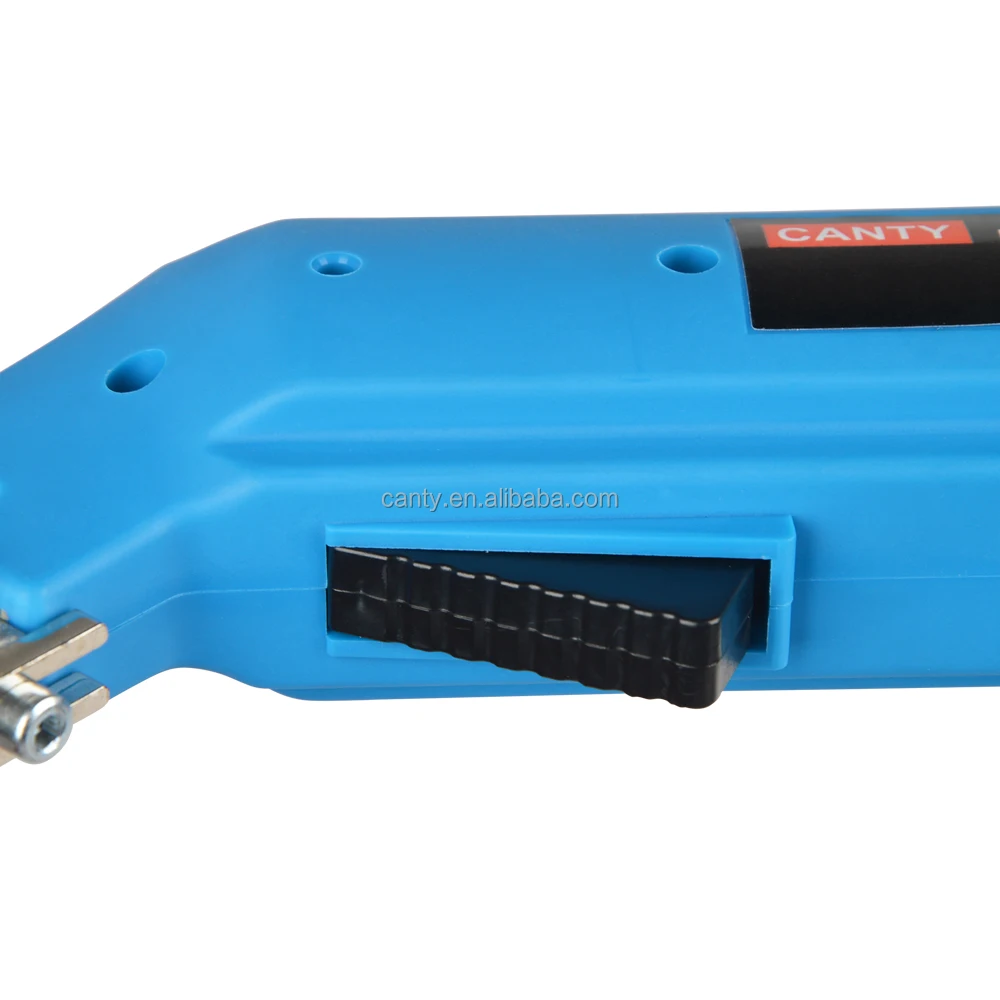

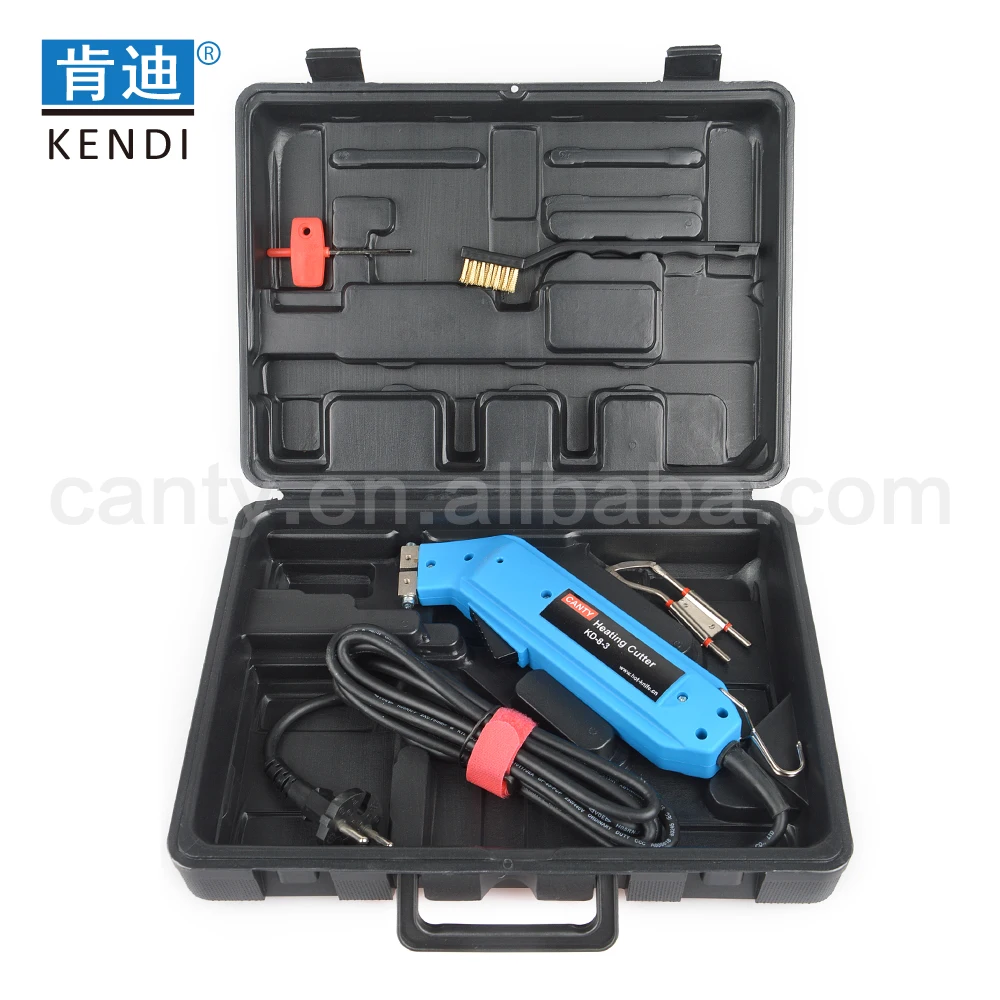

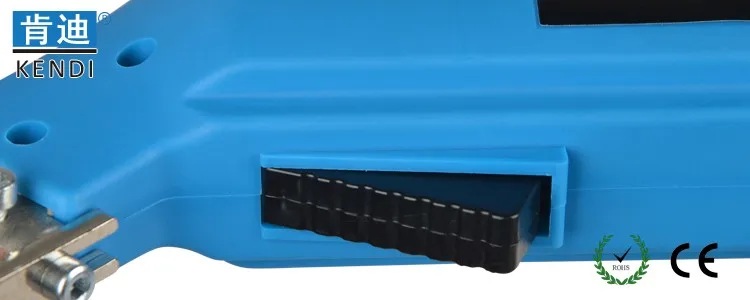

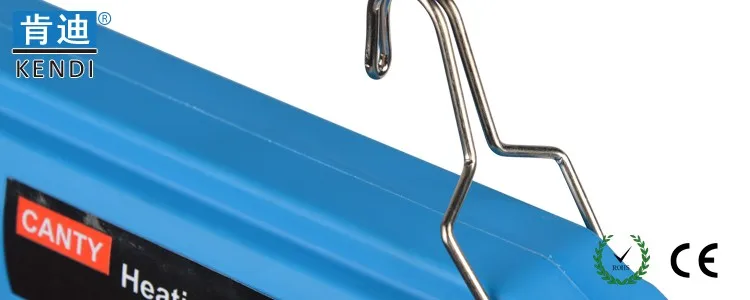

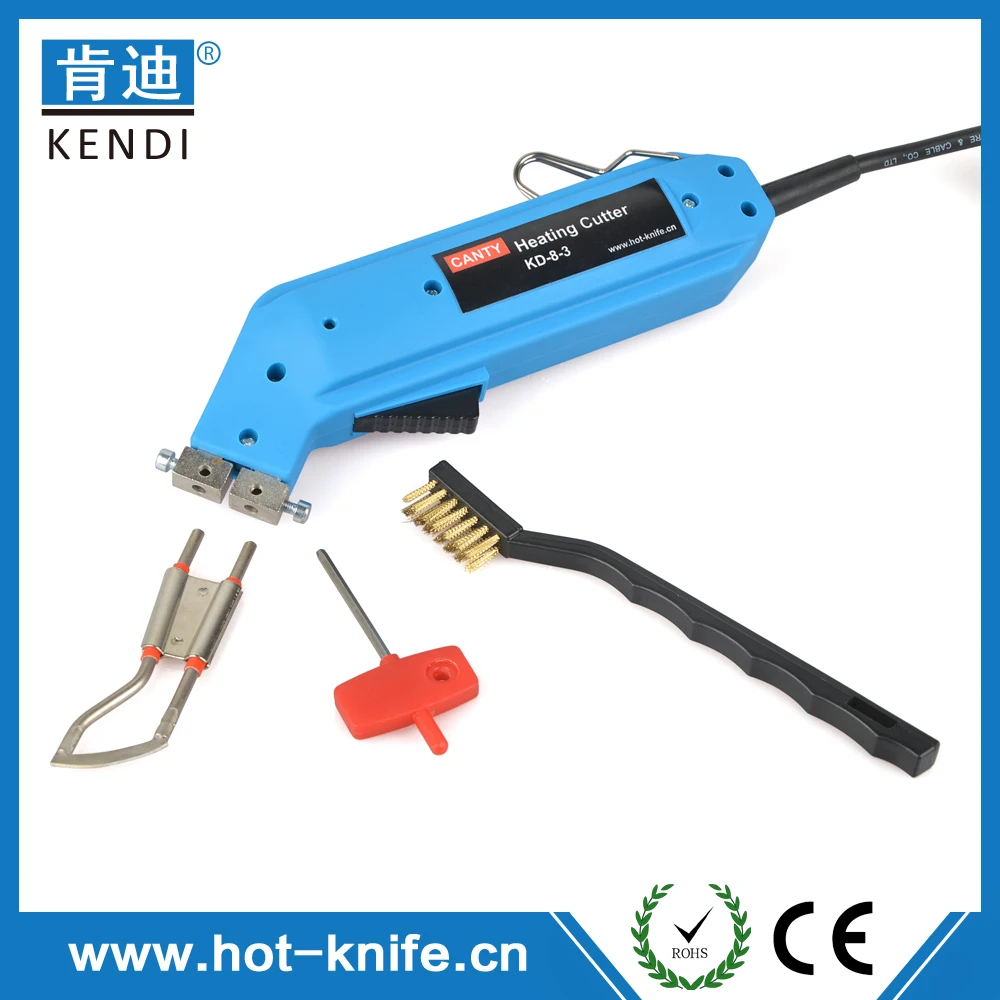

7.Hot Knife Electric Rope Cutter Pictures
