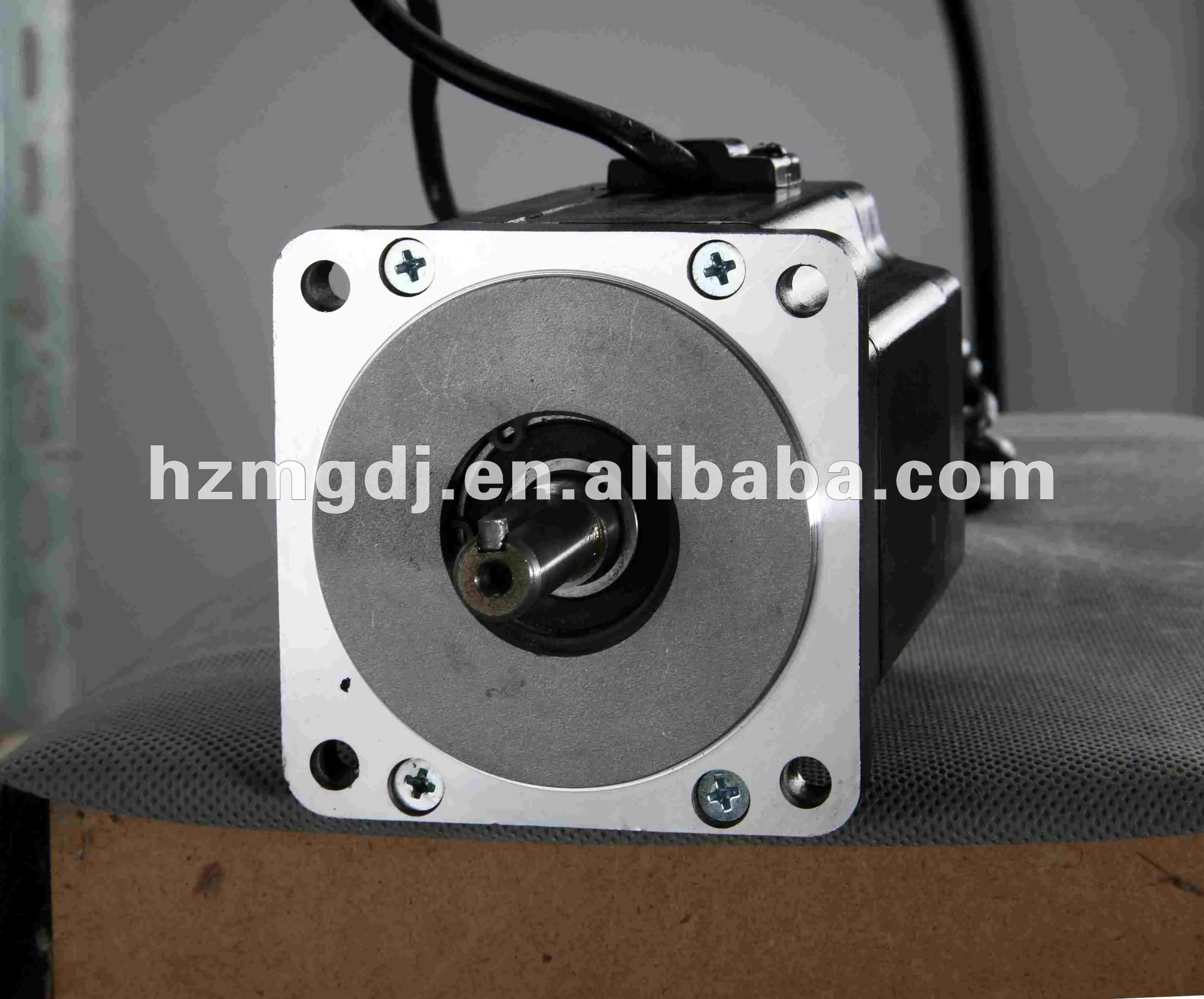

three phase stepping motor

Product Overview

Description



FHB 3910-H Stepping motor is a brushless, synchronous electric motor that can divide a full rotation into a large number of steps. The motor's position can be controlled precisely, without any feedback mechanism.

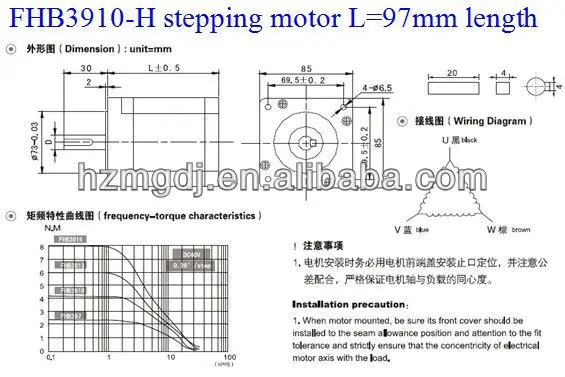

Electric Parameters:



Model	FHB3910-H
Step Angle (°)	1.2
Length L (mm)	97
Holding torque (N.m)	4.0
Current (A)	2.0
Rotor inertia (kg..c)	2400
Weight (kg)	3.0
Matched driver	HBQ30722A
Shaft extension (mm)	6×30





These series motors have outstanding performance, such as high efficiency, less consumption, high starting torque, low noise, little vibration, reliable operation and easy maintenance etc.

Besides, our factory can make special stepping motors according to customs requirements.
