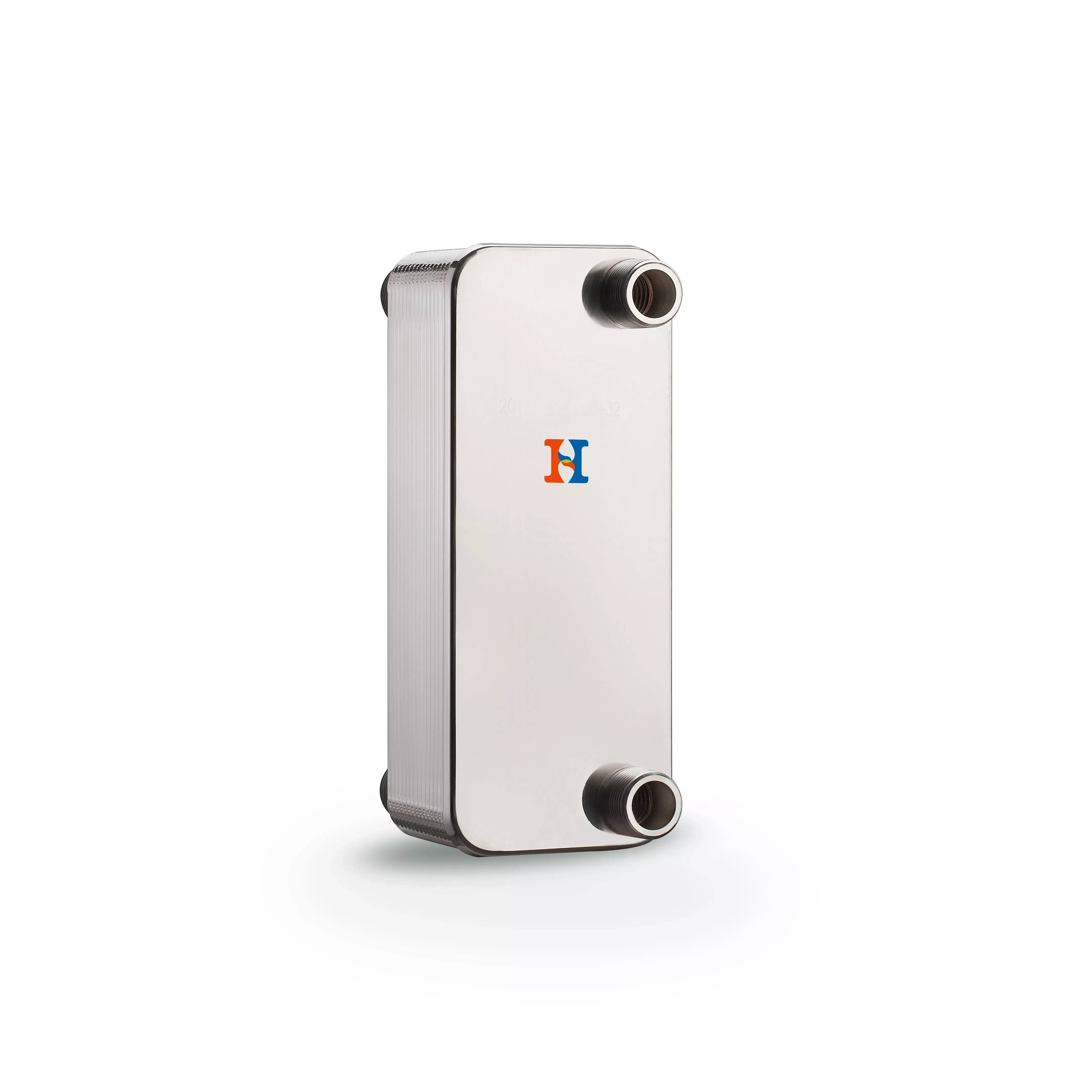

Condenser, Evaporator, Subcooler
- Category: >>>
- Supplier: Ningbo Hrale Plate Heat Exchanger Co. Ltd.
Share on (227305834):
Product Overview
Description
VR
Products Description
Product name | Condenser, Evaporator, Subcooler |
Product model | B3-32A |
Unit heat exchanging area | 0.032m2 |
Maximum flowrate | 12m3/h |
Plate material | 316L or 304 stainless steel |
Welding material | 99.9% coppers |
Thickness of plate | 0.4mm |
Volume per channel | 0.05L |
Maximum number of plate | 120 |
Design pressure | 3.0MPa 4.5MPa |
Test pressure | 4.5MPa 6.0MPa |
Design temperature | -195 ~+220 |
Connections | the biggest screw thread pipe for water: 1", the biggest welded pipe for liquid: 11/8" |
Capacity | 5-20KW |

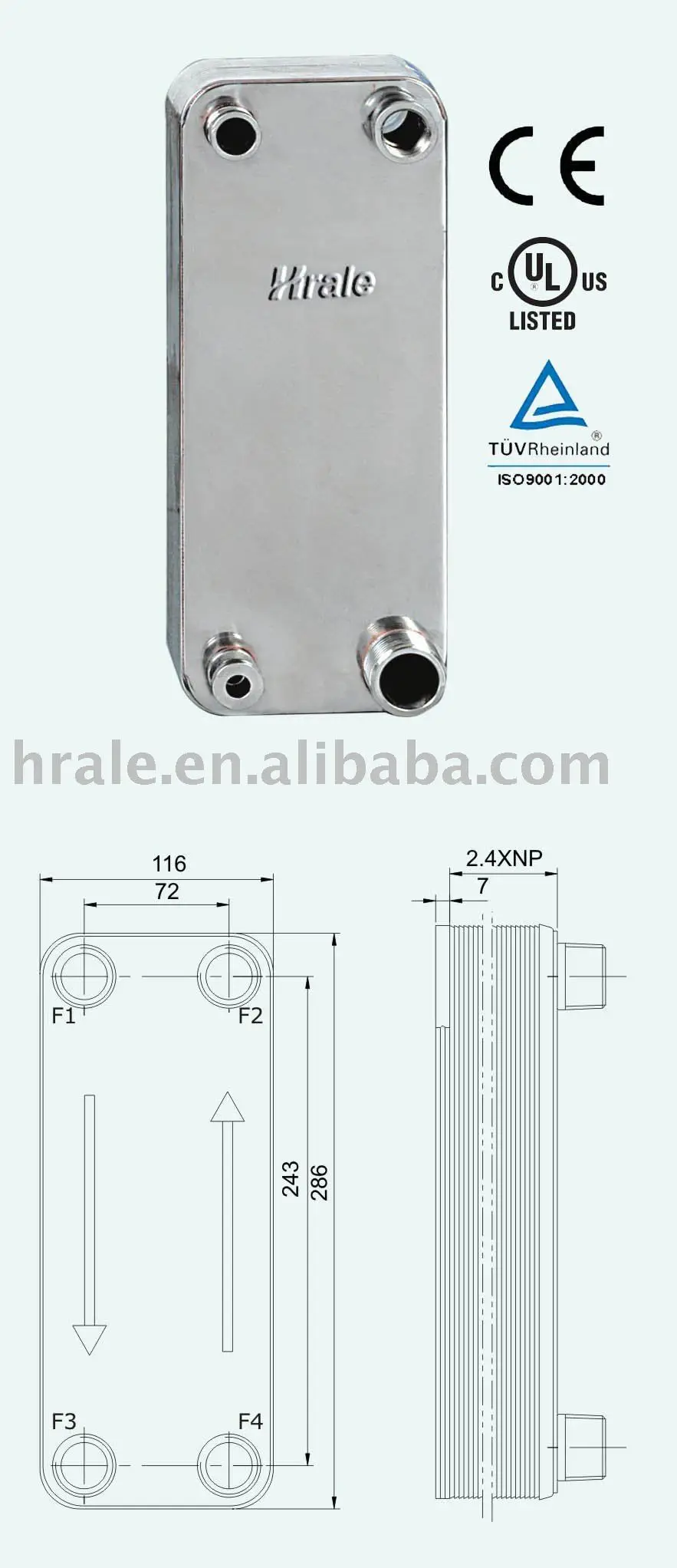

Basic flow disposition | F1-> F3 F4-> F2 |
Application scope | The wall heater, heats the water heater, the cold temperature testequipment, the small refrigeration equipment and so on |
