Phase Controlled Thyristor
- Category: >>>
- Supplier: Tianjin Century Electronics Co. Ltd. [Tianjin China]Tianjin
Share on (227635748):
Product Overview
Description
Product Description

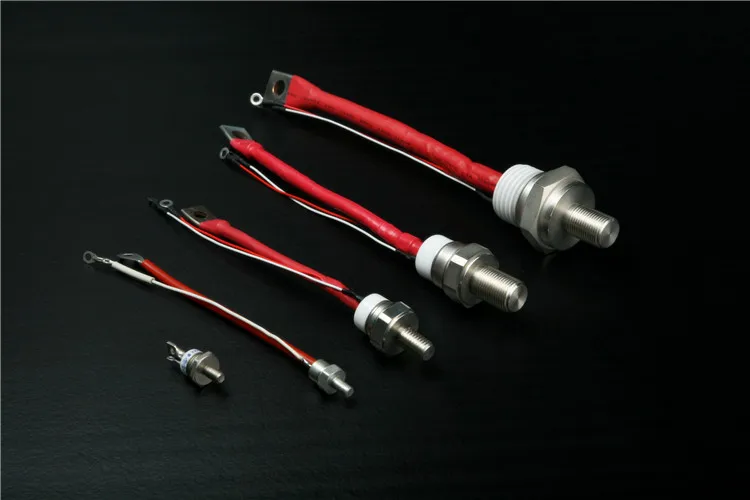

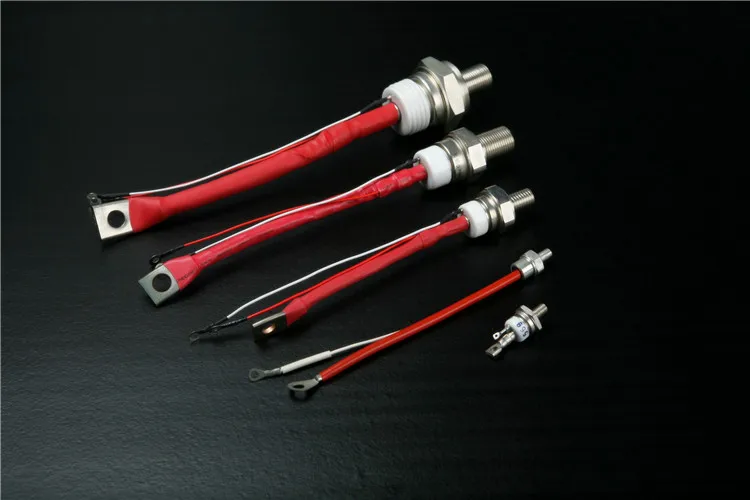

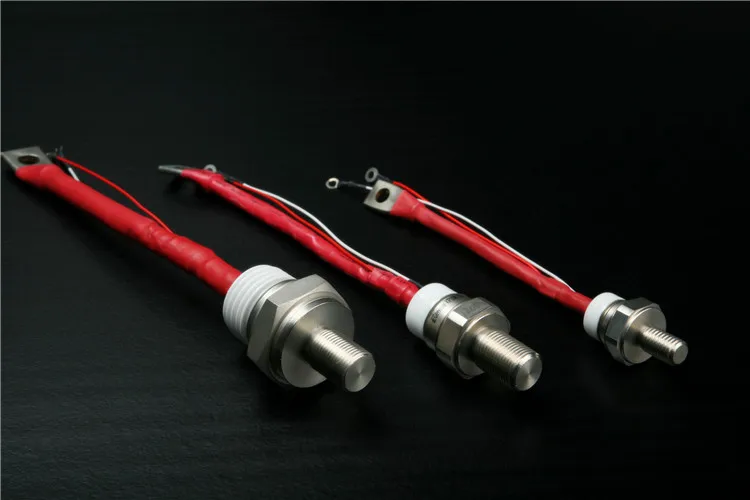

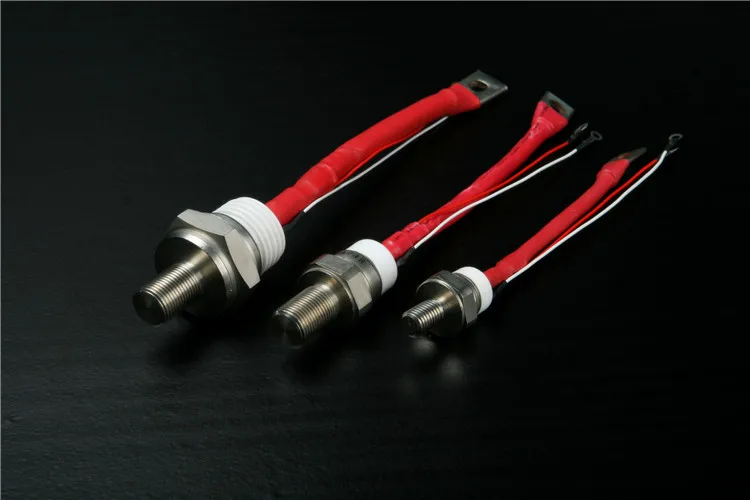

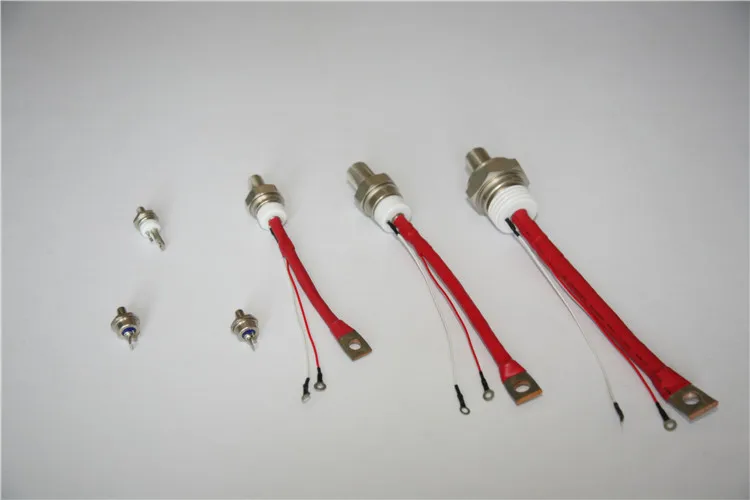

Phase Control Thyristor -- Stud Type
| Model |
IT(AV) @TC=75℃ A |
VDRM
VRRM V |
IDRM
IRRM mA |
ITSM
@50HZ mA |
VTM |
VGT
V |
IGT
mA |
dv/dt
V/μs |
Rthjc
℃/W |
Tvj
℃ |

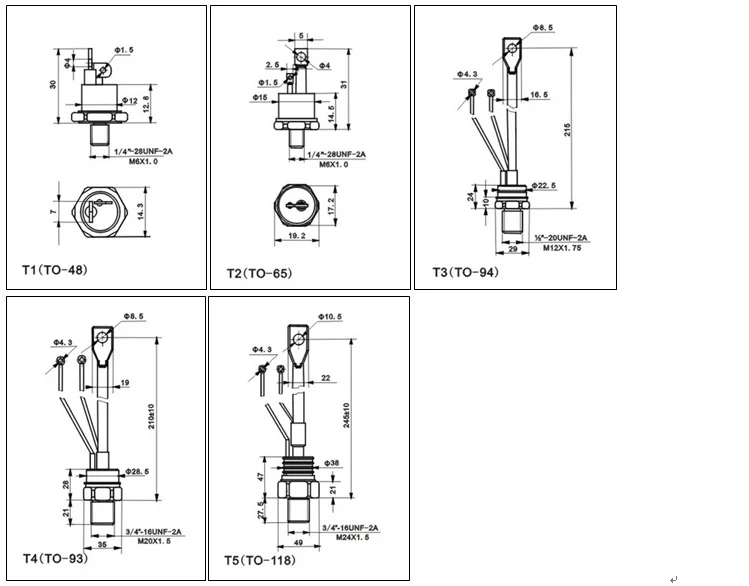

Outline | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V |
@ITM A |
|||||||||||
| KP10/20 | 10 | 2000 |
≤10 |
0.2 | ≤2.4 | 30 | ≤2.0 | ≤60 | ≥500 | 0.80 | 125 | T1 |
| KP20/12 | 20 | 1200 | 0.4 | ≤1.8 | 60 | ≤2.5 | ≤100 | |||||
| KP50/20 | 50 | 2000 |
≤20 |
1.0 | ≤2.0 | 150 | ≤3.0 | ≤150 | ≥500 | 0.35 | 125 | T2 |
| KP100/20 | 100 |
≤30 |
1.8 | 300 | 0.20 | T3 | ||||||
| KP100/30 | 100 | 3000 |
≤40 |
1.8 | ≤2.6 | 300 | ≤3.0 | ≤150 | ≥1000 | 0.12 | 125 | T4 |
| KP200/20 | 200 | 2000 |
≤30 |
3.6 | ≤1.8 | 600 | ≥500 | |||||
| KP200/30 | 200 | 3000 |
≤50 |
3.6 | ≤2.6 | 1500 | ≤3.0 | ≤200 | ≥1000 | 0.10 | 125 | T5 |
| KP300/20 | 300 | 2000 |
≤40 |
5.4 | ≤1.8 | ≥500 | ||||||
| KP350/16 | 350 | 1600 | 6.3 | ≤1.5 |
