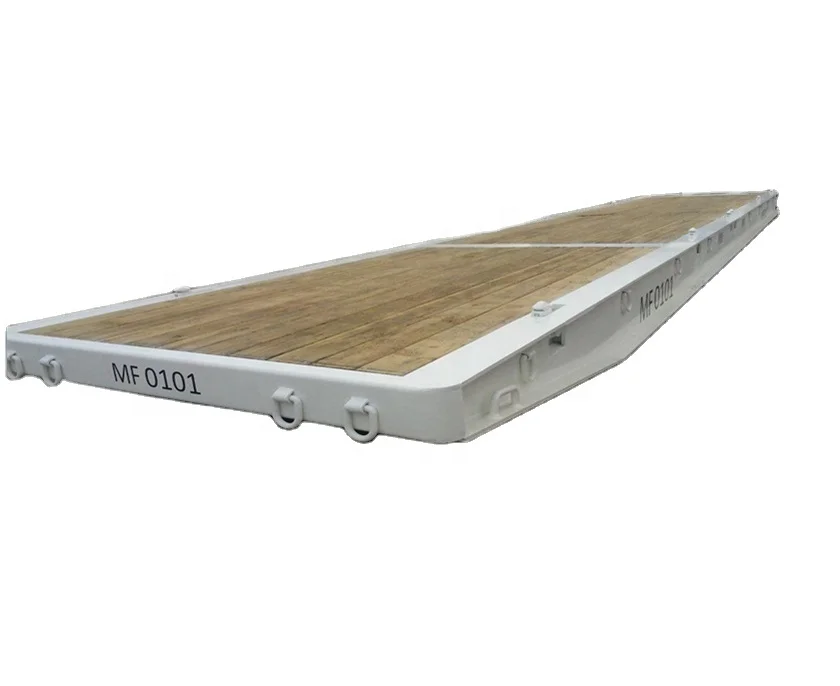

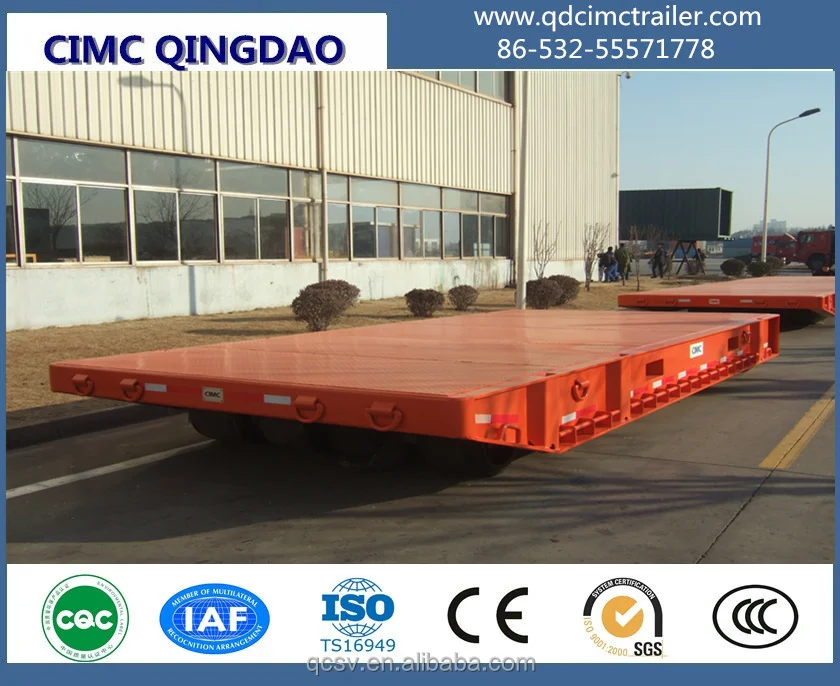

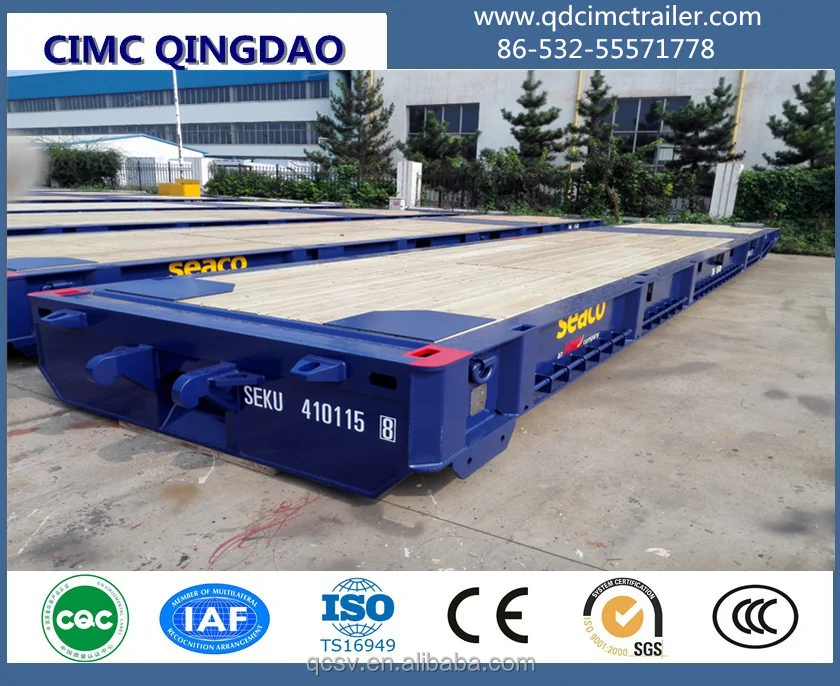

100ton CIMC brand Ro Ro trailer mafi roll semi trailer
- Category: >>>
- Supplier: Qingdao Cimc Special Vehicles Co. Ltd.
Share on (227960247):
Product Overview
Description

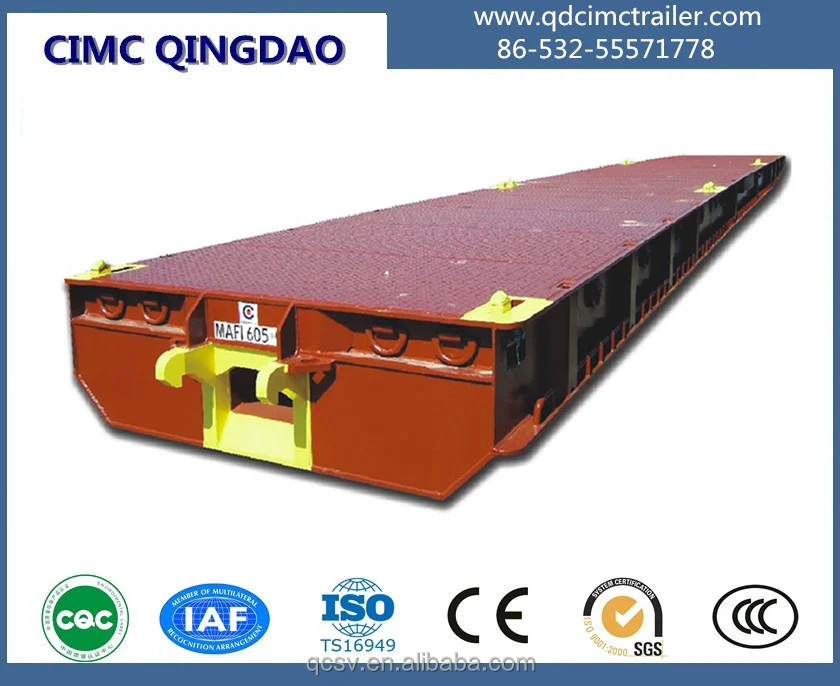

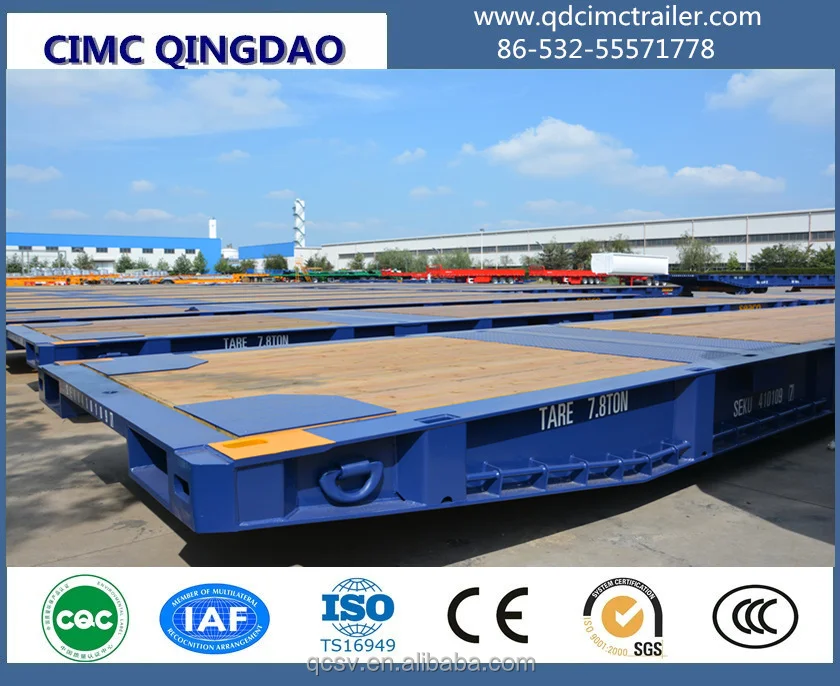

CIMC 40/45ft Mafi trailer/roro trailer specification
Qingdao CIMC is official CIMC group factory, which is the No.1 manufacturer in China for semi trailers, with a history of 40 years.
1.Dimension and weight:
Overall Length: 12,638 mm,include 240mm for safety hook
Platform Length: 12,398 mm
Platform Width: 2,500 mm (adjustable according with your request)
Platform Height: About 742mm @ unload
Axle spacer (from front surface): 8,315 mm + 1,100 mm
Distance between fork lift pockets: 2,020 mm
Tare Weight (Tolerance ±3%): Approximate 8,000 kg
Payload: 60/80/100Tons
1.Dimension and weight:
Overall Length: 12,638 mm,include 240mm for safety hook
Platform Length: 12,398 mm
Platform Width: 2,500 mm (adjustable according with your request)
Platform Height: About 742mm @ unload
Axle spacer (from front surface): 8,315 mm + 1,100 mm
Distance between fork lift pockets: 2,020 mm
Tare Weight (Tolerance ±3%): Approximate 8,000 kg
Payload: 60/80/100Tons
2.Steel Material:
High strength low alloy steel with 350 MPa yield strength is used for welded I-beam and fabricated parts.
3.Running Gear System:
(1).2 rock arms lowered box construction
(2).4 axles 140x140,φ100/80mm
(3).Taper roller bearings 30216 8 pieces, 32020 8 pieces
(4).8 steel reinforced solid rubber tires 22x16x16

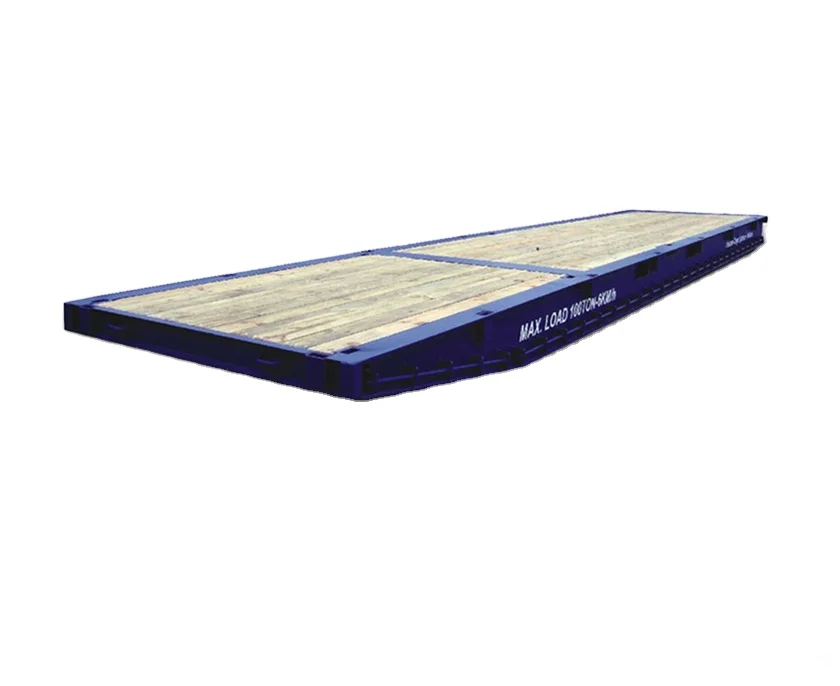

4.Decking:
(1).45 mm thickness wood, meet Australian treatment standard.
(2)Or 5 mm thickness checked steel plate.
High strength low alloy steel with 350 MPa yield strength is used for welded I-beam and fabricated parts.
3.Running Gear System:
(1).2 rock arms lowered box construction
(2).4 axles 140x140,φ100/80mm
(3).Taper roller bearings 30216 8 pieces, 32020 8 pieces
(4).8 steel reinforced solid rubber tires 22x16x16
4.Decking:
(1).45 mm thickness wood, meet Australian treatment standard.
(2)Or 5 mm thickness checked steel plate.
Specification
Dimension | 12500*2500*1550mm |
Payload | 40ton, 50ton, 60ton |
Tire | 11R22.5, 13R22.5, 315/80R22.5, 11.00R20.12.00R20 |
Axles | 13T/16/20T BPW or FUWA brand |
King Pin | 2 inch or 3.5 inch JOST Brand |
Brake System | WABCO Valve with big chamber |
Landing Gears | CIMC or JOST brand two-speed |
Suspension | Bogie suspension, spring suspension, Air suspension |
Floor | 3mm,4mm,6mm diamond steel plate |
Functions | Transport container, loose cargo, bulk cement, bulk rice,etc |
Product Description

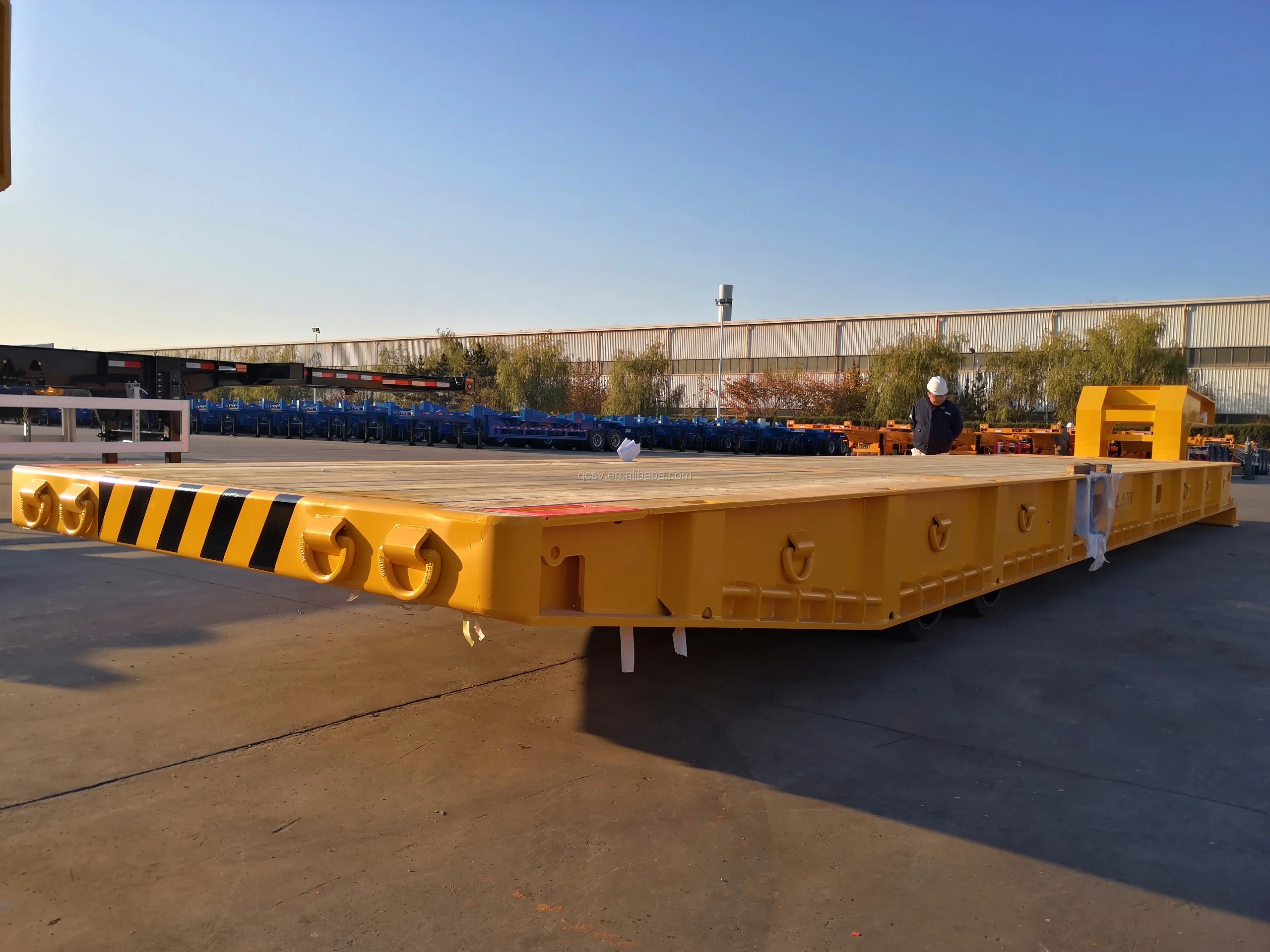

CIMC Mafi trailer/roro trailer design.
We use both high strength and carbon steel after PRO E and finite element analysis, to ensure the longest life for our trailer, and also economical for our client.

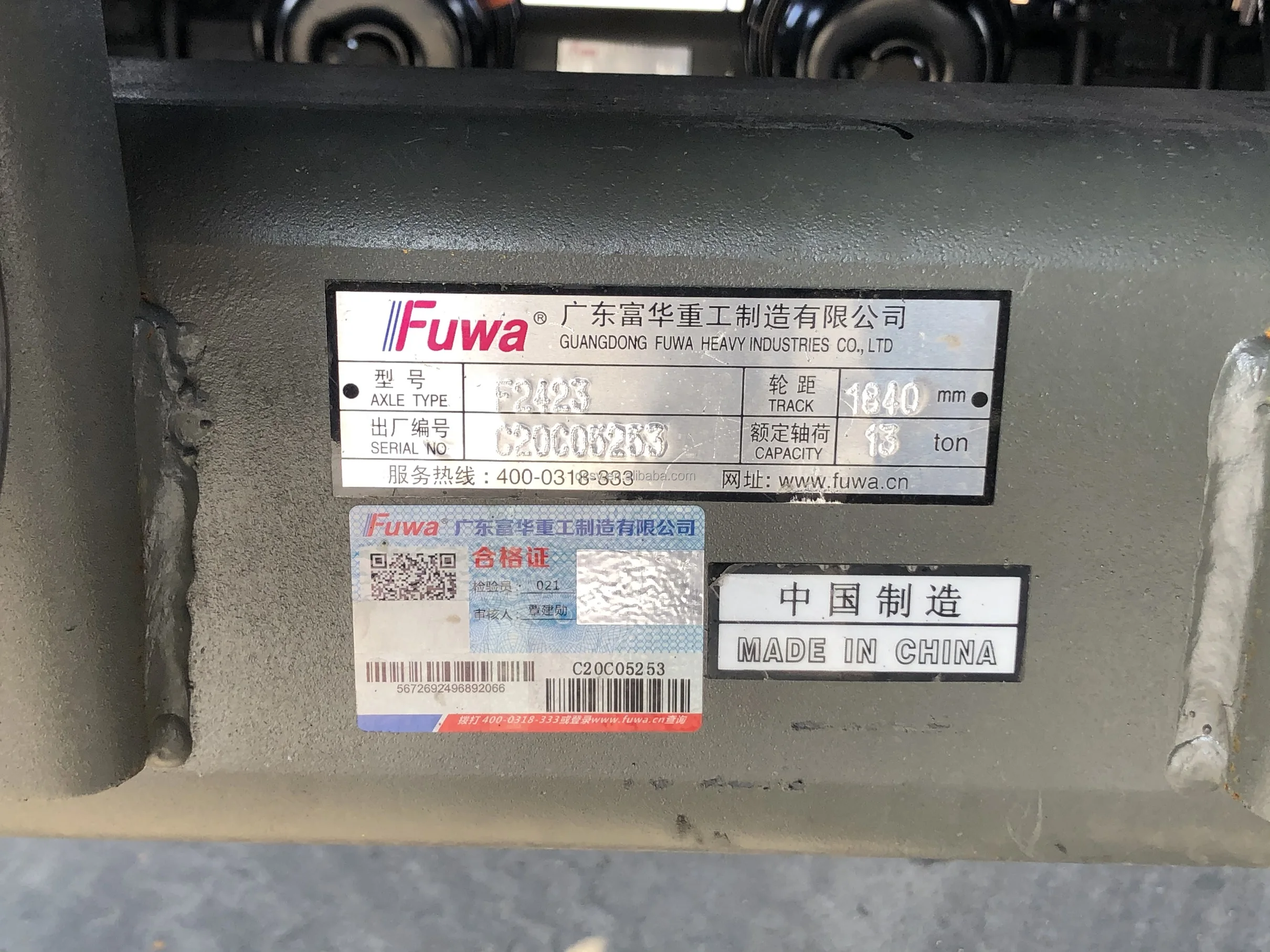

CIMC Trailer USE Fuwa Axles
CIMC Mafi trailer/roro trailer use world famous axles and suspensions for our trailer, such as fuwa, bpw etc, reduce client cost for frequent maintenance and replacement wear parts cost.

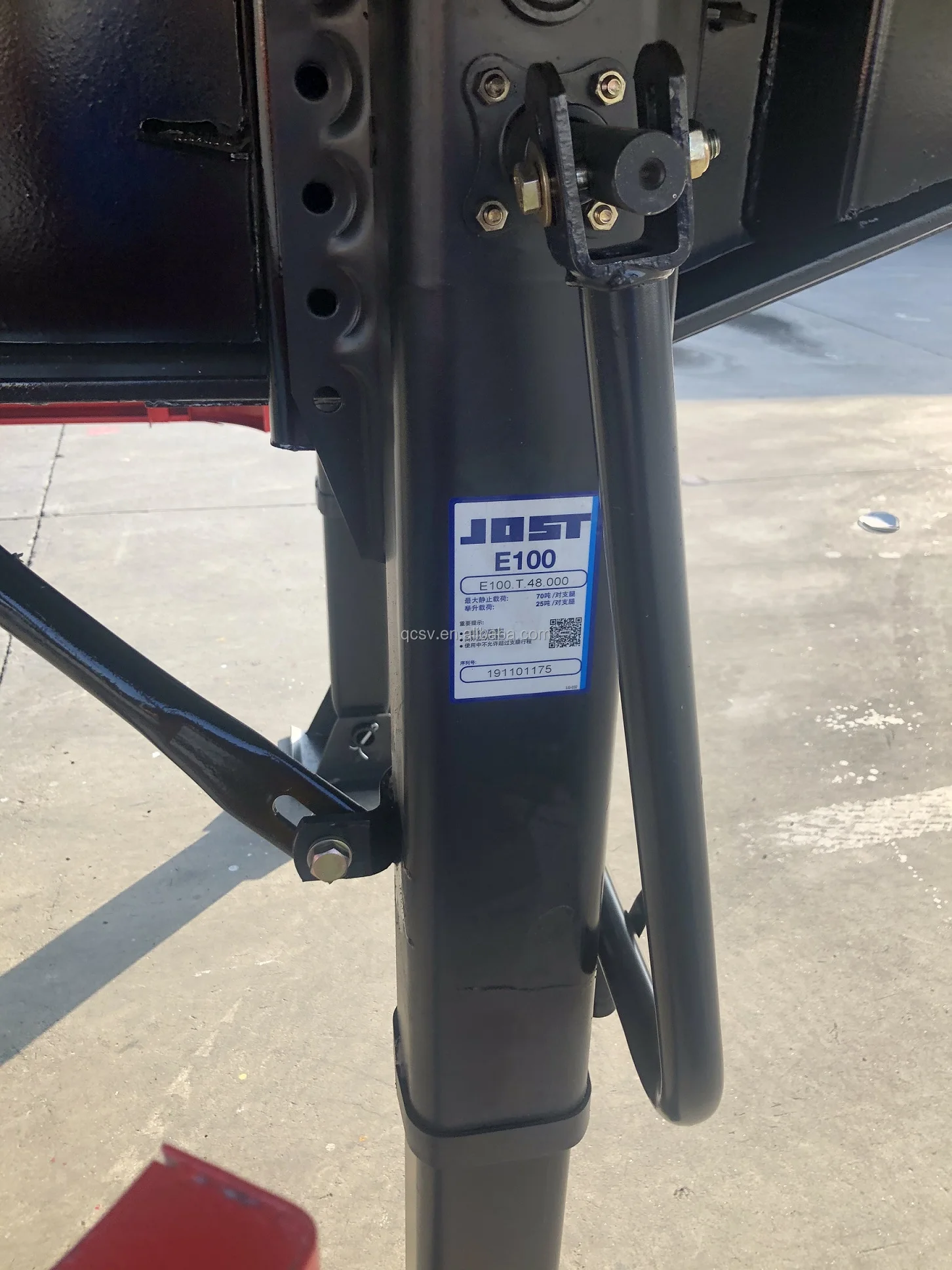

CIMC Mafi trailer/roro trailer landing legs.
CIMC Mafi trailer/roro trailer use Jost, or CIMC landing legs, with double speed, one side operation or two sides operation as per client habit and market need, famous landing legs ensure the safety for drop and pull transport

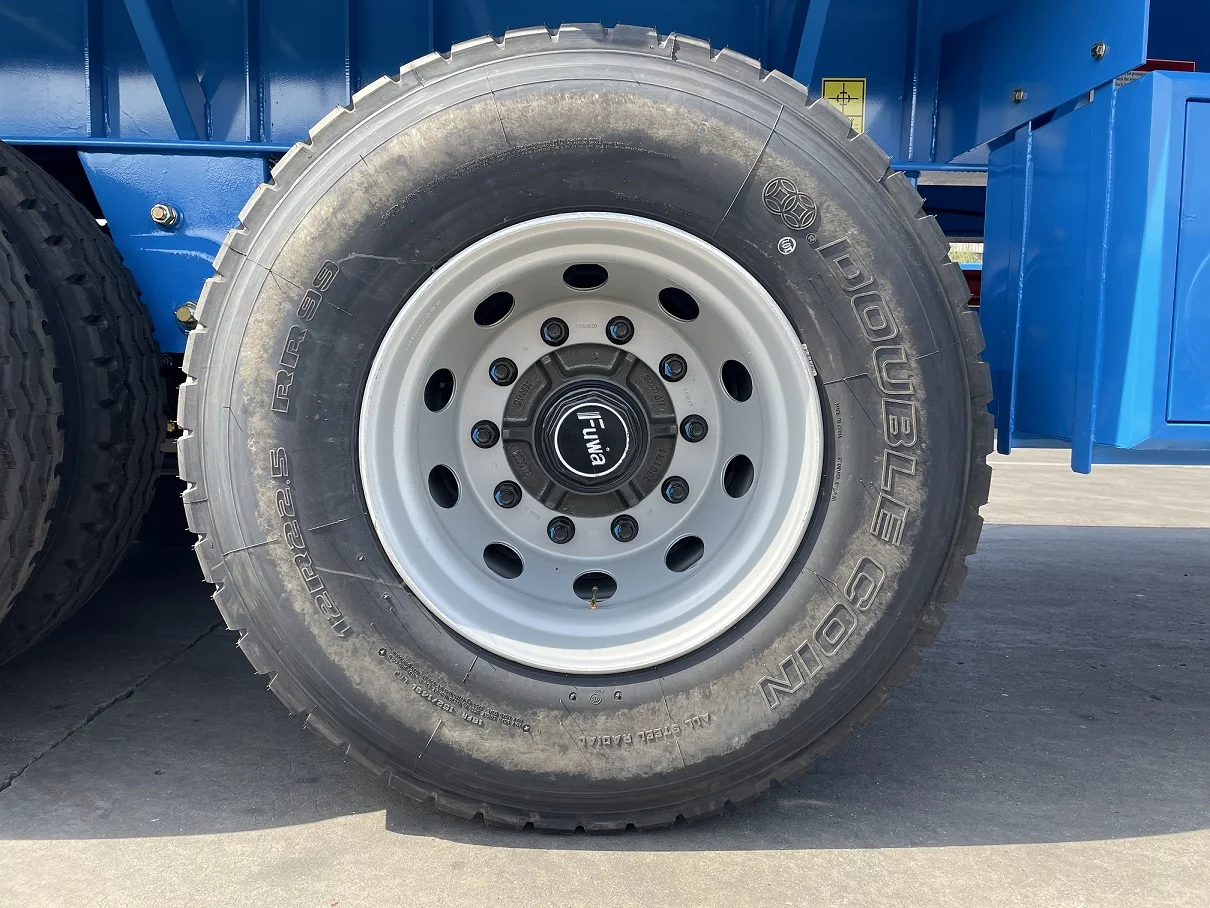

CIMC Mafi trailer/roro trailer tires
CIMC Mafi trailer/roro trailer use double coin, triangle, linglong tires, for the flatbed trailer the most common sizes are 11R22.5, 12R22.5,13R22.5, 11.00R20, 12.00R20 suit different market need.

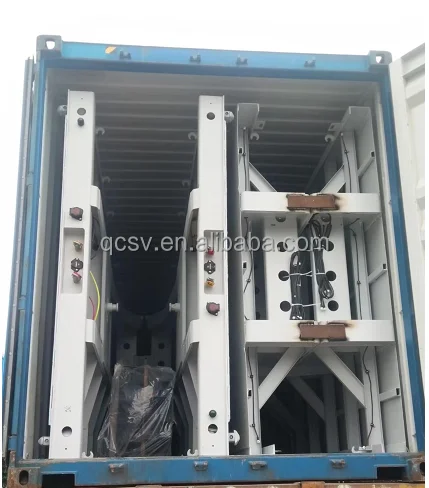

Packing & Delivery
CIMC have agreement contract with the main shipping companies, such as MAERSK, NYK and CMA, COSCO etc ensuring the timely and most economical transportation of each order.
And also we have a 10pcs transportation team with years experiences which can help client to choose the best delivery way, and the smallest packing volume, to supply the best shipping solution, timely, safety, and low cost.
And also we have a 10pcs transportation team with years experiences which can help client to choose the best delivery way, and the smallest packing volume, to supply the best shipping solution, timely, safety, and low cost.
Company Profile
About our factory
2.We are the whole subsidary of CIMC Group, the largest semi trailer and container manufacturer in the world.
3. CIMC have a history of 35 years.
4.Our products include: Flatbed trailer, Skeletal Trailer, Tipper Trailer, Side wall fence trailer, low bed trailer, swap body.
5. More details for Qingdao CIMC.
CIMC Qingdao Vehicle Base is located at Qingdao. which is the subsidiary of CIMC Group, the largest trailer and container
manufacturer in the world. Covering an area of over 20 hectares and close to Qingdao Port,
with a total investment of 115 million RMB and 62.88 million RMB as registered capital, Qingdao CIMC Special Vehicles Co., Ltd is equipped with the manufacturing capacity of 20000 special vehicles per year
FAQ
1.Are you CIMC factory?
Yes, we are CIMC Brand official factory, 100% subsidiary, with a history of 40 years. and a yearly production of 30000pcs semi trailers.
2. what is your service time?
Yes, we are CIMC Brand official factory, 100% subsidiary, with a history of 40 years. and a yearly production of 30000pcs semi trailers.
2. what is your service time?
7*24H Service Provide Professional Fast Response
3.Do you offer Customize trailers:
CIMC Qingdao have a professional technical team of 40 persons, Professional Design Team Provide Suitable Programs and Customized,Support Local Adaptive Trailer
4.Parts Support:
CIMC Qingdao have spare parts stock for most use one, and we can supply both flatbed trailers and spare parts, such as axles, suspensions, landing legs, tires, wheel rims, landing legs, kingpin, brake system, and lights.
CIMC Qingdao have a professional technical team of 40 persons, Professional Design Team Provide Suitable Programs and Customized,Support Local Adaptive Trailer
4.Parts Support:
CIMC Qingdao have spare parts stock for most use one, and we can supply both flatbed trailers and spare parts, such as axles, suspensions, landing legs, tires, wheel rims, landing legs, kingpin, brake system, and lights.
