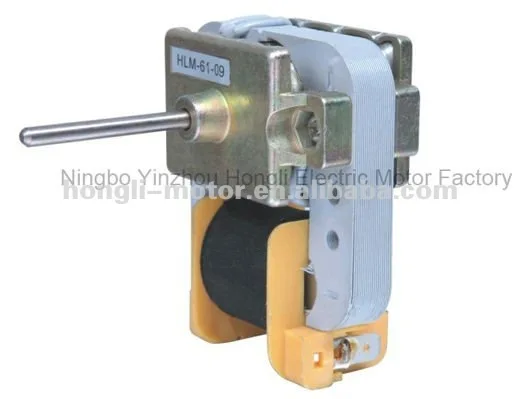

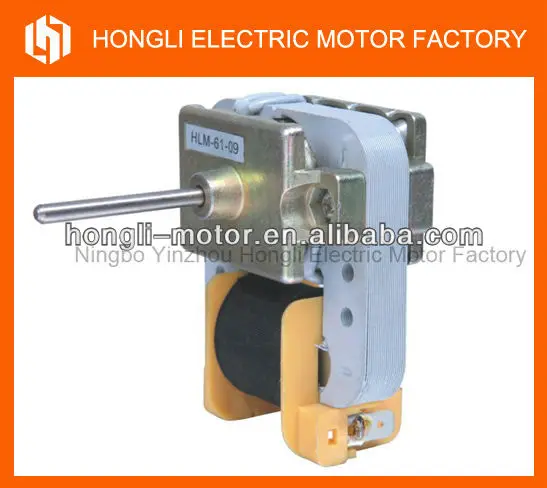

RE 01WT52 Refrigerator fan motor evoporator fan motor for HVAC parts

Product Overview

Description



Model:RE-01WT52



Instruction

Insulation class:B

Environment temperature:-40°C~+60°C



Application:

The goods are mainly applicable for the household electrical appliances such as ice box,freezing cabinet,micro-ware oven,warmer and so on.



Character:

It has high speed,smooth operation,big power,low noise,long life.





Specification:

Model	Voltage	Frequency	Current	Input Power	Speed
HLS61-E	220V	50/60Hz	0.07A	8W	2500~3100RPM
HLS61-E	110V	60Hz	0.14A	8W	2800~3200RPM
