Full automatic bending machine for steel pipes (GM SB 38CNC 2A 1S)

Product Overview

Description

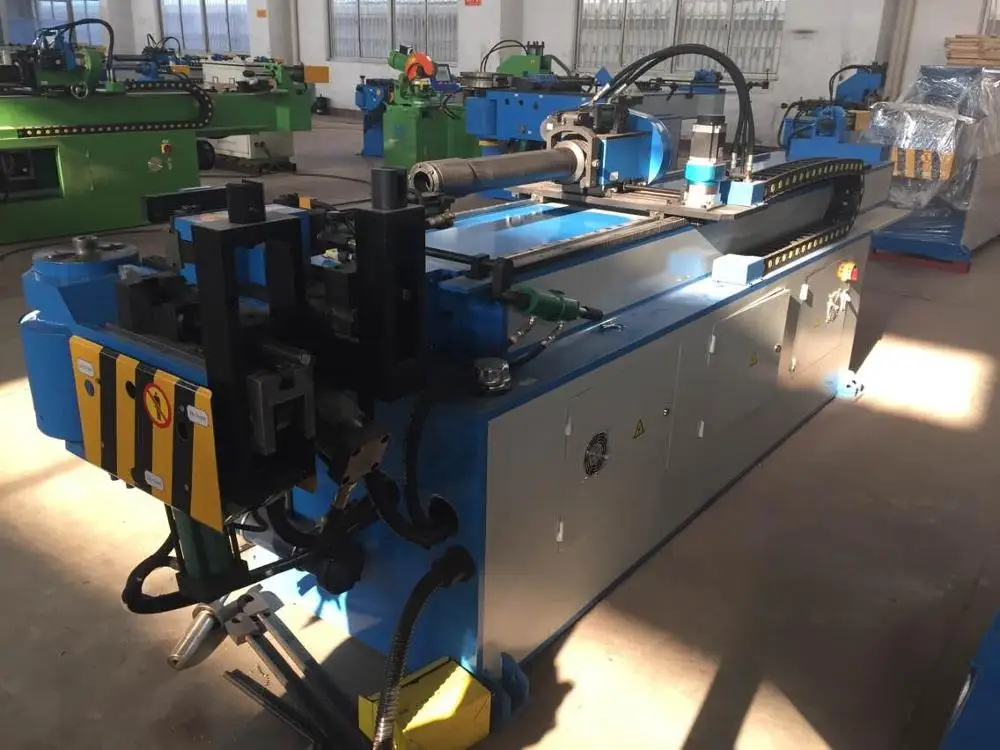

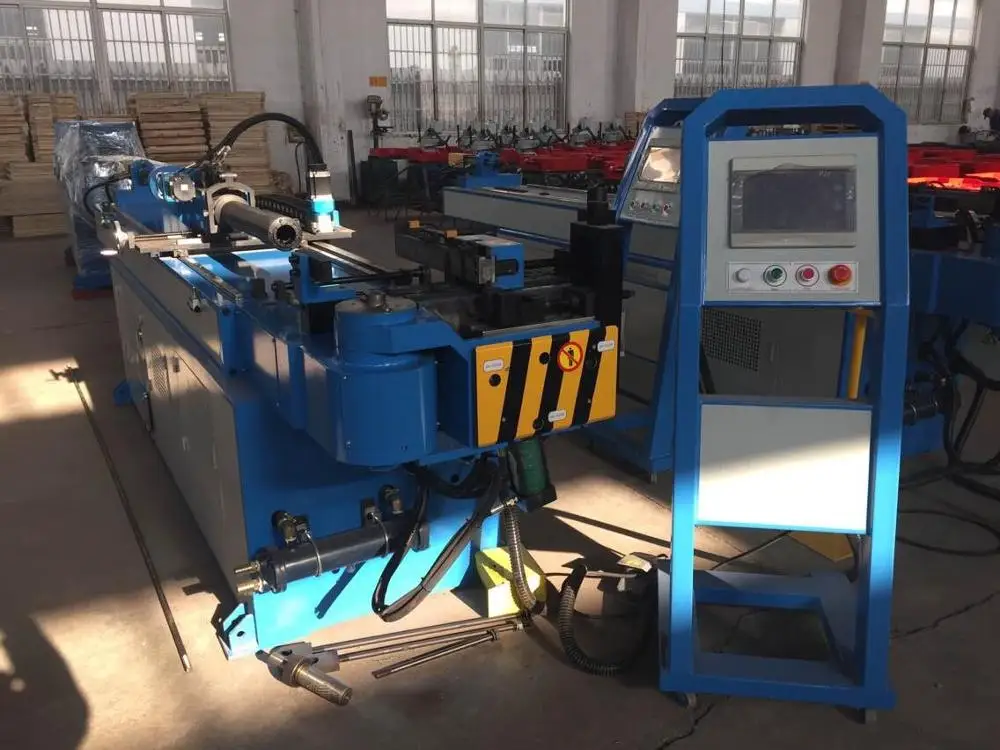

GM-SB-38CNC Full-Auto Numerical Control

Single-Head Bending Machine

Model:SB38×2A×1S

Ø Machine Characteristics

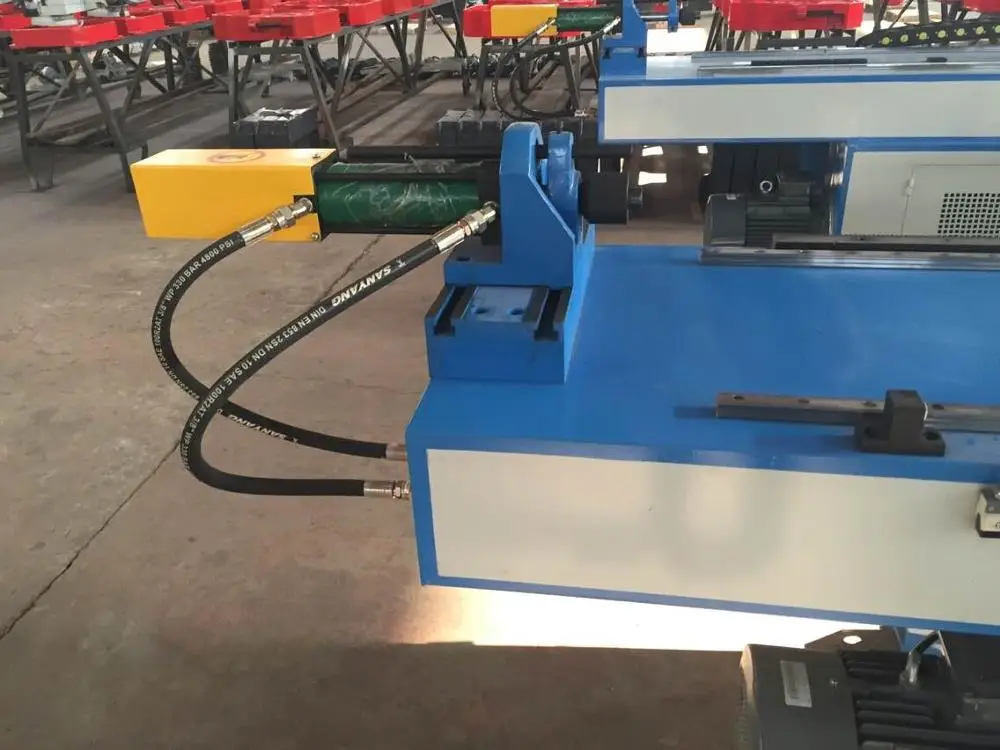

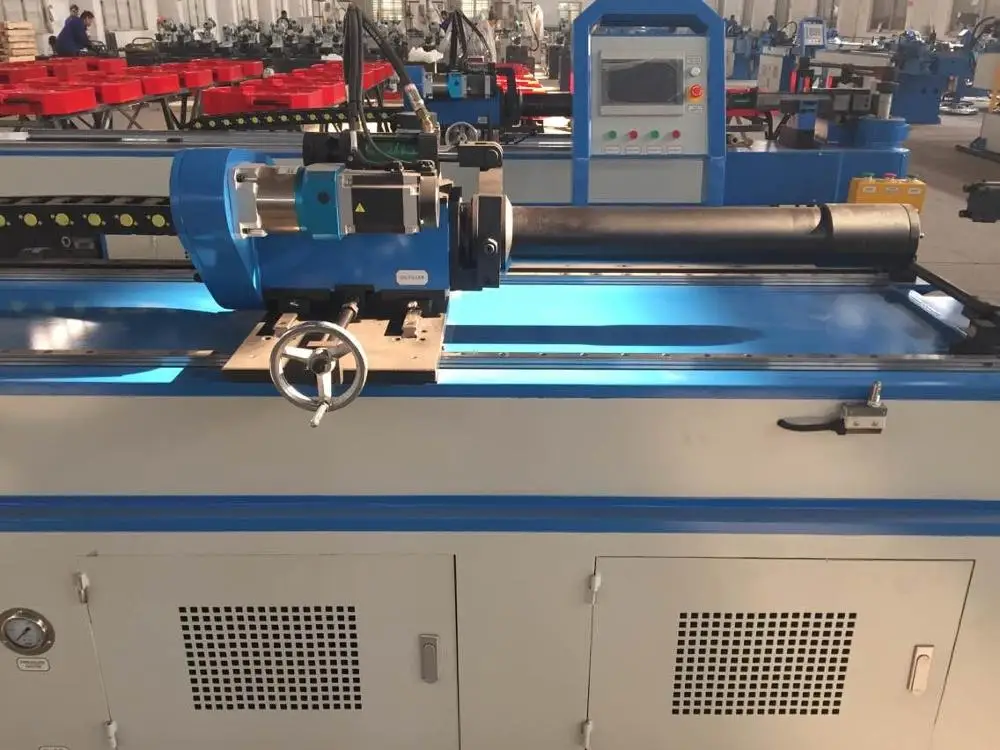

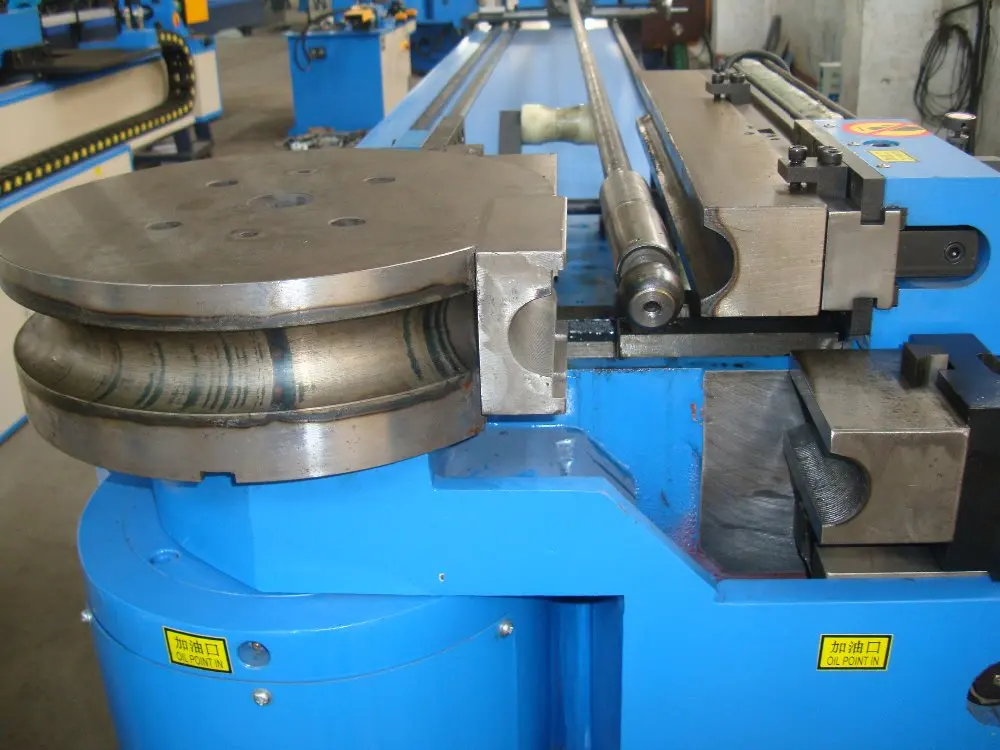

SB-SB-38CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinates of motion under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe rotating(B axis), and pipe feeding(Y axis) are both driven by servomotor. Pipe bending(C axis) is hydraulic.

Ø Main Technical Parameter

Name	Unit	Parameter
Max. Bending Capacity	mm	Ø38*2
Bending Radius Range	mm	20-200
Max. Bending Angle	°	190°
Bending Speed	°/sec	60
Turning Speed	°/sec	200
Feeding Speed	mm/sec	1000
Bending Precision	°	±0.10
Turning Precision	°	±0.10
Feeding Precision	mm	±0.10
Turning Servomotor Power	kW	0.4
Feeding Servomotor Power	kW	0.75
Though Effective Distance	mm	3200
System Motor Power	kW	4
Max. Pressure	Mpa	16
Oil Pump Delivery Volume	L	14
L*W*H (Packaging Dimension)	mm	3500*700*1300
Weight	T	2.0





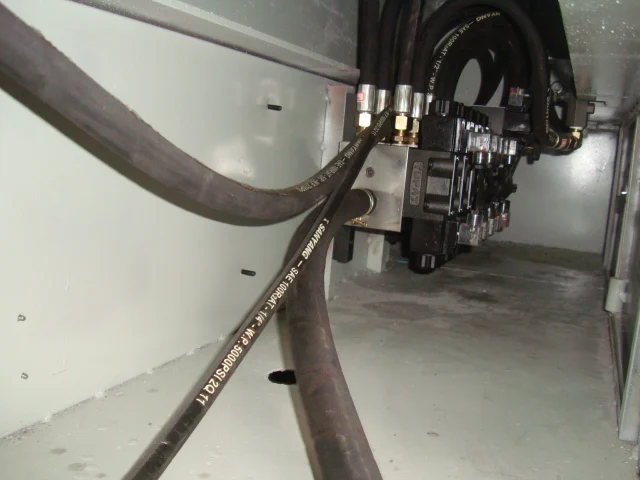

Ø Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Suzhou Jialifan
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Oil way Board	Suzhou Boguan
Cylinder	Shanghai Qifan
Oil tube	Suzhou Kejia
Touch screen	Taiwan Weinview(Imported)

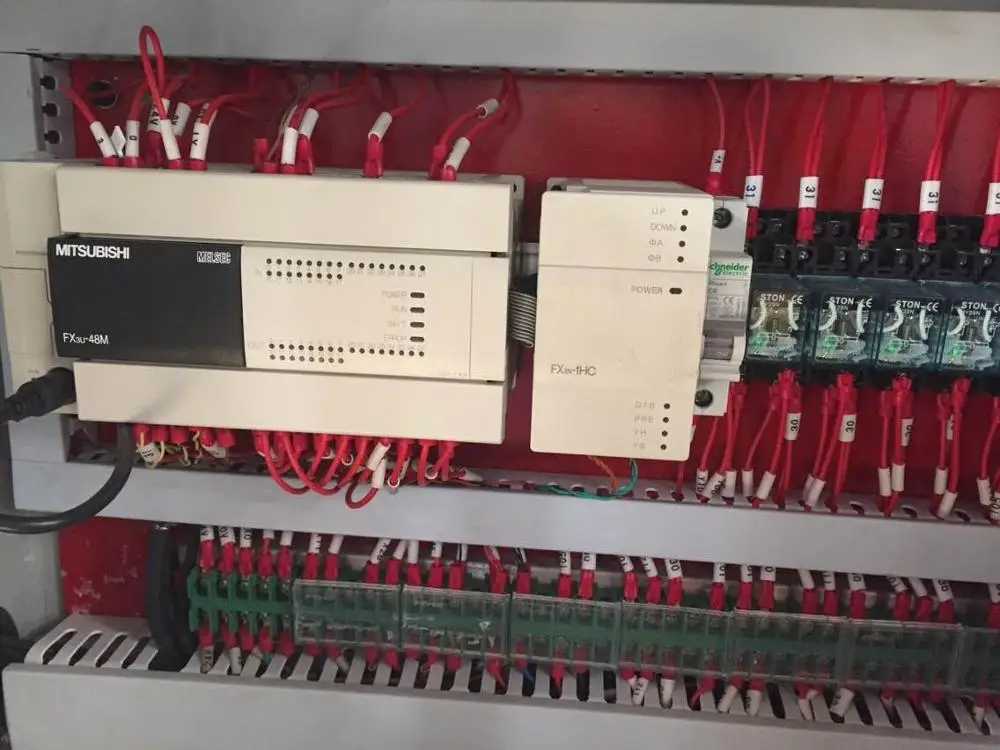

PLC	Japan Mitsubishi(Imported)
Servo Motor	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Wenzhou Changxing
Contactor	German SCHNEIDER(Imported)
Other Electric Parts	German SCHNEIDER,Omron, Taiwan SHILIN(Imported)
