Product Overview

Description


Decorative wall panel





Being currently the lightest quality plate which may substitute the lignin board to make construction and decoration material with higher efficiency and intensity, and simultaneously, free from moisture, mist or steam influences which may cause rots, Magnesium Oxide Board is a kind of non-toxic environment-protecting inorganic building materials.



Features:


1.         Environment-friendly


2.         Light weight


3.         Strong and versatile, high intensity


4.         Thermal and acoustic insulation


5.         Fire and moisture resistance


6.         Decorative effects like curved partitions and ceilings



Specifications:


2440*1220~3000*3~20 (mm)


Remarks: Other specifications can be customized in accordance with customers actual needs.

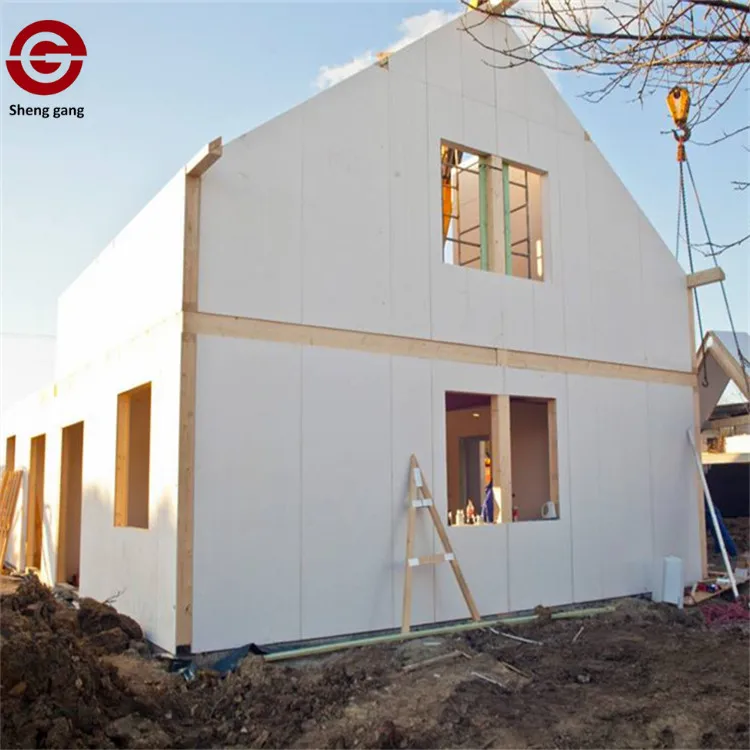

Applications:


1.         Wall linings


2.         Fire protection to internal partition


3.         Timber floor protection


4.         Fire protection ventilation & smoking runway pipes.


5.         As ceilings.


6.         As material for fire-protective construction products, doors, windows, etc.






Product Description

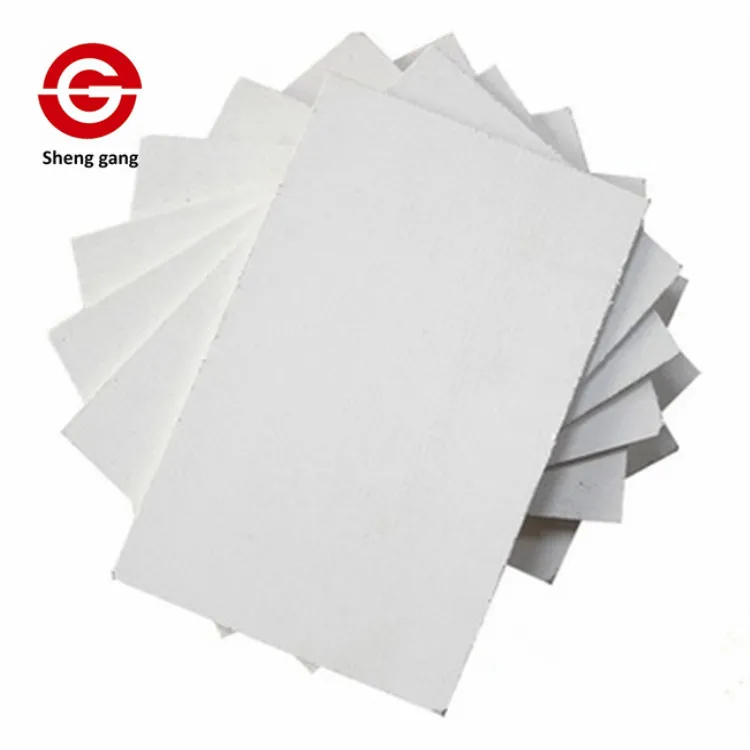

Magnesium Oxide Board (MgO board) is a technologically advanced building material that offers superior performance in every category when compared to traditional wood, gypsum and cement based products. Magnesium Oxide Board is virtually impervious to fire, water, insects; does not feed mold or mildew; is non-toxic, non- flammable and non-combustible; is durable, maintains it’s dimensional stability – even when wet; and has exceptional bonding surface. Magnesium Oxide Board is a mineral based green builder product.





33310





Specification





1) Sizes: 1,220 x 2,440mm   /   900(915)*1800(1830)mm;


2) Thickness: 3 - 20mm


3) Other sizes available accept


4) Edge finished: square


5) with recessed edges for easy finishing


6)Fireproof Grade: Grade A1


7)Density: 0.8-1.2g/cm3


8)Color: White,colors


9)Certificate:ISO9001/ISO14001/CE


10)HS:68080000





Technical Data









































































HeadingUnit UsedInspection value
Densityg/cm0.8-1.2g/cm
Fire RatingsgradeA1
Thermal Resistancem K/W1.14M K/W
Bending Resistance(Dry)≤Mpa18Mpa
Being Resistance(Fully Absorbed Water)≤Mpa22Mpa
Sound InsulationdB≥44dB
Absorption Moisture≤%≤15%
Tensile Strength≤Mpa8-13 Mpa
Impact Resistancekj/mour board could reach 4.5kj/m
Thicknessmm3mm-20mm
Specificationmm1220*2440,1200*2700,1200*3000
Color----white,grey




Mgo board is made of fireproof material





MGO board uses proprietary with Mgo,MgCl2,Perlite,Fiberglass, Chip compounds to deliver a multi-purpose, versatile, non-combustible, and unique board material. This intergral, hard, inert and paperless construction panel has superior characteristics over panels made from gypsum,clay or wood and paper particles. So for an easier, better and faster job, MGO board is best for interior and exterior construction.

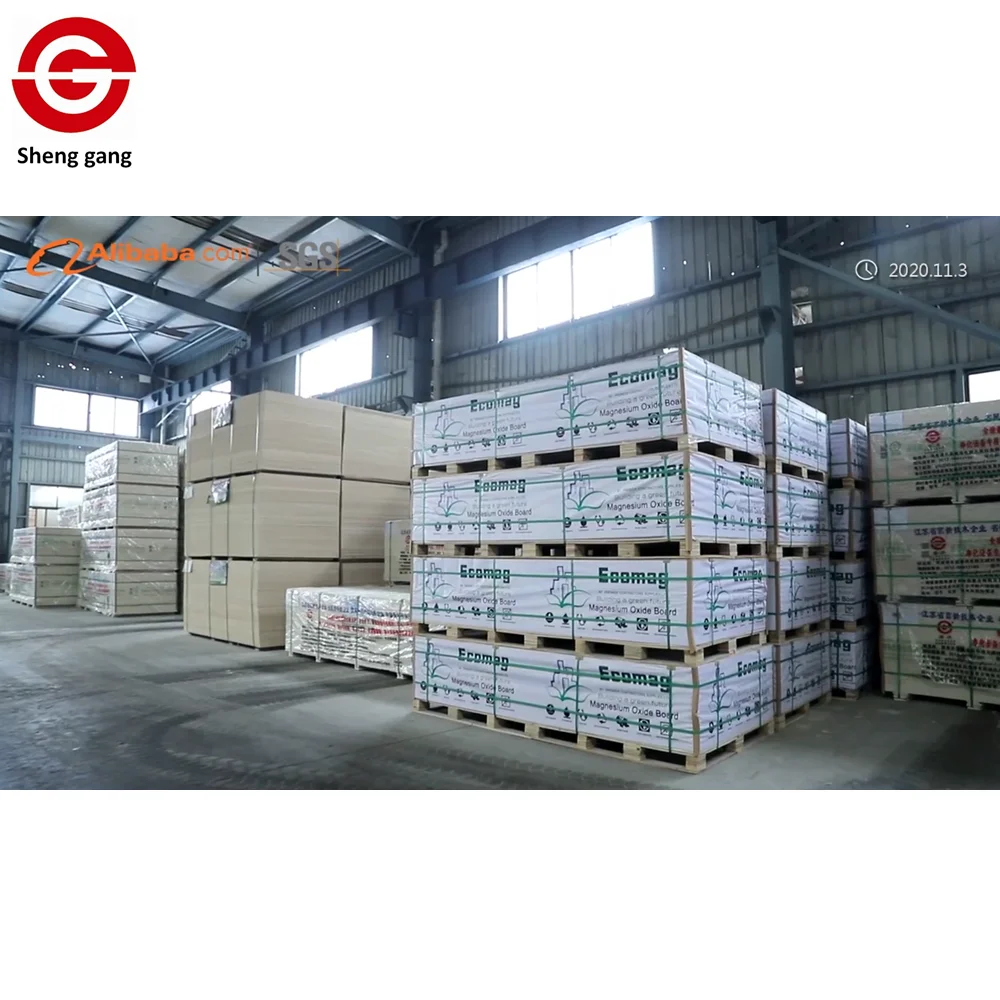

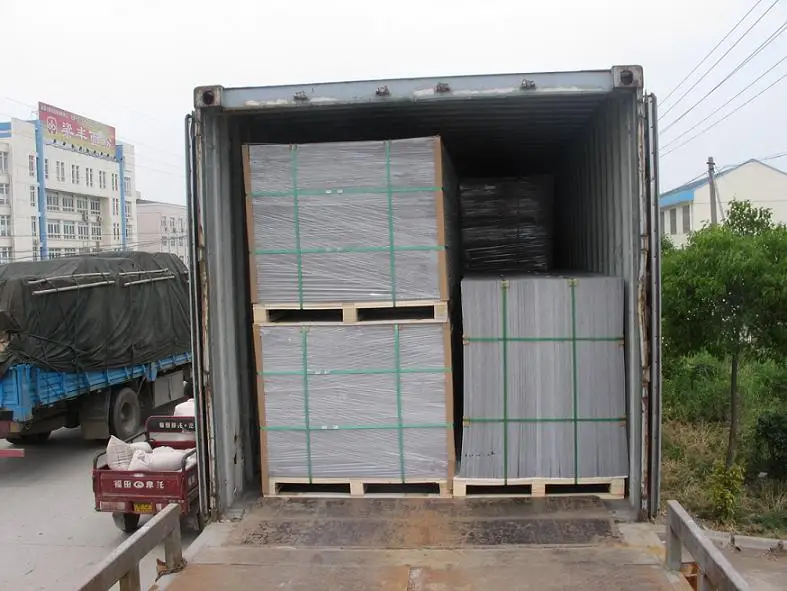

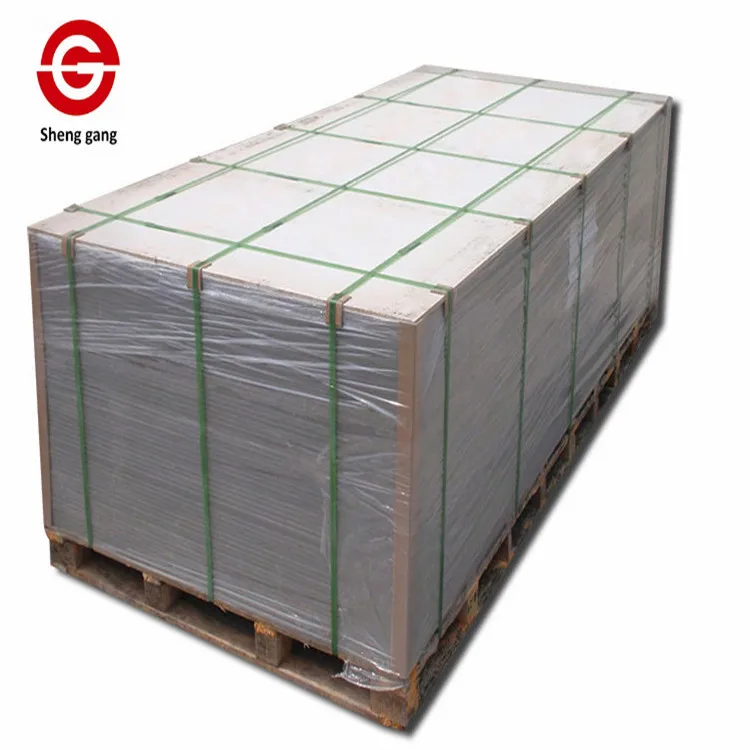

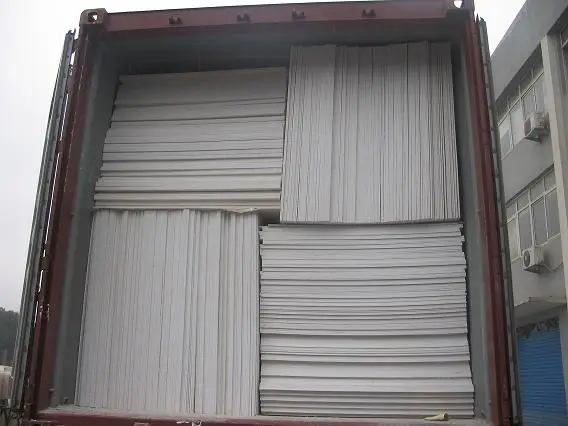

Packaging & Shipping


6pallets-12pallets in one 20 container or in bulk


Transportation:By 20'Container


Loading port:Shanghai or Zhangjiagang port


Origin:Zhangjiagang China (mainland)
Lead Time: 15days after receipt of the deposit or L/C.

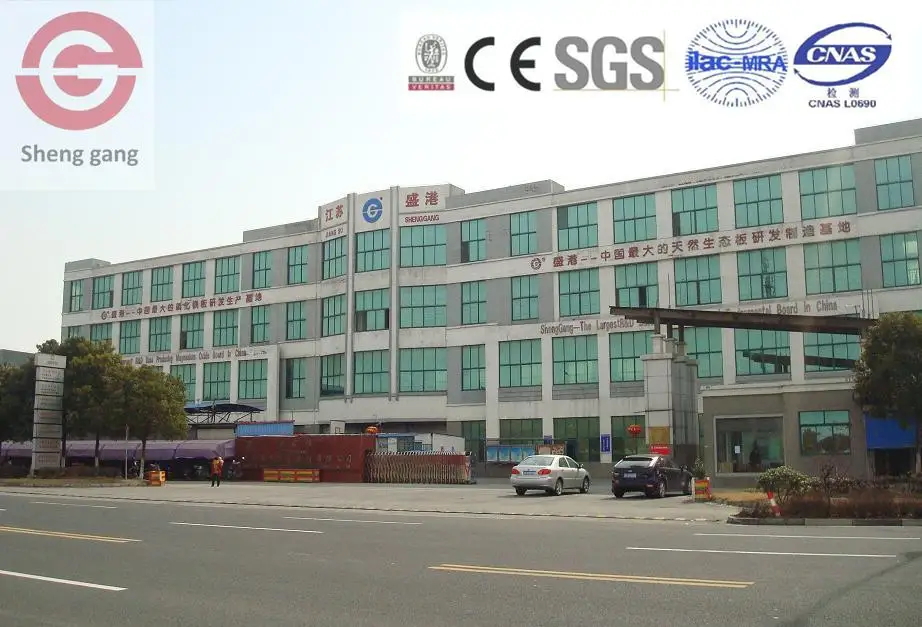

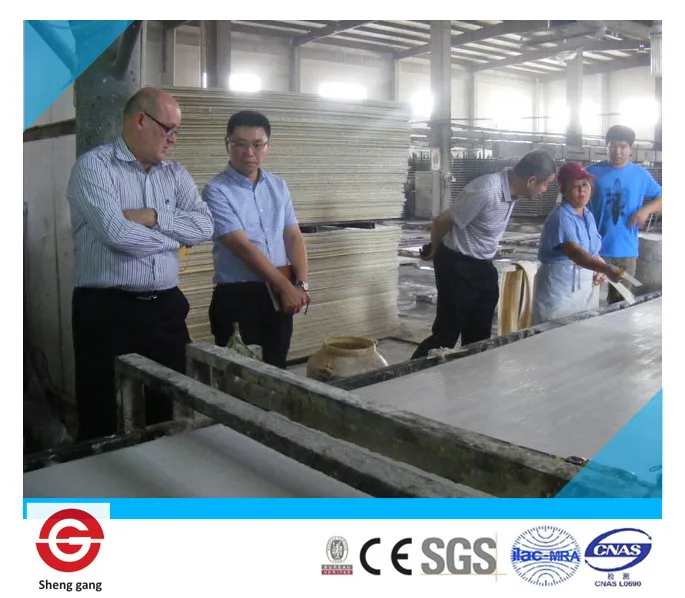

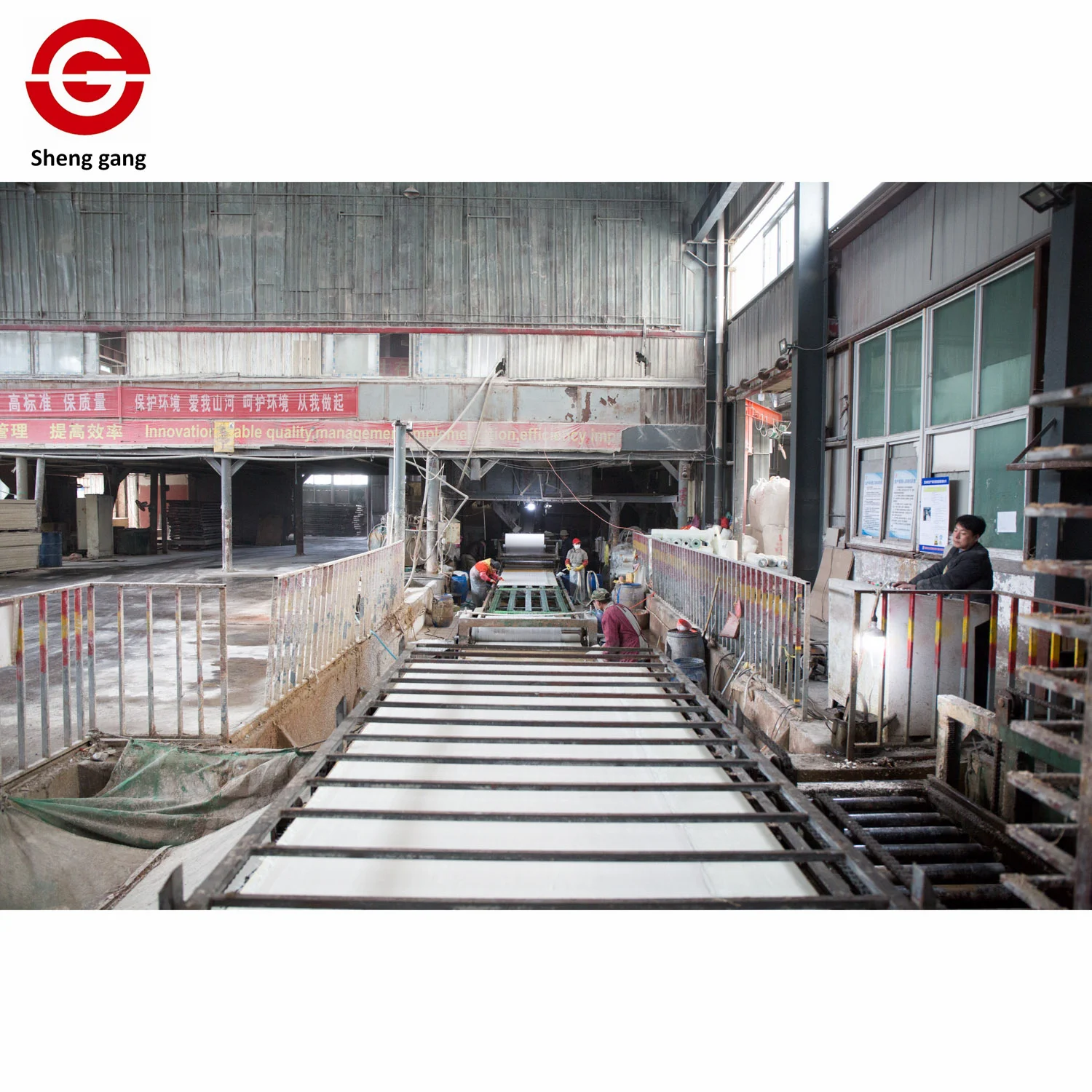

About Us

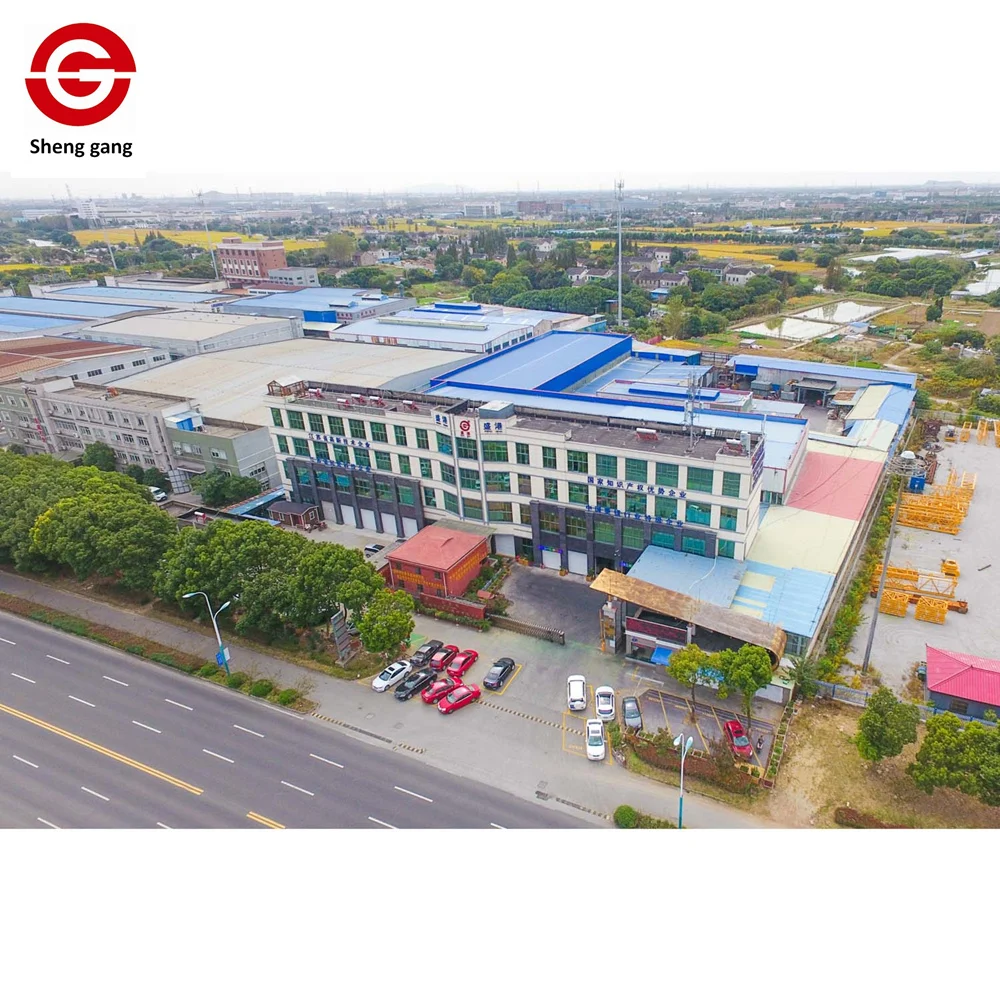

The Group enterprise of Shenggang---Zhangjiagang Shenggang envitonmental fire-proof construction materials Co.,Ltd..Which was independently invested by the Group enterprise of Shenggang in 1990.Through 20 year's struggles ,the group has made it the world biggest research and development base for magnesia board with several branches attached,among with three piants.


We mainly produce environmental fire-proof and the aluminum plastic liner board .Including  magnesium oxide board (MGO board),XPS sandwich board,EPS sandwich board,fire doors eclusiive liner,sound-absorbing ceilings ,flooring as well as various decorative surface materials.
