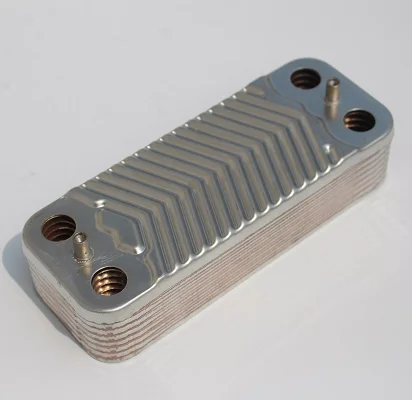

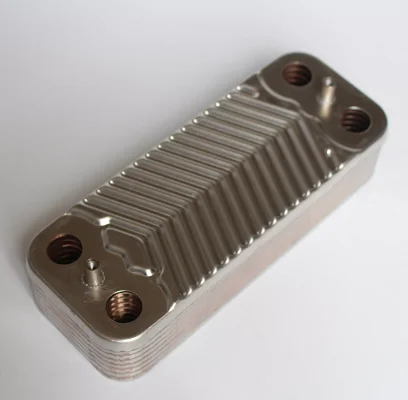

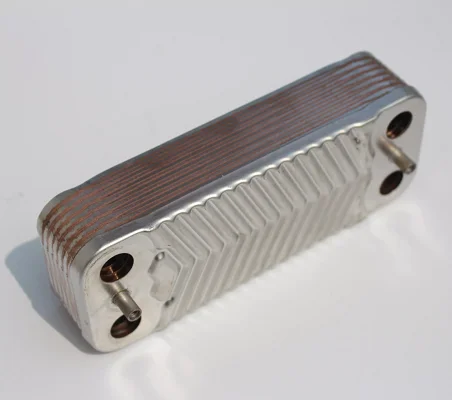

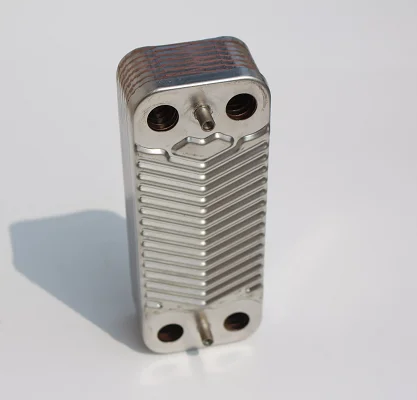

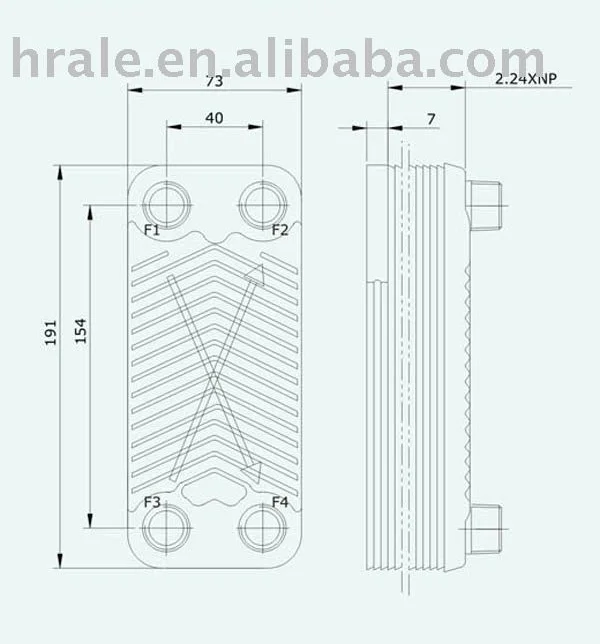

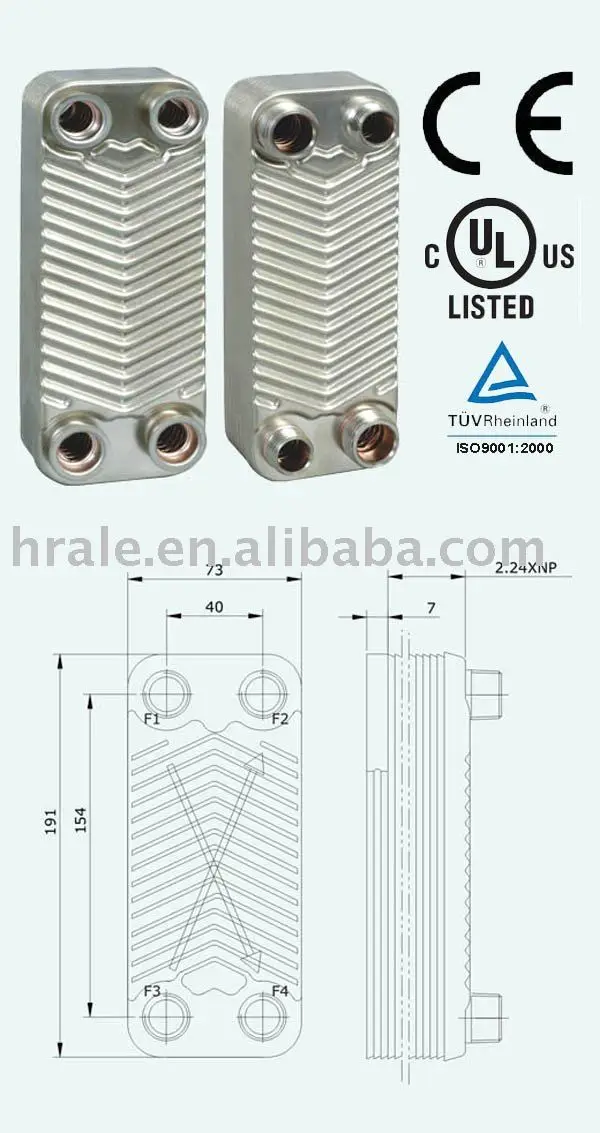

Compact Copper Brazed Heat Exchanger

Product model

B3-12B

Unit heat exchanging area

0.012m2

Maximum flowrate

4m3/h

Plate material

316l or 304 stainless steel

Welding material

99.9% copper

Thickness of plate

0.3mm

Volume per channel

0.018L

maximum number of plate

60

Design pressure

1.0MPa 3.0MPa

Test pressure

2.0MPa 4.5MPa

Design temperature

-195 ~+220

Connection way

the biggest screw thread pipe for water: 3/4", the biggest welded pipe for other fluid: 7/8"

Refrigearion Capacity

1-5KW

Basic Procedures

F1-> F4, F3-> F2

Application scope

Wall-mounted Heater, Heating Water Heater, Low Temperature Testing Equipment, Small-sized Refrigeration Equipment, etc.
Model B is developed by Hrale for special occasions. The diagonal channels enable a full use of the dead angles of the plate heat
exchanger. Even side laid, the exchanger can still work normally.
