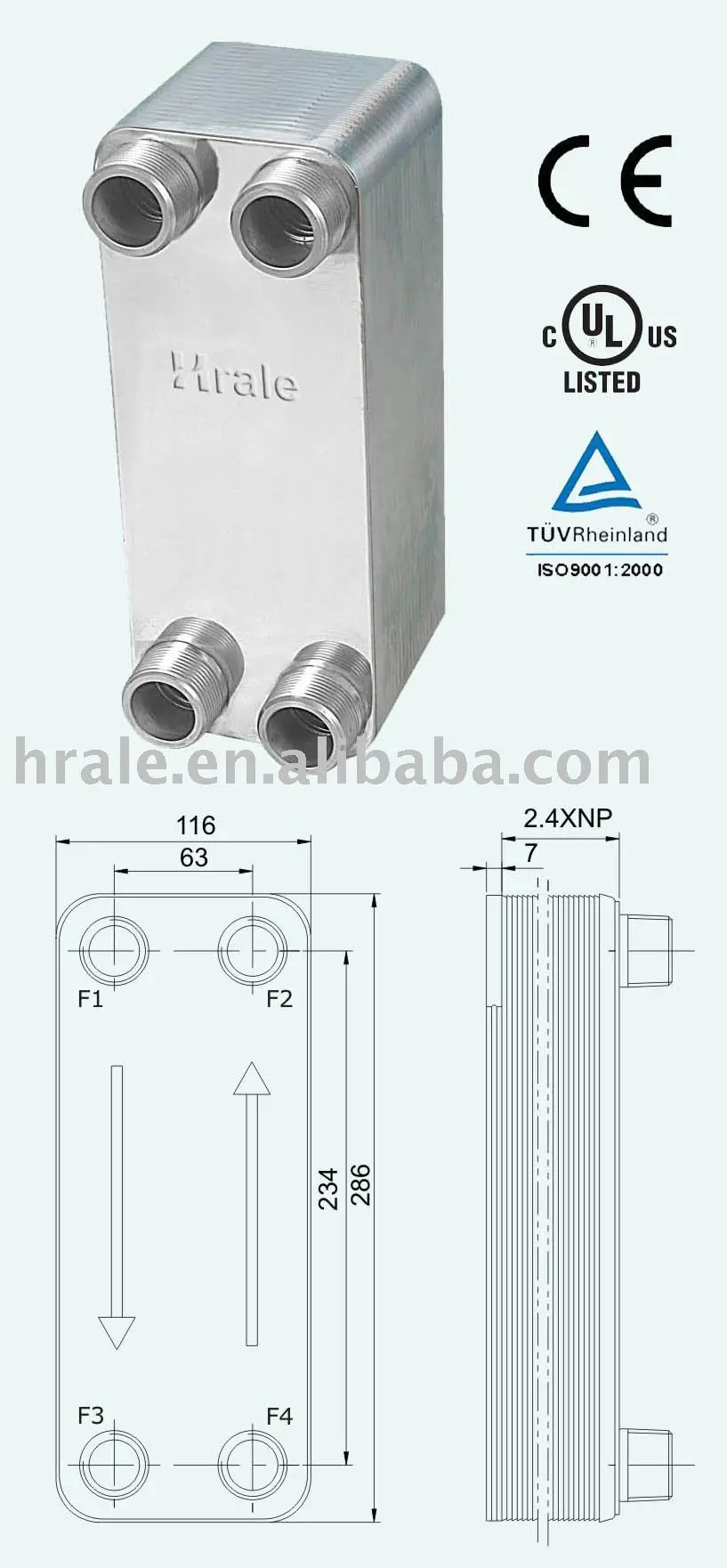

Stainless steel Compact brazed heat exchanger

Product Overview

Description

Technical parameter
Product name	Brazed Plate Heat Exchanger,compact brazed heat exchanger, Soldering plate heat exchanger,CE, UL, TUV,ISO9001:2000
Product model	B3-27A
Unit heat exchanging area	0.027m2
Maximum flowrate	22m3/h
Plate material	316L or 304 stainless steel
Welding material	99.9% coppers
Thickness of plate	0.4mm
Volume per channel	0.05L
Maximum number of plate	120
Design pressure	3.0MPa or 4.5MPa
Test pressure	4.5MPa or 6.0MPa
Design temperature	-195 ~+220
Connections	the biggest screw thread pipe for water: 5/4", the biggest welded pipe for other fluid: 11/8"
Refrigeration  Capacity	5-20KW
Basic Procedures	F1-> F3 F4-> F2
Application scope	Heaing Industry, Heat Pump, Cetral Air-conditioning, Refrigeration Equipment, Industrial water cooler, oil cooler, etc.
