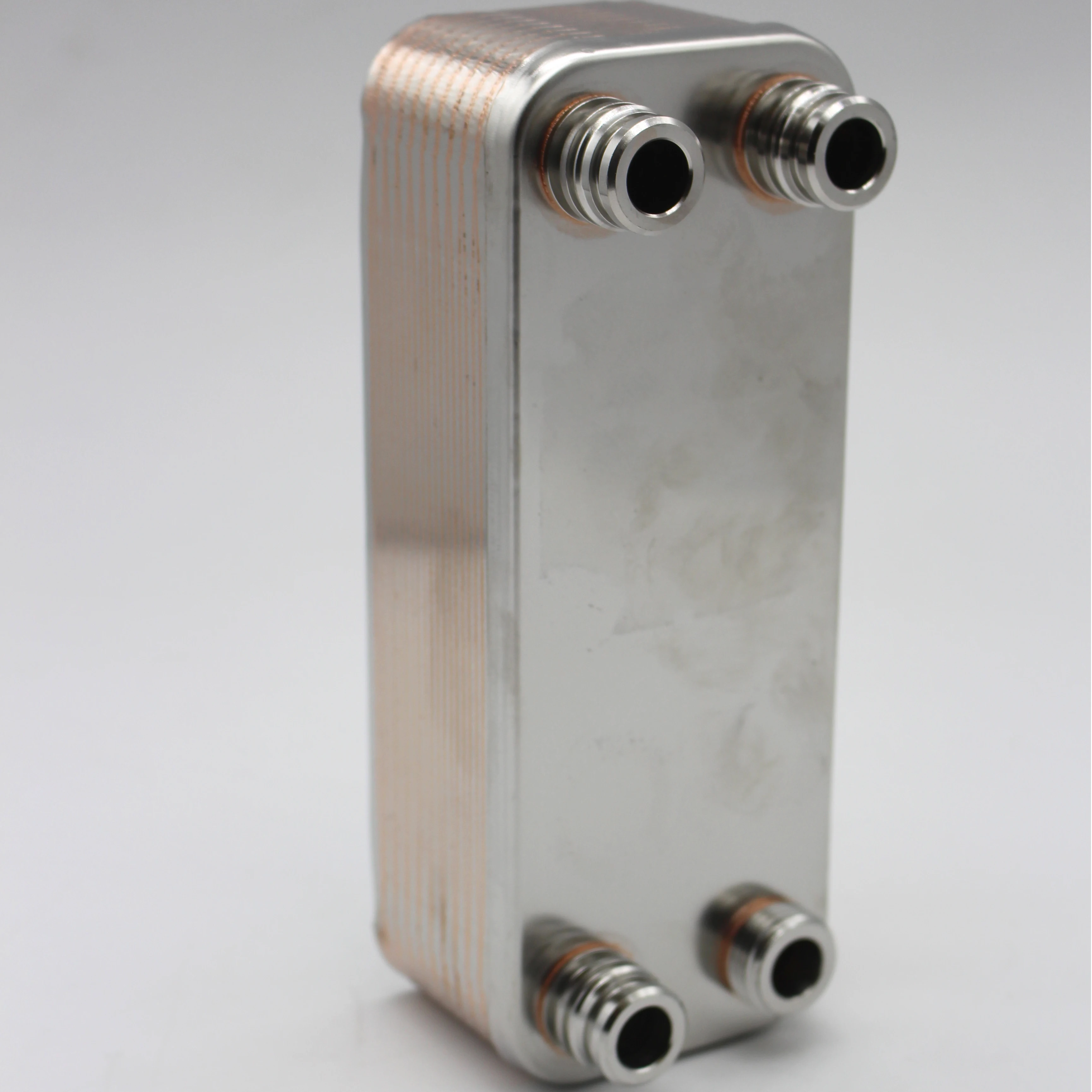

HRALE Hot seller secondary plate heat exchanger for gas boiler parts 24KW
- Category: Refrigeration & Heat Exchange Equipment >>>
- Supplier: Ningbo Hrale Plate Heat Exchanger Co. Ltd.
Share on (229653289):
Product Overview
Description
| Technical parameter | |
| Product name | Condenser, Evaporator, Subcooler |

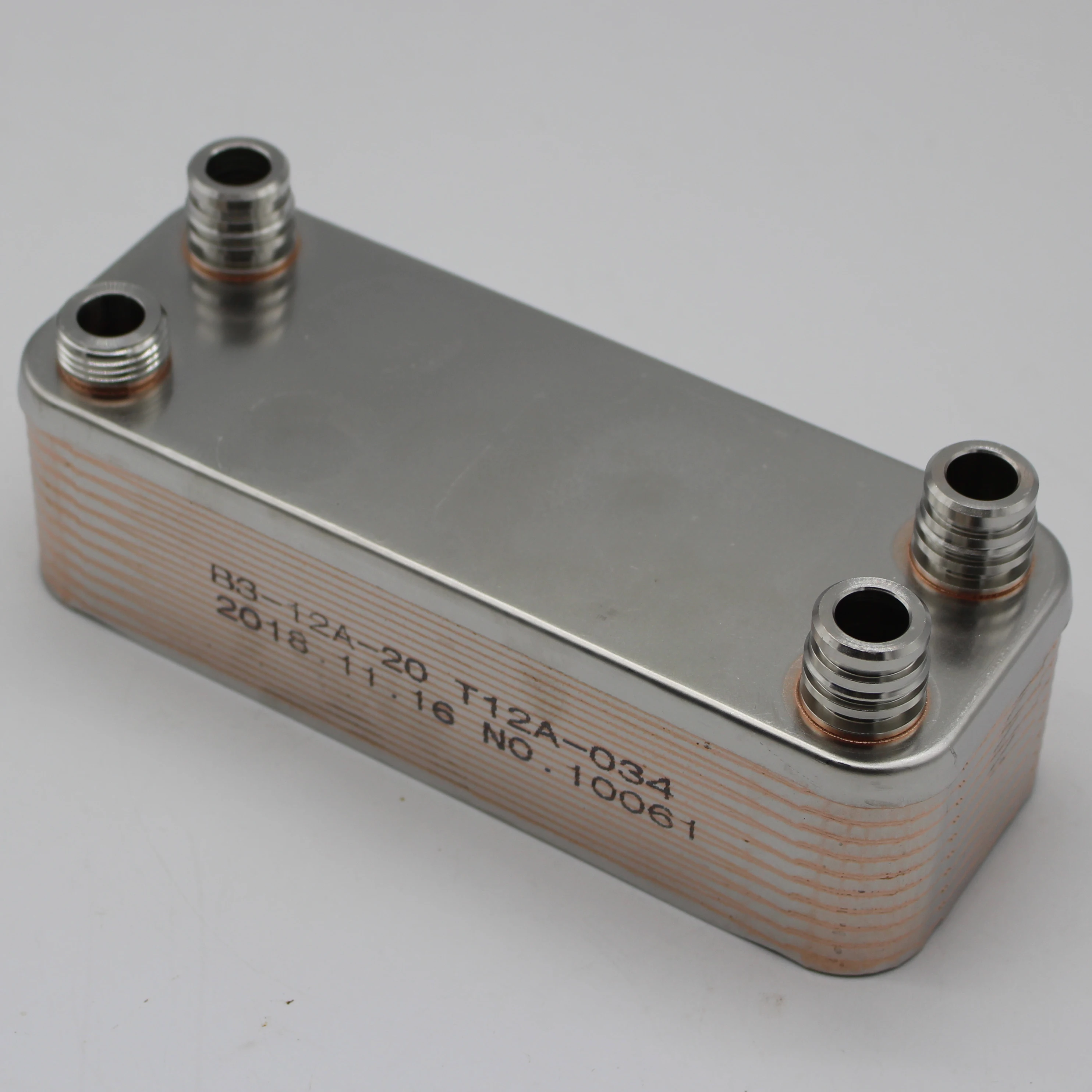

| Product model | B3-12A |
| Unit heat exchanging area | 0.012m2 |
| Maximum flowrate | 4m3/h |
| Plate material | 316L or 304 stainless steel |
| Welding material | 99.9% copper |
| Thickness of plate | 0.3mm |
| Volume per channel | 0.018L |
| maximum number of plate | 60 |
| Design pressure | 1.0MPa 3.0MPa |
| Test pressure | 2.0MPa 4.5MPa |
| Design temperature | -195 ~+220 |
| Connections | the biggest screw thread pipe for water: 3/4", the biggest welded pipe for liquid: 7/8" |
| Refrigeration Capacity | 1-5KW |
| Basic flow disposition | F1-> F3 F4-> F2 |
| Application scope | The wall heater, heats the water heater, the cold temperature testequipment, the small refrigeration equipment and so on |
