Product Description
Usage :
This unit of fabric inspection machine is specially designed for inspecting and rolling up all kinds of knitted, printed, cotton, tricot, and woven fabrics etc.
Characteristics:
1.Photoeclectric hydraulic edge-alignment system amde in Taiwen is adopted in this Fabric Inspection Machine . Power 1/2 HP
2.Fabric tension is adjustalbe via inverters, no shrink of fabric width.

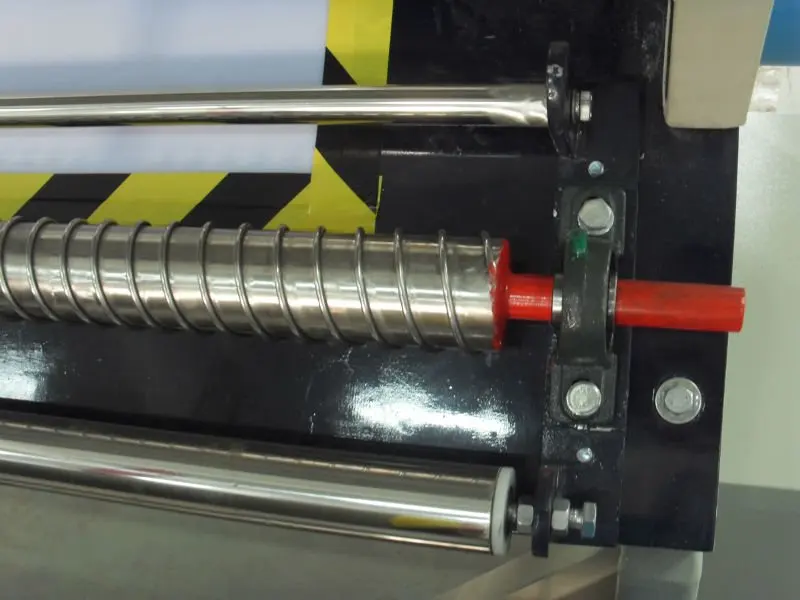

3.Equipped with an spiral expanding roller to eliminate curled edge. Expanding power 1/2 hp
4.Speed of main motor is managed by two inverters. Power 1/2 HP

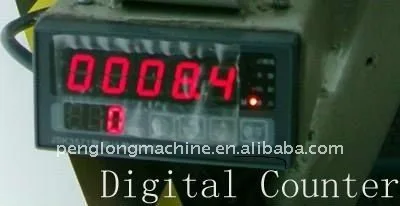

5.Digital counter could make accurate measurement of length in yards or meters which can be interchanged

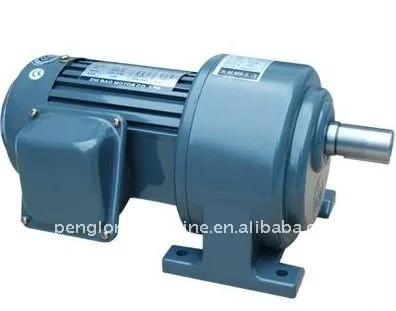

6.Winding roller and feeding roller are driven by gear motor. Power 1 HPX 2sets
7.Imported special foamed winding roller dcould roll up warp and weft knitted plush and short floss without sliding movement and untidy edge. Fabric rolls are nerther too tight nor too loose.
8. It is CE approved.

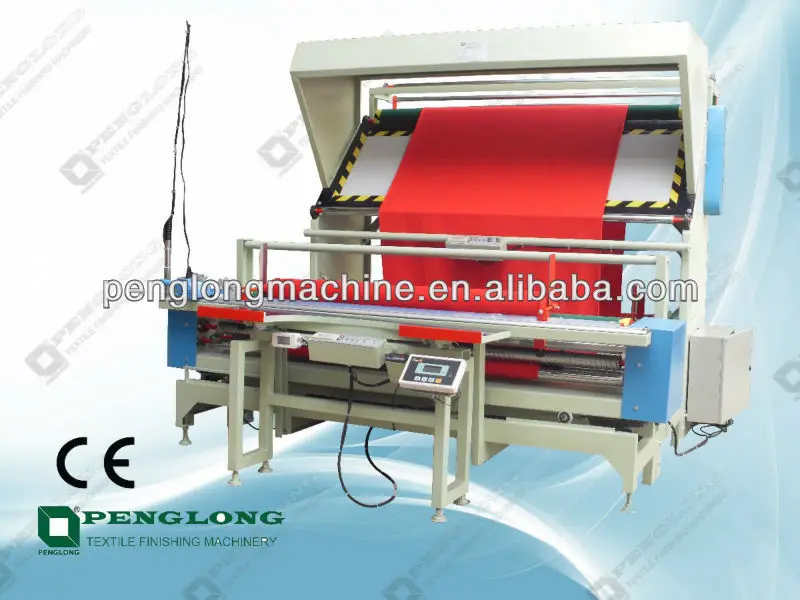

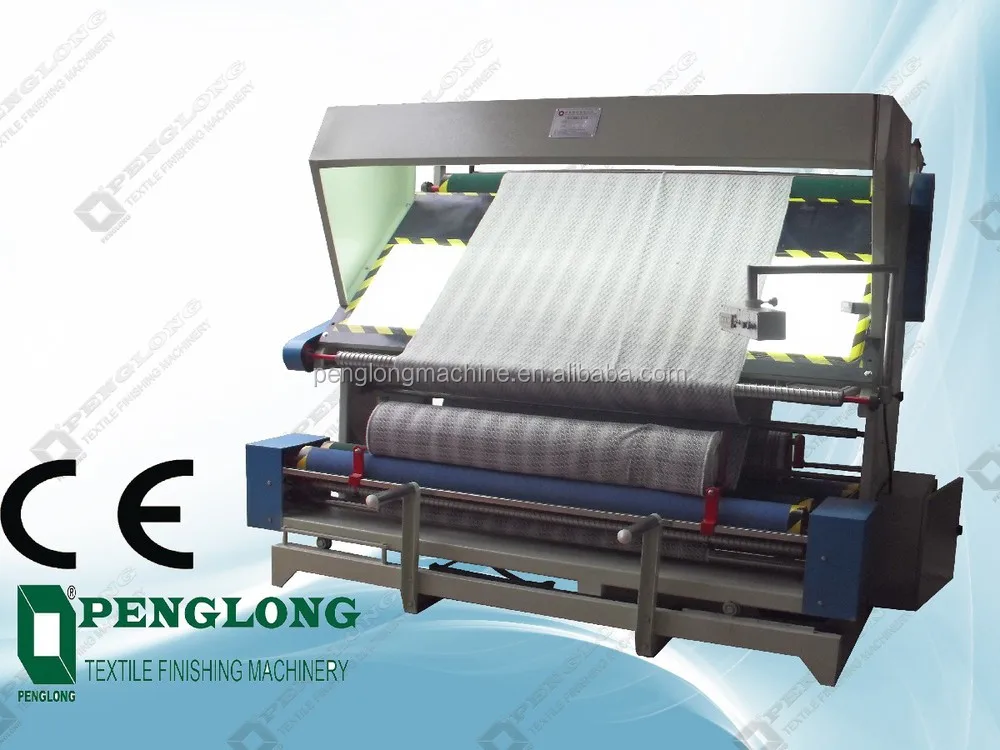

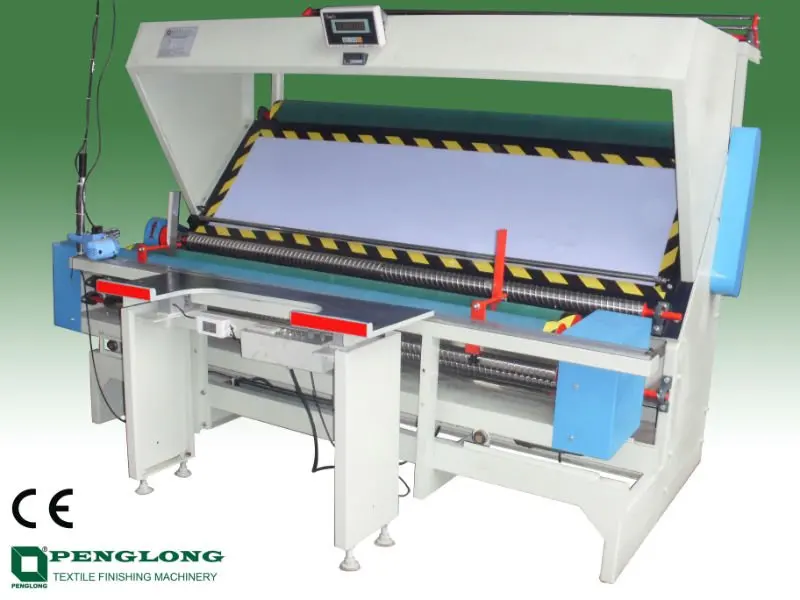

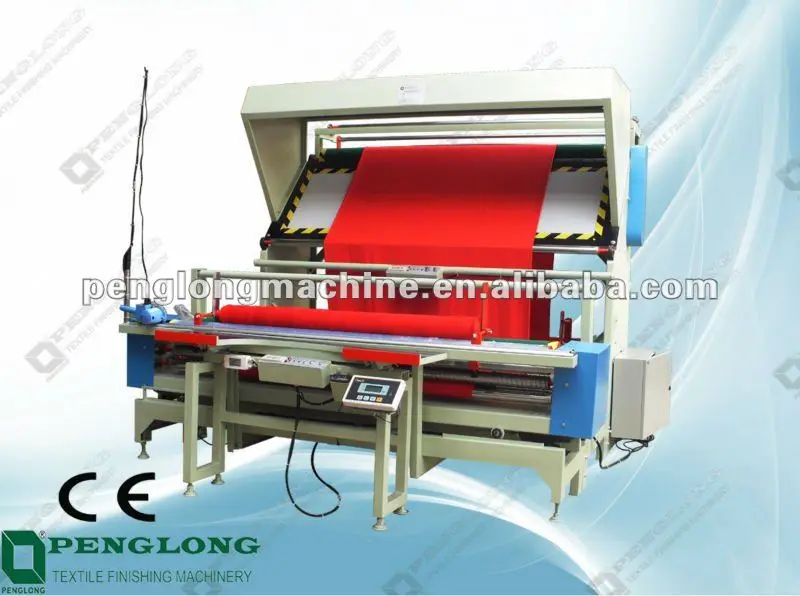

PL-B Fabric Inspection Machine for all kinds of fabrics
Technical Parameters:
Fabric Width
1800mm~3600mm
Max. Diameter of Fabric Rolls
600mm
Highest Speed
80m/min
Power of Main Motor
1HP×2
Accuracy of Alignment
±3mm
Dimensions
2200mm(L)*2300mm(W)*1900mm(H) (1800mm)
Packaging & Shipping
Three ways of package for choice:
1. Bubble Wrapping--For Free
2. Wooden Pallet--Additional Charge of USD250
3. Wooden Case--Additional Charge of USD500
Our Services
Engineers are available to service machinery overseas.
Company Information
Changshu Penglong Machinery CO., Ltd has been founded in 2000.We are specially making and designing any kinds of fabric finishing machine according to customers' different requirements.
Our machines have been exported to Australia,Agrentina,South Africa,Ukrain,Uruguay,Portland,Brazil,El Salvador,Vietnam,Thanland,France,Bangladesh,Ethiopia,Iran,Iraq,Saudi Arabia,Sri Lanka and so on.
We are never stopping developing and improving our products and service before or after these years.Hope our rich experience in fabric finishing machine and our sincerity would offer your company help and satisfied you.
PS: Main Conventional Products: 1.Fabric inpection machine series : We have many different types.Some will aim to all kinds of woven fabric,knitted fabric or both.Some will aim to big fabric rolls,small rolls or both.Some aim to different fabric feeding,output or both.Also you can add some other special requirements.As you like.Model:PL-B,PL-B1,PL-B2,PL-A1,PL-A2,PL-N,PL-D,PL-D2,PL-F130,PL-G150,PL-G606,PL-C.
2.Fabric Plaiting Machine Series: We have several types of this machine which are specially designed.Model :PL-E1,PL-E2,PL-E3,PL-E4.PL-800
3.Fabric Opening Machine Series: These machines are used to slit/open tubualr fabrics.Such as roper opener ,PL-C Fabric slitting and inspection machine,Vertical High Speed Tubular Slitting Machine
