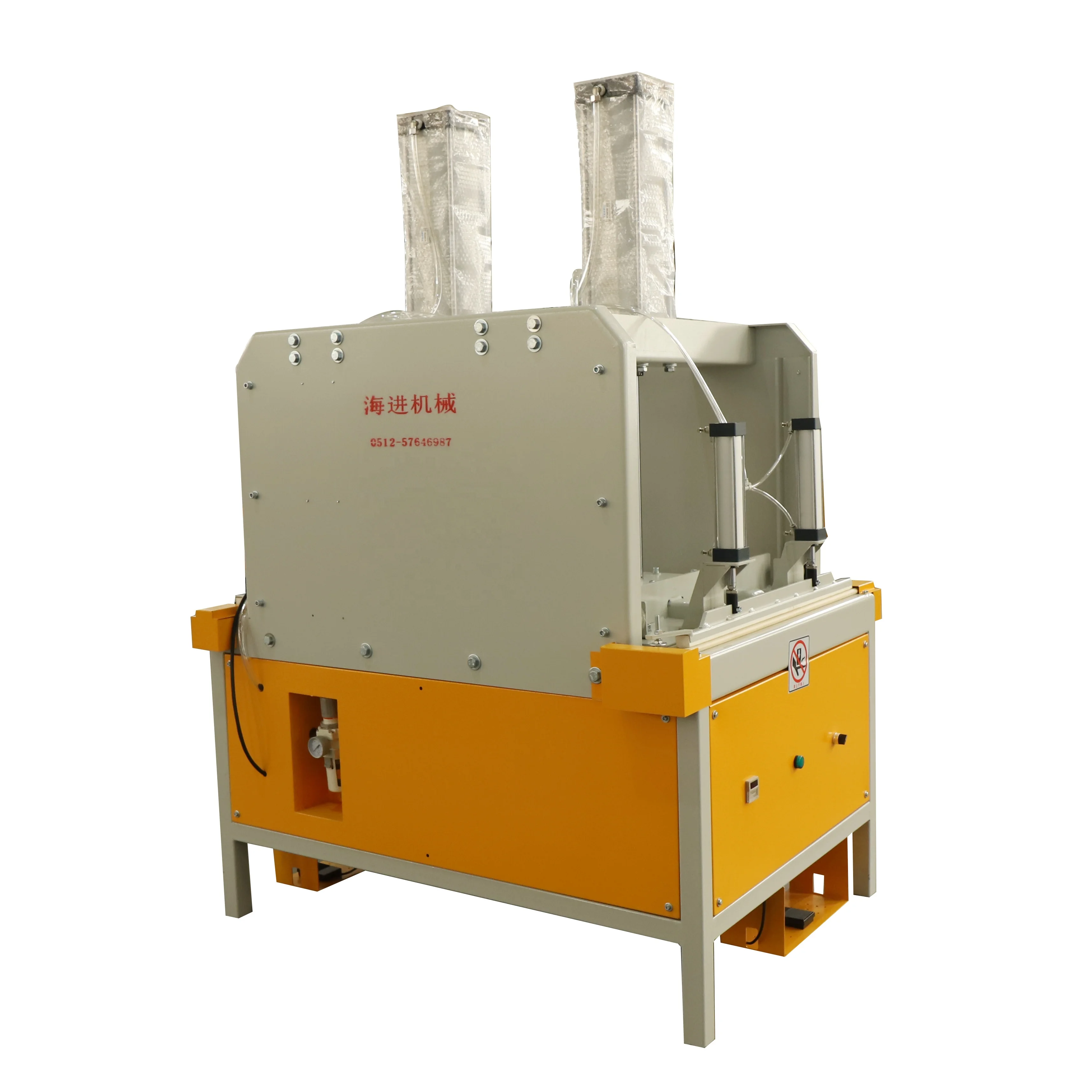

HJFK 100 Pillow compressing Machine

Product Overview

Description

The Pillow pressing Machine:



It is used to compress and pack feather & down bedding, pillows, cushions and other fluffy articles. It can reduce volume, cut storage or shipping expenses, and are also moistureproof and insectproof. It is driven by compressed air, uses plastic laminated film or heatsealable thickened plastic film bag to pack articles under pressure. Made by stainless steel, with only one seal, simple construction and can move freely.





Technical Parameter:



Packaging capacity	DISCRIPTION	OVERALL SIZE
2—3 times/min	power:220V 0.4KW The pressure of gas source :0.5—0.8Mpa  Packaging capacity : 2—3 times/min Seal Size :540× 10mm Compression plate size :540× 900mm Net Weight:150KG	1400*1000*1650mm

• The suitable bag material can be PP, PO & PE, PA, OPP etc


•  Higher automatic level that all control system by electric control component.


•  The sealing time and cooling time can be adjusted by the bag material thickness, normally it is 2 to 3 seconds


•  Each sealing side can be handled by only one operato
