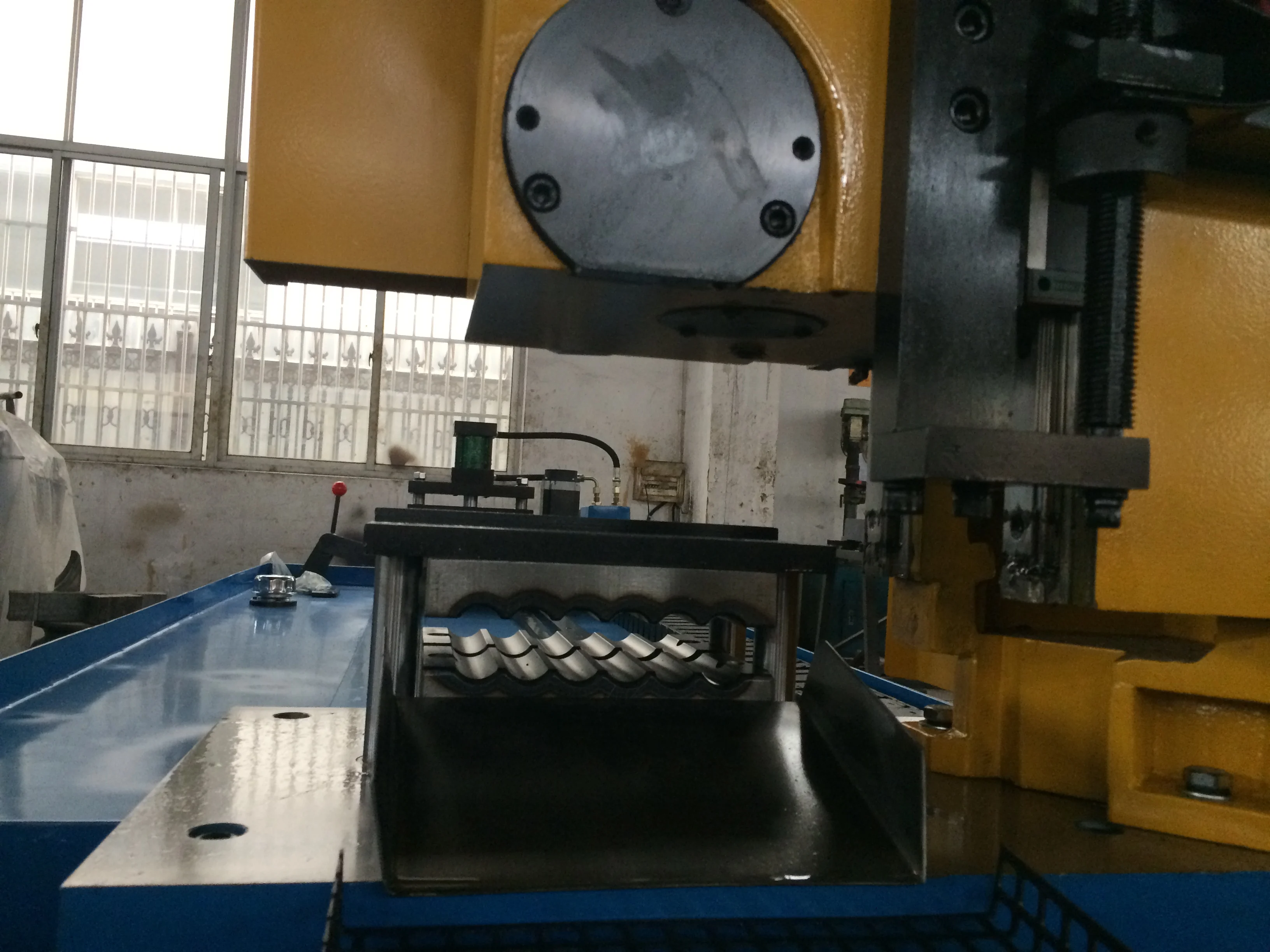

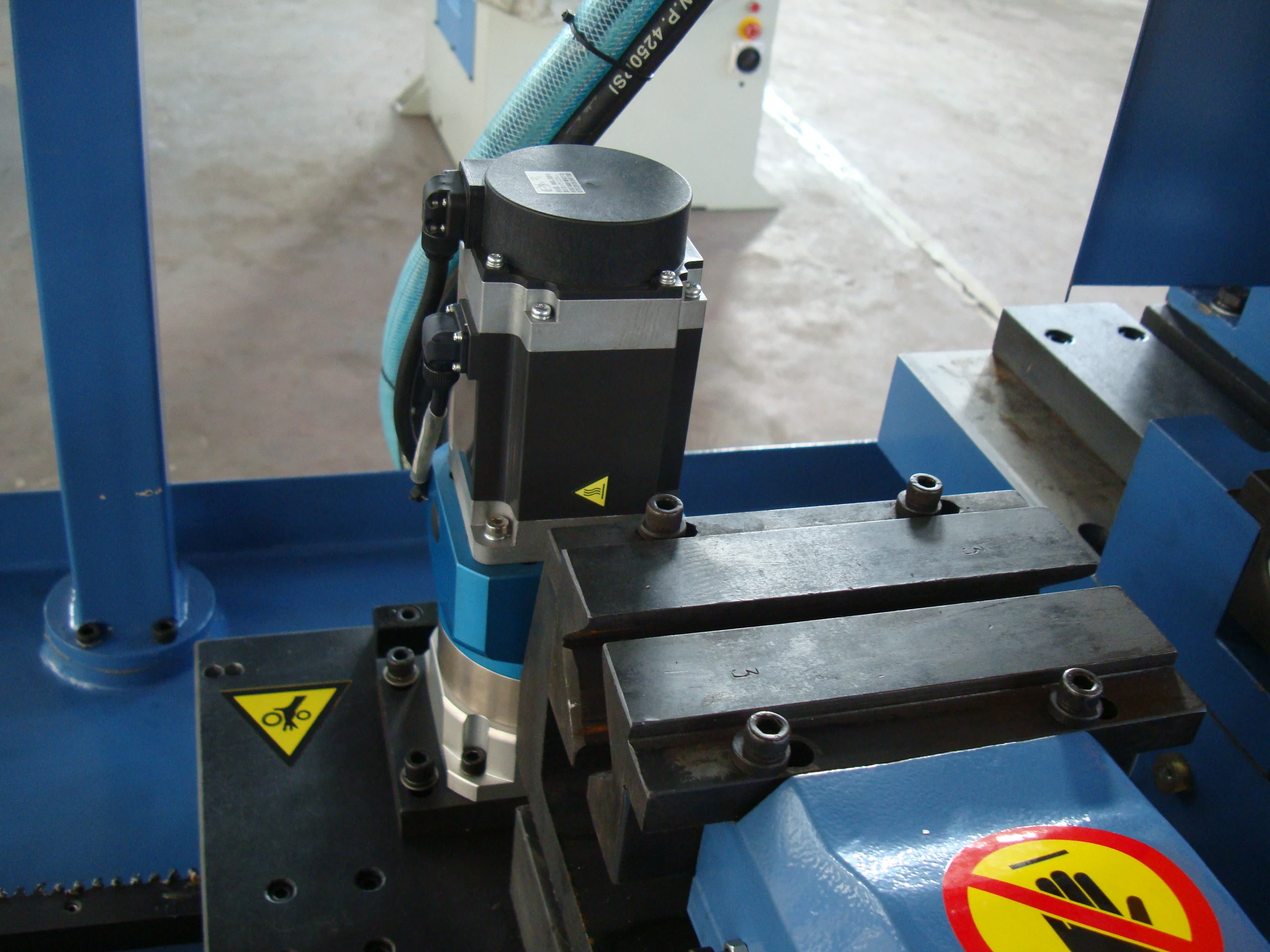

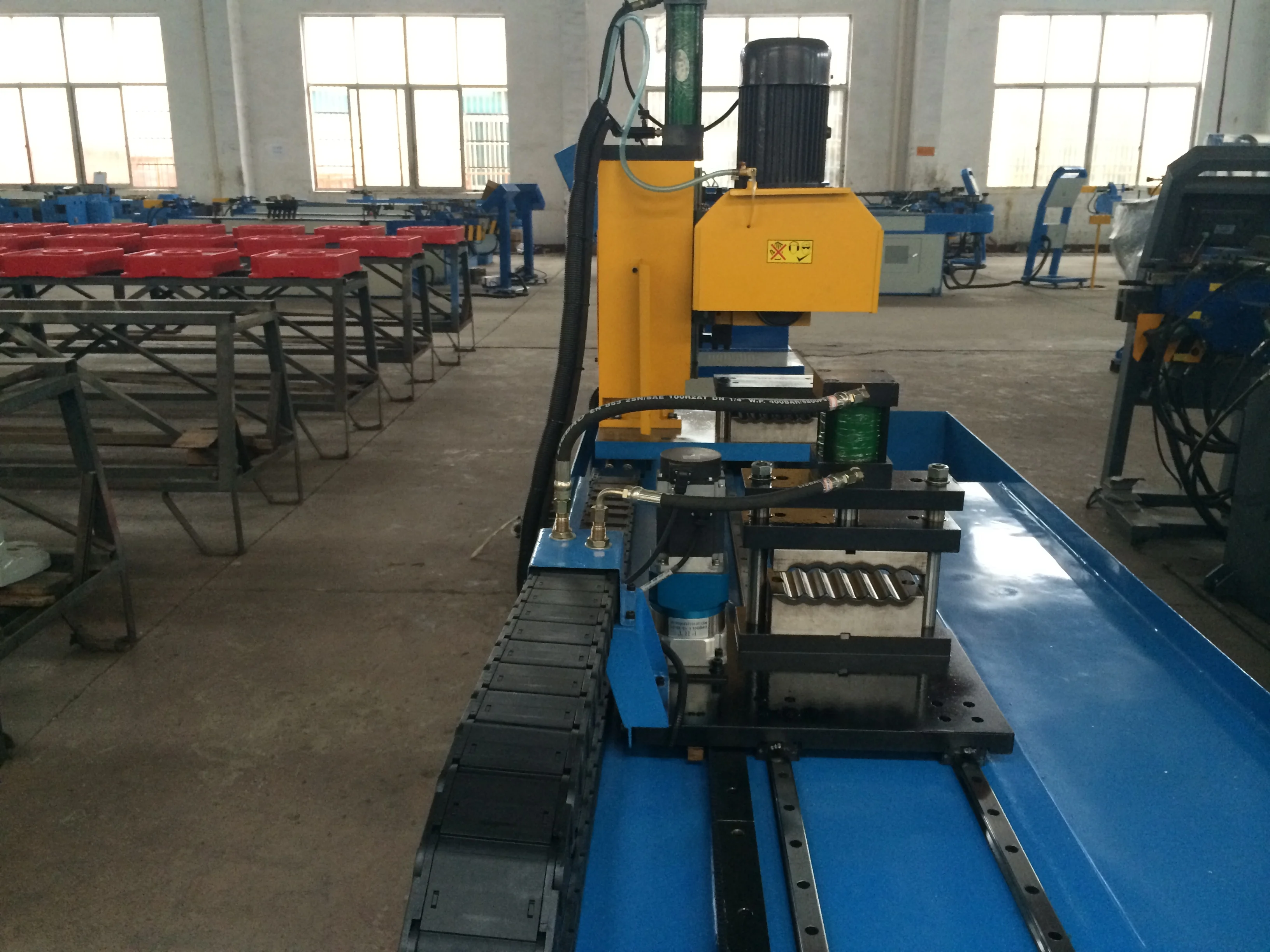

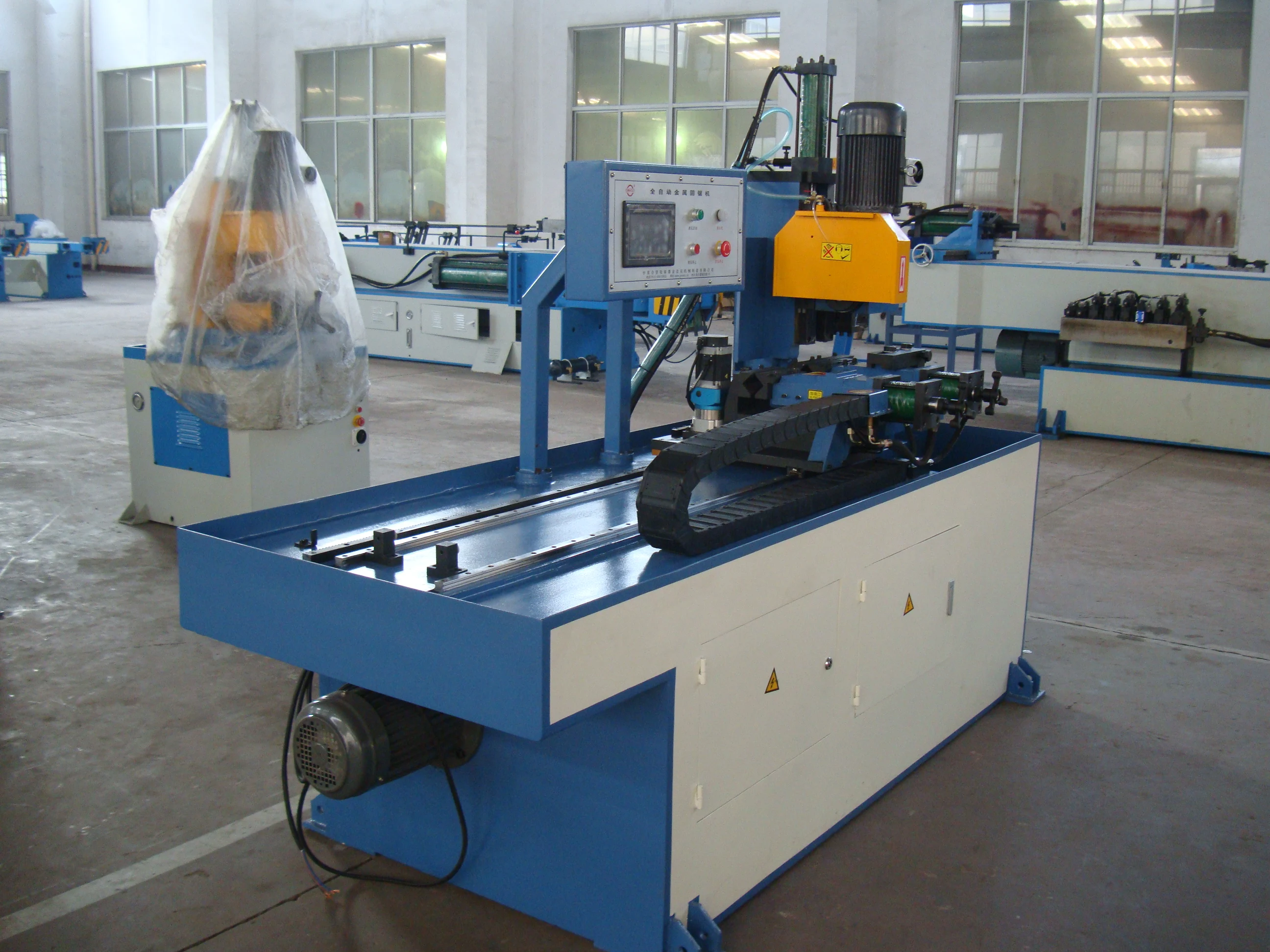

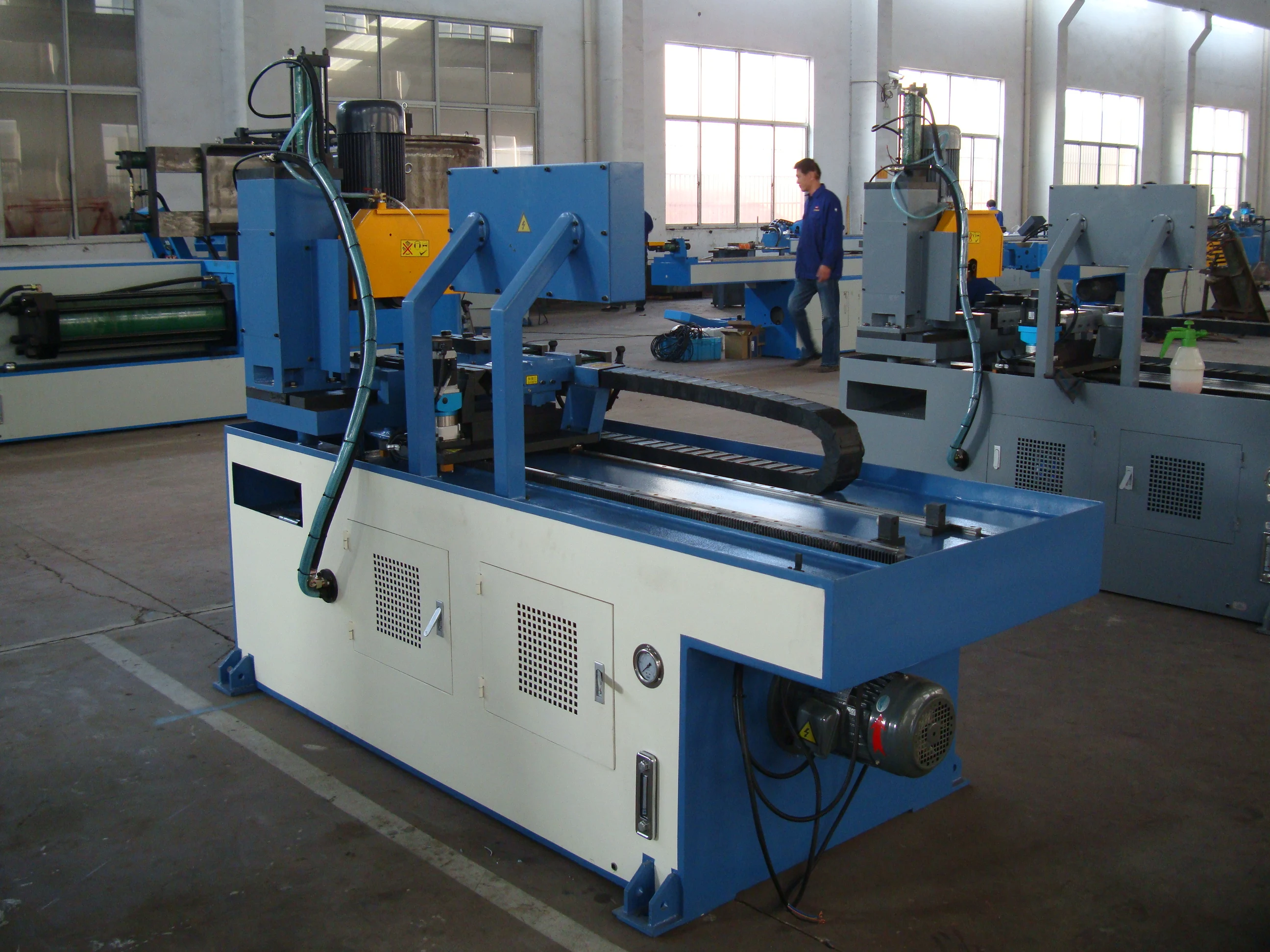

GM-AD-350CNC Metal Disk Saw Machine Full-Auto Feeding Type
GM-AD-350CNC metal disk saw machine full-auto feeding type c is a kind of automatic feeding
materials , automatic cutting machine ,cutting various cross section shapes to aluminium materials,
copper materials, in particular the copper-aluminium material is ideal cutting equipment.
1. Construction Machine
Bed used welding pieces, imports of hydraulic systems and electric control three of fabric to complete. The electric parts and hydraulic are imported.
2. Design Principle
In the process of cutting, the other work piece clamping, feed sawing, cut back knife, tongs loosened by the electrical, hydraulic control order.
3. Major Performance
The machine is operated light, noise and no dust pollution, cutting good internal and external incisions, no thorns, production efficiency, and the advantages of scarfed various angles.
4. Main Parameters
NAME
UNIT
GM-AD 350CNC
Cutting Capacity
OD
Solid bar
60
OD
Tube
110
mm
Square
110×100
mm
rectangle
160×80
The main motor power
KW
3.0
Rotate Speed
giri/min
30-60
Largest Opening of Pincers
mm
160
Saw Blade Size
mm
350
Weight
KG
350
5. Configuration
a) Hydraulic pump: made in Taiwan
Hydraulic valve of the Taiwan original imports
Cylinder: Shanghai
b) Electronic parts
Motor: made in Taiwan
Button Switch: made in Taiwan
Photoelectric switches and Electrical: made in Taiwan
