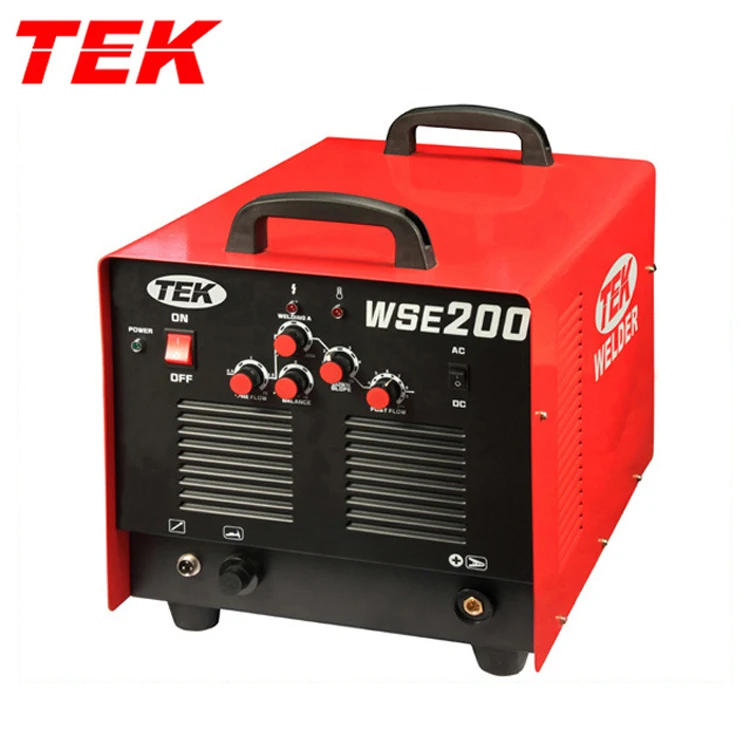

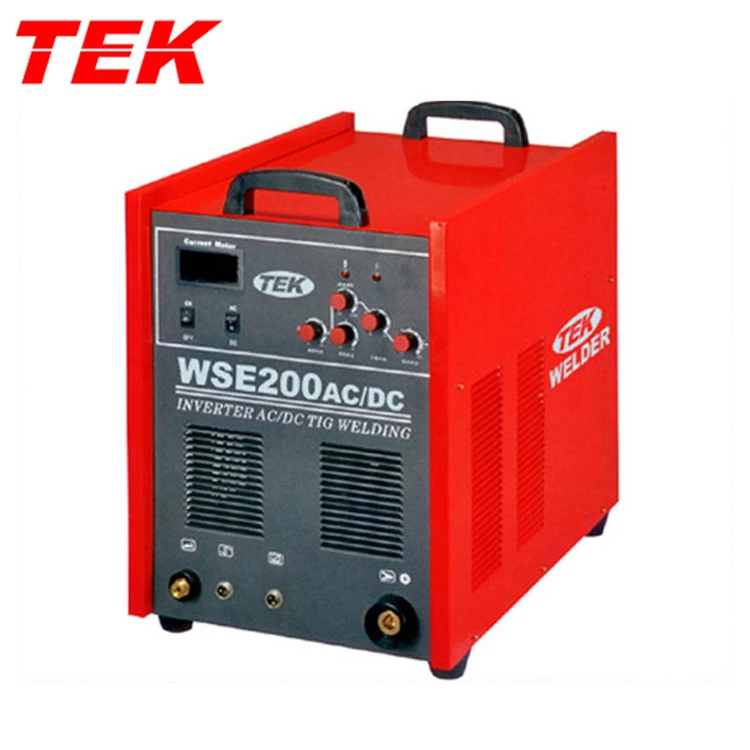

WSE 200 WSE200 AC/DC Square Wave Inverter Argon Shield Torch TIG Aluminium Welding Machine OEM

Product Overview

Description

WSE-200 WSE200 AC/DC Square Wave Inverter Argon Shield Torch TIG Aluminium Welding Machine OEM



Feature and Application

1.Double inverter controll the output electric wave, arc is stable, excellent square wave power, reduce the cost of welding and rise the quality.

2.The multipurpose welding machines in the series can be operated for DC TIG, AC TIG, pulse TIG welding processes.

3.High inverter frequency,high efficiency,low noise.

4.High frequency and high voltage arc initiating,high success rate.

5.With the perfect automatic protect functions of over pressure,over heat, over power, over load and lack of pressure, safty and reliable.

6.DC TIG, be able to weld stainless steel, alloy steel, carbon steel, copper and titanium metal etc. AC TIG, be able to weld aluminum and aluminum-alloy.



Technical specifications
Model	WSE-200 WSE200 AC/DC Square Wave
Imput Voltage	AC.(single Phase)110V~240V±15%50Hz
Rated input power capacity	4.5KW
No-load voltage rated	56V
Regulation of output current	20-200A
Rated output coltage	18V
Duty cycle	60%
Arc-sarting	HF
Efficiency	85%
Power factor	0.93
Insulation class	B
Weight	20.5Kg
Overall dimension	500*300*360mm
Protection class of case	IP21
Pre-flow	0-2S
Clean width	20-80%
Down-slope time	0-5S
Pastflow time	2-10S
Remote control	No
Max welding thichness with AC	3mm
